Silver 12.1 inch IP65 panel PC with resistive touchscreen and fanless aluminium housing

partaker

partaker A2 12.1" IP65 Panel PC J6412 16GB 512GB

SKU CH-BH90-3MH6C

A 12.1" IP65 industrial panel PC with Intel Celeron J6412, 16GB DDR4, 512GB SATA SSD, resistive touchscreen and fanless aluminium chassis

  • Form FactorAll-in-One
  • ColorSilver
  • Operating SystemWindows 10 Pro
  • CPU TypeCeleron
  • CPU Name2.00GHz
  • GPU/VGA TypeIntel UHD Graphics

Memory Capacity 16GB DDR4

SSD 512GB

HDD None

  • 1TB
  • None

Struck-through versions exist but are not stocked here.

  • IP65 front panel resists dust and water ingress
  • 1 inch TFT LED display with 1024 x 768 resolution
  • Intel Celeron J6412 up to 2.60 GHz for industrial workloads
  • 16GB DDR4 memory expandable to 32GB via SODIMM slot
  • 512GB SATA SSD with additional 2.5 inch SATA bay for storage growth

Industrial 12.1" IP65 Panel PC with J6412

This 12.1 inch TFT LED panel computer combines an Intel Celeron J6412 processor, 16GB DDR4 memory and a 512GB SATA SSD in a fanless aluminium chassis. The front panel meets IP65 protection and uses a high-temperature 5-wire resistive touchscreen. Windows 10 Pro is pre-installed for immediate deployment.

Suited for embedded automation

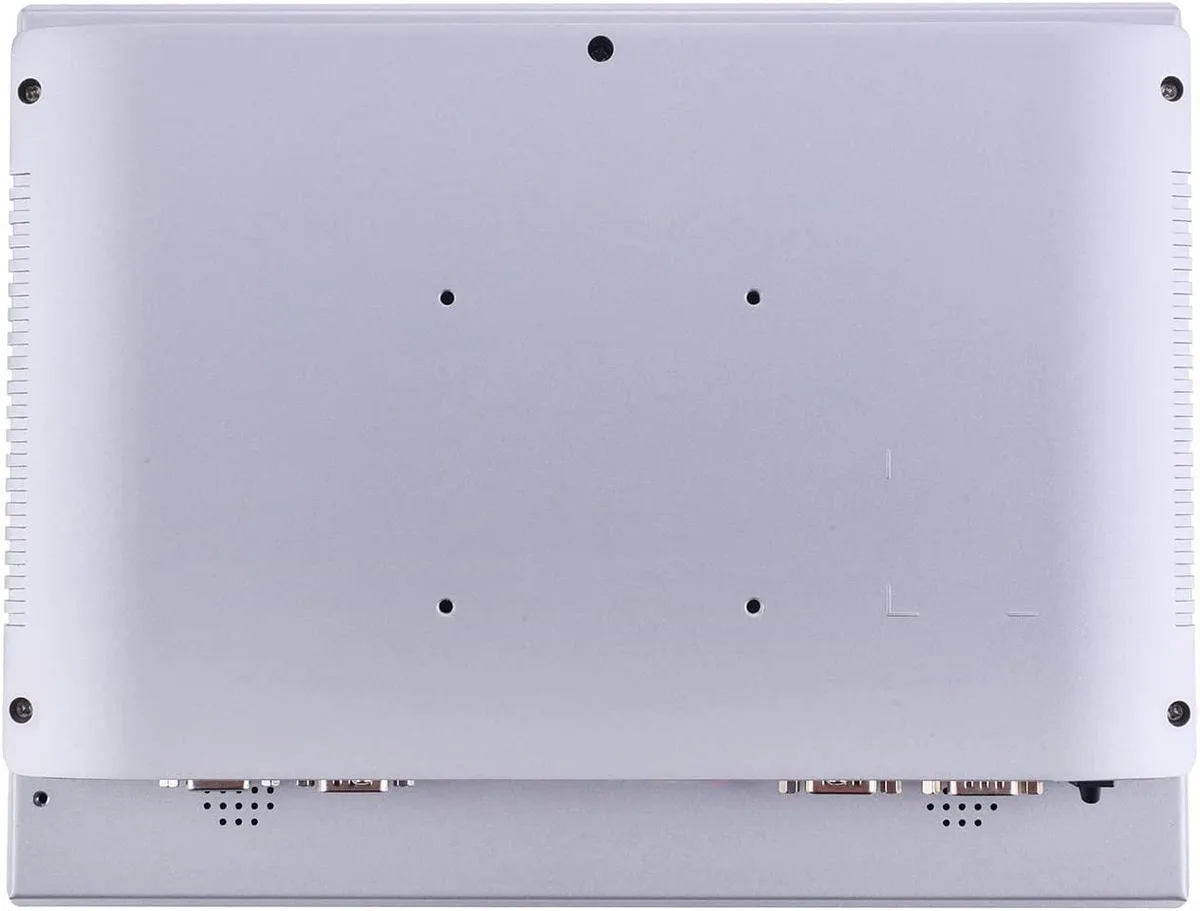

The unit operates from 0 to 50 °C with SSD storage and offers dual LAN, three COM ports, four USB 3.0 ports and HDMI output. VESA 75 mounting and embedded buckle kits support panel, wall, desktop or cantilever installation. Buyers who need a larger screen, a wider temperature range, or more than 32GB maximum RAM should consider other platforms.

Deciding spec: 12.1" IP65 resistive touchscreen

The 1024 x 768 display delivers 350 cd/m² brightness, 1000:1 contrast and 80° viewing angles in all directions. The resistive layer is rated for 200 million touches and 86 % transmittance at 550 nm. If the application demands a capacitive multi-touch panel or a higher native resolution, this model will not fit.

Highlights

  • IP65 front panel resists dust and water ingress
  • 1 inch TFT LED display with 1024 x 768 resolution
  • Intel Celeron J6412 up to 2.60 GHz for industrial workloads
  • 16GB DDR4 memory expandable to 32GB via SODIMM slot
  • 512GB SATA SSD with additional 2.5 inch SATA bay for storage growth

Specifications

ModelA2-PA-121TPC-CE5B(J64)-16G512G
Form FactorAll-in-One
ColorSilver
Operating SystemWindows 10 Pro
CPU TypeCeleron
CPU Name2.00GHz
GPU/VGA TypeIntel UHD Graphics
Memory Capacity16GB DDR4
SSD512GB
HDDNo
Screen Size12.1"
TouchscreenYes

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What power source is needed to run the 12.1" J6412 panel PC?

The unit requires a 12 V DC input; an AC-to-DC adapter (100-240 V, 50-60 Hz) and power cord are included in the box.

Will the HDMI output drive a legacy monitor that only accepts 1024 x 768?

Yes. The panel's native resolution is 1024 x 768, so the HDMI port can feed that exact timing to an older display without scaling.

How can I verify the resistive touch layer is registering input after installation?

Touch the screen with a gloved finger or stylus; the cursor should move instantly and the touch-count rating is 200 million operations.
