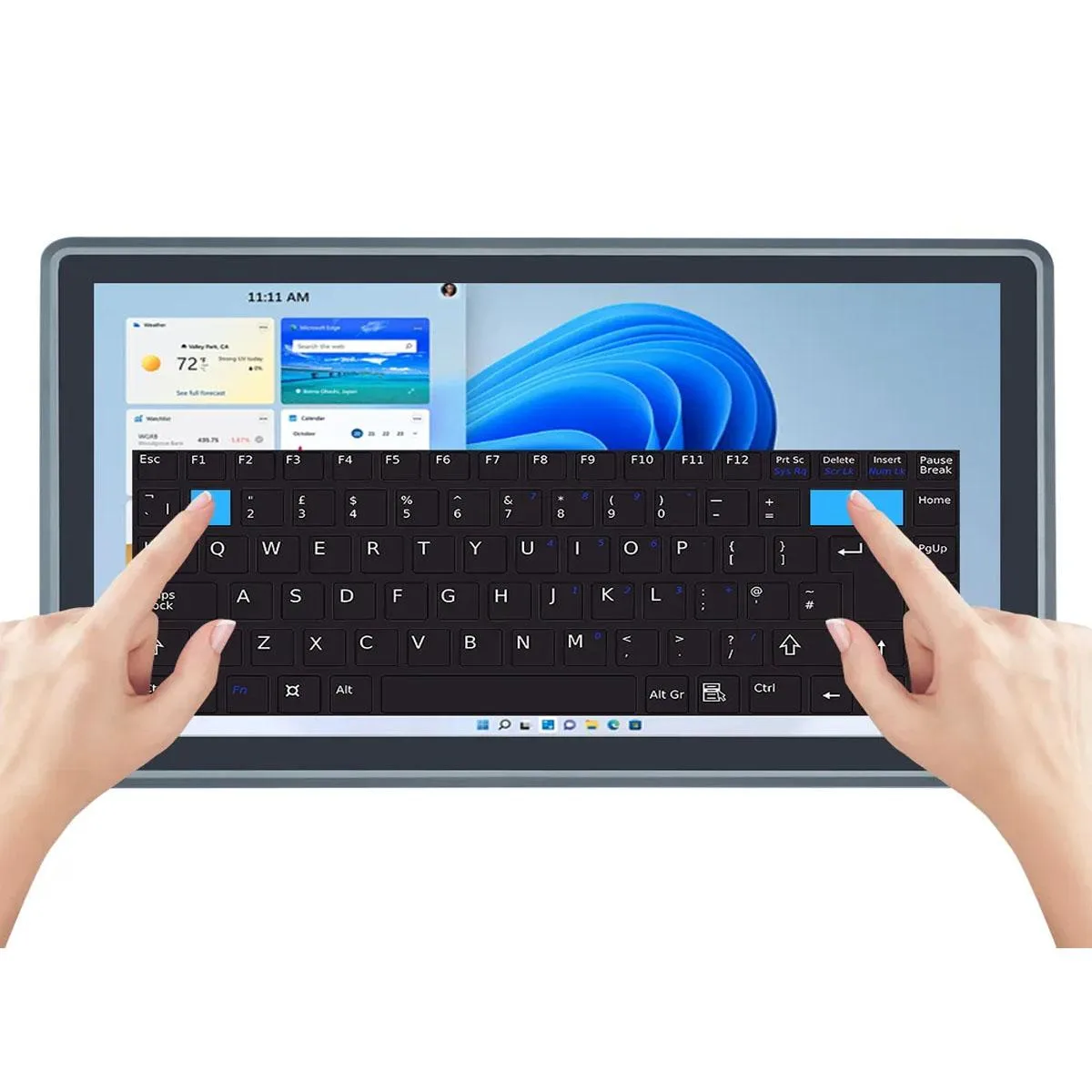

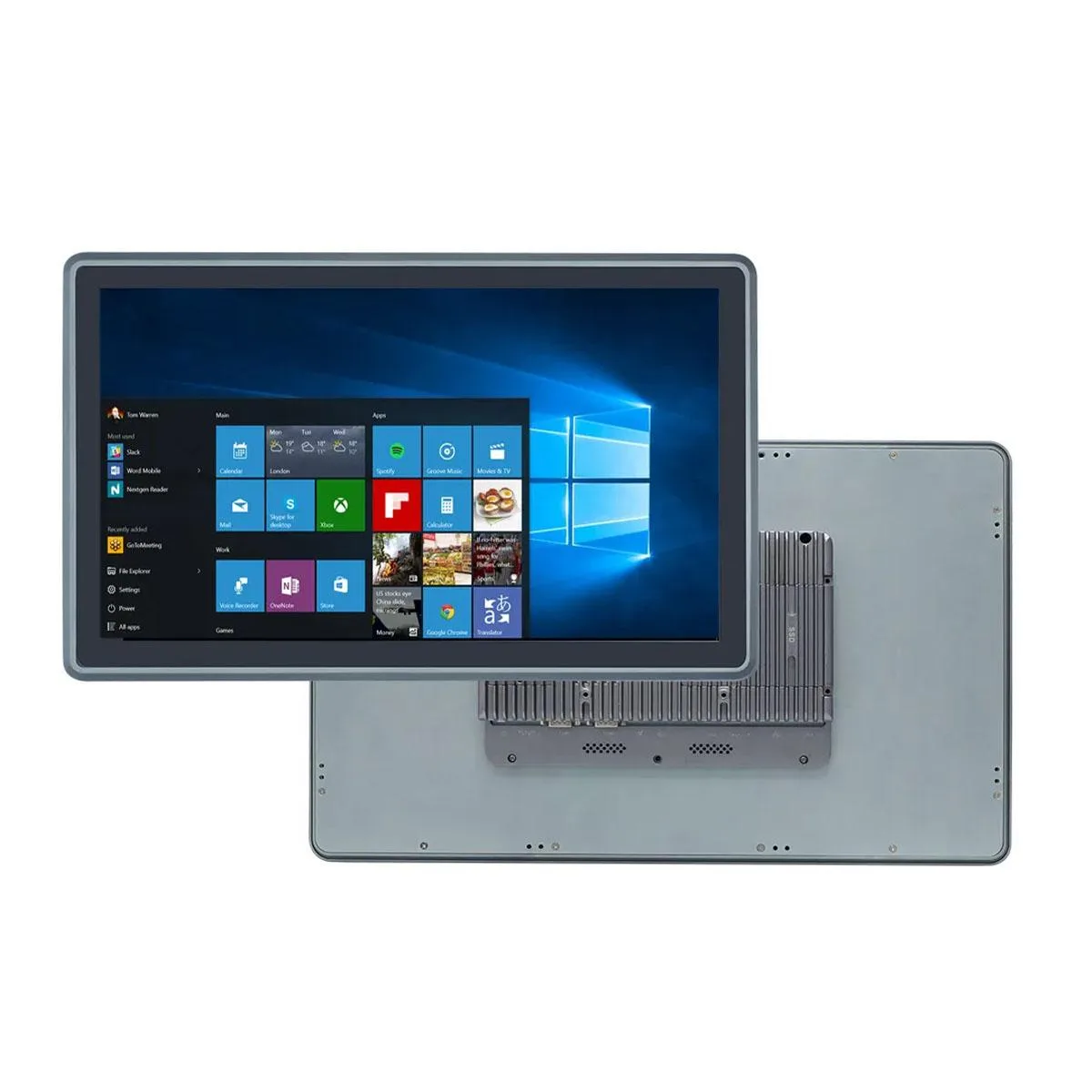

Gray 21.5-inch fanless all-in-one with flat IP65 touchscreen and aluminum chassis

partaker

Partaker A22 21.5" all-in-one PC i5-8265U 16GB DDR4 256GB SATA

SKU CH-1BBV-H0X9T

21.5" IP65 front-panel all-in-one with i5-8265U, 16GB DDR4, 256GB SATA SSD, multi-touch screen, 2×COM, HDMI, dual LAN and 9-36V Phoenix power

  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 8th Gen
  • CPU NameIntel Core i5-8265U
  • GPU/VGA TypeIntel UHD Graphics 620

Memory Capacity 16GB DDR4

SSD 256GB

  • IP65 front protection for dust and water resistance
  • Fanless aluminium alloy cooling for silent 24/7 operation
  • 5" Full HD capacitive touch screen with 1920x1080 resolution
  • Versatile I/O including 2x COM, 2x LAN, HDMI and 4x USB 3.0
  • 9-36V Phoenix power input supports wide voltage range

Industrial panel PC for 24/7 deployment

The Partaker A22 is a 21.5 inch all-in-one computer with an IP65-rated front panel and fanless aluminium cooling. It runs on an Intel Core i5-8265U processor with Intel UHD Graphics 620 and ships with Windows 11 Pro pre-installed. The unit is built for embedded installation in industrial environments requiring silent, continuous operation.

16 GB DDR4 and 256 GB SATA SSD capacity

The system includes 16 GB of DDR4-2400 memory in a single SODIMM slot, expandable to 32 GB for heavier multitasking. A 256 GB M.2 2280 SATA SSD provides the primary storage, with an additional 2.5 inch SATA bay available for a second drive. Memory and storage headroom suit typical HMI, SCADA and edge-gateway workloads.

Upgrades from legacy panel PCs

This model replaces older fan-based or non-IP-rated all-in-one units where dust ingress or acoustic noise caused downtime. The wide 9-36 V Phoenix power input simplifies migration in cabinets with existing DC bus infrastructure. The jump is worth it when a project demands full-flat capacitive touch, dual Intel LAN and serial ports without adding external adapters.

Highlights

  • IP65 front protection for dust and water resistance
  • Fanless aluminium alloy cooling for silent 24/7 operation
  • 5" Full HD capacitive touch screen with 1920x1080 resolution
  • Versatile I/O including 2x COM, 2x LAN, HDMI and 4x USB 3.0
  • 9-36V Phoenix power input supports wide voltage range

Specifications

ModelA22-I5 8260U-N-16G256G
Form FactorAll-in-One
ColorGray
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 8th Gen
CPU NameIntel Core i5-8265U
GPU/VGA TypeIntel UHD Graphics 620
Memory Capacity16GB DDR4
SSD256GB
HDDNo
Screen Size21.5"
TouchscreenYes

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Can the 21.5" IP65 panel run 24/7 alongside my existing COM-based PLCs?

Yes, the fanless aluminium chassis is rated for 0 to 50 °C commercial or -20 to 60 °C industrial use and provides two COM ports supporting RS232, RS422 and RS485 for direct PLC integration.

How do I verify the Core i5-8265U and Intel UHD 620 are performing correctly after installation?

Open Windows 11 Pro Task Manager, confirm 16 GB DDR4-2400 memory and the 256 GB M.2 SATA SSD are detected, then run a GPU stress test to validate the Intel UHD 620 graphics.

Does the box include the 12 V 5 A AC adapter and the 9-36 V Phoenix power connector, or must I source them separately?

The package supplies the 100-240 V AC to 12 V 5 A adapter and the 2-pin Phoenix plug for 9-36 V DC input; mounting brackets are also included, while Mini PCIe WiFi or 4G modules are optional extras.
