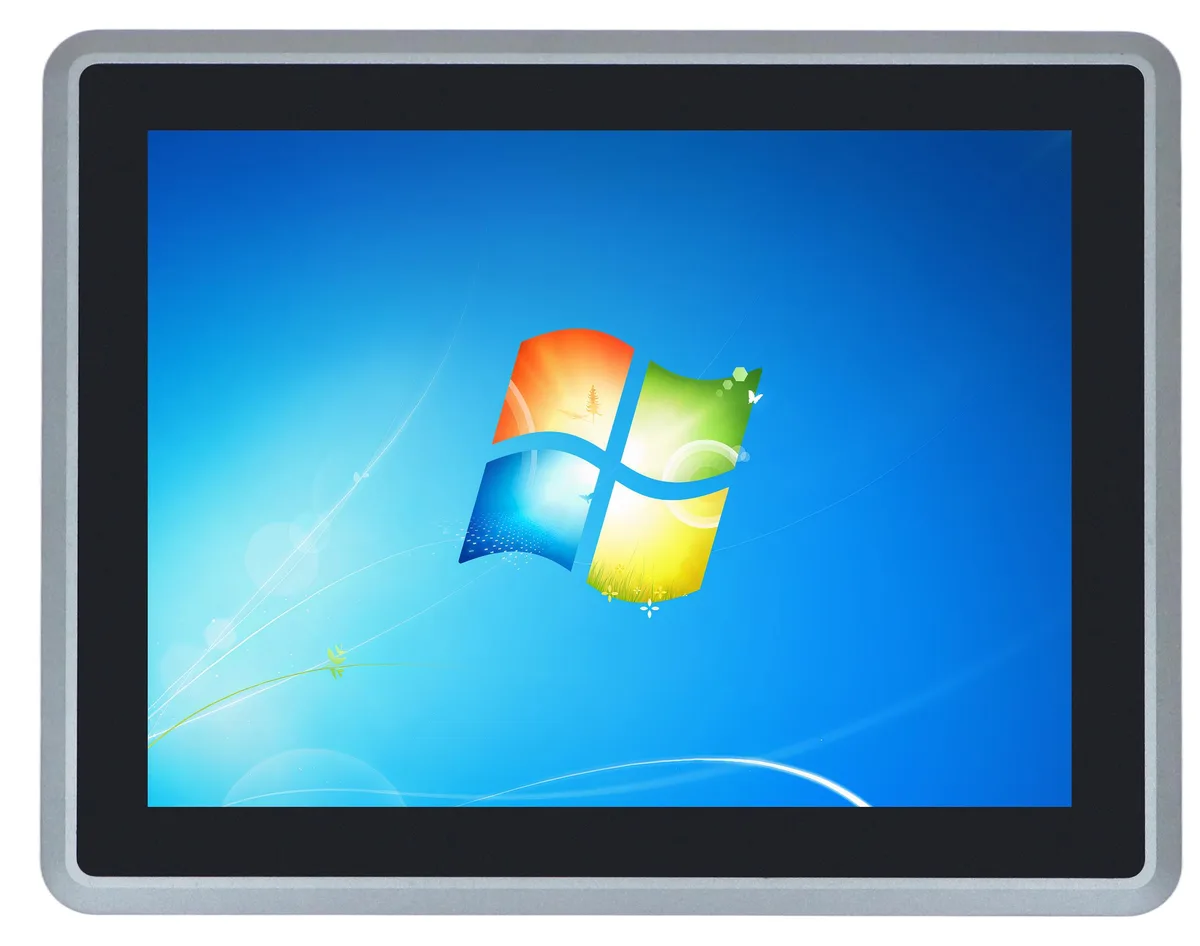

Gray 12.1 inch fanless industrial panel PC with capacitive touch screen and aluminum alloy chassis

partaker

Partaker A26 12.1" AI edge system i5-7200U 16GB 256GB

SKU CH-08Z7-KP47B

Fanless 12.1-inch industrial panel PC with capacitive touch, Intel Core i5-7200U, 16GB DDR4 and 256GB storage

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i5 7th Gen
  • CPU NameIntel Core i5-7200U

A26 12.1" Capacitive I5 7200U 16GB RAM / 256GB SSD

  • Silent operation with fanless aluminium chassis
  • 1-inch IP65 capacitive multi-touch display
  • Intel Core i5-7200U up to 3.10 GHz
  • 16GB DDR4 and 256GB mSATA storage
  • Dual Gigabit LAN plus four USB and two COM ports

12.1-inch Fanless Industrial Panel PC

This 12.1-inch all-in-one system combines an Intel Core i5-7200U processor with 16GB of DDR4 memory and a 256GB mSATA drive. It runs Windows 10 Pro on a capacitive multi-touch XGA display rated at 450 cd/m2 brightness. The fanless aluminum alloy chassis carries an IP65 front rating for dust and water resistance in harsh environments. It targets automation engineers and integrators who need a compact, sealed touch interface for machine control or visualization.

Dual Gigabit Ethernet and legacy COM ports

Two Realtek Gigabit LAN ports support network wake-up and PXE boot for reliable factory networking. Two configurable RS232/485 COM ports connect directly to PLCs, sensors or legacy serial equipment without adapters. Four USB ports and an HDMI output handle peripherals and a second display. Two mini-PCIe slots accept optional Wi-Fi, Bluetooth or 4G modules with a SIM holder for wireless expansion.

Embedded or VESA mount with 12V DC input

Installation uses a 298.5 by 237mm panel cutout for embedded mounting or standard VESA brackets for arm or wall mounting. The unit operates on a standard 12V DC supply; a wide-range 9 to 36V DC input is a custom option not included by default. Buyers who need GPIO, extra COM or extra USB ports must order those as customizations because the standard shipment omits them.

Highlights

  • Silent operation with fanless aluminium chassis
  • 1-inch IP65 capacitive multi-touch display
  • Intel Core i5-7200U up to 3.10 GHz
  • 16GB DDR4 and 256GB mSATA storage
  • Dual Gigabit LAN plus four USB and two COM ports

Specifications

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 10 Pro
CPU TypeIntel Core i5 7th Gen
CPU NameIntel Core i5-7200U
Screen Size12.1"
Screen TypeMulti-Touch Screen

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What does the 3.10 GHz turbo on the i5-7200U actually deliver in a fanless 12.1" panel PC?

The dual-core processor reaches 3.10 GHz under load while the aluminum chassis dissipates heat silently, sustaining performance for industrial visualization without throttling in ambient temperatures up to 60 °C.

How do the dual Gigabit Ethernet ports and RS232/485 COM ports limit real-world throughput?

Each RJ45 port caps at 1 Gbps and the two COM ports switch between RS232 and RS485, so legacy PLCs and modern cameras share the same I/O bracket without extra adapters.

What cut-out and VESA pattern does the IP65 front panel need for embedded mounting?

The embedded cut-out measures 298.5 mm by 237 mm and the rear includes standard VESA holes, allowing flush panel mounting or arm mounting in the same enclosure.
