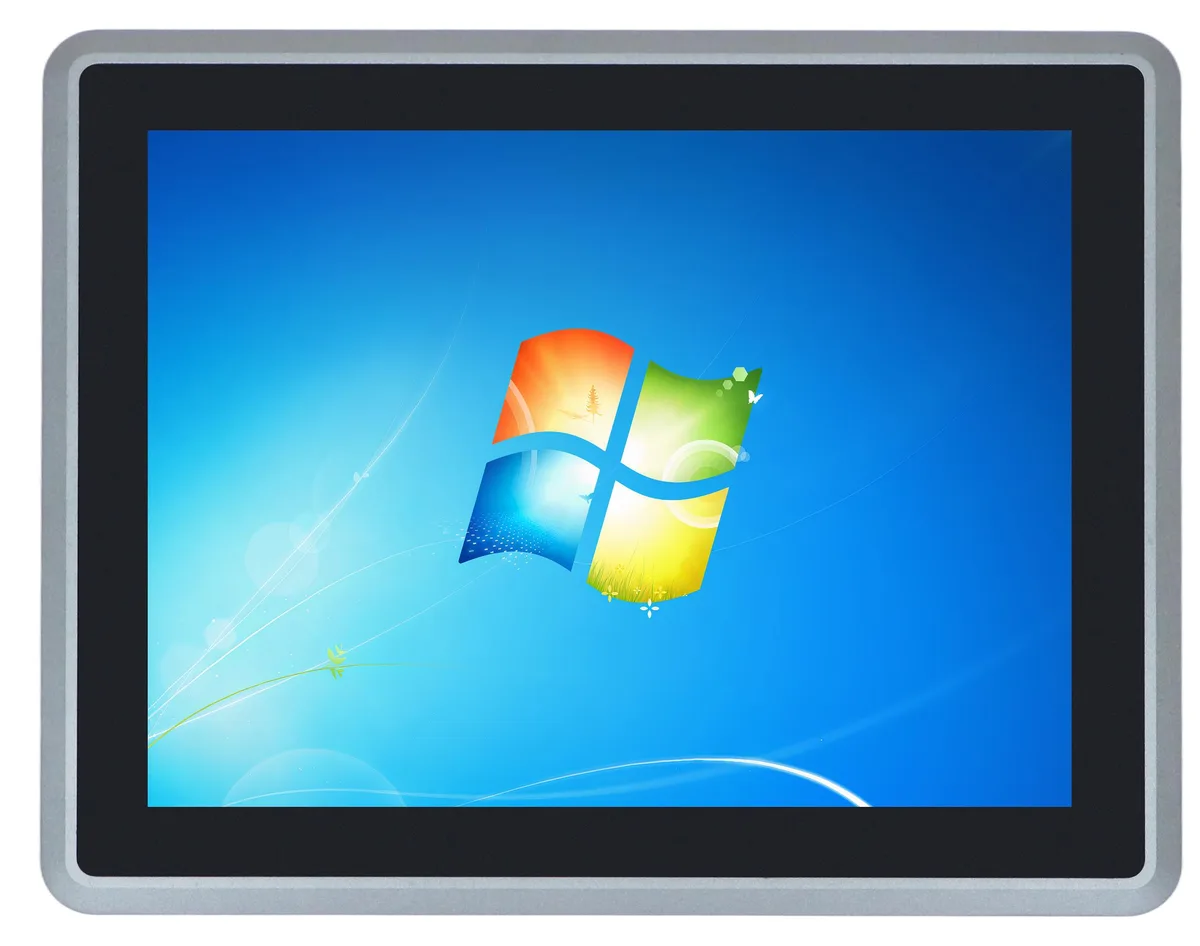

Gray 12.1 inch resistive touch all-in-one PC with aluminum alloy chassis

partaker

partaker A26 12.1" Resistive Touch Panel PC i5-7200U 16GB 512GB

SKU CH-WJKF-YJCSE

A 12.1-inch resistive touch panel PC with IP65 front protection, fanless aluminum chassis, Intel Core i5-7200U, 16GB DDR4, 512GB storage, dual LAN, HDMI, two COM ports and four USB ports

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i5 7th Gen
  • CPU NameIntel Core i5-7200U

A26 12.1" Resistive I5 7200U 16GB RAM / 512GB SSD

  • 1" resistive touch screen rated for 50 million touches
  • fanless aluminium alloy chassis runs silently in dusty conditions
  • IP65 front panel resists water and dust ingress
  • dual Gigabit LAN plus four USB and two COM ports for industrial I/O
  • Intel Core i5-7200U with 16 GB DDR4 and 512 GB storage powers automation tasks

Industrial Panel PC for Control Systems

The Partaker A26 is a 12.1-inch all-in-one panel PC built around an Intel Core i5-7200U processor with 16GB of DDR4 memory and a 512GB mSATA drive. Its resistive TFT-LCD touch screen delivers 1024x768 resolution at 450 cd/m² brightness, suited for industrial interfaces and machine-control tasks. An IP65-rated front panel and fanless aluminium chassis allow deployment in dusty or wet production areas.

Fanless Thermal Design and Low Power Draw

The sealed aluminium housing dissipates heat without moving parts, so the system runs silently and avoids dust ingestion. A standard 12V DC input powers the unit, while an optional 9-36V wide-range input can be configured for unstable supply lines. Dual Realtek Gigabit Ethernet ports, two configurable RS232/485 COM ports, four USB ports, HDMI and audio connect PLCs, HMIs and sensors without extra adapters.

Sustained Load Behaviour in Harsh Environments

The i5-7200U dual-core processor maintains its 3.10 GHz turbo ceiling during long visualisation or data-logging sessions because the fanless chassis spreads heat across the full alloy surface. The resistive touch layer is rated for 50 million actuations, and the watchdog timer offers 0-255 level supervision for unattended operation. Memory can be expanded to 32GB DDR4 via two slots, and two Mini PCIe bays accept Wi-Fi, 4G or additional I/O modules for future upgrades.

Highlights

  • 1" resistive touch screen rated for 50 million touches
  • fanless aluminium alloy chassis runs silently in dusty conditions
  • IP65 front panel resists water and dust ingress
  • dual Gigabit LAN plus four USB and two COM ports for industrial I/O
  • Intel Core i5-7200U with 16 GB DDR4 and 512 GB storage powers automation tasks

Specifications

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 10 Pro
CPU TypeIntel Core i5 7th Gen
CPU NameIntel Core i5-7200U
Screen Size12.1"
Screen TypeMulti-Touch Screen

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How is the Partaker A26 installed and what embedded mounting cutout size is required?

The panel PC supports embedded mounting with a 298.5x237mm cutout and VESA standard mounting. The step often missed is verifying the exact cutout dimensions before panel fabrication to ensure the IP65 front seal sits flush.

What maintenance or replacement will the resistive touch screen need over its lifetime?

The resistive touch screen is rated for up to 50 million touches. In heavy industrial use the surface may wear sooner, requiring a panel replacement to restore full sensitivity and IP65 integrity.

What thermal or power limit appears first during sustained full-load operation?

The fanless aluminum chassis relies on passive cooling; under continuous load the i5-7200U will hit its thermal ceiling first, causing throttling before the 12V or optional 9-36V DC input reaches its current limit.
