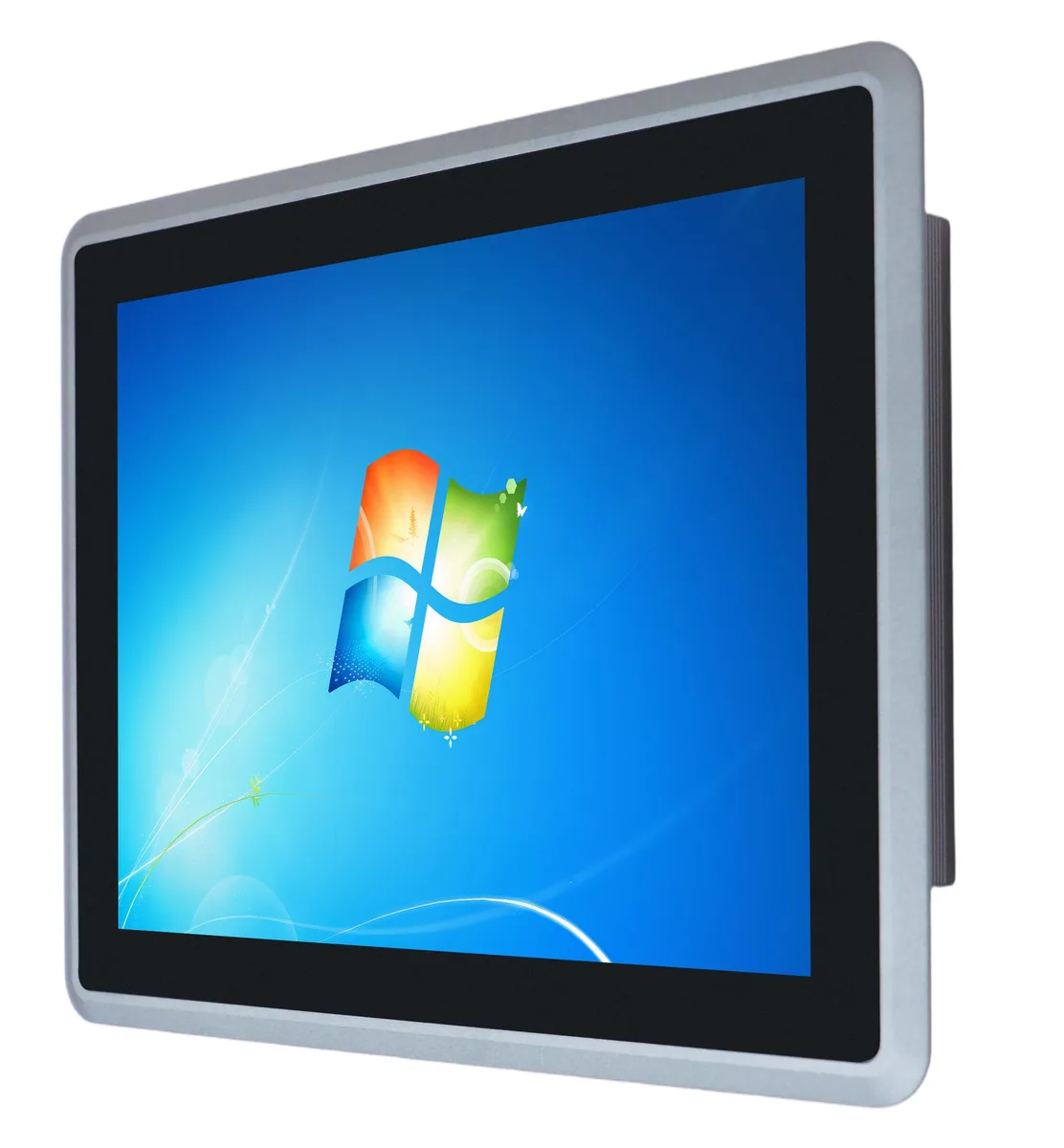

Gray 12.1 inch fanless all-in-one panel PC with capacitive touch screen

partaker

partaker A26 AI edge system Intel Core i3-5005U 12.1" 8GB 256GB

SKU CH-69FJ-JBKVD

A 12.1-inch fanless industrial panel PC with an IP65-rated capacitive touchscreen, Intel Core i3-5005U processor, 8 GB DDR3 memory, 256 GB mSATA storage, dual Gigabit LAN, HDMI, two COM ports.

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i3 5th Gen
  • CPU NameIntel Core i3-5005U

A26 12.1" Capacitive I3 5005U 8GB RAM / 256GB SSD

  • Fanless aluminium alloy chassis runs silently in dusty environments
  • IP65-rated front panel resists water and dust ingress
  • Intel Core i3-5005U dual-core processor at 2.00 GHz with up to 16 GB DDR3 memory
  • 1-inch capacitive multi-touch display at 1024×768 resolution and 450 cd/m² brightness
  • Dual Gigabit Ethernet ports plus two RS232/485 COM ports for industrial connectivity

Industrial Panel PC for Automation

The Partaker A26 is a 12.1-inch fanless all-in-one system built around an Intel Core i3-5005U dual-core processor running at 2.00 GHz. It ships with 8 GB of DDR3 memory and a 256 GB mSATA drive, running Windows 10 Pro out of the box. The IP65-rated capacitive touchscreen and aluminium alloy chassis target factory-floor HMIs, SCADA clients and edge gateway roles where silence and dust resistance matter.

Sustained Load Behaviour

Passive cooling across the sealed aluminium shell keeps the CPU at its 2.00 GHz base clock without throttling during long shifts. The 450 cd/m² panel remains readable under bright plant lighting, and the SSD tolerates operating temperatures from -20 to +60 °C. Dual Realtek Gigabit ports with PXE and watchdog timers (0–255 levels) maintain network heartbeats and automatic recovery if a process hangs.

Installation and Common Pitfalls

Embedded mounting requires a precise 298.5 x 237 mm cutout, while VESA brackets offer an alternative. Only 12 V DC is supplied as standard; the optional 9–36 V wide-range input must be specified at order time. Expansion is limited to two Mini PCIe slots and a single mSATA bay, so additional serial ports, GPIO or wireless modules need the factory-customised variants.

Highlights

  • Fanless aluminium alloy chassis runs silently in dusty environments
  • IP65-rated front panel resists water and dust ingress
  • Intel Core i3-5005U dual-core processor at 2.00 GHz with up to 16 GB DDR3 memory
  • 1-inch capacitive multi-touch display at 1024×768 resolution and 450 cd/m² brightness
  • Dual Gigabit Ethernet ports plus two RS232/485 COM ports for industrial connectivity

Specifications

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 10 Pro
CPU TypeIntel Core i3 5th Gen
CPU NameIntel Core i3-5005U
Screen Size12.1"
Screen TypeMulti-Touch Screen

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How quiet and cool does the fanless A26 run during 24-hour operation?

The aluminum-alloy chassis is completely fanless, so it produces no acoustic noise and relies on passive surface airflow to stay within the -20 °C to +60 °C operating range.

What power source must I already have to run the A26?

The unit ships with a standard 12 V DC input; a wide-range 9 V to 36 V DC option is available as a customisation if your facility uses that voltage span.

Can the A26 drive a legacy VGA monitor alongside its built-in 12.1-inch panel?

The A26 provides one HDMI port and an internal LVDS link already used for the integrated display; no VGA output is present, so a VGA monitor would require an active HDMI-to-VGA adapter.
