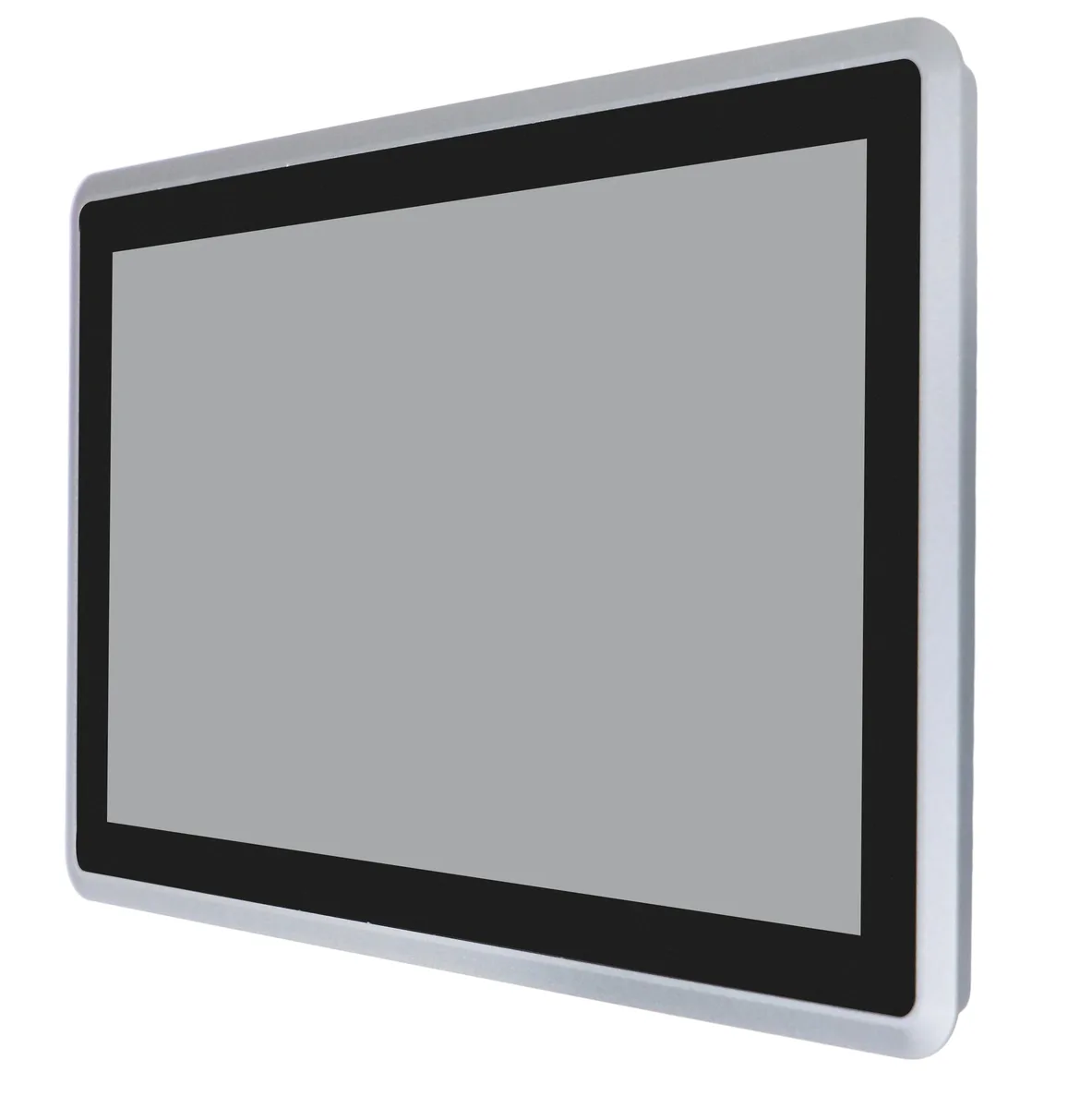

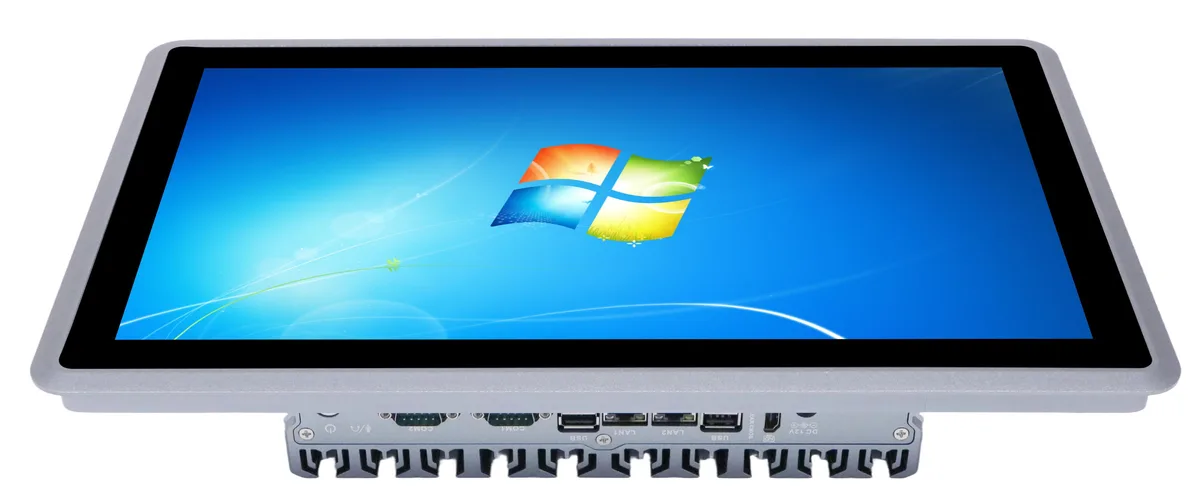

Gray 15.6 inch all-in-one panel PC with resistive touchscreen and aluminum alloy chassis

partaker

Partaker A28 15.6" AI edge system i3-5005U 8GB 256GB resistive touch

SKU CH-Y9KN-PGPYP

A 15.6-inch resistive touch panel PC with an Intel Core i3-5005U, 8GB DDR3 and 256GB storage, built fanless in an IP65-rated aluminium chassis for embedded industrial use

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i3 5th Gen
  • CPU NameIntel Core i3-5005U

A28 15.6" Resistive I3 5005U 8GB RAM / 256GB SSD

Struck-through versions exist but are not stocked here.

  • Full HD 1920x1080 display on a 15.6" panel for sharp industrial visuals
  • Fanless aluminium-alloy chassis enables silent, maintenance-free operation in harsh environments
  • IP65-rated front panel resists dust and water ingress for reliable embedded mounting
  • Dual Gigabit LAN plus four USB and dual COM ports provide extensive industrial connectivity
  • Wide 9-36 V DC input and -20 to +60 °C range suit demanding power and temperature conditions

Industrial Panel PC for Edge Deployments

The Partaker A28 is a 15.6 inch all-in-one industrial panel PC built around an Intel Core i3-5005U processor running at 2.00 GHz with 8GB of DDR3 memory and a 256GB mSATA SSD. It ships with Windows 10 Pro and features a Full HD 1920x1080 TFT-LCD at 400 cd/m2 brightness protected by an IP65-rated resistive touchscreen rated for 50 million touches. The fanless aluminum chassis operates silently from -20 to +60 °C on 12V DC with optional 9-36V wide-range input.

Replaces Older Panel PCs Lacking Dual LAN

This unit upgrades legacy panel PCs that offer only a single network port, limited serial connectivity, or no mini PCIe slots for wireless modules. The jump is worth it when an application requires dual Realtek Gigabit LAN for redundancy, two configurable RS232/485 COM ports expandable to six, and two mini PCIe slots for Wi-Fi, Bluetooth, or 3G/4G integration. It also supersedes systems without watchdog timer support or dual-display capability via HDMI and internal LVDS.

Embedded Mounting with Standard Cutout and Simple

Installation uses a standard 385x234.3 mm panel cutout for embedded mounting, securing the IP65 front panel against dust and water ingress. The fanless design removes filter maintenance, and the 12V DC input (customizable to 9-36V) simplifies wiring in industrial cabinets. What usually goes wrong is neglecting to verify the cutout dimensions before fabrication, overlooking the need for a SIM card holder when adding cellular modules, or exceeding the 16GB DDR3 memory limit across the two slots.

Highlights

  • Full HD 1920x1080 display on a 15.6" panel for sharp industrial visuals
  • Fanless aluminium-alloy chassis enables silent, maintenance-free operation in harsh environments
  • IP65-rated front panel resists dust and water ingress for reliable embedded mounting
  • Dual Gigabit LAN plus four USB and dual COM ports provide extensive industrial connectivity
  • Wide 9-36 V DC input and -20 to +60 °C range suit demanding power and temperature conditions

Specifications

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 10 Pro
CPU TypeIntel Core i3 5th Gen
CPU NameIntel Core i3-5005U
Screen Size15.6"
Screen TypeMulti-Touch Screen

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What panel cutout dimensions are required for embedded mounting?

The unit fits a standard 385x234.3 mm cutout for secure embedded installation.

How do you configure the COM ports for RS232 or RS485, and what is the common mistake?

COM1 and COM2 are configurable via BIOS or jumper; the common mistake is leaving them at the default RS232 setting when the device requires RS485.

When will the resistive touchscreen need replacement based on its rated life?

The resistive screen is rated for up to 50 million touches; replacement depends on usage intensity and environmental conditions.
