15.6 inch IP65 all-in-one panel PC with resistive touchscreen and fanless aluminium chassis

partaker

partaker A7 15.6" IP65 i5-8265U 8GB DDR4 256GB SSD 1TB HDD all-in-one PC

SKU CH-Y039-NYFKF

A 15.6-inch IP65-rated all-in-one panel PC with a resistive touchscreen, Intel Core i5-8265U, 8 GB DDR4, 256 GB SSD and 1 TB HDD for continuous industrial use

  • Form FactorAll-in-One
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 8th Gen
  • GPU/VGA TypeIntel UHD Graphics
  • Memory Capacity8GB DDR4
  • SSD256GB

Memory Capacity 8GB DDR4

SSD 256GB

  • 256GB
  • 512GB
  • 1TB

HDD 1TB

Struck-through versions exist but are not stocked here.

  • IP65 front-panel protection withstands dust and water jets
  • Fanless aluminium-alloy cooling runs silently 24/7
  • Intel Core i5-8265U up to 3.90 GHz handles continuous workloads
  • Dual storage with 256 GB SSD and 1 TB HDD offers speed and capacity

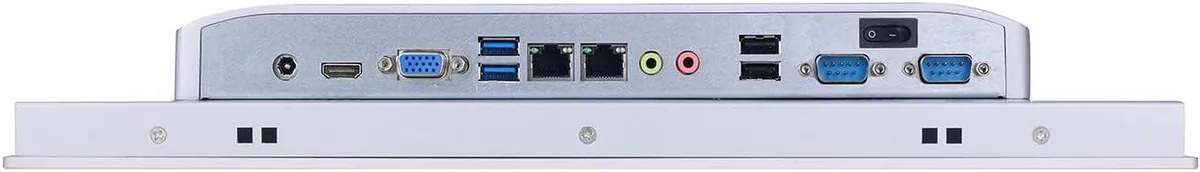

  • Versatile I/O including HDMI, VGA, 2×LAN, 2×COM, USB 3.0/2.0 simplifies integration

15.6" IP65 industrial panel PC

This 15.6 inch all-in-one computer combines an Intel Core i5 8265U processor with 8GB DDR4 memory, a 256GB SSD and a 1TB HDD. The front panel carries IP65 protection and a high temperature 5-wire resistive touch screen running at 1920 x 1080 resolution. Fanless aluminium cooling enables silent 7x24 operation in demanding environments.

Suited for fixed industrial stations needing

Buyers who require wireless connectivity out of the box should look elsewhere as Wi-Fi and 4G need a separate Mini PCIe module and SIM. Systems that must run above 50°C with an SSD or above 40°C with the HDD installed are outside the rated operating range. Applications needing a projected capacitive or multi-touch glass surface will not match the resistive technology provided.

Embedded mounting uses the supplied buckle kits

The panel cut-out measures 386.5 x 236mm for flush installation, while wall, desktop or cantilever mounting is also supported. Memory expansion uses two SODIMM DDR4-2400 slots up to 64GB; storage adds one mSATA, one M.2 2280 NVME or SATA, and one 2.5 inch SATA bay. A watchdog timer with 255 steps and automatic power-on after failure simplify remote management.

Highlights

  • IP65 front-panel protection withstands dust and water jets
  • Fanless aluminium-alloy cooling runs silently 24/7
  • Intel Core i5-8265U up to 3.90 GHz handles continuous workloads
  • Dual storage with 256 GB SSD and 1 TB HDD offers speed and capacity
  • Versatile I/O including HDMI, VGA, 2×LAN, 2×COM, USB 3.0/2.0 simplifies integration

Specifications

ModelA7-PA-156TPC-CE5A(I58)-8G256G1TB
Form FactorAll-in-One
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 8th Gen
GPU/VGA TypeIntel UHD Graphics
Memory Capacity8GB DDR4
SSD256GB
HDD1TB
Screen Size15.6"
TouchscreenYes

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does this panel PC need an external power adapter to run, or is the 12 V DC supply built in?

The unit requires the included 12 V DC power supply that accepts 100–240 V AC at 50–60 Hz; the AC adapter is external and ships in the packing list.

Can I keep using my existing VGA monitor alongside the built-in 15.6" 1920 x 1080 touchscreen?

Yes, the rear I/O includes both HDMI and VGA outputs so you can drive a second display in extended or mirrored mode.

How can I verify the 5-wire resistive touchscreen is registering input correctly after installation?

Open the Windows calibration tool or any touch test utility; each press should register at the exact contact point across the full 1920 x 1080 panel.
