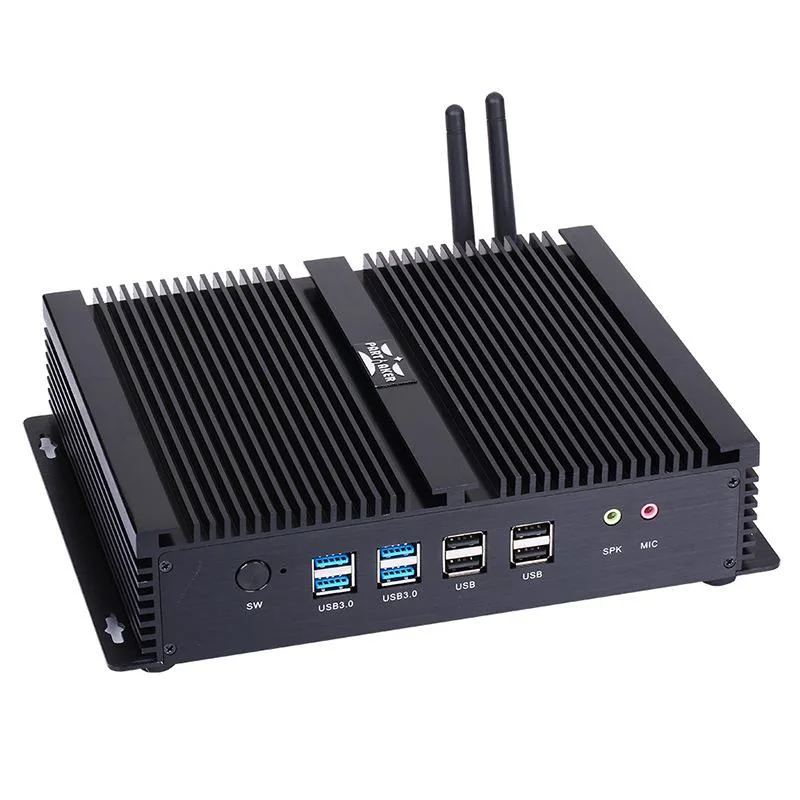

Compact fanless mini PC in black aluminium with mounting ears

partaker

Partaker B-I4-I5-8G240G i5-4200U 8GB DDR3 240GB SSD

SKU CH-S32P-KYQNT

Fanless industrial mini PC with Core i5-4200U, 8GB DDR3, 240GB SSD, dual HDMI, six COM ports and dual Intel Gigabit LAN

  • Form FactorMini PC
  • ColorBlack/Silver
  • CPU TypeIntel Core i5 4th Gen
  • CPU Name1.60GHz
  • GPU/VGA TypeIntel HD Graphics
  • Memory Capacity8GB DDR3

Color Black/Silver

  • Black
  • Black/Silver

Struck-through versions exist but are not stocked here.

CPU Type Intel Core i5 4th Gen

  • Intel Core i5 4th Gen
  • Intel Core i7 4th Gen

Struck-through versions exist but are not stocked here.

CPU Name · GPU · Memory · SSD · HDD 1.60GHz · Intel HD Graphics · 8GB DDR3 · 240GB · None

  • 1.60GHz · Intel HD Graphics · 8GB DDR3 · 240GB · None
  • 1.60GHz · Intel HD Graphics · 8GB DDR3 · None
  • Intel Core i5-4200U · Intel HD Graphics · 4GB DDR3 · 64GB · None
  • Intel Core i5-4200U · Intel HD Graphics · 4GB DDR3 · None
  • Intel Core i5-4200U · Intel HD Graphics · 8GB DDR3 · 1TB
  • Intel Core i5-4200U · Intel HD Graphics · 8GB DDR3 · 512GB · None
  • Intel Core i7-4500U · Intel HD Graphics 4400 · 4GB DDR3 · 64GB · None
  • Intel Core i7-4500U · Intel HD Graphics 4400 · 4GB DDR3 · None
  • Intel Core i7-4500U · Intel HD Graphics 4400 · 8GB DDR3 · 1TB
  • Intel Core i7-4500U · Intel HD Graphics 4400 · 8GB DDR3 · 240GB · None
  • Intel Core i7-4500U · Intel HD Graphics 4400 · 8GB DDR3 · 512GB · None
  • Intel Core i7-4500U · Intel HD Graphics 4400 · 8GB DDR3 · None

Struck-through versions exist but are not stocked here.

  • Fanless design runs silently 24/7
  • Dual Intel Gigabit LAN ports for reliable networking
  • Six COM RS232 ports connect legacy industrial equipment
  • Dual HDMI outputs drive two independent displays
  • Pre-installed Windows 10 Pro ready to deploy

Industrial Mini PC

The Partaker B-I4-I5-8G240G is a fanless industrial desktop powered by an Intel Core i5-4200U processor running at a base frequency of 1.60 GHz with a turbo boost up to 2.60 GHz. It comes configured with 8 GB of DDR3L memory and a 240 GB mSATA SSD. The aluminium chassis measures 175 mm by 210 mm by 45 mm and includes mounting ears for fixed installations.

Automation and legacy I/O deployments

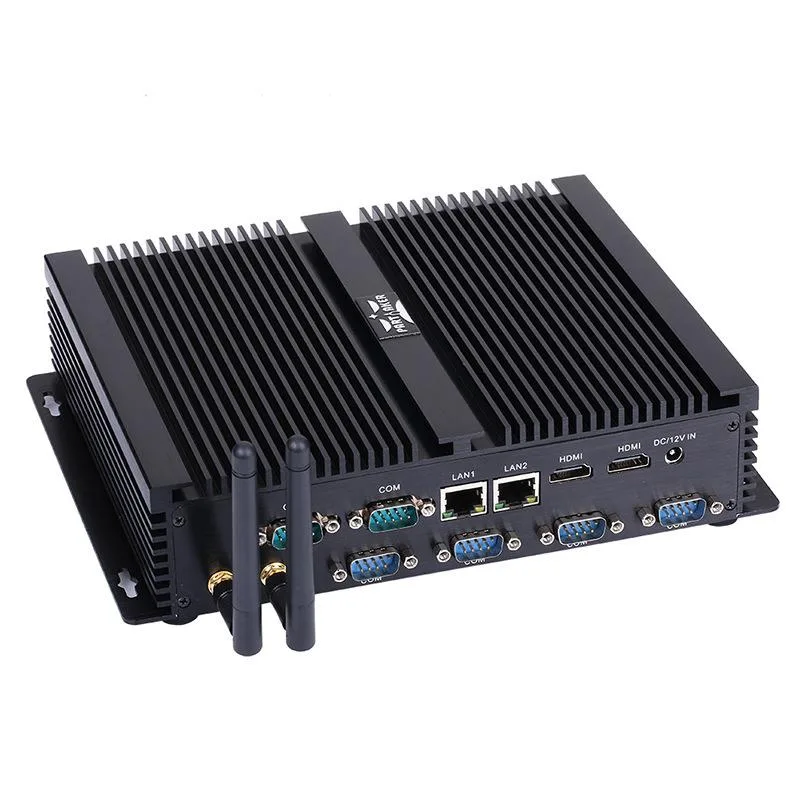

This unit suits integrators who need dual Intel 82574L Gigabit LAN ports, six RS-232 COM ports, and dual HDMI video outputs for parallel display setups. The 12 V DC input draws between 15 W and 25 W under typical load. It is not for workloads that require modern CPU instruction sets or USB-C video outputs.

8 GB DDR3L memory ceiling

The single SO-DIMM slot supports DDR3L at 1333 MT/s or 1600 MT/s with a hard maximum of 8 GB. No additional memory can be added beyond the factory-fitted capacity..storage expansion uses one 2.5-inch bay and one mSATA slot.

Highlights

  • Fanless design runs silently 24/7
  • Dual Intel Gigabit LAN ports for reliable networking
  • Six COM RS232 ports connect legacy industrial equipment
  • Dual HDMI outputs drive two independent displays
  • Pre-installed Windows 10 Pro ready to deploy

Specifications

ModelB-I4-I5-8G240G
Part NumberB-I4-I5-8G240G
Form FactorMini PC
ColorBlack/Silver
CPU TypeIntel Core i5 4th Gen
CPU Name1.60GHz
GPU/VGA TypeIntel HD Graphics
Memory Capacity8GB DDR3
SSD240GB
HDDNo
Screen SizeNo Screen

Questions about this item

Does the B-I4-I5-8G240G ship with the power supply, power cord and Wi-Fi antennas included, or must they be bought separately?

The packing list confirms the industrial PC, power supply, power cord and dual Wi-Fi antennas are all supplied in the box.

Which CPU option should I choose if I need the highest turbo frequency available on this platform?

The i5-4200U reaches 2.60 GHz turbo, higher than the i3-4005U, i3-5005U or i5-5287U options listed for the I4 chassis.

What does the 1.60 GHz base clock mean for everyday performance once the unit is running Windows 10?

The dual-core i5-4200U runs at 1.60 GHz base and boosts to 2.60 GHz, delivering responsive office and light industrial workloads within the 15 W to 25 W fanless envelope.
