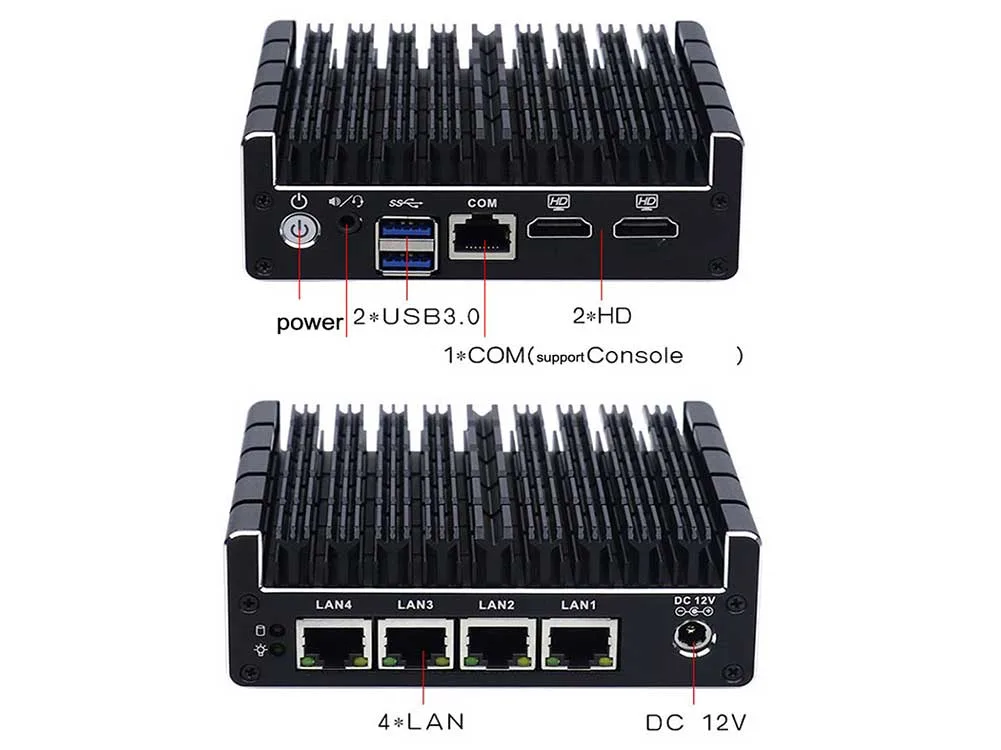

Small black fanless mini PC with four LAN ports

partaker

partaker C4-J3160-4 LAN-2G32G barebone mini PC

SKU CH-T1DC-NCEWF

Fanless mini PC with Intel Celeron J3160 quad-core, 2 GB DDR3L RAM, 32 GB mSATA SSD, and four Intel i211AT gigabit LAN ports

  • TypeBusiness Desktops & Workstations
  • Form FactorMini PC
  • ColorBlack
  • MonitorMonitor not included
  • Operating SystemWindows 7
  • CPU TypeCeleron

Memory Capacity 2GB DDR3

SSD 32GB

  • Fanless design runs silently in noise-sensitive spaces
  • Quad-core Intel Celeron J3160 handles routing and VPN tasks
  • Four Intel i211AT gigabit LAN ports enable multi-WAN firewall setups
  • AES-NI hardware acceleration speeds up encrypted traffic processing
  • Compact 115×107.5×39 mm chassis fits VESA or desktop mounts

Fanless mini PC for network appliances

The Partaker C4-J3160-4 LAN-2G32G is a barebone system built around an Intel Celeron J3160 quad-core processor. It ships with 2GB of DDR3L memory and a 32GB mSATA SSD. Four Intel i211AT gigabit LAN ports make it suitable for firewall, VPN router or network security deployments. The fanless chassis operates silently in embedded or desktop installations.

Passive cooling with 12 V DC input

A fanless design eliminates moving parts and audible noise during normal operation. The unit draws power from a 12 V DC supply with an included AC adapter. Operating temperature range spans -10 °C to 60 °C in non-condensing humidity of 5 % to 95 %. The compact 115 mm by 107.5 mm by 39 mm enclosure supports VESA mounting for space-constrained sites.

Steady throughput under continuous load

Four dedicated gigabit Ethernet controllers maintain wire-speed packet processing without relying on a single shared interface. AES-NI hardware acceleration offloads encryption tasks from the CPU during sustained VPN or firewall workloads. The J3160 runs at a base frequency of 1.6 GHz with a turbo boost up to 2.48 GHz. DDR3L memory can be expanded to 8 GB via the single SODIMM slot.

Highlights

  • Fanless design runs silently in noise-sensitive spaces
  • Quad-core Intel Celeron J3160 handles routing and VPN tasks
  • Four Intel i211AT gigabit LAN ports enable multi-WAN firewall setups
  • AES-NI hardware acceleration speeds up encrypted traffic processing
  • Compact 115×107.5×39 mm chassis fits VESA or desktop mounts

Specifications

ModelC4-J3160-4 LAN-2G32G
Part NumberC4-J3160-4 LAN-2G32G
TypeBusiness Desktops & Workstations
Form FactorMini PC
ColorBlack
MonitorMonitor not included
Operating SystemWindows 7
CPU TypeCeleron
CPU NameIntel Celeron J3160
GPU/VGA TypeIntel HD Graphics
Graphics InterfaceIntegrated video
Memory Capacity2GB DDR3
SSD32GB
HDDNo
Screen SizeNo Screen
LAN Speed10/100/1000Mbps

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

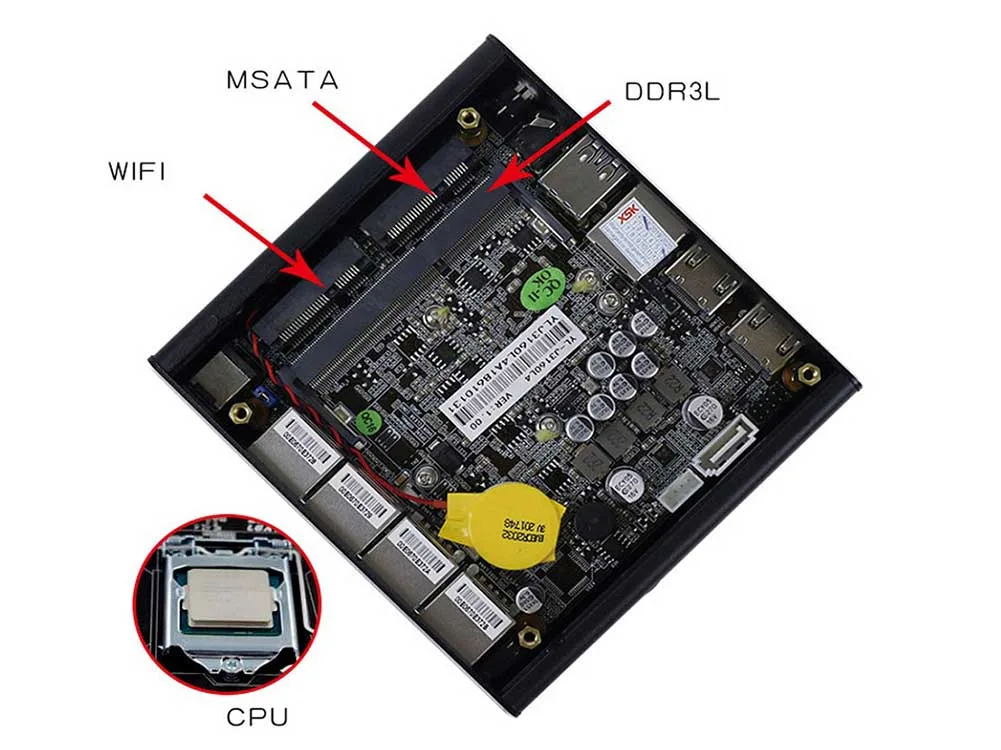

How do I install the DDR3L SODIMM module and what step is often missed?

Insert the DDR3L 1600 MHz SODIMM into the single slot at a 45-degree angle until the clips click; the step often missed is seating it fully before pressing down.

Which components will need replacement first under continuous operation?

The 32 GB mSATA SSD has a finite write endurance and the 2 GB DDR3L module may need upgrading to the 8 GB maximum for heavier loads.

What thermal limit appears first during sustained firewall throughput?

The fanless chassis is rated to 60 °C ambient; sustained 1000 Mbps loads across four Intel i211AT ports can push the Celeron J3160 to its 2.48 GHz turbo ceiling, triggering throttling before the 60 °C case limit.
