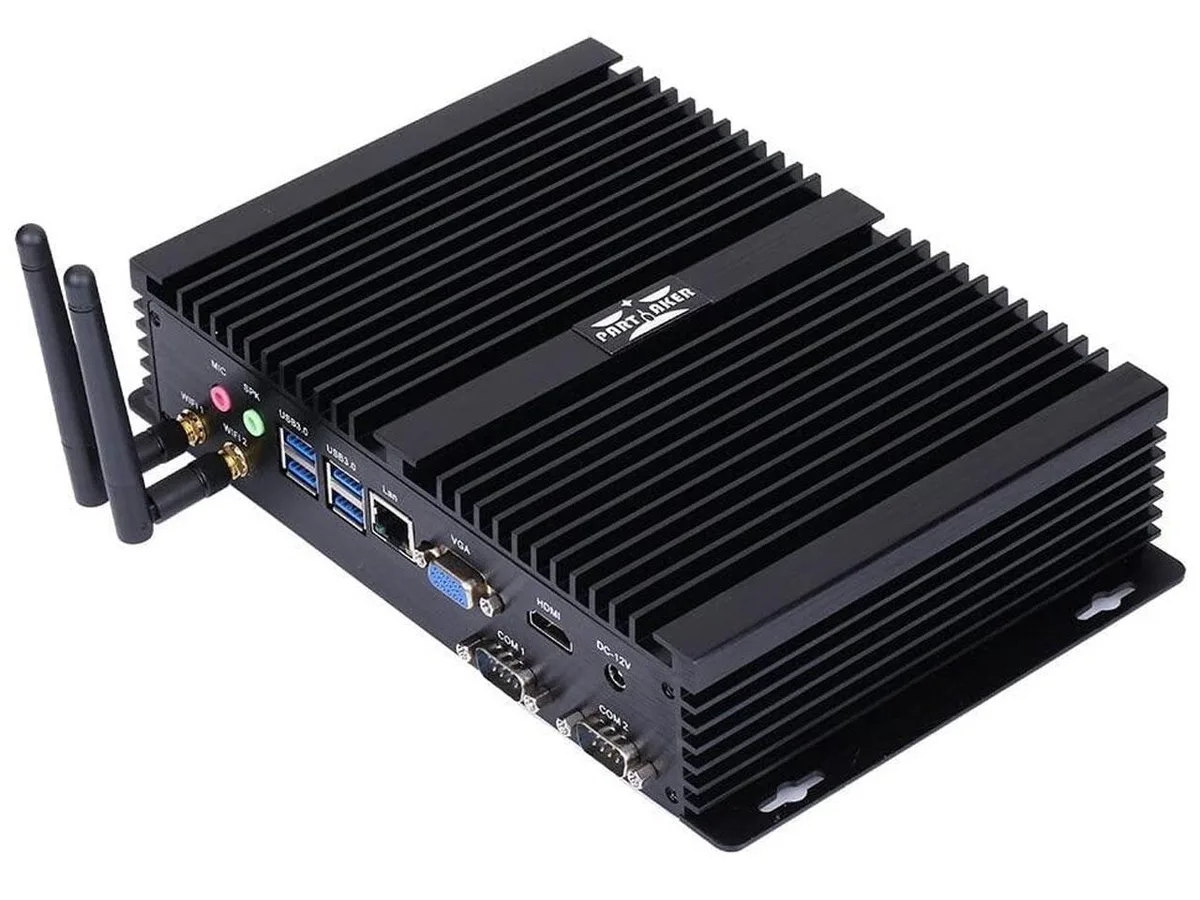

Black fanless aluminium mini PC with mounting ears, compact rectangular shape

partaker

partaker Fanless Industrial Mini PC i7-8550U/8565U/8665U 8GB 240GB SSD

SKU CH-EBJ8-MDF5R

Fanless industrial mini PC with an Intel Core i7 quad-core processor, 8 GB DDR4 memory, 240 GB SSD and Windows 11 Pro for silent 24/7 operation

  • ColorBlack
  • CPU TypeIntel Core i7 8th Gen

CPU Type Intel Core i7-8565U

Group 8GB / 256GB SSD

  • Fanless design enables silent 24/7 operation in noise-sensitive environments
  • Intel Core i7 quad-core processor provides robust computing power for industrial workloads
  • Windows 11 Pro pre-installed for immediate deployment without setup delays
  • Extensive I/O includes dual video outputs, dual COM ports and seven USB ports
  • Compact aluminium chassis with mounting ears fits tight industrial spaces

Fanless Industrial Mini PC for 24/7 Operation

This compact industrial computer uses a passive aluminium chassis to run silently and continuously in demanding environments. An 8th-generation Intel Core i7 processor provides quad-core performance for automation, signage or edge-computing tasks. Windows 11 Pro is pre-installed so the system is ready for immediate deployment. The fanless design eliminates moving parts that could fail in dusty or vibration-prone settings.

Suitable for Embedded and Control Applications

Engineers who need dual-display output via HDMI and VGA, two COM RS232 ports for legacy equipment and multiple USB 2.0 and 3.0 connections will find the I/O layout practical. The unit operates from 0 °C to 70 °C and supports automatic power-on after a power loss. Buyers who require active cooling, a higher core count or a newer processor generation should consider alternative platforms.

Quad-Core 8th-Generation Intel Core i7 Processor

The CPU ships as either an i7-8550U, i7-8565U or i7-8665U, all offering four cores and eight threads for consistent multi-threaded throughput. This single specification determines whether the compute performance matches the workload. Memory can be expanded to 32 GB using two DDR4 SO-DIMM slots, while storage uses one mSATA and one 2.5-inch SATA bay.

Highlights

  • Fanless design enables silent 24/7 operation in noise-sensitive environments
  • Intel Core i7 quad-core processor provides robust computing power for industrial workloads
  • Windows 11 Pro pre-installed for immediate deployment without setup delays
  • Extensive I/O includes dual video outputs, dual COM ports and seven USB ports
  • Compact aluminium chassis with mounting ears fits tight industrial spaces

Specifications

ColorBlack
CPU TypeIntel Core i7 8th Gen

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I mount the Partaker I3 and which step is often missed?

Use the integrated mounting ears to fix the 234 x 150 x 43 mm aluminium chassis to a wall or DIN rail, then connect the 12 V 5 A DC jack before applying 100-240 V AC power; the step most installers skip is attaching both Wi-Fi antennas for reliable 802.11 ac coverage.

Which components will need replacement first during long-term 24/7 operation?

The 240 GB mSATA SSD and the 8 GB DDR4-2400 SO-DIMM are the only field-replaceable parts; the fanless aluminium body and passive cooling have no moving parts to wear out.

What thermal limit appears first when the i7 runs sustained loads at high ambient temperature?

The CPU will throttle at the 70 °C operating ceiling; the 15 W typical draw and fanless design keep it silent, but prolonged heavy compute at 70 °C ambient hits that limit first.
