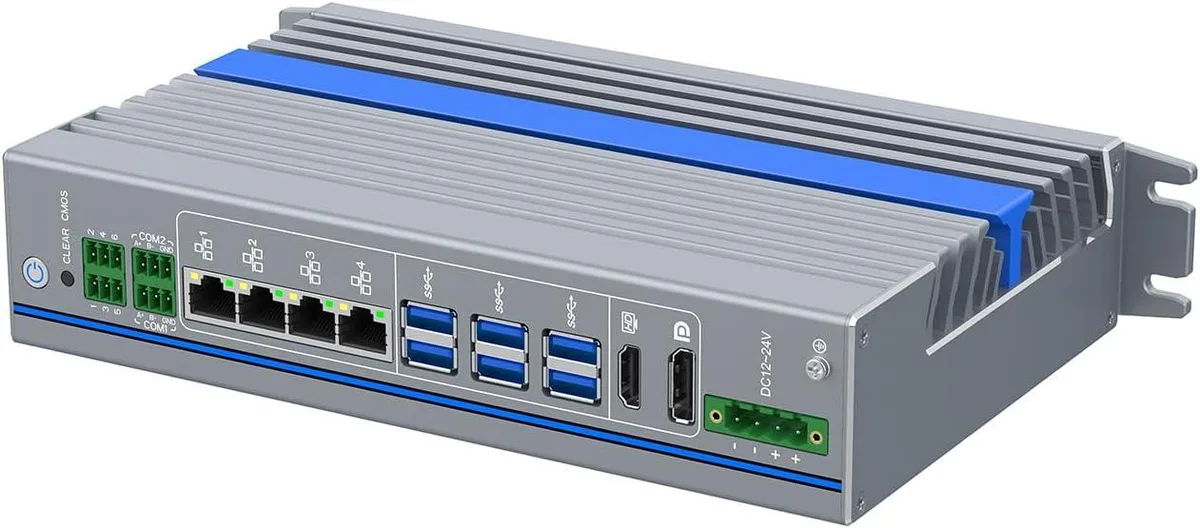

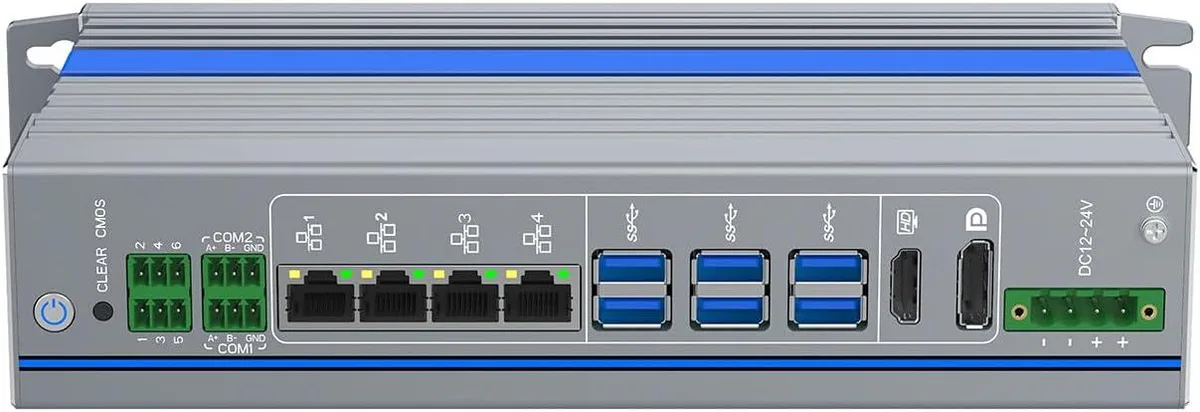

Gray aluminium fanless mini PC, book-style, 265 x 146 x 50 mm, four LAN ports, HDMI, DP, six USB 3.0, two RS485, Phoenix power terminal

partaker

partaker I24 i5-12500T Q670 64GB 1TB barebone mini PC

SKU CH-3XEZ-WHASV

Fanless aluminium mini-PC with 12th-gen Core i5, Q670 chipset, 64 GB DDR5, 1 TB SSD, four gigabit LAN ports and dual 4K video outputs for industrial 24/7 use

  • ColorGray
  • CPU TypeIntel Core i5 12th Gen

I24 Q670 I5 12500T 64GB RAM / 1TB SSD

  • Fanless aluminium chassis survives -20°C to 50°C and 95% humidity
  • Desktop-grade i5-12500T with 6 cores and 18 MB cache drives real-time workloads
  • Dual DDR5 4800 MT/s SODIMM slots support up to 64 GB memory
  • Four Gigabit LAN ports plus two optically isolated RS-485 links simplify industrial networking
  • HDMI and DisplayPort each deliver 3840 x 2160 at 60 Hz for dual 4K displays

Industrial Fanless Mini PC

The Partaker I24 is a book-style barebone built around an Intel Core i5-12500T desktop-grade processor with 6 cores and 12 threads. It targets integrators deploying edge computing, industrial automation, medical imaging or logistics systems that demand 24/7 reliability in harsh electrical and thermal environments.

Sustained Load Thermal Behaviour

Passive cooling across an all-aluminium chassis dissipates a 35-69W TDP without fans, maintaining operation from -20°C to 50°C. The fanless design eliminates moving-part failure and dust ingress, allowing continuous multitasking and real-time control workloads without thermal throttling or acoustic noise.

Q670 Chipset with vPro and RAID

The Intel Q670 chipset adds Intel vPro remote management and hardware RAID support (Windows driver required) absent from lesser chipsets. This single platform feature decides suitability for managed fleets needing out-of-band control, PXE boot, watchdog timers and TPM 2.0 security in a DC 12-24V Phoenix-powered enclosure.

Highlights

  • Fanless aluminium chassis survives -20°C to 50°C and 95% humidity
  • Desktop-grade i5-12500T with 6 cores and 18 MB cache drives real-time workloads
  • Dual DDR5 4800 MT/s SODIMM slots support up to 64 GB memory
  • Four Gigabit LAN ports plus two optically isolated RS-485 links simplify industrial networking
  • HDMI and DisplayPort each deliver 3840 x 2160 at 60 Hz for dual 4K displays

Specifications

ColorGray
CPU TypeIntel Core i5 12th Gen

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the fanless aluminium chassis keep the Core i5-12500T cool during 24/7 loads at 50 °C ambient?

The passive all-aluminium body is rated for continuous operation from -20 °C to 50 °C with 5 % to 95 % humidity, so the 35 W to 69 W TDP processor runs without a fan in harsh environments.

Which power source and memory modules must I supply to start the barebone unit?

The box includes a 12 V 10 A adapter for 100 V to 240 V AC input; you only need to add two DDR5 4800 MT/s SODIMM sticks up to 64 GB total.

Can I keep using my RS-485 sensors and dual 4K displays with the HDMI and DP outputs?

Yes, two optically isolated RS-485 ports connect legacy industrial devices, while HDMI and DisplayPort each drive 3840 x 2160 at 60 Hz for dual 4K monitors.
