Compact fanless desktop in a titanium-grey aluminium chassis

partaker

partaker PA-3046 desktop PC Intel Core i5-8265U 16GB DDR4 256GB Windows 10 Pro

SKU CH-7RNT-4N59V MPN PA-3046

Fanless industrial mini PC with a quad-core Intel Core i5-8265U, 16 GB DDR4, 256 GB storage and four Gigabit LAN ports

  • TypeBusiness Desktops & Workstations
  • ColorGray
  • MonitorMonitor not included
  • Operating SystemWindows 10 Pro
  • Windows 11Ready
  • CPU TypeIntel Core i5 8th Gen

Memory Capacity 16GB DDR4

SSD 256GB

HDD None

Struck-through versions exist but are not stocked here.

  • Fanless design ensures silent operation in noise-sensitive environments
  • Quad-core i5-8265U reaches 3.9 GHz turbo for responsive multitasking
  • Four Intel gigabit LAN ports provide redundant wired connectivity
  • Dual-display support via VGA and HDMI expands workspace flexibility
  • 9–36 V DC input suits vehicle and industrial power systems

Compact Fanless Desktop for Industrial Use

The Partaker PA-3046 is a new fanless mini PC built around an Intel Core i5-8265U processor with 16GB DDR4 memory and a 256GB SSD. It ships with Windows 10 Pro and is Windows 11 ready. The aluminium chassis operates on a 9-36V DC supply via a Phoenix connector, making it suitable for embedded and vehicle deployments.

Ideal for Automation, Not for High-End Graphics

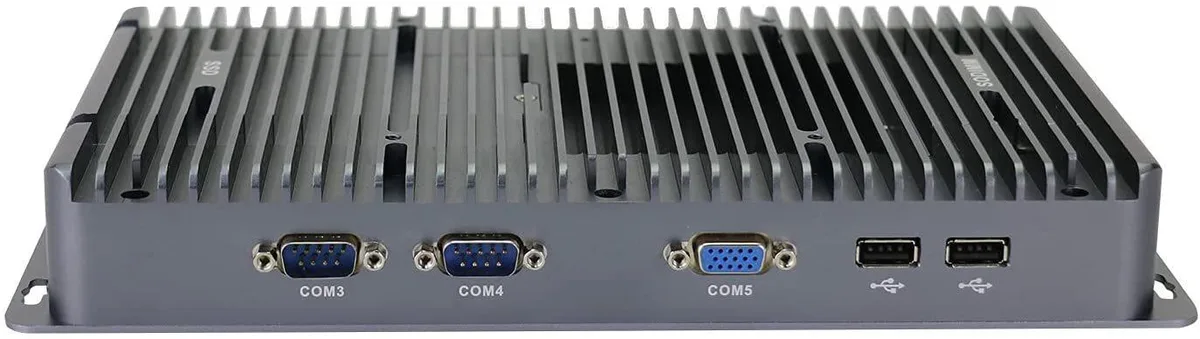

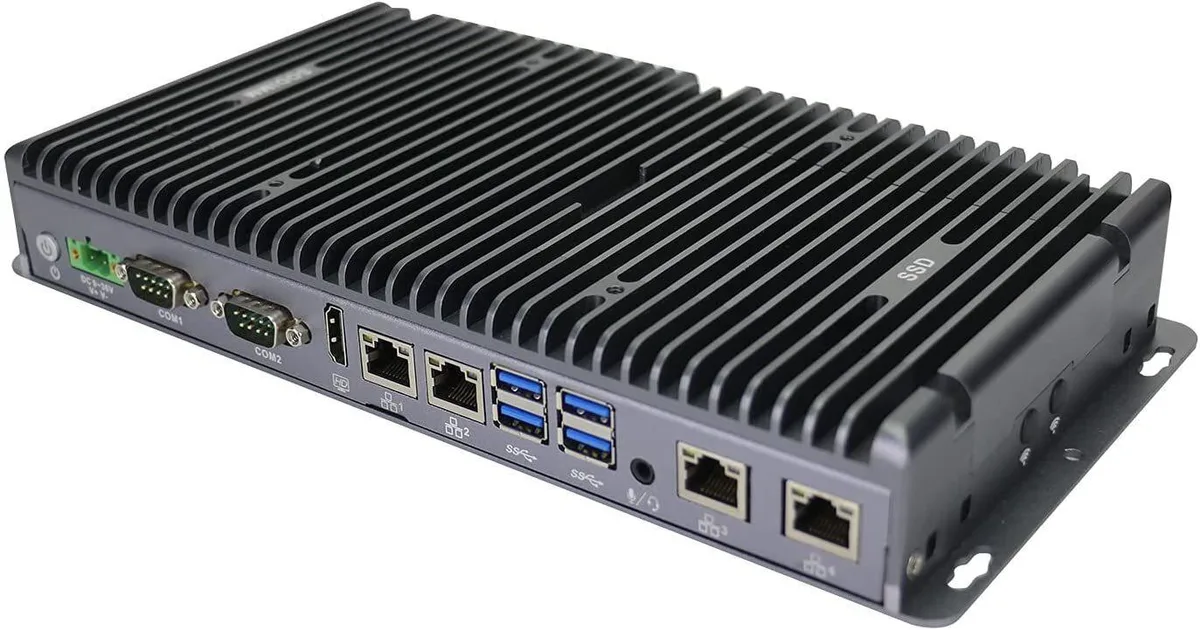

This system suits integrators who need multiple serial ports, four Gigabit LAN interfaces and dual independent displays in a silent, rugged enclosure. It is not for users who require discrete graphics performance, internal 3.5-inch drive bays or a conventional ATX power supply.

Quad-Core i5-8265U with 1.6GHz Base Clock

The onboard CPU provides four cores and eight threads, a 1.6GHz base frequency and a maximum turbo of 3.9GHz with 6MB cache. This fixed processor determines the compute ceiling for any workload the unit will handle.

Highlights

  • Fanless design ensures silent operation in noise-sensitive environments
  • Quad-core i5-8265U reaches 3.9 GHz turbo for responsive multitasking
  • Four Intel gigabit LAN ports provide redundant wired connectivity
  • Dual-display support via VGA and HDMI expands workspace flexibility
  • 9–36 V DC input suits vehicle and industrial power systems

Specifications

TypeBusiness Desktops & Workstations
ColorGray
MonitorMonitor not included
Operating SystemWindows 10 Pro
Windows 11Ready
CPU TypeIntel Core i5 8th Gen
CPU NameIntel Core i5-8265U
GPU/VGA TypeIntel UHD Graphics
Memory Capacity16GB DDR4
SSD256GB
HDDNo
Screen SizeNo Screen

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I mount the PA-3046 and where do I connect the 9-36 V supply?

Fix the aluminum alloy chassis with its mounting holes, then wire the 2-pin phoenix connector on the rear I/O for 9-36 V DC input.

Which parts can I upgrade later and what are the limits?

One DDR4 2133/2400 SODIMM slot supports up to 32 GB, and the M.2 M-key 2280 slot takes a SATA SSD; the CPU is soldered and not replaceable.

What thermal limit appears first during continuous full-load operation?

The fanless aluminum case relies on passive dissipation, so the i5-8265U will hit its 100 °C junction maximum and throttle before any other component.
