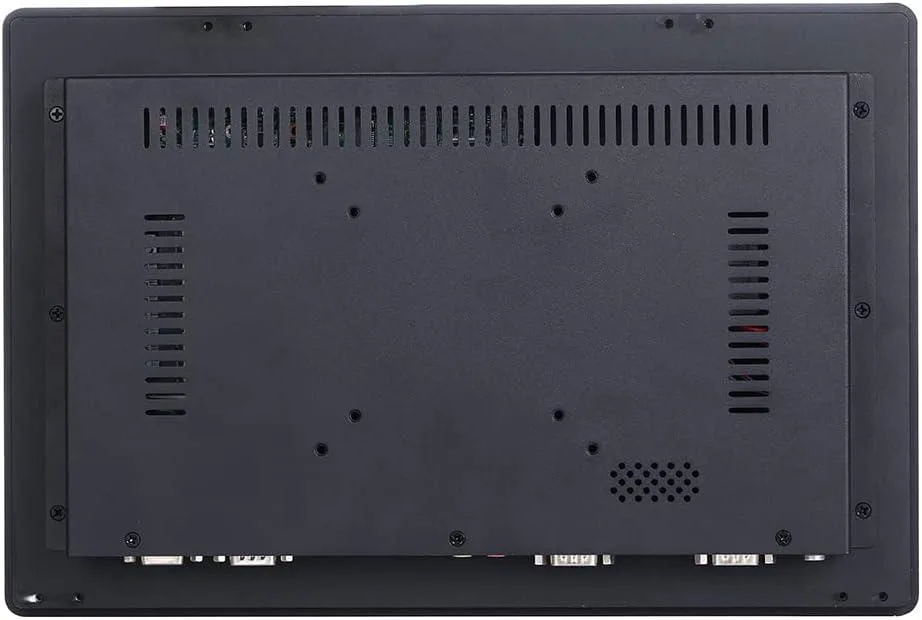

Black 14 inch industrial all-in-one panel PC with IP65 front touchscreen

partaker

Partaker Z10-I5 1135G7-64G1TB 14" all-in-one PC

SKU CH-3R6Z-8SWN9

A 14-inch IP65 industrial all-in-one with a 10-point capacitive touchscreen, Core i5-1135G7 CPU, 64GB DDR4 RAM and 1TB SSD for harsh environments

  • Form FactorAll-in-One
  • ColorBlack
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 11th Gen
  • CPU NameIntel Core i5-1135G7
  • GPU/VGA TypeIntel Iris Xe Graphics

CPU Type Intel Core i5 11th Gen

CPU Name Intel Core i5-1135G7

GPU Intel Iris Xe Graphics

Memory 64GB DDR4

SSD 1TB

  • 256GB
  • 512GB
  • 1TB
  • 128GB

Struck-through versions exist but are not stocked here.

  • Fanless aluminium cooling runs silently in harsh environments
  • IP65 front panel resists dust and water ingress
  • 10-point capacitive touchscreen rated for 200 million touches
  • Intel Core i5-1135G7 with 64 GB DDR4 handles heavy multitasking
  • Dual LAN plus HDMI and VGA connect multiple displays and networks

Industrial all-in-one with IP65 front panel

The Partaker Z10-I5 1135G7-64G1TB is a 14-inch fanless all-in-one PC built around an Intel Core i5-1135G7 processor with 64GB DDR4-3200 memory and a 1TB SSD. Its IP65-rated projected capacitive touchscreen supports 10-point input and is rated for 200 million touches. The system runs Windows 11 Pro and operates from 0 to 50°C with SSD storage.

Embedded mounting requires precise cutout dimensions

Installation is designed for embedded, wall-mounted, desktop or cantilevered setups using the included mounting kits. The embedded cutout must measure 340.3 x 225.3 mm to match the 346.3 x 231.3 x 42.7 mm chassis. Fanless aluminium cooling eliminates moving parts but requires adequate airflow around the unit. The 12V DC power input accepts 100-240V AC via the supplied adapter.

Verify expansion needs and legacy I/O compatibility

Two M.2 slots are available: Key E for WiFi 6 and Key B for 5G with a SIM slot. A single 2.5-inch SATA bay allows additional storage. Dual LAN, HDMI, VGA, two USB 3.0, two USB 2.0, audio jacks and two COM ports cover most industrial peripherals. Buyers needing more than two COM ports or a different display interface should confirm suitability before ordering.

Highlights

  • Fanless aluminium cooling runs silently in harsh environments
  • IP65 front panel resists dust and water ingress
  • 10-point capacitive touchscreen rated for 200 million touches
  • Intel Core i5-1135G7 with 64 GB DDR4 handles heavy multitasking
  • Dual LAN plus HDMI and VGA connect multiple displays and networks

Specifications

ModelZ10-I5 1135G7-64G1TB
Form FactorAll-in-One
ColorBlack
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 11th Gen
CPU NameIntel Core i5-1135G7
GPU/VGA TypeIntel Iris Xe Graphics
Memory Capacity64GB DDR4
SSD1TB
HDDNo
Screen Size14"
TouchscreenYes

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I verify the 14" IP65 touchscreen and fanless cooling are working after installation?

Confirm the 10-point capacitive touch responds at all 200 million rated touches, check the 1600 x 900 resolution at 200 cd/m² brightness, and ensure the aluminum chassis stays within the 0 to 50 °C operating range without fan noise.

What ships in the box and which expansion parts must I source separately?

The package includes the Z10 panel PC and 12 V power adapter; WiFi 6 module for the M.2 Key E slot, 5G module with SIM for the Key B slot, and any 2.5" SATA drive are purchased separately.

Which memory and storage configuration matches the 64 GB DDR4 and 1 TB SSD listed?

This unit comes with two SODIMM DDR4-3200 modules totalling 64 GB and a 1 TB M.2 2260/2280 PCIe/SATA SSD pre-installed; the 2.5" bay remains open for an extra SATA drive if needed.
