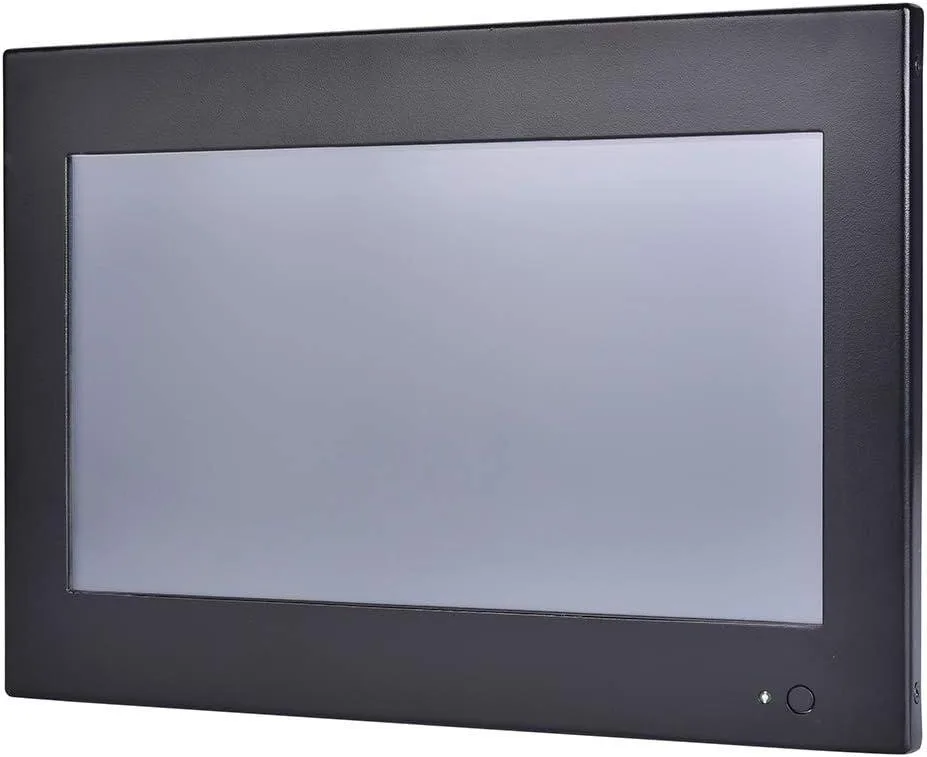

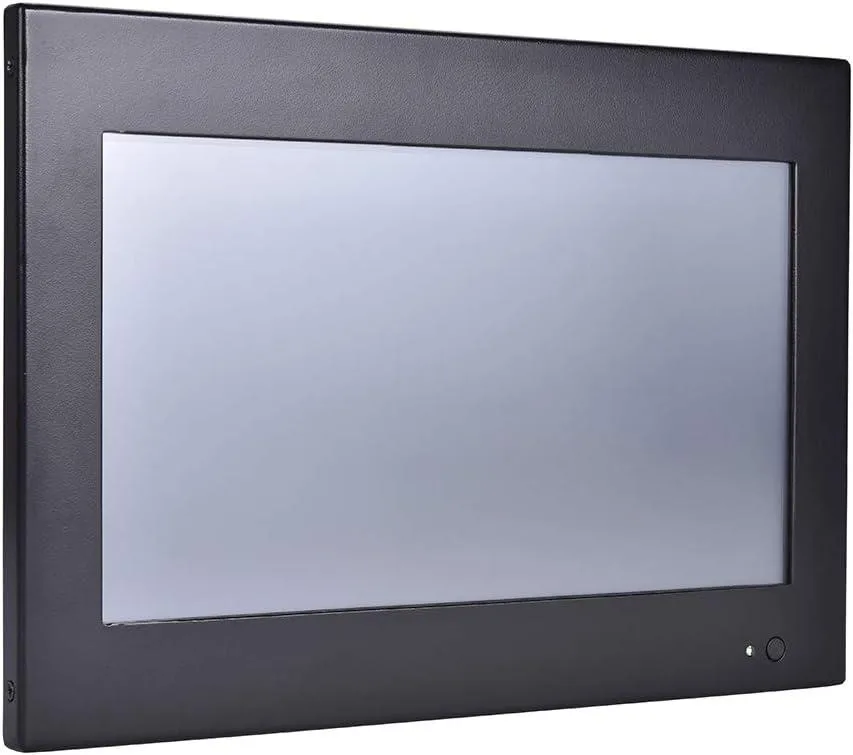

Black 10.1 inch all-in-one panel PC with resistive touchscreen, fanless aluminium chassis, 1024 by 600 display

partaker

partaker Z6 10.1" AI edge system i5-3317U 8GB DDR3 128GB SSD

SKU CH-TEY8-SD794

A 10.1 inch fanless industrial panel PC with resistive touchscreen, Intel Core i5-3317U, 8GB DDR3, 128GB SSD and Windows 11 Pro

  • Form FactorAll-in-One
  • ColorBlack
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 3rd Gen
  • CPU NameIntel Core i5-3317U
  • GPU/VGA TypeIntel HD Graphics 4000

CPU Type Intel Core i5 3rd Gen

  • Intel Core i5 4th Gen
  • Intel Core i5 3rd Gen
  • Celeron

Struck-through versions exist but are not stocked here.

CPU Name Intel Core i5-3317U

Struck-through versions exist but are not stocked here.

GPU|Memory|SSD Intel HD Graphics 4000|8GB DDR3|128GB

  • Intel HD Graphics 4000|4GB DDR3|128GB
  • Intel HD Graphics 4000|8GB DDR3|128GB
  • Intel HD Graphics 4000|8GB DDR3|256GB
  • Intel HD Graphics 4000|8GB DDR3|512GB
  • Intel HD Graphics|4GB DDR3|128GB
  • Intel HD Graphics|8GB DDR3|128GB
  • Intel HD Graphics|8GB DDR3|256GB
  • Intel HD Graphics|8GB DDR3|512GB

Struck-through versions exist but are not stocked here.

  • Silent operation in harsh settings thanks to fanless aluminium cooling rated 0‑50 °C
  • Resistive touchscreen survives 5 million touches on a 10.1" 1024×600 panel
  • Windows 11 Pro preloaded on 128 GB mSATA SSD with 8 GB DDR3L memory
  • Versatile I/O includes HDMI, VGA, four USB 2.0, two COM, LAN and Mini PCIe with SIM slot
  • Compact 270×192×47 mm all‑in‑one design supports embedded, wall or desktop mounting

10.1" Fanless Industrial Panel PC

The Partaker Z6 combines a 10.1 inch resistive touchscreen with an Intel Core i5-3317U processor, 8GB of DDR3L memory and a 128GB mSATA SSD in a sealed aluminium chassis. It ships with Windows 11 Pro and is built for embedded automation, kiosk or edge-AI workloads that demand silent, dust-proof operation. The 1024 x 600 TFT LED panel is rated for five million touches and wide viewing angles.

Thermals Noise and Power

Passive aluminium-alloy cooling keeps the system completely silent while maintaining an operating range of 0 to 50 °C with the fitted SSD. The fanless design eliminates moving parts, reducing maintenance in continuous-use scenarios. Power is supplied through a 12 V DC input that accepts 100 to 240 V AC, so the unit draws only the power the low-voltage CPU and screen require.

Bundled Mounting and Expansion Kit

The package includes an external power supply, power cord and embedded buckle kits that enable wall, desktop or panel-mount installation using the 227 x 183 mm cut-out. A Mini PCIe slot with a SIM holder is provided for adding 4G or Wi-Fi modules, while the two COM ports and four USB 2.0 ports support legacy industrial peripherals without extra adapters.

Highlights

  • Silent operation in harsh settings thanks to fanless aluminium cooling rated 0‑50 °C
  • Resistive touchscreen survives 5 million touches on a 10.1" 1024×600 panel
  • Windows 11 Pro preloaded on 128 GB mSATA SSD with 8 GB DDR3L memory
  • Versatile I/O includes HDMI, VGA, four USB 2.0, two COM, LAN and Mini PCIe with SIM slot
  • Compact 270×192×47 mm all‑in‑one design supports embedded, wall or desktop mounting

Specifications

ModelZ6-I5 3317U-N-8G128G
Form FactorAll-in-One
ColorBlack
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 3rd Gen
CPU NameIntel Core i5-3317U
GPU/VGA TypeIntel HD Graphics 4000
Memory Capacity8GB DDR3
SSD128GB
HDDNo
Screen Size10.1"
TouchscreenYes

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I mount the Z6 panel PC into a 227 x 183 mm cut-out, and what step do installers often miss?

Use the supplied embedded buckle kits to secure the unit from behind the panel; the step often missed is tightening all four buckles evenly so the resistive touchscreen seals properly against dust and moisture.

Which component will need replacement first, and what are its rated limits?

The resistive touchscreen is rated for a minimum of 5 million touches and the LED backlight for 10,000 hours; whichever limit is reached first will require a panel swap.

What thermal limit appears first during continuous fanless operation with the i5-3317U?

The operating ceiling is 50 °C ambient with the installed SSD; sustained loads that push the aluminum-alloy chassis beyond this temperature will trigger CPU throttling before any other component fails.
