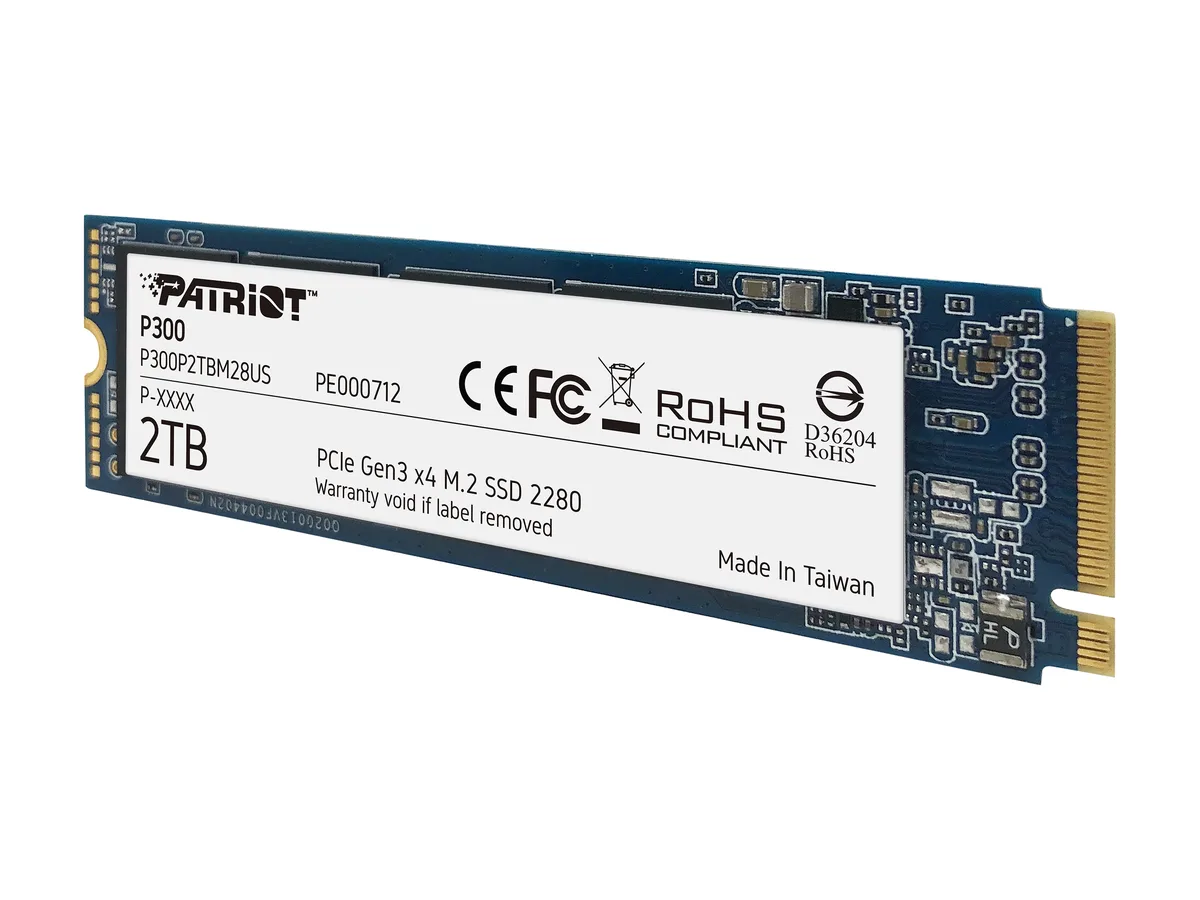

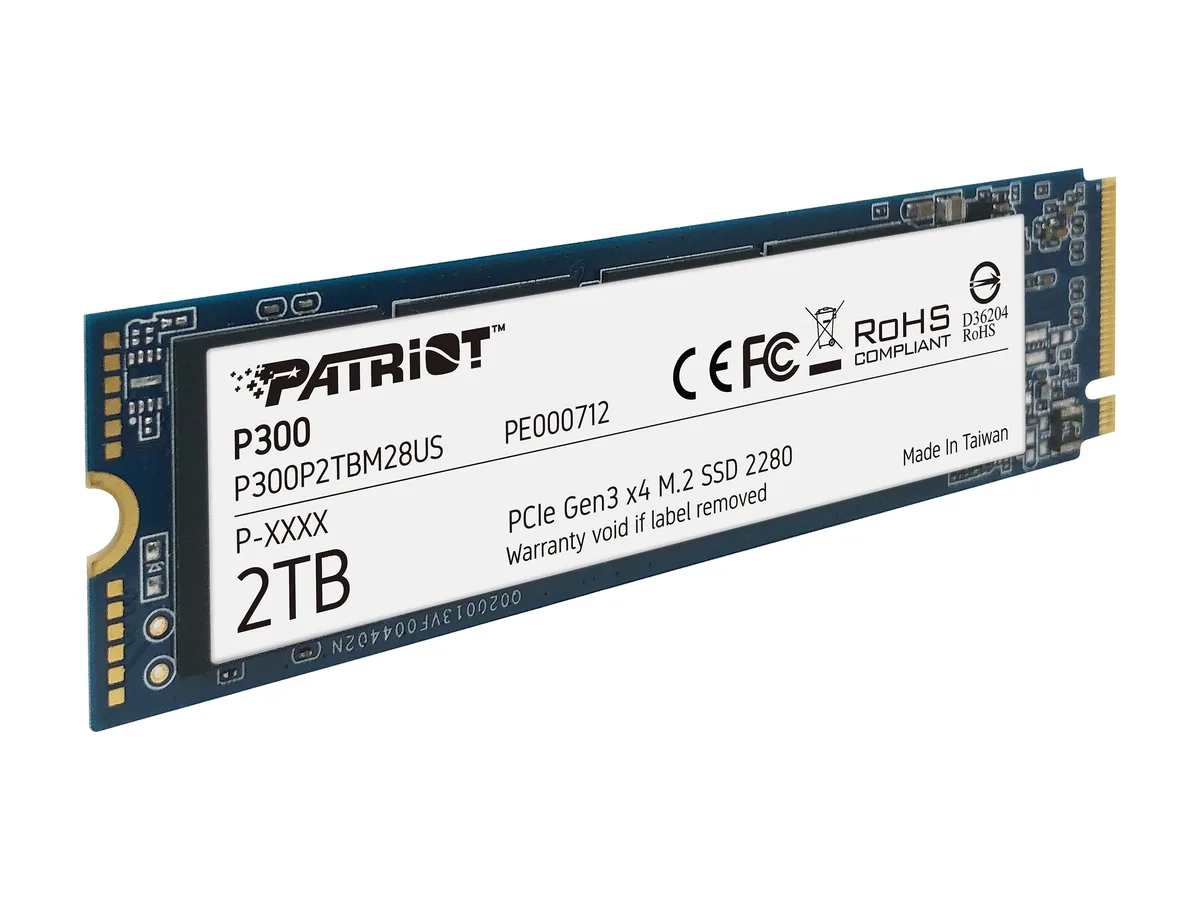

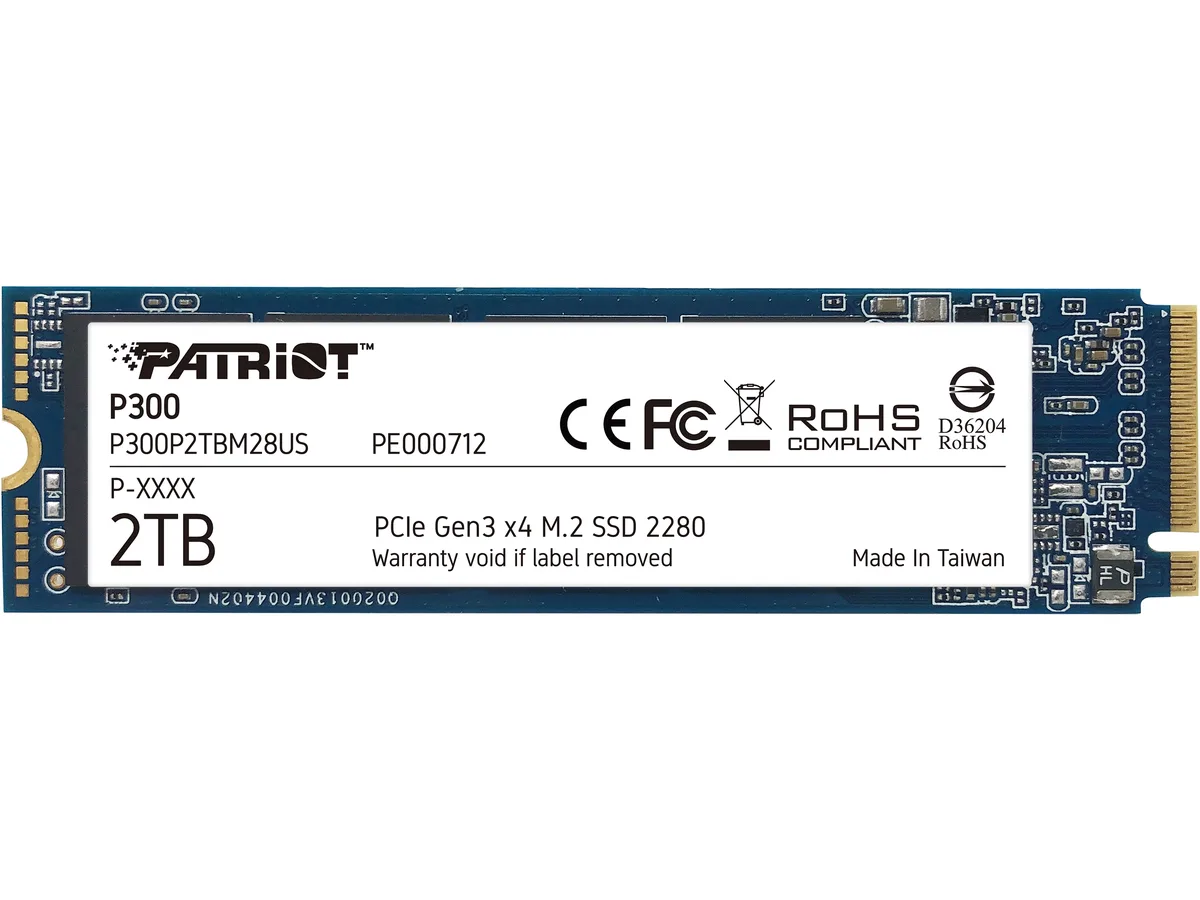

Green circuit board with black controller and memory chips, M.2 2280 form factor, no heatsink

Patriot Memory

Patriot Memory P300P2TBM28US 2TB M.2 2280 NVMe internal SSD

SKU CH-SHE7-5PBMJ

M.2 2280 NVMe SSD with 2TB capacity, up to 2100 MBps read and 1650 MBps write speeds, plus 290000 IOPS random read performance

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity2TB
  • InterfacePCIe Gen3 x4, NVMe 1.3
  • ControllerPhison E13T
  • Fast boot and load times with sequential read up to 2100 MBps
  • Smooth multitasking from random read up to 290000 IOPS
  • Quick file saves backed by sequential write up to 1650 MBps
  • Responsive write performance via random write up to 260000 IOPS
  • Longer laptop runtime thanks to low 0.38W idle power draw

Patriot P300 2TB M.2 NVMe SSD

The Patriot P300 is a consumer-grade internal solid-state drive built in the M.2 2280 form factor. It connects through a PCIe Gen3 x4 interface using the NVMe 1.3 protocol and is managed by a Phison E13T controller. This drive targets everyday computing, offering faster start-up and load times than traditional hard disks.

PCIe Gen3 x4 NVMe 1.3 interface

The single specification that decides compatibility is the PCIe Gen3 x4 NVMe 1.3 interface. The drive delivers sequential reads up to 2100 MBps and writes up to 1650 MBps, with random 4KB performance reaching 290000 IOPS read and 260000 IOPS write. It operates without a heatsink at a 3.80 mm profile and draws 0.38 W idle or 2.38 W active.

Suits laptops and desktops with Gen3 M.2 slots

This SSD suits users upgrading a laptop or desktop that provides an M.2 2280 slot wired for PCIe Gen3 x4 NVMe. The low power draw helps extend battery life in portable systems. Buyers whose platforms only support PCIe x2 or who require a factory-fitted heatsink for thermal constraints should consider alternative drives.

Highlights

  • Fast boot and load times with sequential read up to 2100 MBps
  • Smooth multitasking from random read up to 290000 IOPS
  • Quick file saves backed by sequential write up to 1650 MBps
  • Responsive write performance via random write up to 260000 IOPS
  • Longer laptop runtime thanks to low 0.38W idle power draw

Specifications

BrandPatriot
SeriesP300
ModelP300P2TBM28US
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity2TB
InterfacePCIe Gen3 x4, NVMe 1.3
ControllerPhison E13T
Max Sequential ReadUp to 2100 MBps
Max Sequential WriteUp to 1650 MBps
4KB Random ReadUp to 290,000 IOPS
4KB Random WriteUp to 260,000 IOPS
HeatSinkwithout HeatSink
FeaturesThe P300 is Patriot's next generation of mid-tier PCIe gen 3 x4 NVMe SSD to hit the market, offering 25% higher transfer speeds and IOPs than standard PCIe 3 x2 solutions. The compact m.2 form factor is designed for easy installation and will fit into any PC or laptop, while its low power consumption helps extend laptop battery life. The P300 is guaranteed to improve start-up, loading, and transfer times over traditional hard disk drives.
The P300's advanced firmware offers ECC technology and end-to-end data path protection to ensure data integrity throughout the life to the drive. A
Power Consumption (Idle)0.38W
Power Consumption (Active)2.38W
Operating Temperature0°C ~ +70°C
Height3.80mm
Width22.00mm
Depth80.00mm
Weight9.00g

Questions about this item

How fast will the 2100 MBps sequential read actually feel when the drive is installed?

In a real machine the 2100 MBps sequential read and 1650 MBps write cut boot and large-file copy times dramatically versus a hard drive, while 290,000 random read IOPS and 260,000 write IOPS keep everyday multitasking snappy.

What does PCIe Gen3 x4 NVMe 1.3 limit in practice?

The four-lane Gen3 link caps throughput at the stated 2100 MBps read and 1650 MBps write; NVMe 1.3 adds power-management and data-protection features but does not raise that ceiling.

Will the 22 mm wide M.2 2280 card fit my laptop slot without a heatsink?

Yes — the single-sided 2280 module is 22 mm wide, 3.80 mm thick and has no heatsink, so it slides into any standard M.2 2280 socket in laptops or desktops.
