Patriot Memory
Patriot Memory PV316G186C0K 16GB (2 x 8GB) DDR3 1866 desktop RAM
Dual-channel 16 GB kit with two 8 GB DDR3 modules at 1866 MHz, CL10 timing and 1.50 V, featuring black heat spreaders for desktop systems
- Capacity16GB (2 x 8GB)
- Type240-Pin PC RAM
- SpeedDDR3 1866 (PC3 15000)
- CAS LatencyCL10
- Timing10-11-10-30
- Voltage1.50V
- Dual-channel 16 GB kit boosts multitasking headroom
- 1866 MHz DDR3 speed feeds data faster to the CPU
- CL10 10-11-10-30 timings cut latency for snappier response
- 50 V operation keeps power draw low
- Black heat spreader dissipates heat for stable sustained loads

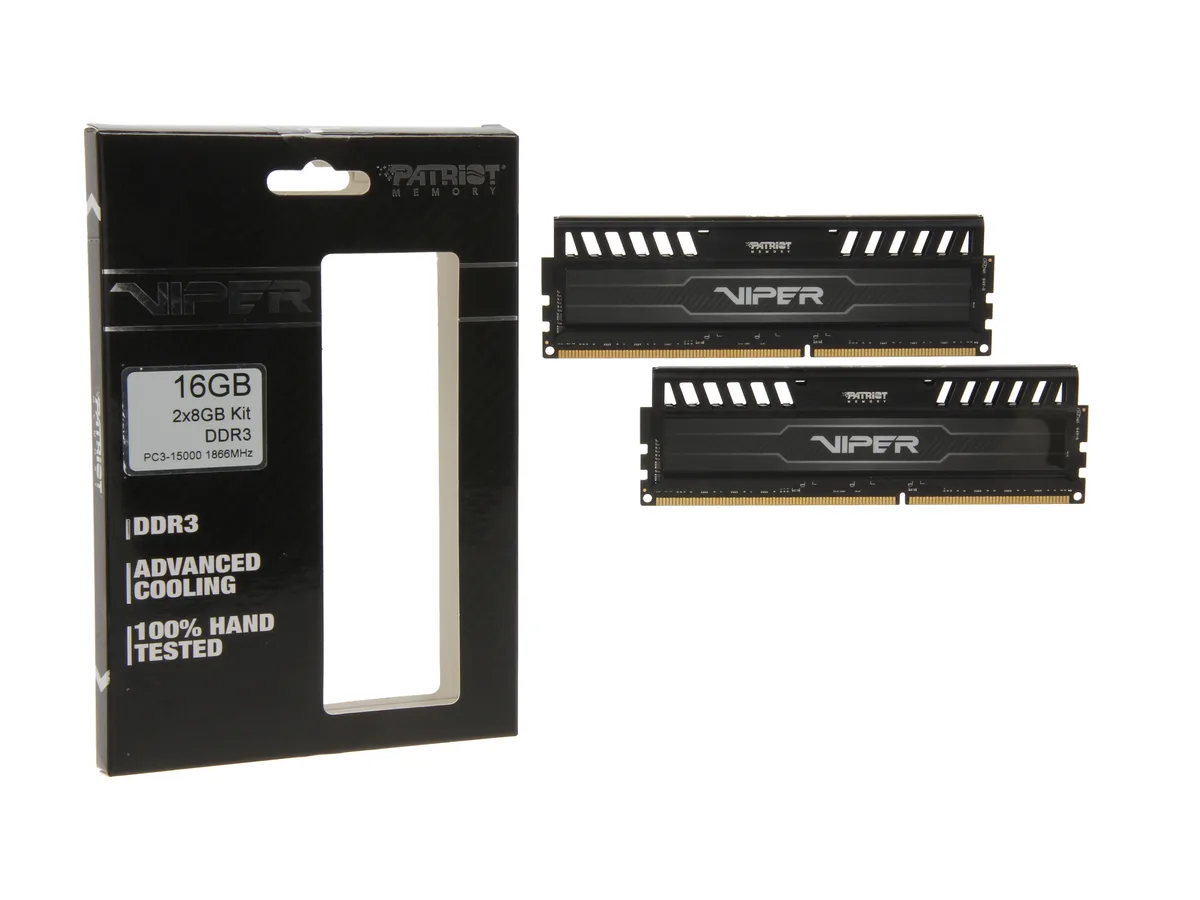

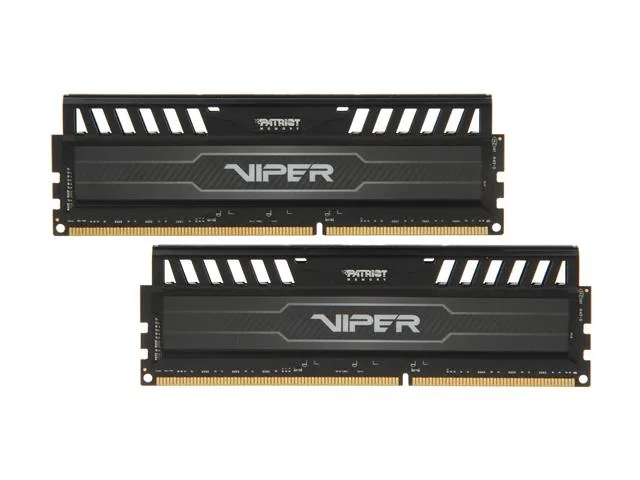

Viper 3 DDR3 1866 Kit
This Patriot Viper 3 kit provides 16GB of DDR3 memory across two 8GB modules rated at 1866 MT/s with CL10 timing. It targets enthusiasts upgrading or maintaining dual-channel desktop platforms that use 240-pin DDR3 slots. The black heat spreader aids thermal management during sustained workloads.
Platform Compatibility Check
Verify that your motherboard supports DDR3 1866 (PC3-15000) operation and can run at the specified 1.50V. Confirm the board has at least two free 240-pin slots and that the CPU memory controller is validated for this speed. The kit is unbuffered and non-ECC, so it requires a consumer desktop platform rather than a server or workstation board.
Build Integration
The dual-channel pair installs directly into matching DIMM slots to enable interleaved bandwidth without manual configuration. Modules operate at standard 1.50V, drawing power from the slot alone. The low-profile heat shield fits beneath most CPU coolers, leaving surrounding headers and expansion cards unobstructed. No extra cables or software are required.
Highlights
- Dual-channel 16 GB kit boosts multitasking headroom
- 1866 MHz DDR3 speed feeds data faster to the CPU
- CL10 10-11-10-30 timings cut latency for snappier response
- 50 V operation keeps power draw low
- Black heat spreader dissipates heat for stable sustained loads
Specifications
| Brand | Patriot |
|---|---|
| Series | Viper 3 |
| Model | PV316G186C0K |
| Capacity | 16GB (2 x 8GB) |
| Type | 240-Pin PC RAM |
| Speed | DDR3 1866 (PC3 15000) |
| CAS Latency | CL10 |
| Timing | 10-11-10-30 |
| Voltage | 1.50V |
| ECC | No |
| Buffered/Registered | Unbuffered |
| Multi-channel Kit | Dual Channel Kit |
| Color | Black |
| Heat Spreader | Yes |
| Features | Patriot Memory's Viper 3 Series memory modules are designed with true performance in mind. Tested and compatible with Intel's and AMD's DDR3 compatible processors and chipsets, The Viper 3 series provides the best performance and stability for the most demanding computer environments. The Viper 3 series utilizes a custom designed high performance heat shield for superior heat dissipation to ensure rock solid performance even when using the most taxing applications. Built from the highest quality Build of Materials, Patriot Memory's Viper 3 Series memory modules are hand tested and va |
| Shipping weight | 0.11 kg |
| Package size | 180 × 121 × 17 mm |
Questions about this item
Will this 16 GB kit work in a motherboard with four DDR3 slots?
Yes, the dual-channel kit installs in the two primary slots; the remaining slots can be populated later with identical modules.
Does the 1.50 V voltage match standard DDR3 desktop requirements?
Yes, 1.50 V is the standard JEDEC voltage for DDR3 desktop memory, so no manual voltage adjustment is needed.
What clearance does the black heat shield need above the DIMM?
The custom heat shield adds modest height; verify your CPU cooler specification to ensure at least a few millimetres of gap.
