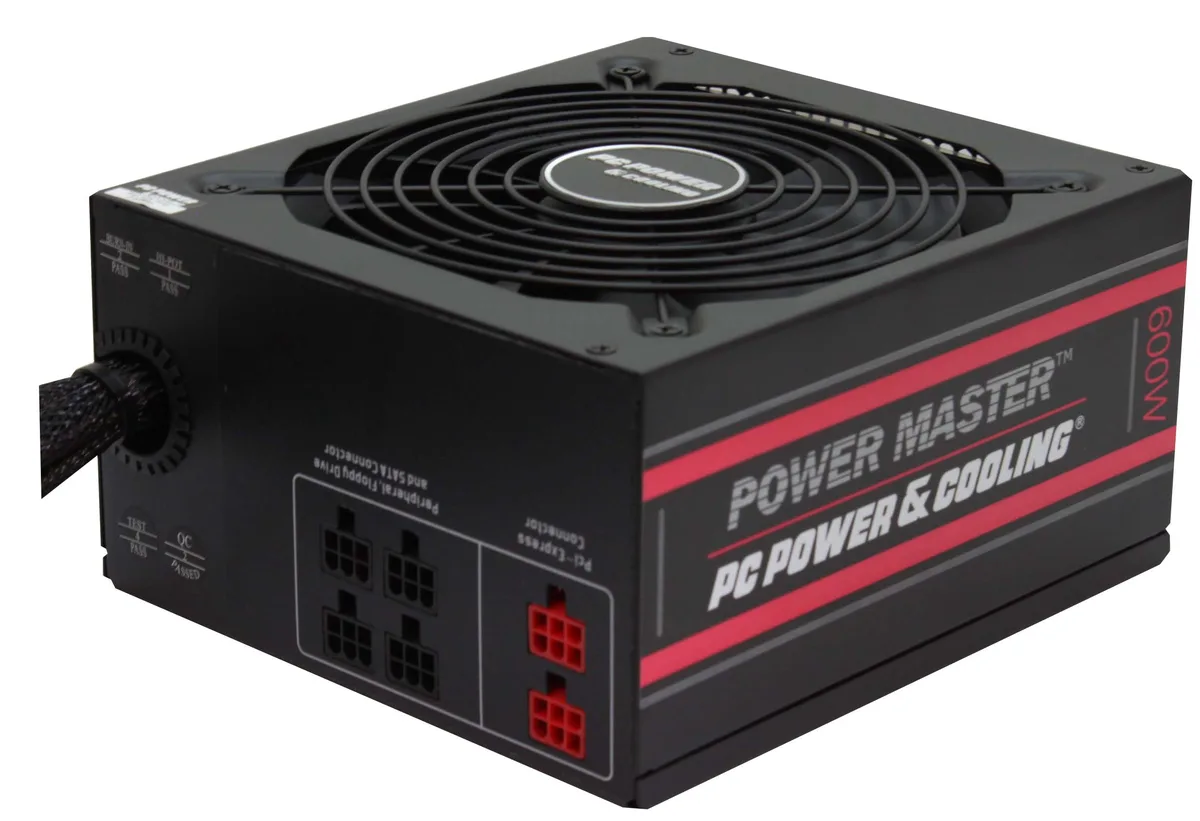

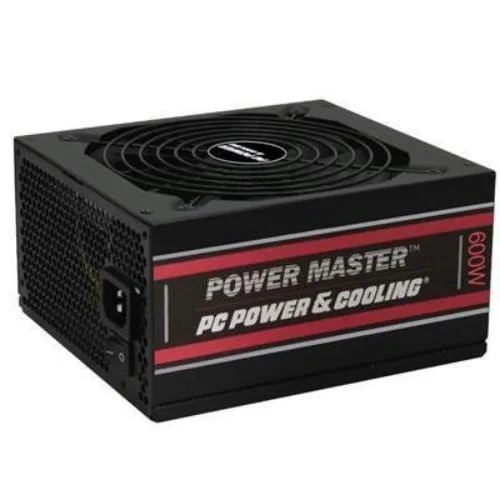

Rectangular ATX power supply unit in matte black finish with semi-modular cable sockets and a single rear fan

PC Power and Cooling

PC Power and Cooling FPS0600-A2S00 power supply

SKU CH-C5H2-QZA1D MPN FPS0600-A2S00

Delivers 600 W through a single 12 V rail with 80 PLUS Bronze efficiency and semi-modular cabling for easier installation

  • TypeATX12V
  • Maximum Power600 W
  • Fans1
  • PFCActive
  • Main Connector20+4Pin
  • +12V RailsSingle
  • 600 W output powers demanding builds
  • 80 Plus Bronze certification delivers 85% efficiency
  • Semi-modular cabling reduces internal clutter
  • Active PFC with 17 ms hold-up time maintains stable voltage
  • Six SATA connectors support multiple storage drives

Power Master 600 W ATX unit

This PC Power and Cooling Power Master supply delivers 600 W through a single +12 V rail. It carries 80 PLUS Bronze certification with efficiency above 85 percent. The semi-modular cable layout keeps unused leads out of the case. Active PFC and a 17 ms minimum hold-up time complete the core feature set.

Builders who want tidy cabling and Bronze efficiency

The semi-modular design suits system builders who prefer to connect only the cables their build requires. Six SATA power connectors and two 6+2-pin PCI-Express leads cover typical drive and graphics needs. Buyers who need fully modular cabling or a higher certified efficiency tier should look at other models.

Single +12 V rail rated for 600 W

The entire 600 W capacity is available on one +12 V rail, simplifying power distribution for high-draw components. Over-voltage protection is included and the power-good signal ranges from 100 to 500 ms. This rail configuration is the key specification for matching the unit to your hardware.

Highlights

  • 600 W output powers demanding builds
  • 80 Plus Bronze certification delivers 85% efficiency
  • Semi-modular cabling reduces internal clutter
  • Active PFC with 17 ms hold-up time maintains stable voltage
  • Six SATA connectors support multiple storage drives

Specifications

BrandPC Power and Cooling
SeriesPower Master
ModelFPS0600-A2S00
TypeATX12V
Maximum Power600 W
Fans1
PFCActive
Main Connector20+4Pin
+12V RailsSingle
PCI-Express Connector2 x 6+2-Pin
SATA Power Connector6
SLISLI Ready
Haswell SupportReady
CrossFireCrossFire Ready
ModularSemi-Modular
Power Good Signal100-500ms
Hold-up Time17ms min.
Efficiency> 85%
Energy-Efficient80 PLUS BRONZE Certified
Over Voltage ProtectionYes
Overload ProtectionYes
Input Voltage110 - 240 V
Input Frequency Range50/60 Hz
Input Current10A @ 115V, 5A @ 230V
Output+3.3V @ 20A, +5V @ 20A, +12V @ 50A, -12V @ 0.5A, +5Vsb @ 2.5A
MTBF>100,000 Hours
ApprovalsCUL, TUV, CB, FCC, CE, ROHS, WEE
Connectors20+4 ATX, 4+4 & 4-pin CPU, 2 x 6+2-pin PCI-E, 6 x SATA, 4 x Peripheral, 1 x Floppy
Size/Dimensions5.9" x 3.4" x 6.5"
Dimensions5.9" x 3.4" x 6.5"
Weight4.25 lbs
Fans Total Quantity1
Top Fans Size135mm
Top Fans Bearing TypeBall
Over Load ProtectionYes
Short Circuit ProtectionYes
Under Voltage ProtectionYes
Over Current ProtectionYes
Over Power ProtectionYes
Over Temperature ProtectionYes
Shipping weight3.18 kg
Package size381 × 254 × 229 mm

Questions about this item

What motherboard power connector does the 600 W ATX12V unit require?

The supply uses a 20+4Pin main connector that fits standard ATX motherboards.

Can the two 6+2-Pin PCI-Express leads run older graphics cards that only need a 6-pin plug?

Yes, each 6+2-Pin lead splits so the extra 2 pins can be left unused for 6-pin cards.

How do I confirm the 80 PLUS BRONZE efficiency is active after installation?

The unit delivers > 85 % efficiency at typical loads, meeting the Bronze certification threshold.
