PCCOOLER

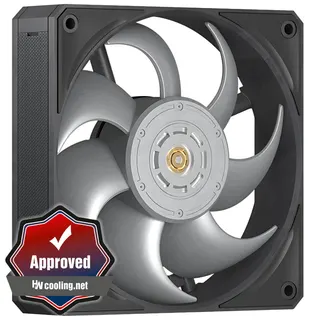

PCCOOLER F9 R120 BK 120mm 30mm case fan

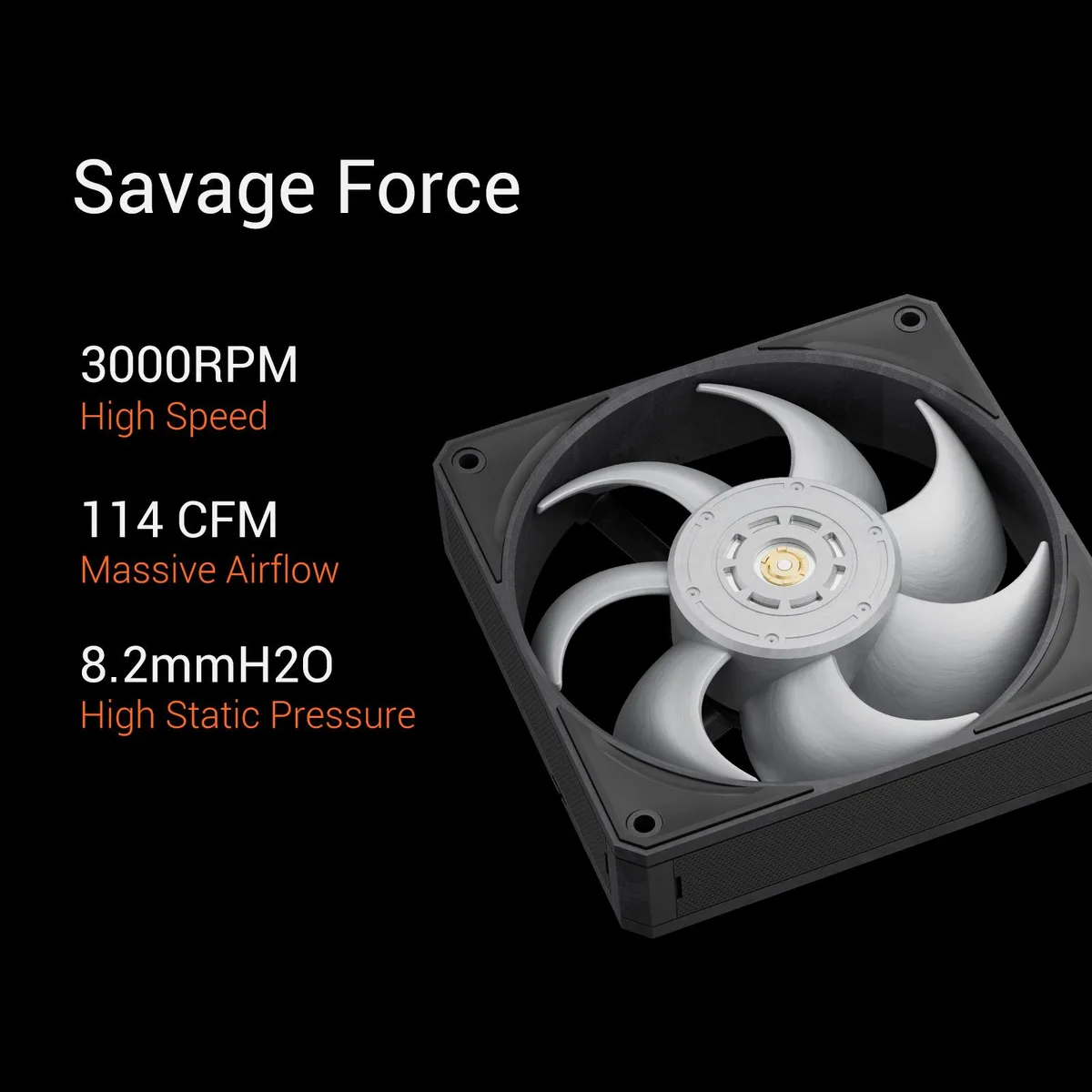

A 30 mm thick 120 mm PWM case fan with dual ball bearings and LCP blades delivering up to 114 CFM and 8.2 mmH₂O at 3000 RPM
- Fan Counts1 Fan
- Fan ControllerNo Controller
- TypeCase Fan
- CompatibilityCase
- Fan Size120mm
- Fan Thickness30mm
- 30 mm thick frame boosts airflow to 114 CFM at high speed
- 3-phase 6-slot motor delivers 8.2 mmH₂O pressure for dense radiators
- NSK dual ball bearing rated for long life in continuous operation
- LCP liquid crystal polymer blades keep shape at 3000 RPM
- Three PWM profiles from 500 RPM to 3000 RPM suit any load
High-Speed 120mm Industrial Fan

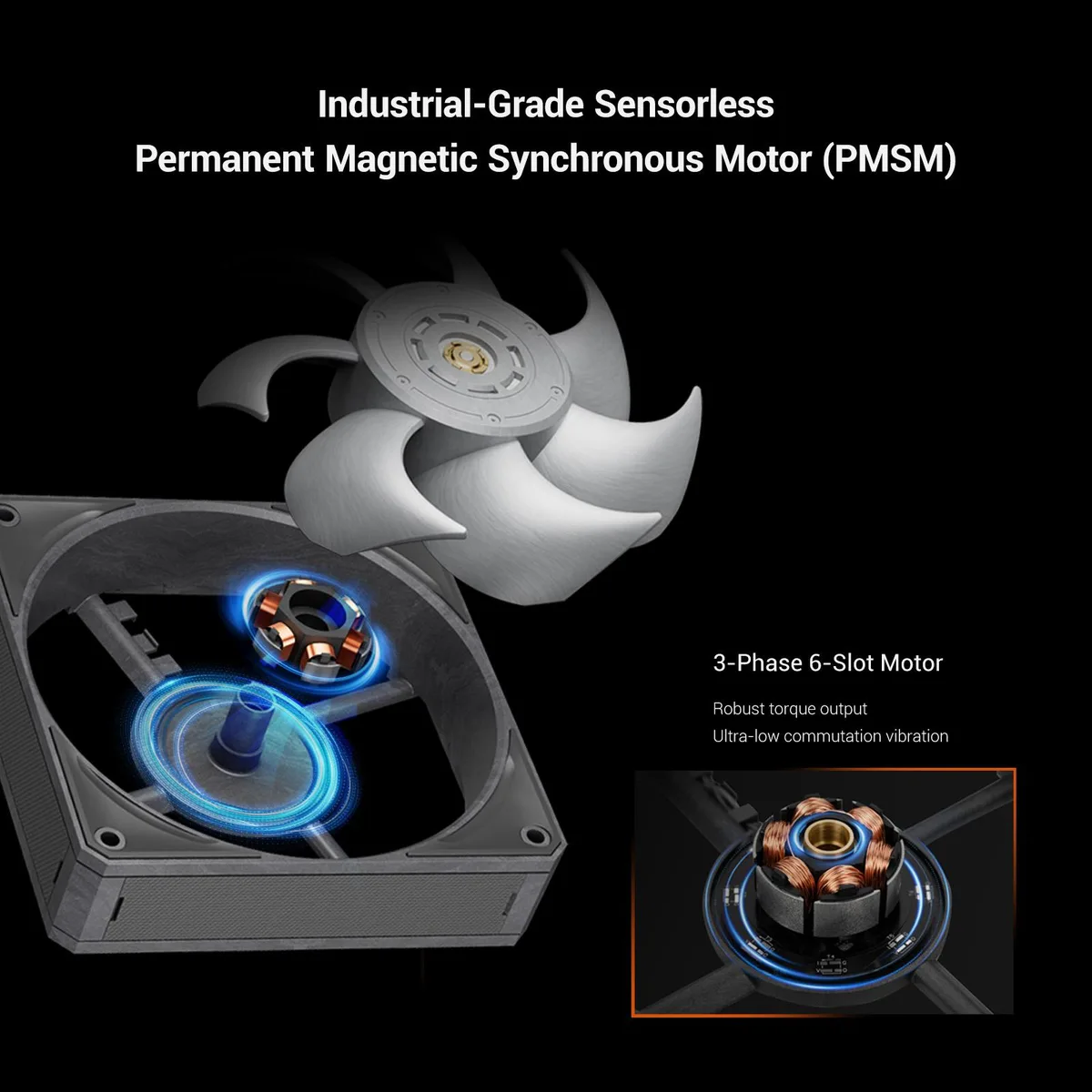

The PCCOOLER F9 R120 BK is a 120mm case fan built for heavy-duty cooling scenarios. Its 30mm thickened frame and liquid crystal polymer construction provide structural rigidity for demanding airflow requirements. A three-phase Allegro permanent magnetic synchronous motor drives the impeller. It targets builders who need concentrated airflow in restricted spaces.
Three-Stage Airflow and Pressure
Low mode delivers 63 CFM at 2.2 mmH₂O, medium reaches 82 CFM at 4.2 mmH₂O, and high pushes 114 CFM at 8.2 mmH₂O. The variable-section blade design focuses air into a tight column for radiators or dense fin stacks. At 3000 RPM the fan saturates its pressure curve, so louder operation yields diminishing returns. It suits single-fan radiator mounts but cannot replace dual-fan arrays for high-wattage loads.
Thermals, Noise and Power Draw
An NSK dual ball bearing supports the 500–3000 RPM range with a 42.7 dBA maximum noise rating at full speed. The 4-pin PWM connector allows the motherboard to scale speed automatically across the three preset bands. Anti-vibration pads decouple the 30mm frame from the chassis, reducing transmitted hum. The non-LED black finish keeps visual distraction to a minimum.
Highlights
- 30 mm thick frame boosts airflow to 114 CFM at high speed
- 3-phase 6-slot motor delivers 8.2 mmH₂O pressure for dense radiators
- NSK dual ball bearing rated for long life in continuous operation
- LCP liquid crystal polymer blades keep shape at 3000 RPM
- Three PWM profiles from 500 RPM to 3000 RPM suit any load
Specifications
| Brand | PCCOOLER |
|---|---|
| Series | F9 |
| Model | F9 R120 BK |
| Part Number | F9R120-BKNC136-GL |
| Fan Counts | 1 Fan |
| Fan Controller | No Controller |
| Type | Case Fan |
| Compatibility | Case |
| Fan Size | 120mm |
| Fan Thickness | 30mm |
| Bearing Type | Daul Ball Bearing |
| RPM | L: 500~1500 RPM ± 10% M: 500~2150 RPM ± 10% H: 500~3000 RPM ± 10% |
| Air Flow | L: 63CFM Max M: 82CFM Max H: 114CFM Max |
| Air Pressure | L: 2.2 mmH₂O M: 4.2 mmH₂O H: 8.2 mmH₂O |
| Noise Level | 42.7 dBA Max |
| Power Connector | 4-pin PWM |
| Color | Black |
| LED | Non-LED |
| Dimensions | 120×120×30mm |
Questions about this item
Will the 30 mm thickness and 4-pin PWM connector fit my older case and motherboard?
The frame measures 120×120×30 mm and uses a standard 4-pin PWM header, so it mounts in any 120 mm location and is controlled by both modern and legacy PWM-capable boards.
How can I confirm the fan is running at the correct speed after installation?
In BIOS or monitoring software, check that RPM sits between 500 and 3000 RPM ±10 % depending on the L, M or H mode selected; the curve should scale smoothly with temperature.
Does the box include mounting screws and vibration pads, or must I buy them separately?
The package supplies one fan, four anti-vibration pads and four mounting screws — no extra hardware is required for a standard case installation.
