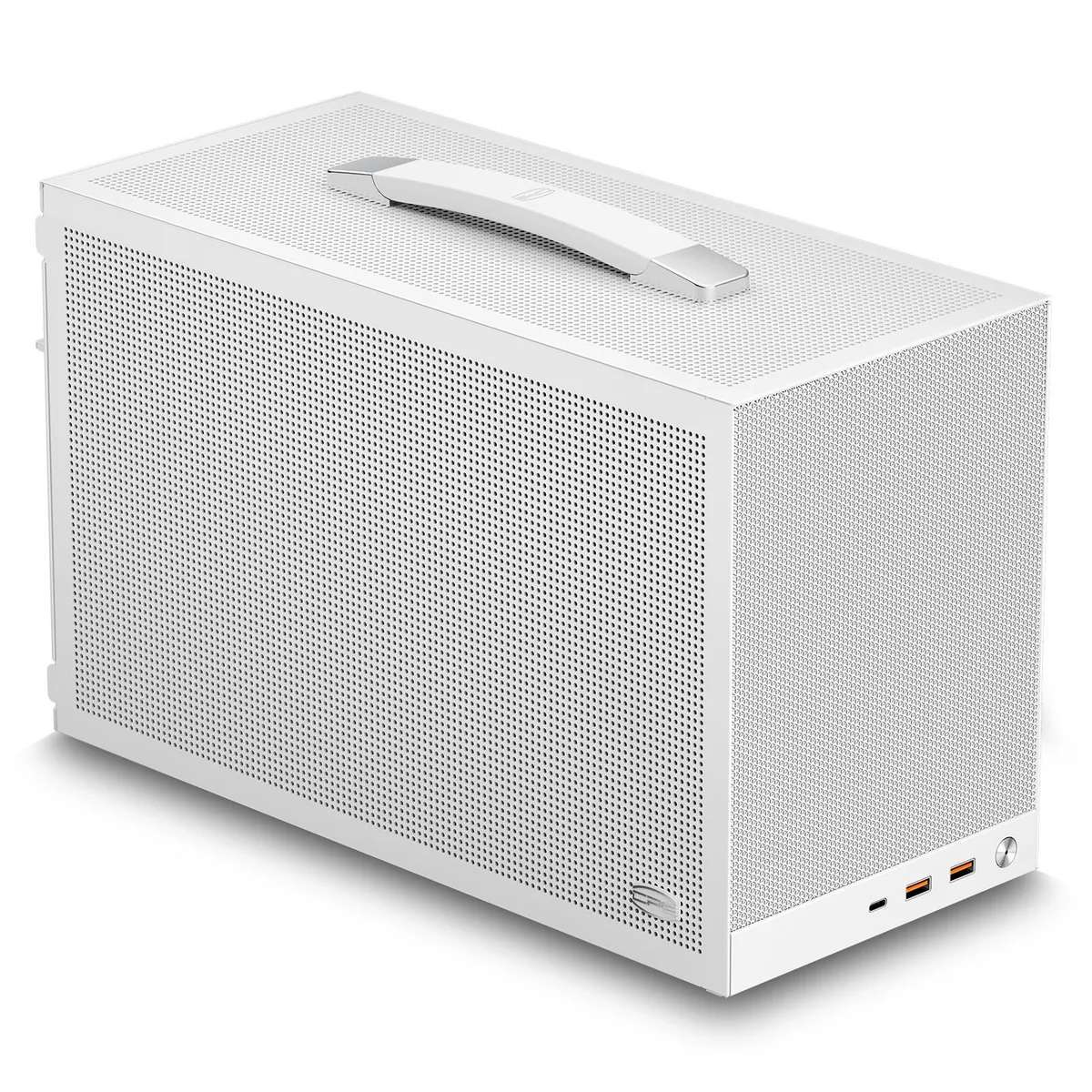

White Mini-ITX case with mesh panels on four sides, three pre-installed fans visible through the front, compact rectangular shape

PCCOOLER

PCCOOLER K101 MESH WH 3F Mini-ITX PC Case White

SKU CH-4J3A-YBBRT

A white Mini-ITX chassis with four-side SPCC mesh panels, three pre-installed 12015 mm fans and support for graphics cards up to 340 mm long

  • TypeMini-ITX
  • ColorWhite
  • Case MaterialSPCC / Steel
  • With Power SupplyNo
  • Motherboard CompatibilityMini ITX
  • Dust FiltersBottom
  • 9 L Mini-ITX volume fits powerful builds in compact spaces
  • Four-side SPCC mesh panels deliver unrestricted airflow for thermal performance
  • Three pre-installed 12015 mm fans provide immediate cooling without extra purchases
  • Clip-on quick-release side panels simplify hardware access and maintenance
  • Supports 340 mm GPU and 125 mm SFX PSU for high-end component compatibility

Compact Mini-ITX Case for Portable Builds

The PCCOOLER K101 MESH WH 3F is an 11.9L Mini-ITX chassis built from 0.7 to 1.5mm SPCC steel. It targets users who want a small-footprint desktop that can still house a full-length graphics card and SFX power supply. The white mesh panels provide airflow while keeping the internal layout visible.

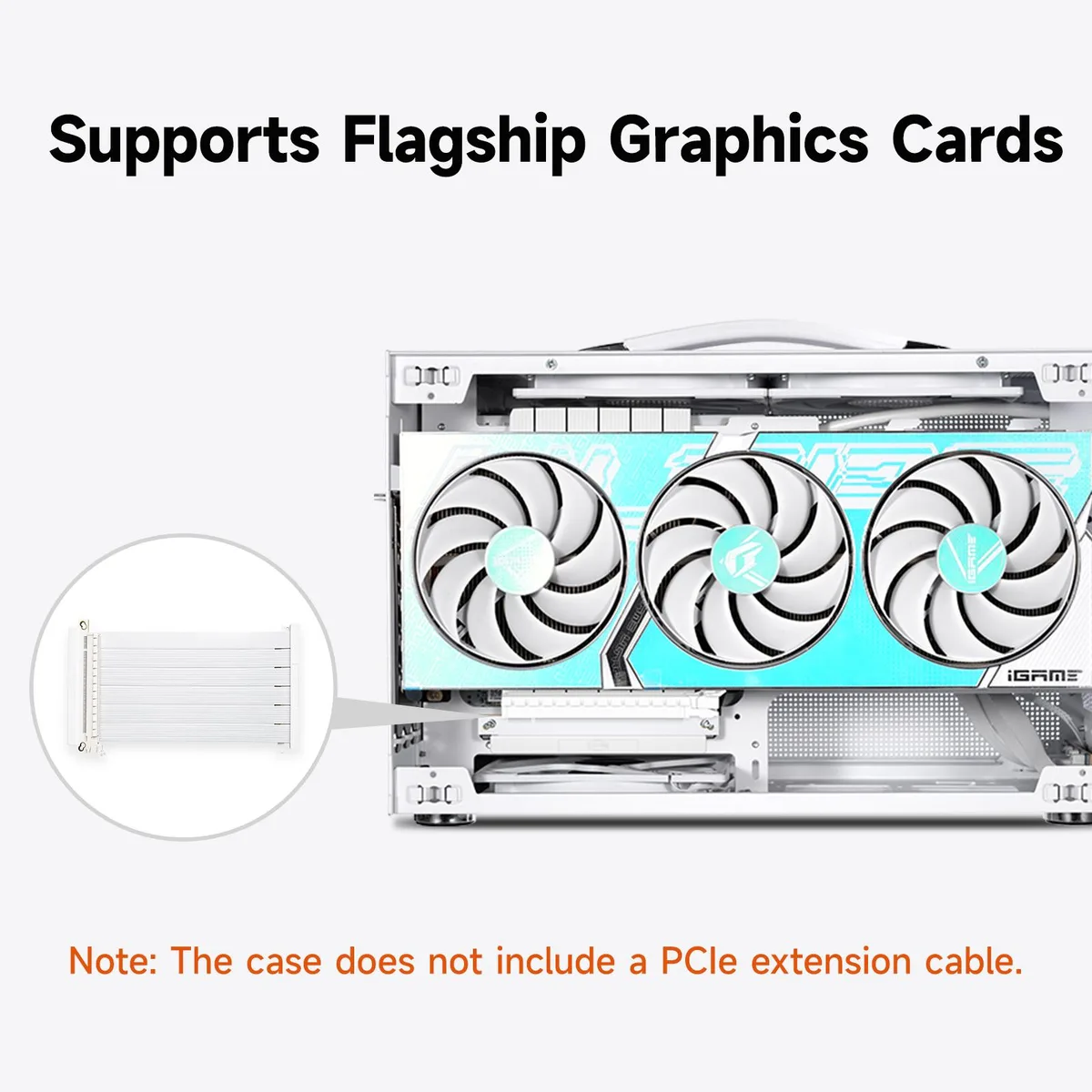

GPU Length and Cooler Height Limits

Graphics cards up to 340mm long and 65mm thick fit in the three-slot expansion area. CPU air coolers are restricted to 68mm in height, ruling out most tower designs. The SFX power supply bay accepts units from 100mm to 125mm long, so longer ATX units cannot be used.

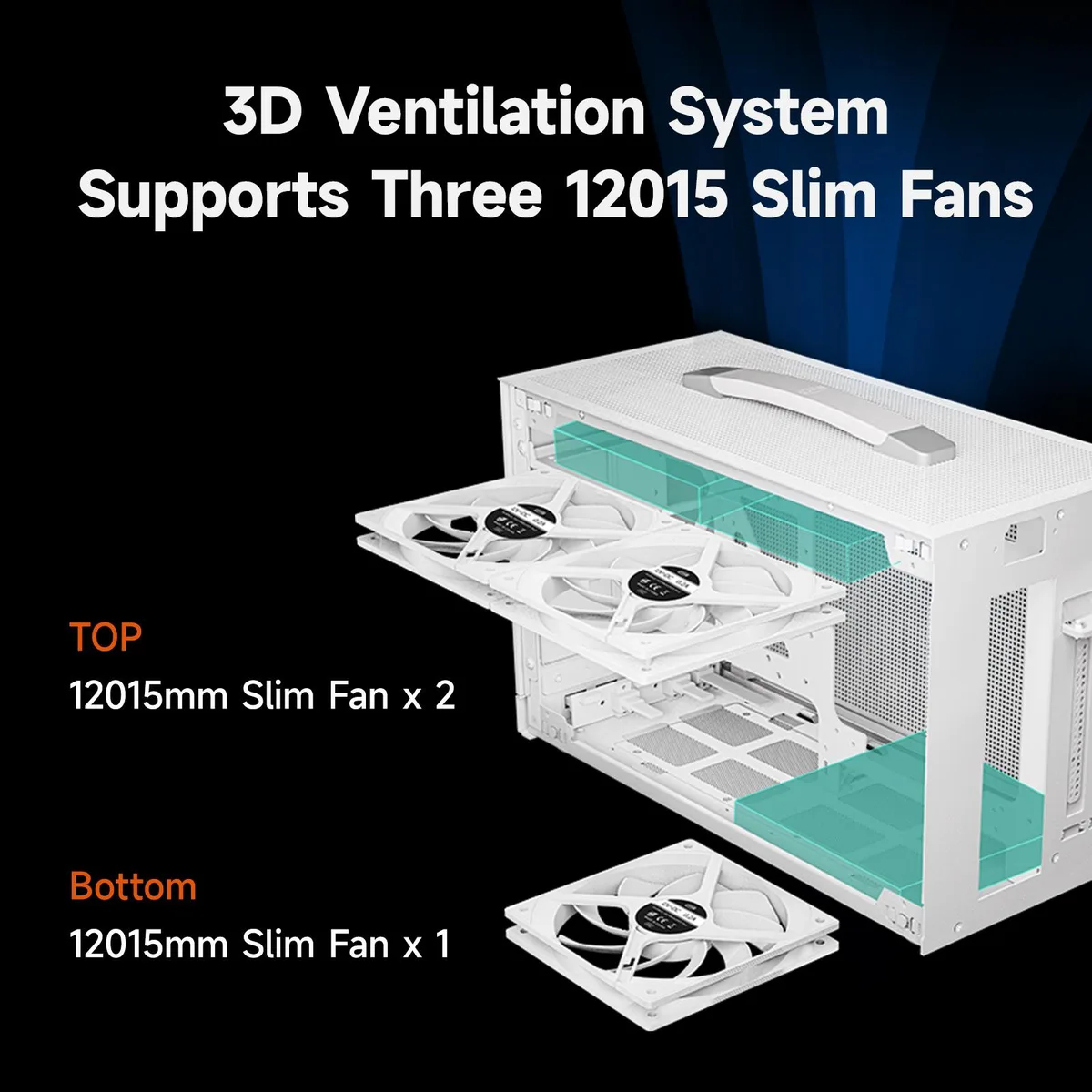

Pre-installed Fans and Quick-Release Panels

Three 12015mm fans come fitted at the top and bottom for immediate airflow. Clip-on side panels remove without tools for fast hardware swaps. The front I/O includes one USB Type-C, two USB 3.0 Type-A ports and a power button. A PCIe riser cable is not included.

Highlights

  • 9 L Mini-ITX volume fits powerful builds in compact spaces
  • Four-side SPCC mesh panels deliver unrestricted airflow for thermal performance
  • Three pre-installed 12015 mm fans provide immediate cooling without extra purchases
  • Clip-on quick-release side panels simplify hardware access and maintenance
  • Supports 340 mm GPU and 125 mm SFX PSU for high-end component compatibility

Specifications

BrandPCCOOLER
SeriesK101
ModelK101 MESH WH 3F
Part NumberC5-K101WHP300-GL
TypeMini-ITX
ColorWhite
Case MaterialSPCC / Steel
With Power SupplyNo
Motherboard CompatibilityMini ITX
Dust FiltersBottom
External 3.5" Drive Bays1
External 2.5" Drive Bays4
Expansion Slots3
Front Ports1 x Type-C
2 x USB 3.0 Type-A
1 x Power Button
Fan OptionsTop: 12015mm x 2
Bottom: 12015mm x 1
Max GPU Length340 mm
Max CPU Cooler Height68 mm
Max PSU Length125 mm
Dimensions348 x 160 x 215 mm
Weight2.74 kg

Questions about this item

Will my existing SFX power supply up to 125 mm long fit inside the PCCOOLER K101 MESH WH 3F?

The case accepts SFX power supplies from 100 mm to 125 mm in length, so any unit in that range will install without modification.

How can I confirm the three pre-installed 12015 mm fans are spinning correctly after I build in the case?

Connect the fan headers to the motherboard, power on, and verify each fan rotates in the BIOS hardware monitor or fan-control software.

Does the PCCOOLER K101 MESH WH 3F include a PCIe riser cable for vertical GPU mounting?

The riser cable is not included; the case provides three expansion slots for a horizontally mounted graphics card up to 340 mm long.
