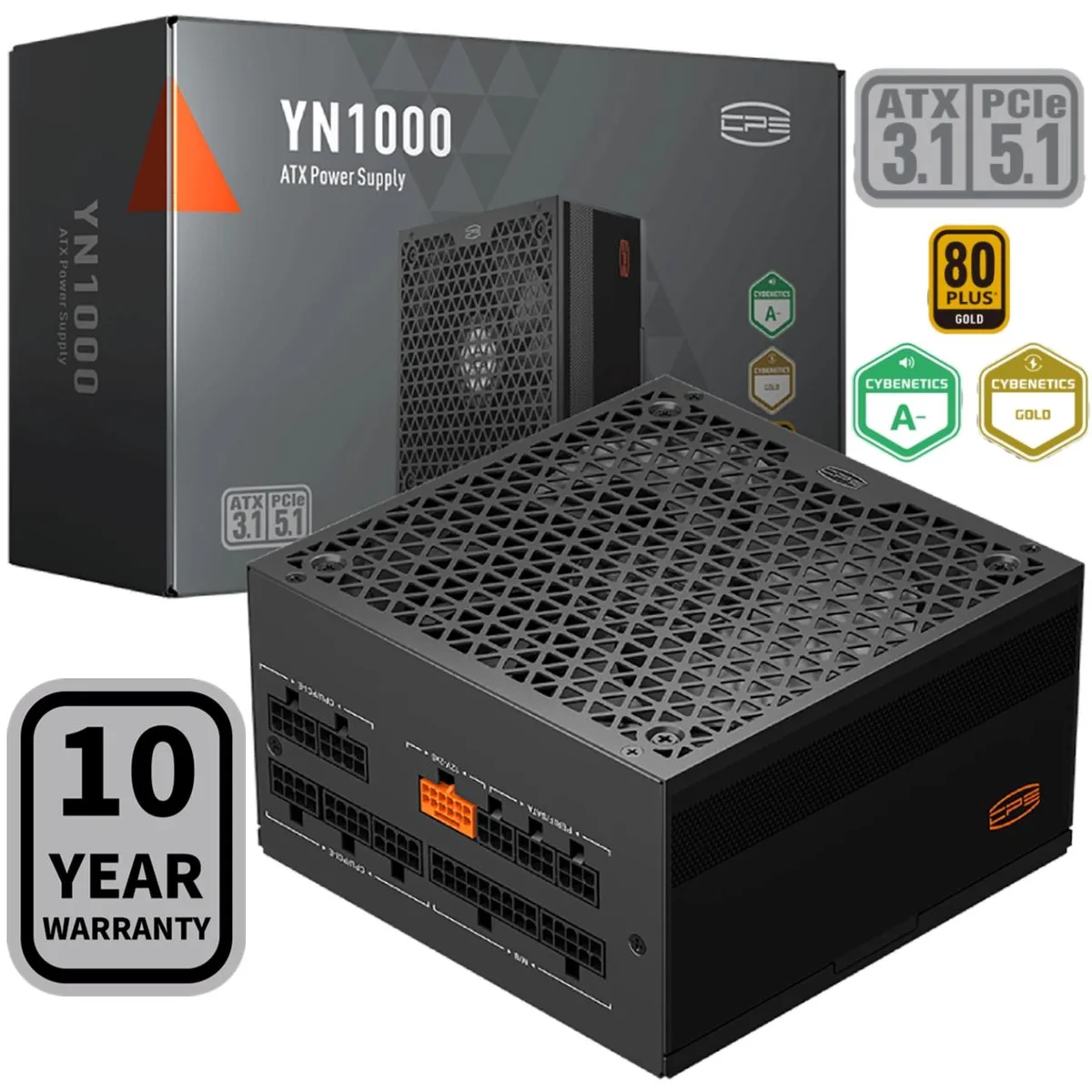

Black fully modular ATX power supply with 135mm fan and sleeved cables

PCCOOLER

PCCOOLER P5-YN1000-G1F 1000W power supply

SKU CH-HDA1-75MEJ MPN P5-YN1000-G1F

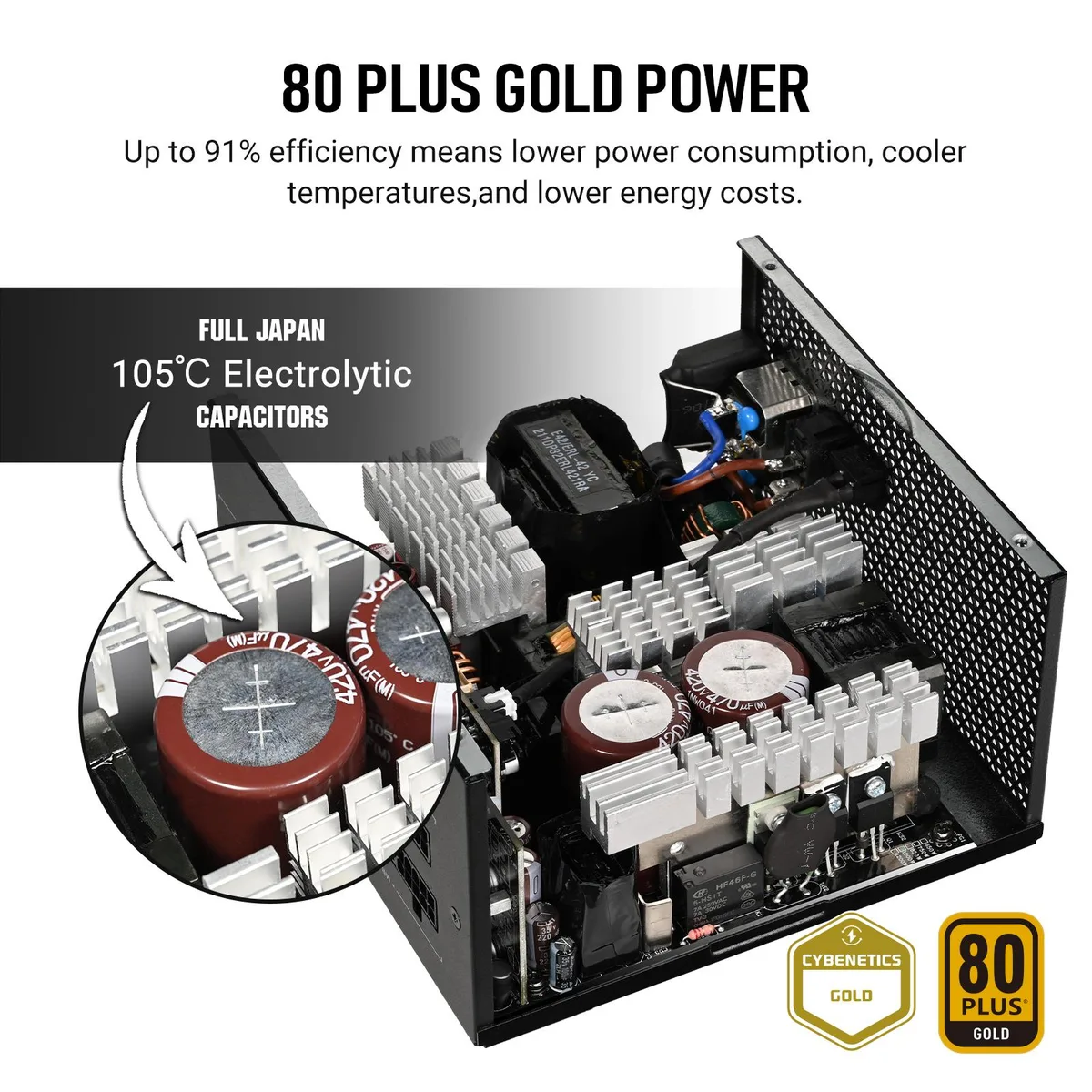

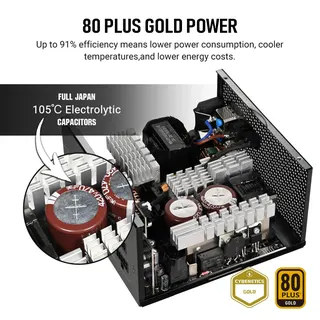

Fully modular 1000 W ATX 3.1 unit with 80 PLUS Gold and Cybenetics Platinum efficiency, 12V-2x6 cable for PCIe 5.1, 135 mm FDB fan, Japanese 105 °C capacitors and ECO mode

  • ColorBlack
  • TypeATX 3.1 Compatible
  • Maximum Power1000 W
  • Fans1 x 135 mm FDB (Fluid Dynamic Bearing) Fan
  • PFCActive
  • Main Connector20+4Pin
  • 1000W output powers demanding builds
  • 80 PLUS Gold certified for >91% typical efficiency
  • Cybenetics Platinum efficiency & A- noise rating
  • ATX 3.1 & PCIe 5.1 ready with 12V-2x6 cable
  • Fully modular design with 135mm FDB fan

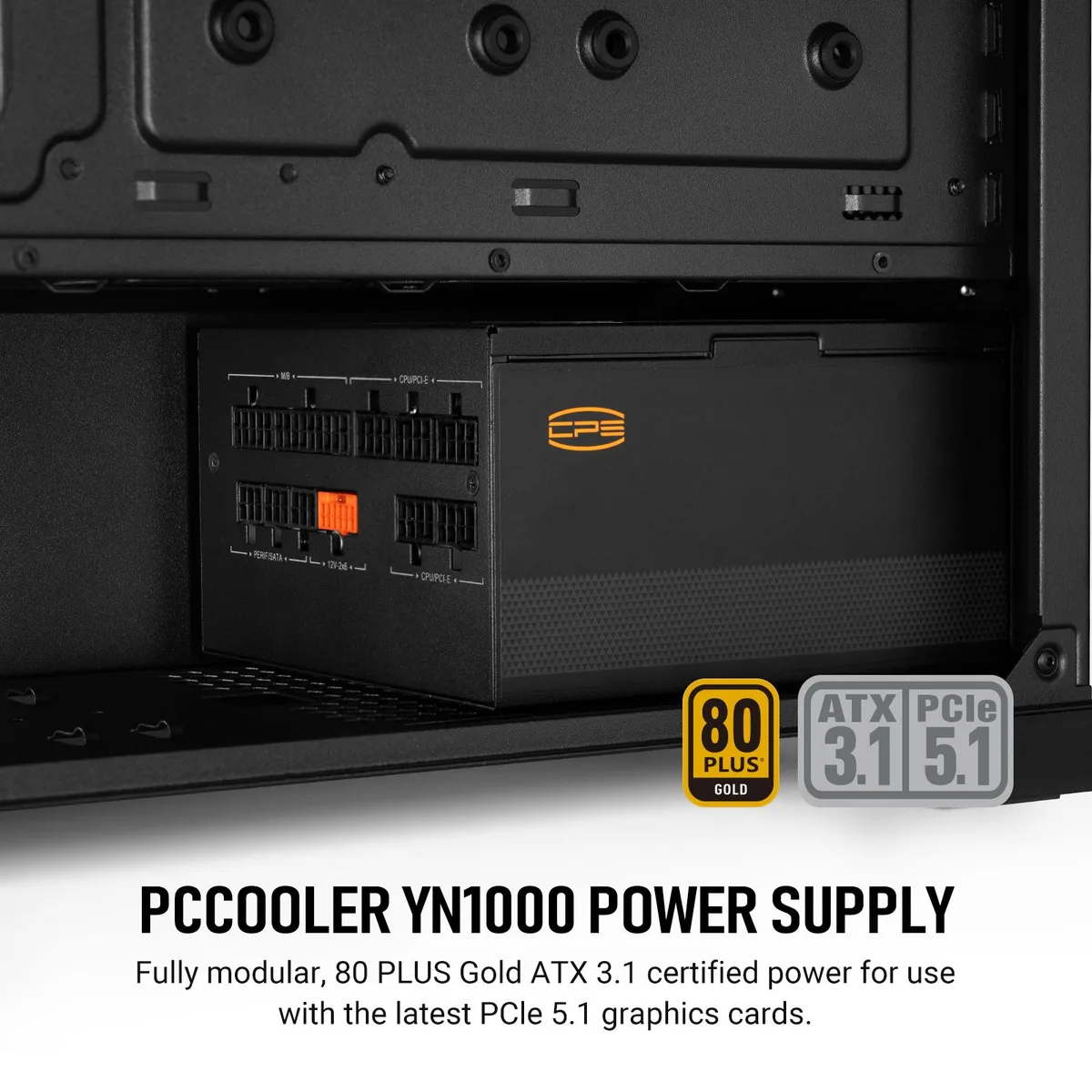

1000W ATX 3.1 power supply

The PCCOOLER P5-YN1000-G1F is a fully modular ATX 3.1 unit rated at 1000 W. It targets builders who need reliable power for modern graphics cards and high-core-count CPUs. The 135 mm fluid-dynamic-bearing fan runs in a hybrid ECO mode that stays silent under light loads.

Capacity and headroom

The single 12 V rail can deliver the full 1000 W, while the 12V-2x6 connector supports up to 600 W for PCIe 5.1 graphics cards. Three 6+2-pin PCIe cables and nine SATA connectors cover multiple drives and peripherals. Efficiency exceeds 91 % at 50 % load and holds 80 PLUS Gold and Cybenetics Platinum ratings.

ATX 3.1 and PCIe 5.1 readiness

The power supply meets the ATX 3.1 specification and includes a native 12V-2x6 cable for PCIe 5.1 GPUs. This connector is the deciding factor for systems that require the new 600 W GPU power standard without adapters.

Highlights

  • 1000W output powers demanding builds
  • 80 PLUS Gold certified for >91% typical efficiency
  • Cybenetics Platinum efficiency & A- noise rating
  • ATX 3.1 & PCIe 5.1 ready with 12V-2x6 cable
  • Fully modular design with 135mm FDB fan

Specifications

BrandPCCOOLER
SeriesYN
ModelP5-YN1000-G1F
Part NumberP5-YN1000-G1FFBK1-US
ColorBlack
TypeATX 3.1 Compatible
Maximum Power1000 W
Fans1 x 135 mm FDB (Fluid Dynamic Bearing) Fan
PFCActive
Main Connector20+4Pin
PCI-Express Connector3 x 6+2-Pin
SATA Power Connector9
Max PSU Length150 mm
ModularFull Modular
Hold-up Time>16ms (Full load)
Efficiency>91% Under Typical Load (50% Loading)
Energy-Efficient80 PLUS GOLD Certified
PSU Noise LevelCybenetics A-
ProtectionOVP/UVP/OCP/SCP/OTP/OPP
Input Voltage100 - 240 V
MTBF>100,000 Hours
Connectors1 x Motherboard Connector 24Pin (20+4)
2 x CPU Connector 8Pin (4+4)
3 x PCI-E Connector 8Pin (6+2)
9 x SATA Power Connector
3 x 4-Pin Peripheral Connector
1 x 12V-2x6 Connector
Cable Spec1 x M/B 24Pin (550mm)
2 x CPU (4+4) Pin (650mm)
3 x PCI-E (6+2) Pin (500mm)
3 x SATA x 3 + 4 Pin Peripheral (450+120+120+120mm)
1 x 12V-2x6 12+4Pin (650mm)
Dimensions150 x 150 x 86 mm

Questions about this item

Will the 12V-2x6 cable work with my older GPU that only has 6+2-pin sockets?

The unit includes three 6+2-pin PCIe cables alongside the 12V-2x6 cable, so you can connect legacy graphics cards directly without adapters.

How can I confirm the fan is running in ECO mode after I build the system?

In ECO mode the 135 mm FDB fan stays off until internal temperature rises; you will hear it spin up only when the load or heat reaches the trigger point.

Which cables come pre-attached and which must I add from the modular bag?

No cables are permanently attached; the box supplies the 20+4-pin motherboard cable, three 6+2-pin PCIe cables, one 12V-2x6 cable, nine SATA connectors and peripheral leads — plug in only what you need.
