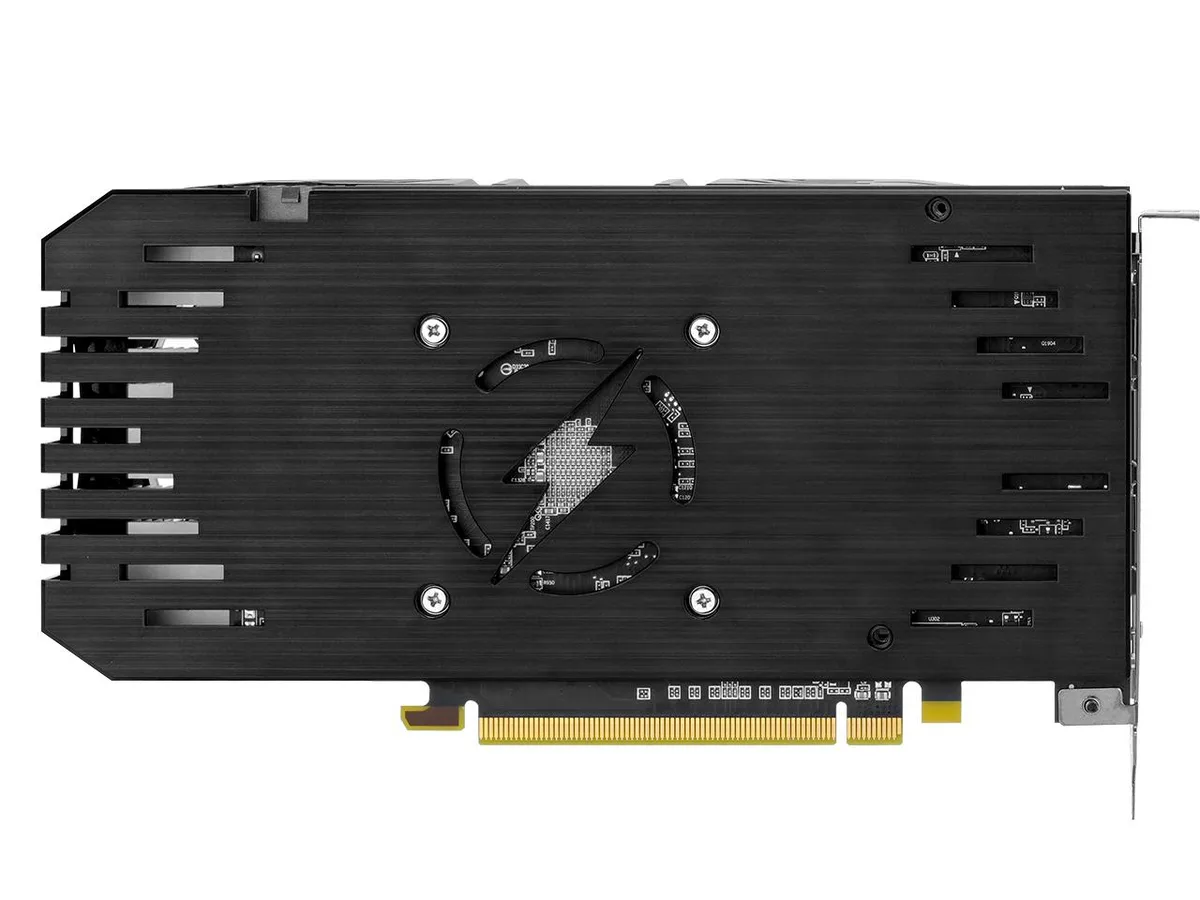

Peladn Radeon RX 5500 single-slot graphics card with black shroud and metal backplate

Peladn

Peladn Radeon RX 5500 8GB GDDR6 graphics card

SKU CH-70SX-CGHDN

AMD Radeon RX 5500 GPU with 2560 stream processors, 8GB GDDR6 on a 128-bit bus, 1750 MHz base and 1845 MHz boost clocks, PCIe 4.0 x16, single-slot design with 130W TDP and 8-pin power, plus three

  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 5500 Series
  • GPURadeon RX 5500
  • Core Clock1750 MHz
  • Boost Clock1845 MHz
  • Stream Processors2560
  • 8 GB GDDR6 memory handles modern textures
  • Boost clock reaches 1845 MHz for higher frame rates
  • PCI Express 4.0 x16 interface doubles bandwidth potential
  • Single-slot design fits compact builds
  • Three DisplayPort and one HDMI drive up to 7680 x 4320 resolution

Peladn Radeon RX 5500 8GB GDDR6

The Peladn Radeon RX 5500 8GB GDDR6 is a graphics card built on the AMD Radeon RX 5500 GPU. It features 2560 stream processors with a base clock of 1750 MHz and a boost clock of 1845 MHz. The card uses 8GB of GDDR6 memory across a 128-bit bus and connects via a PCI Express 4.0 x16 interface. It draws up to 130W and requires an 8-pin power connector.

1080p gaming on PCIe 4.0 systems

This card suits builders targeting 1080p gaming on a motherboard with a PCIe 4.0 x16 slot and a power supply rated above 500W. It supports DirectX 12 and outputs to one HDMI and three DisplayPort connectors for multi-monitor setups up to 7680 x 4320. Users needing higher frame rates at 1440p or 4K, or those running a PCIe 3.0-only platform, should consider a higher-tier GPU.

Check PSU wattage and 8-pin availability

Verify that your power supply delivers at least 500W and has a free 8-pin PCIe power cable. Confirm the case can accommodate a single-slot card measuring 11.6 x 7.6 x 2.8 cm and weighing 2.2 kg. Ensure the motherboard provides a PCIe 4.0 x16 slot and that you run a 64-bit version of Windows 7, 8, 8.1 or 10 for driver support.

Highlights

  • 8 GB GDDR6 memory handles modern textures
  • Boost clock reaches 1845 MHz for higher frame rates
  • PCI Express 4.0 x16 interface doubles bandwidth potential
  • Single-slot design fits compact builds
  • Three DisplayPort and one HDMI drive up to 7680 x 4320 resolution

Specifications

Brandpeladn
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 5500 Series
GPURadeon RX 5500
Core Clock1750 MHz
Boost Clock1845 MHz
Stream Processors2560
CUDA Cores2560
HDMI1 x HDMI
DisplayPort3 x DisplayPort
Max Resolution7680 x 4320
Thermal Design Power130W
Power Connector8-Pin
Slot WidthSingle Slot

Questions about this item

What power supply rating do I need to run this Peladn Radeon RX 5500 8GB GDDR6 card?

The supplier recommends a power supply rated at more than 500W, and the card itself has a thermal design power of 130W with a single 8-pin power connector.

Will this PCI Express 4.0 x 16 graphics card work in my older motherboard that only has PCIe 3.0 slots?

Yes, the PCI Express 4.0 x 16 interface is backward compatible with PCIe 3.0 motherboards, though the card will operate at PCIe 3.0 speeds instead of the full 4.0 bandwidth.

How can I verify the boost clock of 1845 MHz is being reached after I install the card?

Use monitoring software such as AMD Radeon Software or GPU-Z to observe the core frequency under load; it should report up to 1845 MHz when the GPU is fully utilised.
