Black ABS and PC plastic D-RGB LED modules, cable cover and power hub for NV5 case

Phanteks

Phanteks NV5 D-RGB Kit PH-PLEDKT_NV5_DBK01 case accessory

SKU CH-4R2Z-KJ3EJ MPN PH-PLEDKT_NV5_DBK01

Adds magnetic D-RGB lighting modules, a cable cover and a power hub to the Phanteks NV5 chassis

  • TypesLighting & Decor
  • ColorsBlack
  • SpecificationsNET WEIGHT: 1.43 kg | 3.15 lbs GROSS WEIGHT: 1.59 kg | 3.50

Model NV5 Premium Black Kit

  • NV5 Premium Black Kit
  • NV5 Premium White Kit
  • NV7 Premium Black Kit
  • NV7 Premium White Kit
  • NV9 Premium Black Kit
  • NV9 Premium White Kit

Struck-through versions exist but are not stocked here.

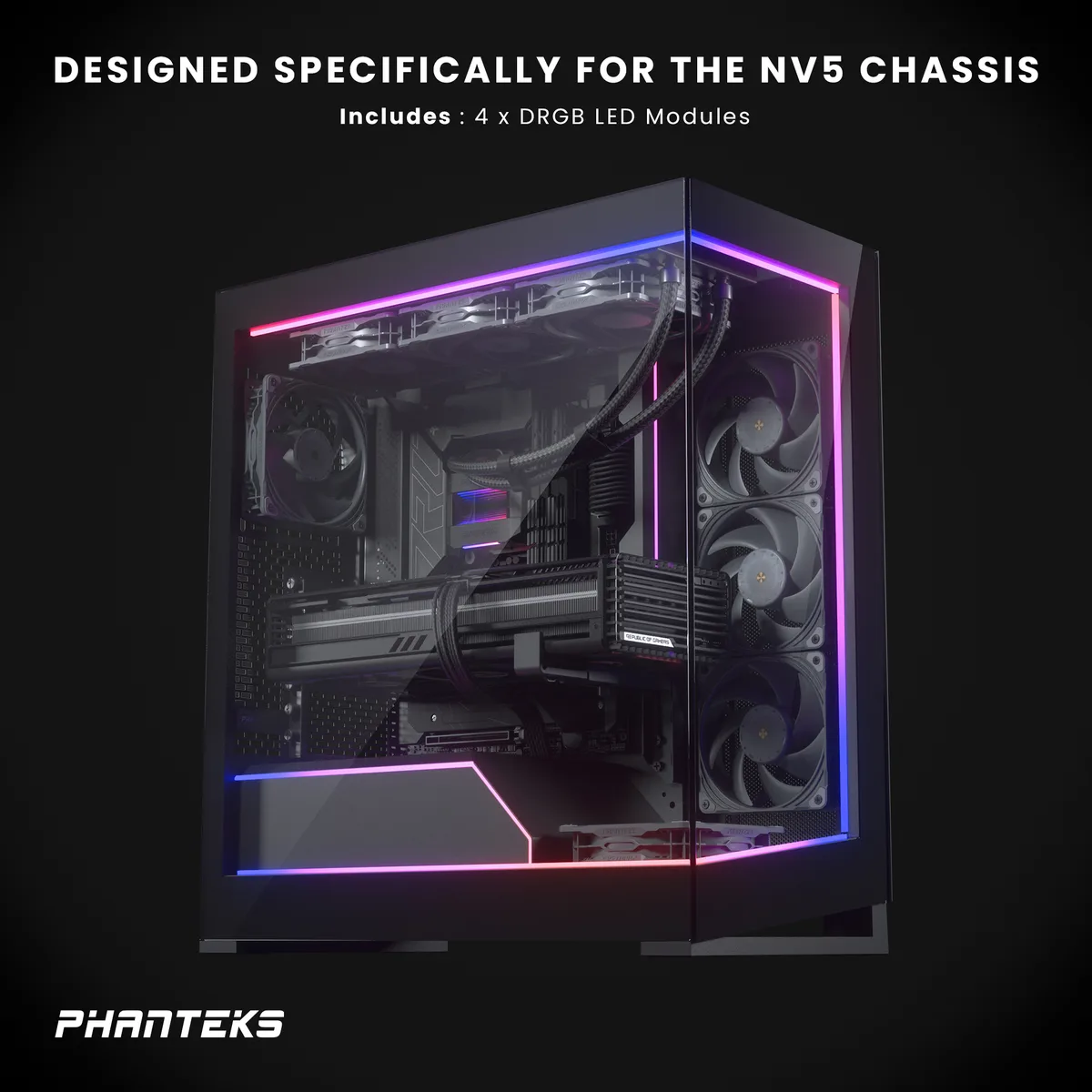

  • Magnetic LED modules create smooth D-RGB effects on the NV5 outer frame
  • Included D-RGB cable cover conceals motherboard wiring for a cleaner look

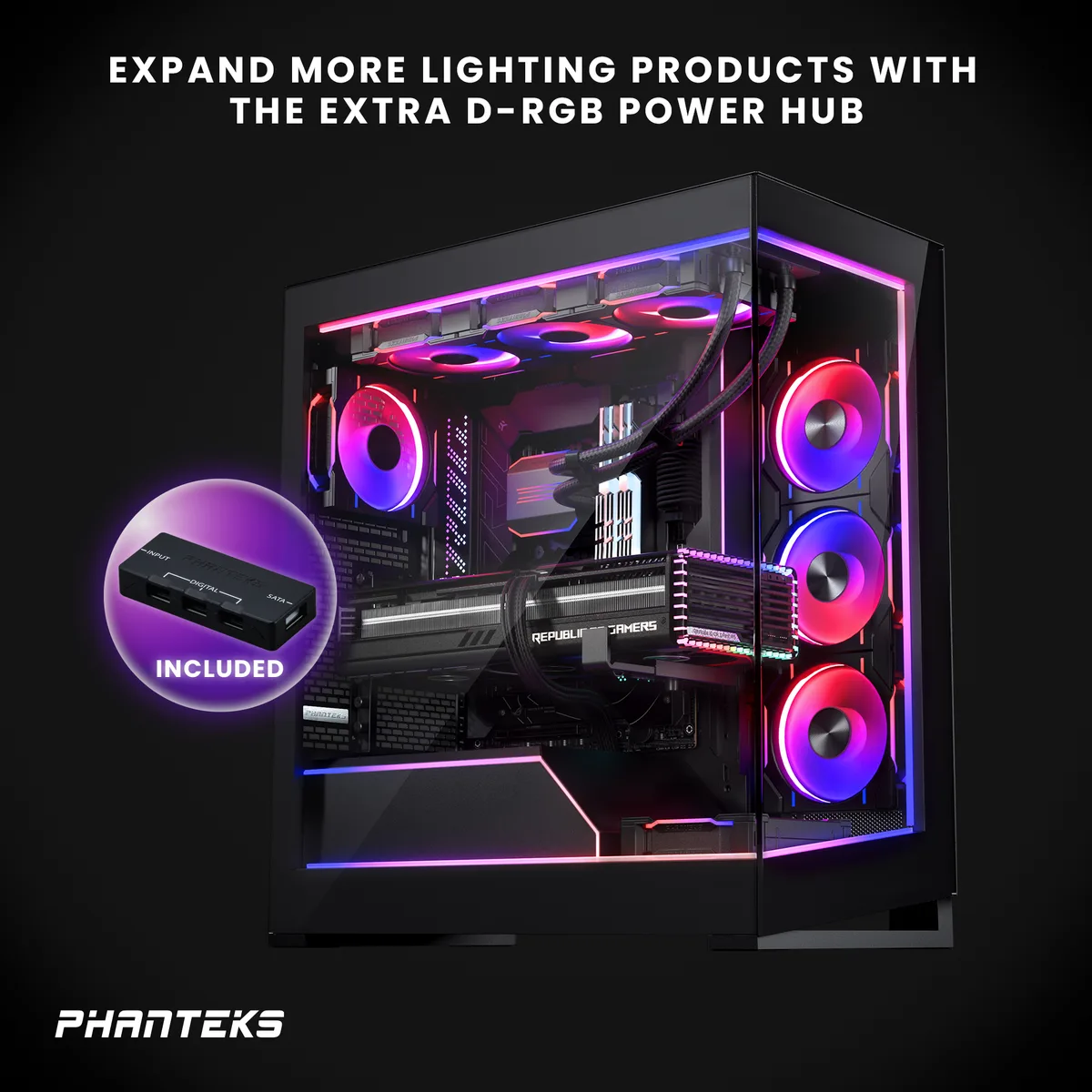

  • Extra D-RGB power hub with magnetic mount expands lighting via the case controller
  • Kit designed specifically for the Phanteks NV5 chassis
  • ABS and PC plastic construction weighs 1.43 kg net

Phanteks NV5 D-RGB lighting kit

This accessory kit adds addressable D-RGB illumination to the Phanteks NV5 chassis. Three magnetic LED modules attach to the outer frame and a matching cable cover conceals motherboard wiring. A supplementary power hub expands the lighting system for builders who want a coordinated look inside the NV5.

Sustained lighting performance

The kit draws power through a SATA cable connected to the included hub, which is rated for a 7 A D-RGB controller output. This arrangement delivers stable current to all modules and any daisy-chained strips during long gaming or workstation sessions without voltage droop.

Installation notes

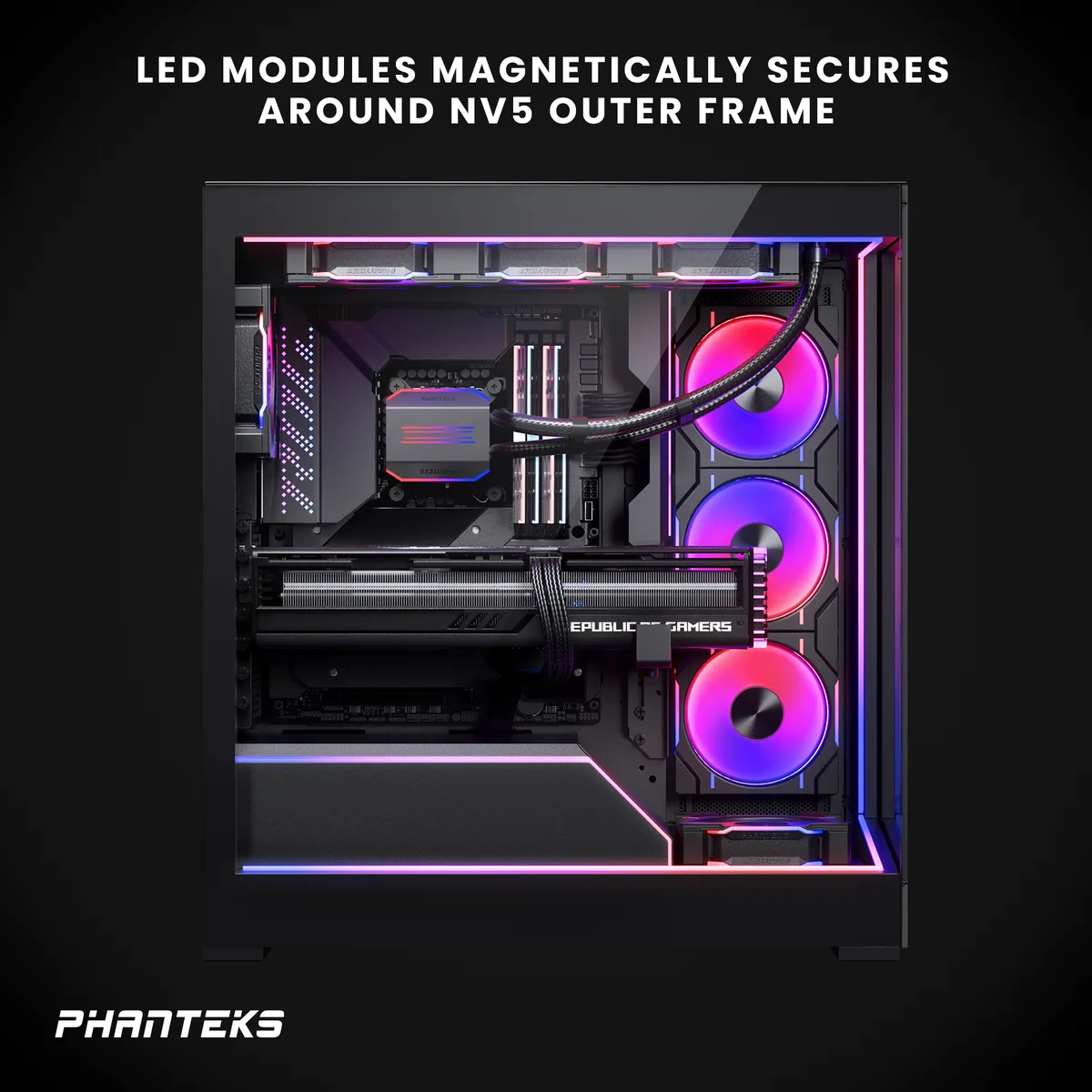

Magnetic mounting lets the three LED modules snap onto the NV5 outer frame without tools, and the cable cover slides into place to hide motherboard cables. The hub secures anywhere inside the case using its own magnets. The kit is made specifically for the NV5 chassis, so it cannot be used with other cases or builders who need a universal lighting solution.

Highlights

  • Magnetic LED modules create smooth D-RGB effects on the NV5 outer frame
  • Included D-RGB cable cover conceals motherboard wiring for a cleaner look
  • Extra D-RGB power hub with magnetic mount expands lighting via the case controller
  • Kit designed specifically for the Phanteks NV5 chassis
  • ABS and PC plastic construction weighs 1.43 kg net

Specifications

BrandPhanteks
ModelNV5
Part NumberPH-PLEDKT_NV5_DBK01
TypesLighting & Decor
ColorsBlack
SpecificationsNET WEIGHT: 1.43 kg | 3.15 lbs
GROSS WEIGHT: 1.59 kg | 3.50 lbs
MATERIALS: ABS plastic | PC plastic
D-RGB CONTROLLER OUTPUT: 7A
CHASSIS SUPPORT: Phanteks NV5
SCOPE OF DELIVERY:
- 3x D-RGB LED modules
- 1x D-RGB mainboard cable cover
- 1x D-RGB power hub
- 1x D-RGB hub input cable
- 3x D-RGB output cables
- 1x Thumb screw
- 1x SATA cable
Shipping weight1.23 kg
Package size556 × 254 × 51 mm

Questions about this item

Does the 7 A D-RGB controller output add noticeable heat or power draw when the kit runs all day?

The controller is rated at 7 A, so power draw scales with the number of connected LED modules; the ABS and PC plastic parts do not generate significant heat themselves.

What existing hardware is required to use the included SATA cable and D-RGB power hub?

A free SATA power connector from the power supply and a Phanteks NV5 chassis with its built-in D-RGB case controller are needed.

Will the magnetic LED modules and cable cover fit an older Phanteks case that is not the NV5?

The kit is made specifically for the NV5 chassis; the magnetic mounts and cable cover are shaped for that frame and will not align with other models.
