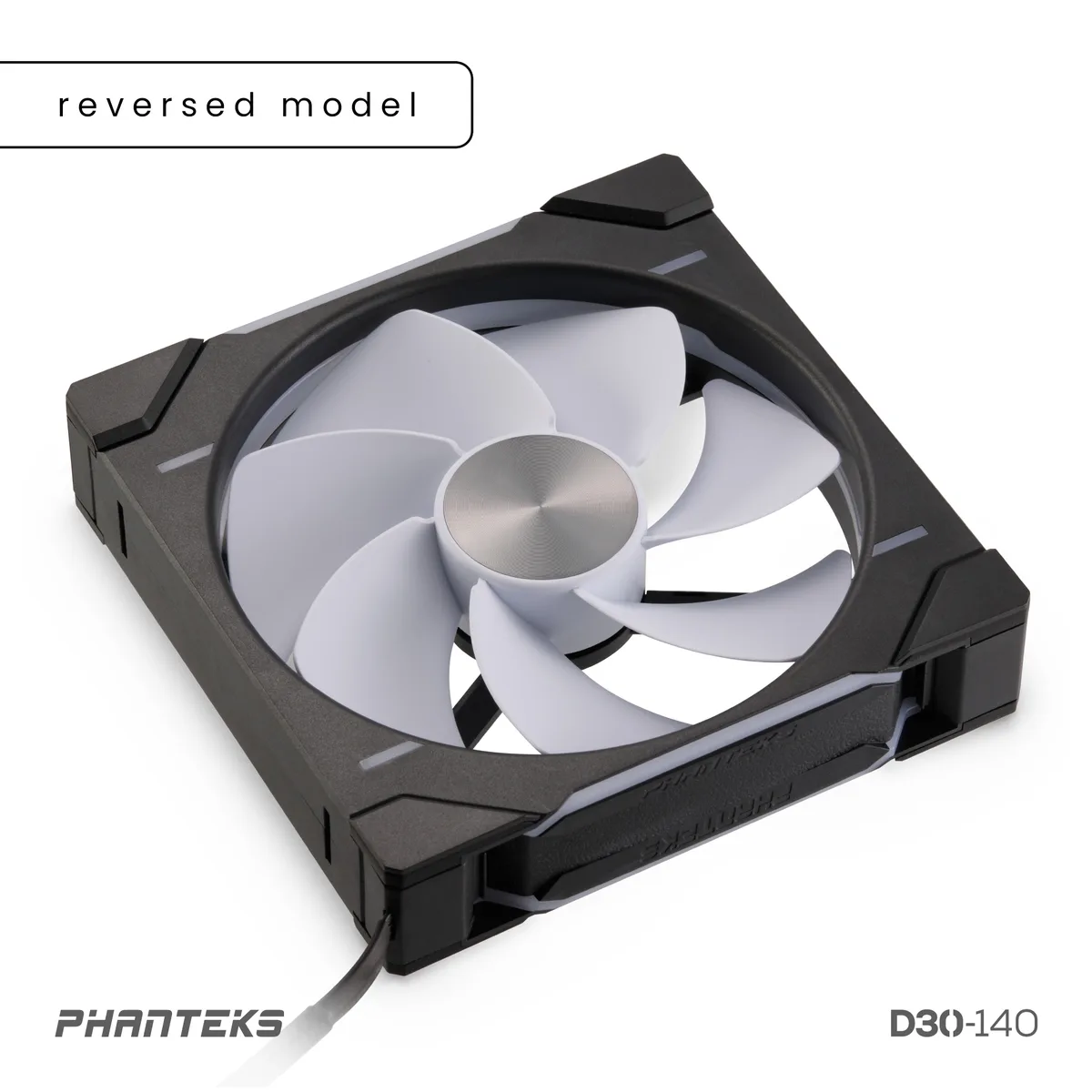

Thick 140 mm black frame fan with white matte blades and DRGB lighting ring

Phanteks

Phanteks PH-F140D30R_DRGB_PWM_BK01 140 mm 30 mm reverse airflow case fan

SKU CH-HTNG-MCABC MPN PH-F140D30R_DRGB_PWM_BK01

A 30 mm thick 140 mm case fan with reverse airflow, fluid-dynamic bearing, 250-1800 RPM, 71.76 CFM max airflow, 32.1 dB(A) noise, PWM control and DRGB lighting

  • Fan Counts1 Fan
  • TypeCase Fan
  • Fan Size140mm
  • Fan Thickness30mm
  • Bearing TypeFluid Dynamic
  • RPM250-1800 +/- 10% RPM

Fan Size 140mm

Style Reversed

  • Regular / No DRGB
  • Regular
  • Reversed

Model D30

Option Single Fan

Struck-through versions exist but are not stocked here.

  • Reverse airflow design keeps blade lighting visible
  • 30 mm thick frame delivers high static pressure for radiators
  • Daisy-chain linking system cuts cable clutter between multiple fans
  • Fluid dynamic bearing runs at 32.1 dB(A) maximum noise

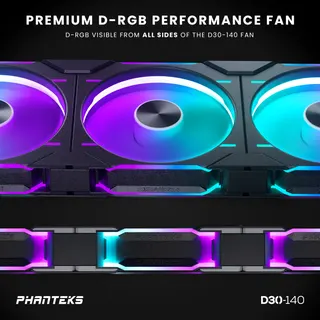

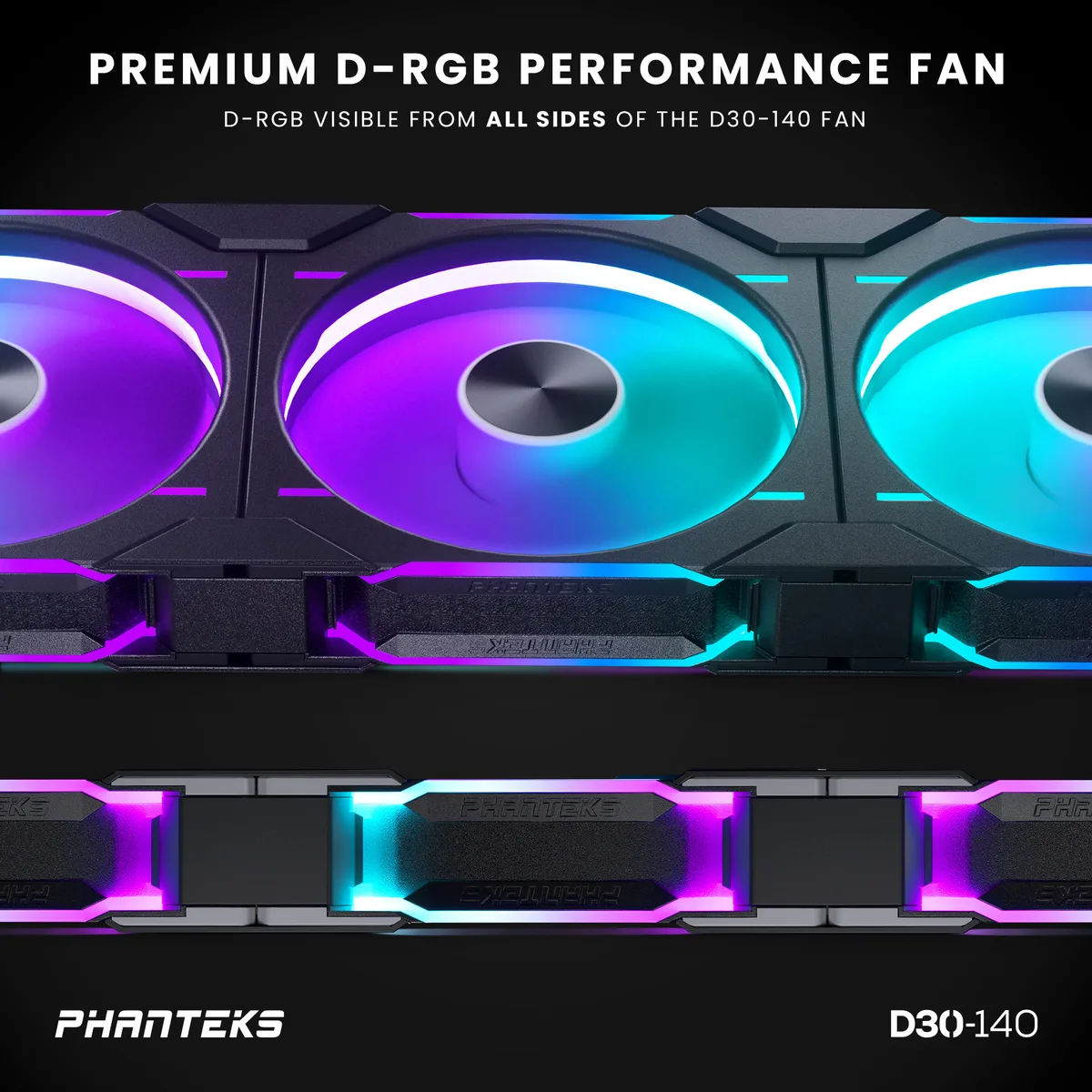

  • DRGB lighting syncs with motherboard RGB headers

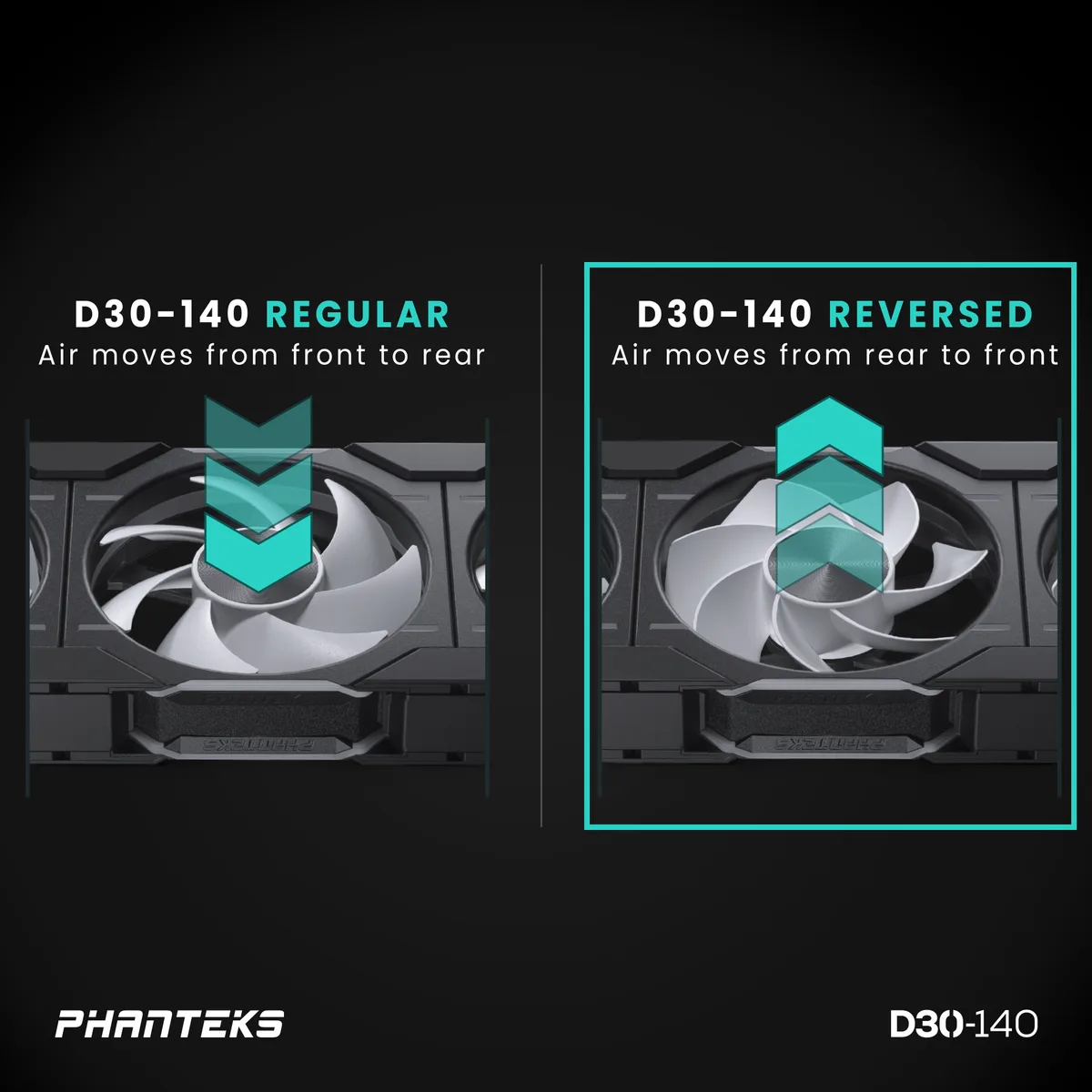

Reverse airflow 140 mm fan

The Phanteks D30-140 reverse airflow fan moves air in the opposite direction to standard models while keeping the DRGB blade illumination visible. It suits builders who need intake or exhaust orientation that matches a specific radiator or chassis layout. The fluid dynamic bearing runs between 250 and 1800 RPM with a maximum airflow of 71.76 CFM.

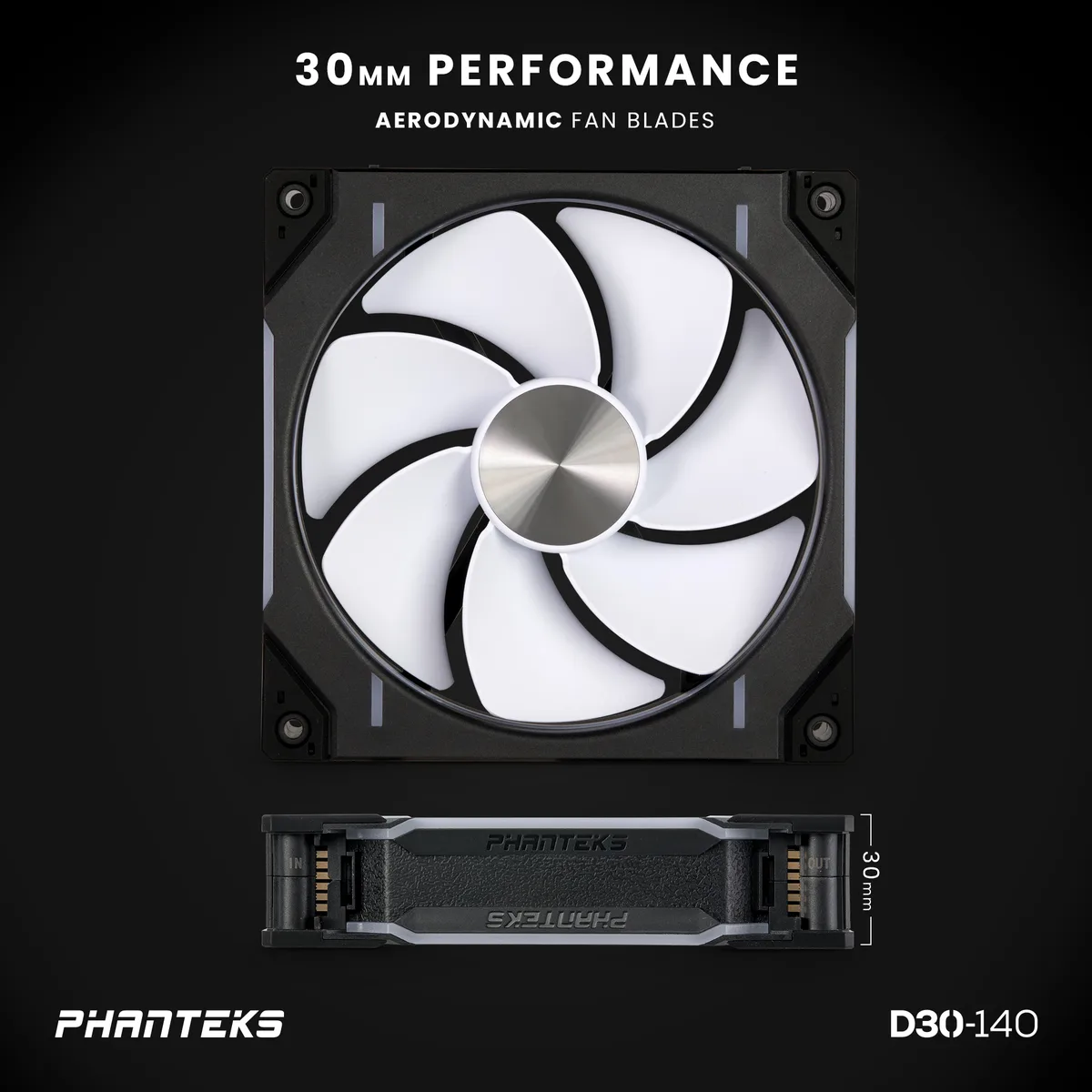

30 mm thick frame and mounting kit

A 30 mm frame depth gives extra static pressure for dense radiators or restrictive mesh panels. The box includes both UNC 6-32 and M4 radiator screws at 36 mm length plus standard case screws, so the same fan fits multiple mounting jobs without extra hardware. Screw covers and bridge clips keep the installation tidy.

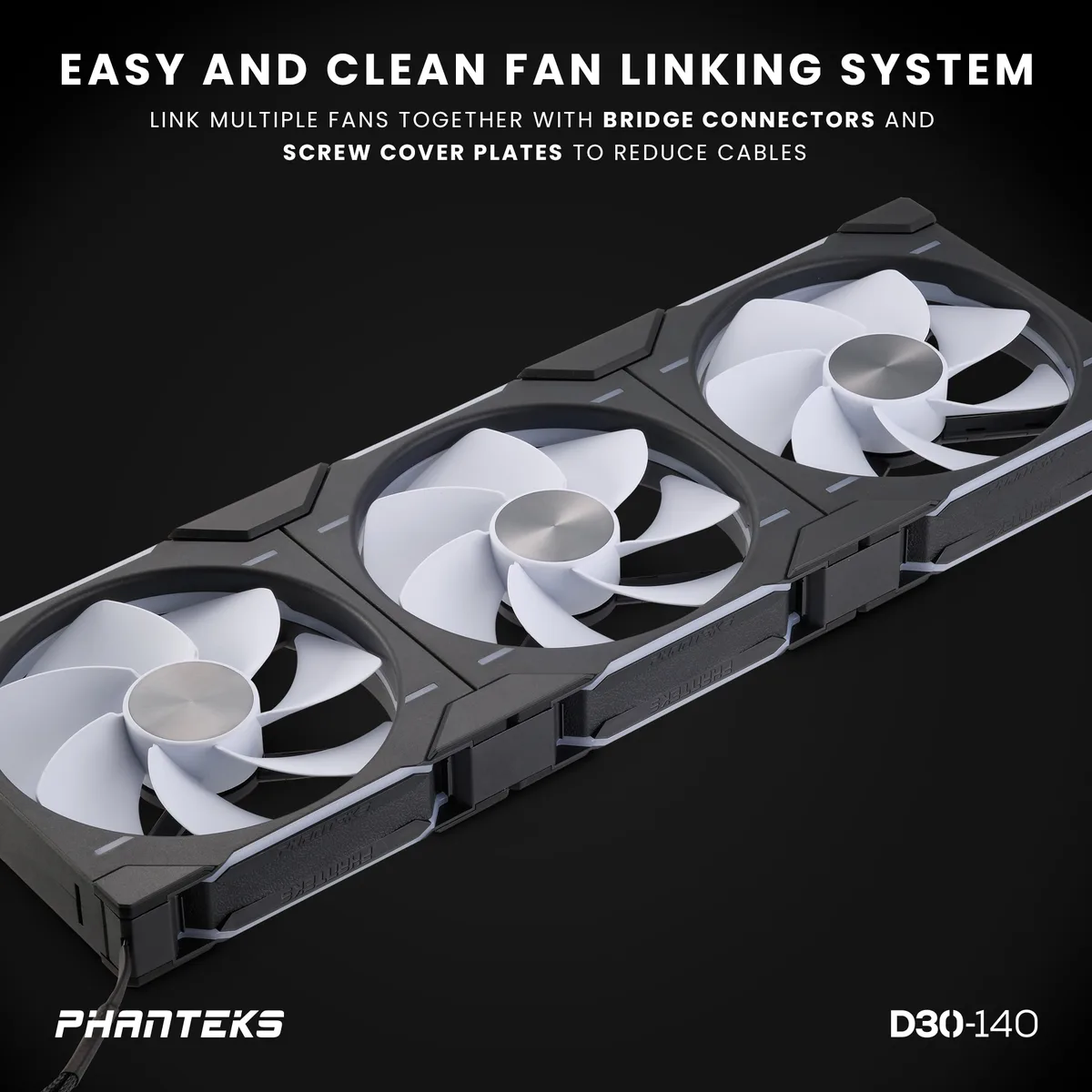

Daisy-chain linking and DRGB adapter

Corner clips, a bridge clip and its connector let several fans link together as one unit, reducing cable runs to a single PWM and DRGB lead. A motherboard DRGB adapter is also supplied for boards that lack a native 3-pin 5 V header. Buyers who want a thinner 25 mm fan or a non-reverse airflow variant should choose a different model.

Highlights

  • Reverse airflow design keeps blade lighting visible
  • 30 mm thick frame delivers high static pressure for radiators
  • Daisy-chain linking system cuts cable clutter between multiple fans
  • Fluid dynamic bearing runs at 32.1 dB(A) maximum noise
  • DRGB lighting syncs with motherboard RGB headers

Specifications

BrandPhanteks
ModelPH-F140D30R_DRGB_PWM_BK01
Fan Counts1 Fan
TypeCase Fan
Fan Size140mm
Fan Thickness30mm
Bearing TypeFluid Dynamic
RPM250-1800 +/- 10% RPM
Air Flow71.76 CFM Max
Noise Level32.1 dB(A)
Power Connector4 Pin
ColorWhite Matte blade / Black Fan Frame
LEDDRGB
Dimensions140 x 140 x 30 mm / 5.51" x 5.51" x 1.18"
Package Contents1 x PH-F140D30R_DRGB_PWM_BK01
4 x Fan Screw
4 x UNC 6-32 Radiator Screw 36mm
4 x M4 Radiator Screw 36mm
1 x Corner Clip Cable, 3x Corner Clip
1 x Bridge Clip, 1 x Bridge Clip Connector
4 x Screw Cover Corner (2L, 2R)
2 x Screw Cover Bridge
1 x D-RGB M/B Adapter
Shipping weight0.45 kg
Package size217 × 143 × 34 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the 4-pin PWM connector cap fan speed at 1800 RPM?

The 4-pin PWM connector lets the motherboard control speed across the full 250-1800 RPM range.

Will the 30 mm frame clear my motherboard heatsinks when mounted on a 140 mm radiator?

At 30 mm thick the fan needs 30 mm clearance; the included 36 mm UNC 6-32 and M4 radiator screws are long enough for standard radiators.

How do I daisy-chain the DRGB lighting without a separate controller?

Plug the supplied D-RGB motherboard adapter into a 5 V 3-pin header, then use the corner clip cable and bridge clip connector to link each fan in series.
