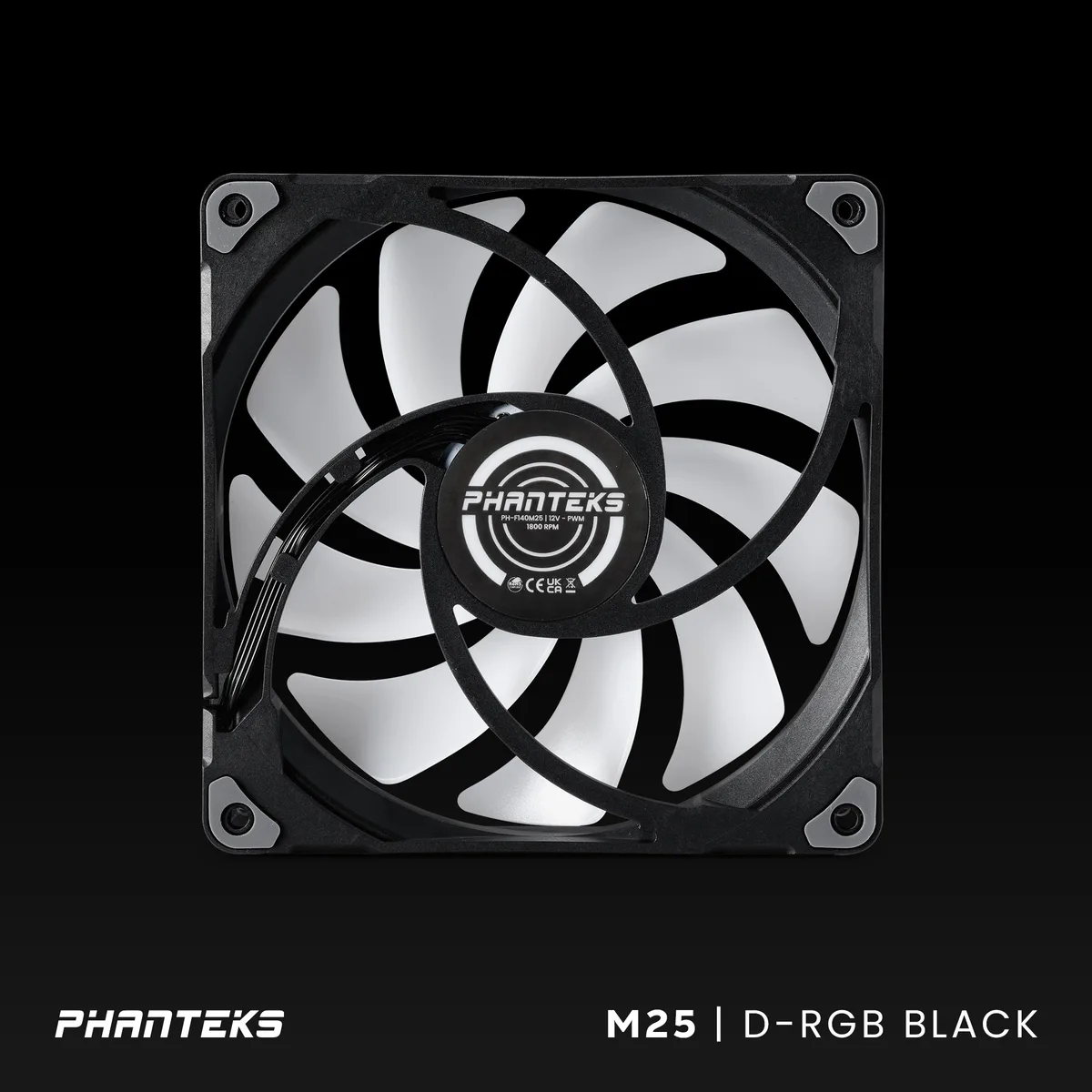

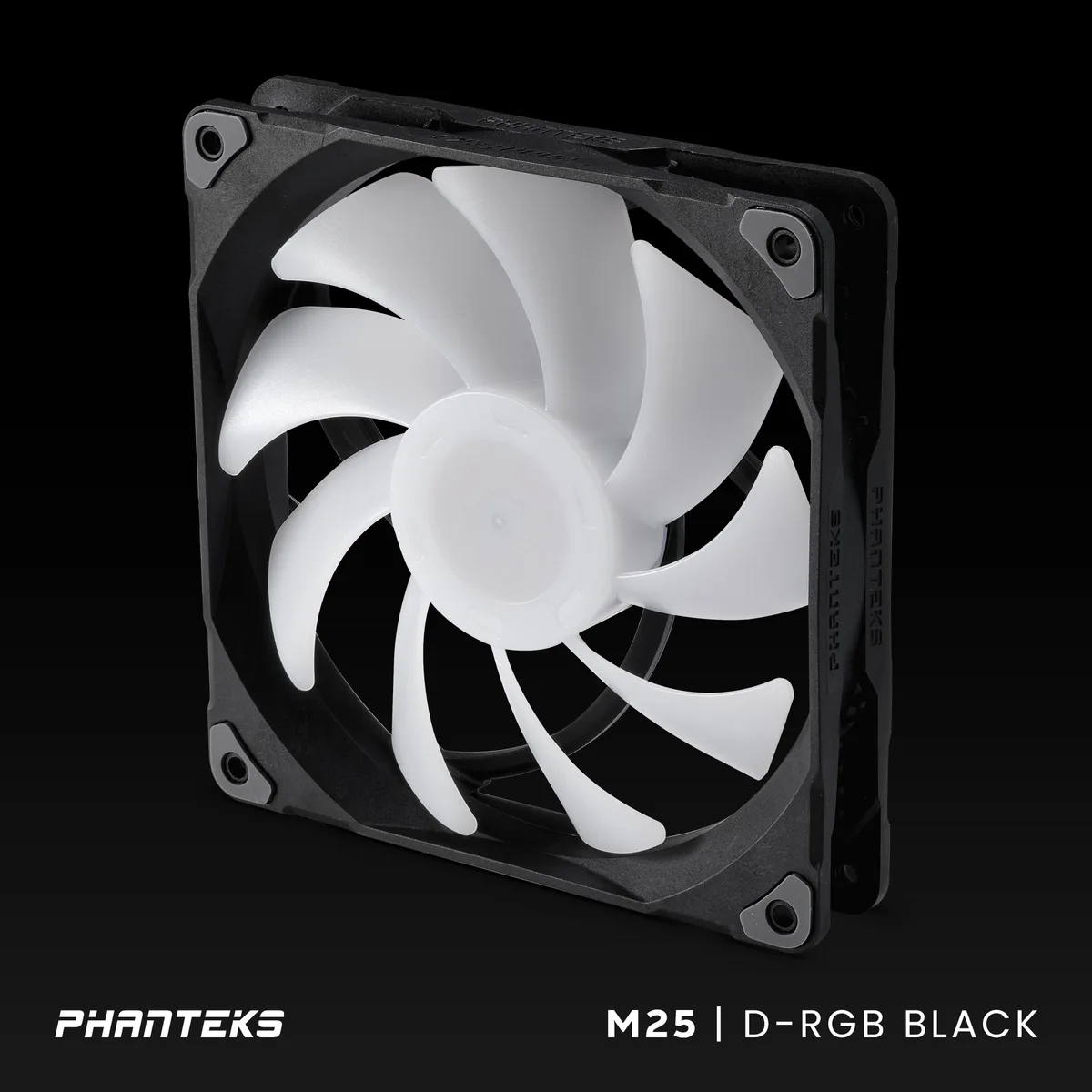

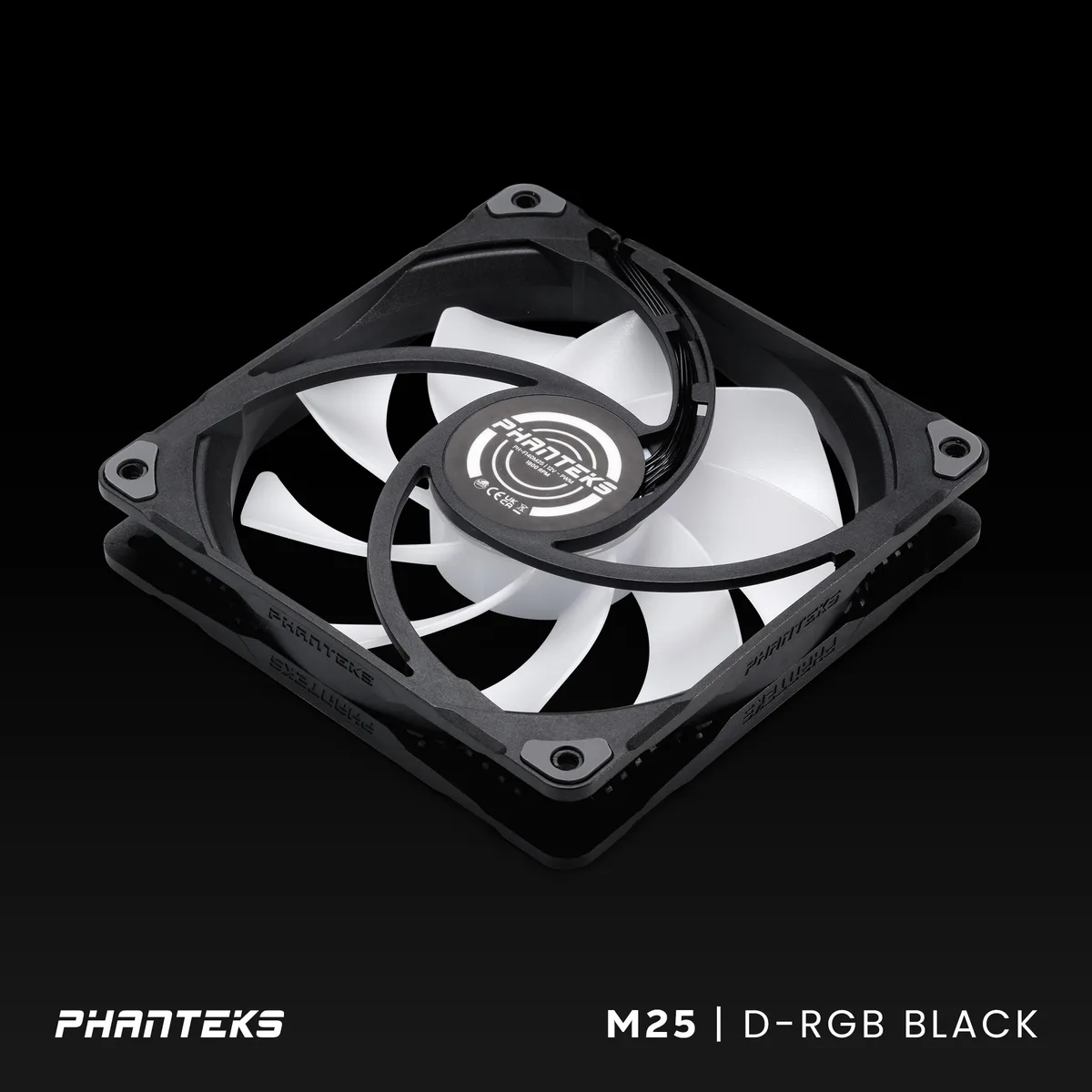

Black frame 140mm fan with white matte blades and DRGB lighting

Phanteks

Phanteks PH-F140M25_DRGB_PWM_BK01 140mm 25mm case fan

SKU CH-ATVS-PBTBX MPN PH-F140M25_DRGB_PWM_BK01

A 140 mm hydraulic-bearing case fan delivering 104.62 CFM at up to 1800 RPM with DRGB lighting and daisy-chain cabling

  • Fan Counts1 Fan
  • TypeCase Fan
  • Fan Size140mm
  • Fan Thickness25mm
  • Bearing TypeHydraulic
  • RPM500-1800±10% RPM

Fan Size 140mm

Style Regular

Model M25

Option Single Fan

Struck-through versions exist but are not stocked here.

  • High airflow of 104.62 CFM for strong radiator cooling
  • Quiet operation at 36.57 dB(A) with hydraulic bearing
  • PWM control from 500 to 1800 RPM for precise speed

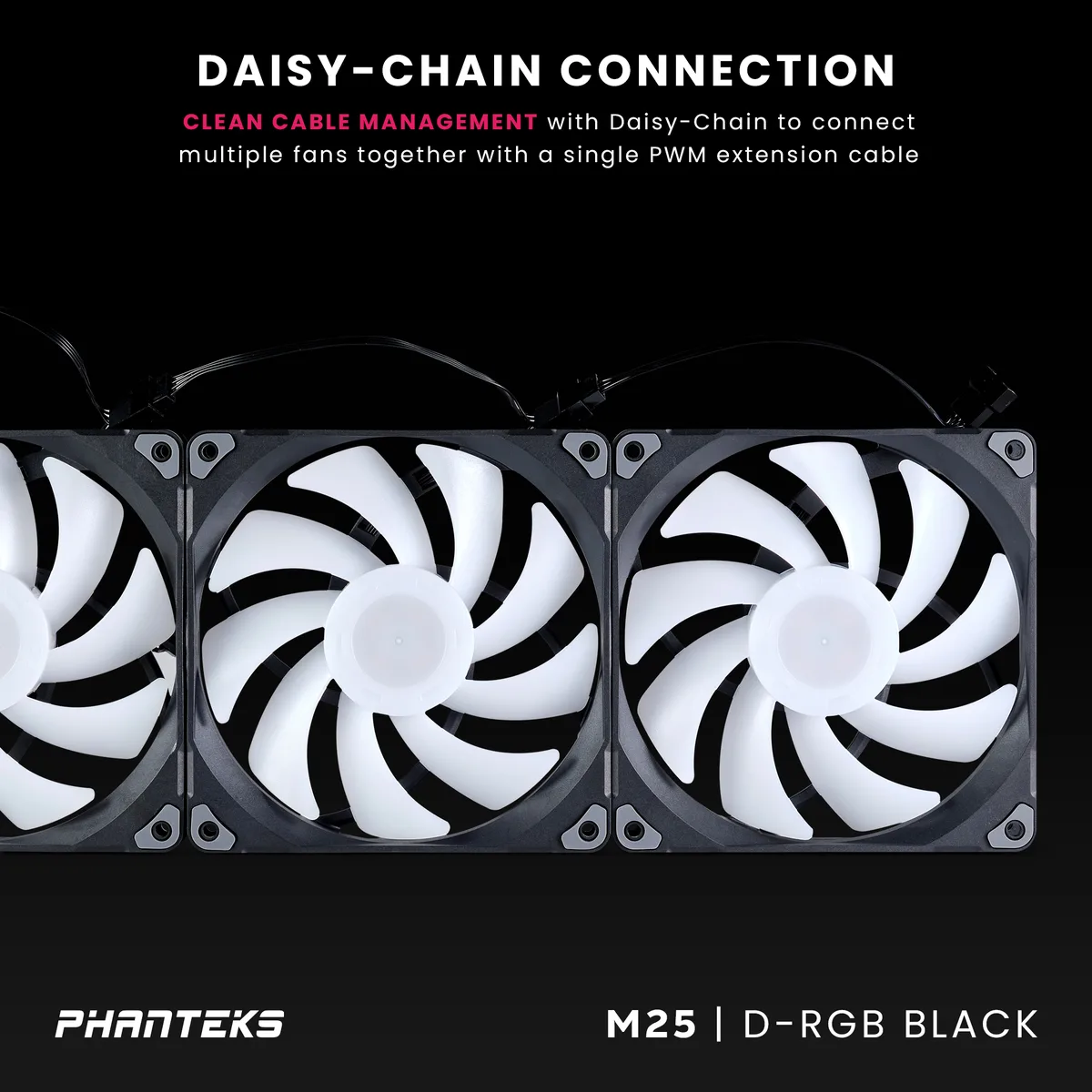

  • Daisy-chain cabling connects multiple fans with one PWM cable

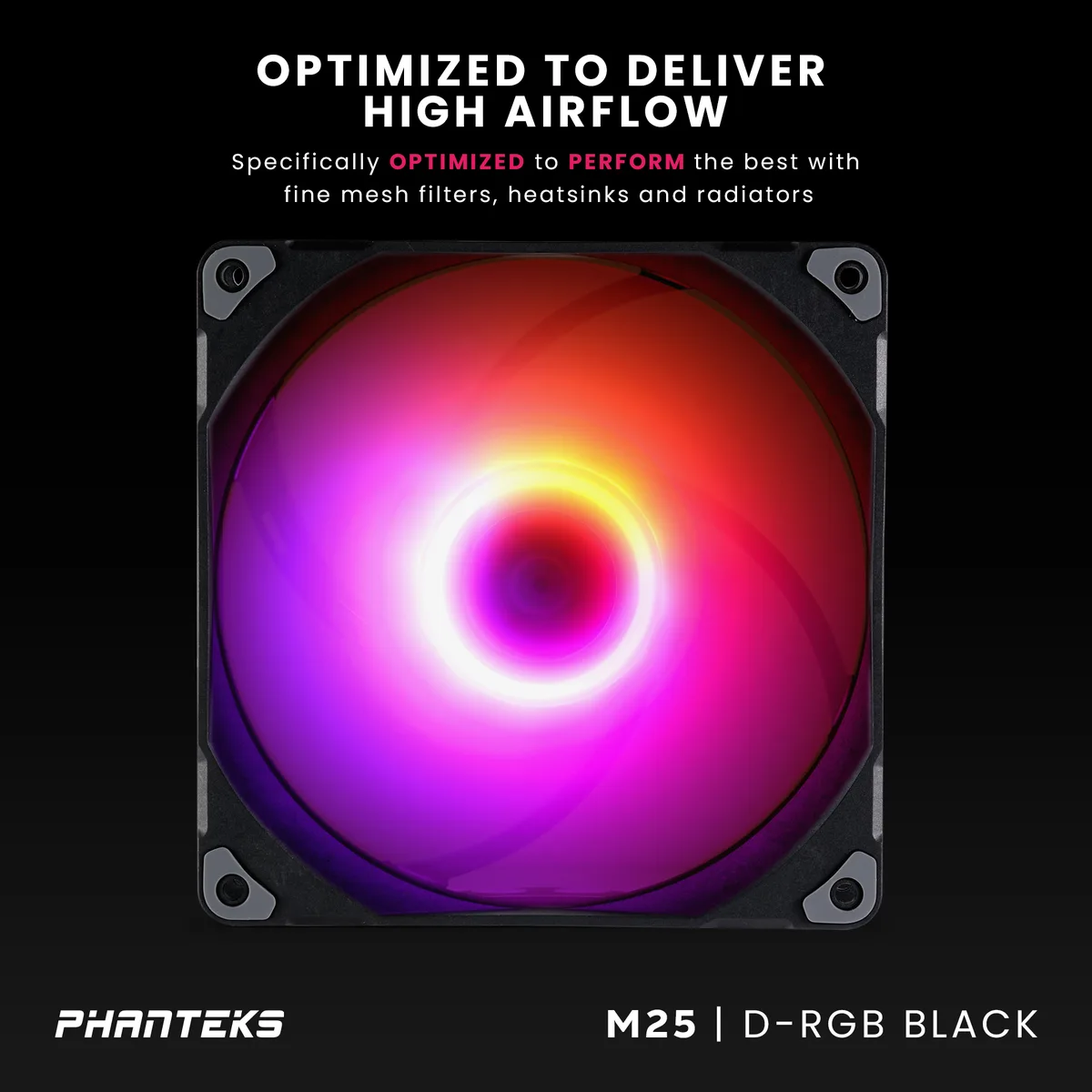

  • DRGB lighting syncs via included motherboard adapter

140mm 25mm Hydraulic Case Fan

The Phanteks M25-140 D-RGB is a single 140mm case fan with a 25mm thick frame and hydraulic bearing. It targets builders who need high static pressure for radiators or dense mesh filters. PWM control spans 500 to 1800 RPM, delivering 104.62 CFM airflow at a maximum noise level of 36.57 dB(A). DRGB lighting is included with a motherboard adapter for synchronization.

Suits radiator and filter builds.

This fan suits systems using liquid-cooling radiators or cases with restrictive dust filters where pressure matters. The hydraulic bearing and wide PWM range support both low-speed quiet running and high-speed thermal headroom. Builders who prioritise absolute minimum noise above cooling capacity should look at alternatives optimised for lower RPM operation. The daisy-chain cabling simplifies multi-fan installations.

104.62 CFM airflow at 1800 RPM

The headline specification is 104.62 CFM airflow generated at 1800 RPM, which determines whether this fan meets the thermal demands of a given radiator or heatsink. This figure, combined with the 25mm thickness and 4-pin PWM connector, confirms fit and performance for high-density cooling arrays. Verify case clearance for 140mm mounting points before purchase.

Highlights

  • High airflow of 104.62 CFM for strong radiator cooling
  • Quiet operation at 36.57 dB(A) with hydraulic bearing
  • PWM control from 500 to 1800 RPM for precise speed
  • Daisy-chain cabling connects multiple fans with one PWM cable
  • DRGB lighting syncs via included motherboard adapter

Specifications

BrandPhanteks
ModelM25-140 D-RGB Fan, Black
Part NumberPH-F140M25_DRGB_PWM_BK01
Fan Counts1 Fan
TypeCase Fan
Fan Size140mm
Fan Thickness25mm
Bearing TypeHydraulic
RPM500-1800±10% RPM
Air Flow104.62 CFM
Noise Level36.57 dB(A)
Power Connector4 Pin
ColorWhite Matte blade / Black Fan Frame
LEDDRGB
Shipping weight0.18 kg
Package size140 × 140 × 25 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What motherboard header do I need to run the 4-pin PWM control on this 140mm fan?

A standard 4-pin PWM header lets the motherboard vary the speed between 500 and 1800 RPM.

Can I daisy-chain several of these 140mm fans to one PWM header and still control them together?

Yes, the included Daisy-Chain cable links multiple fans so one PWM signal drives all of them.

How can I confirm the DRGB lighting is working once the fan is installed?

Connect the DRGB lead to a compatible motherboard header; the LEDs should illuminate and respond to the board's lighting software.
