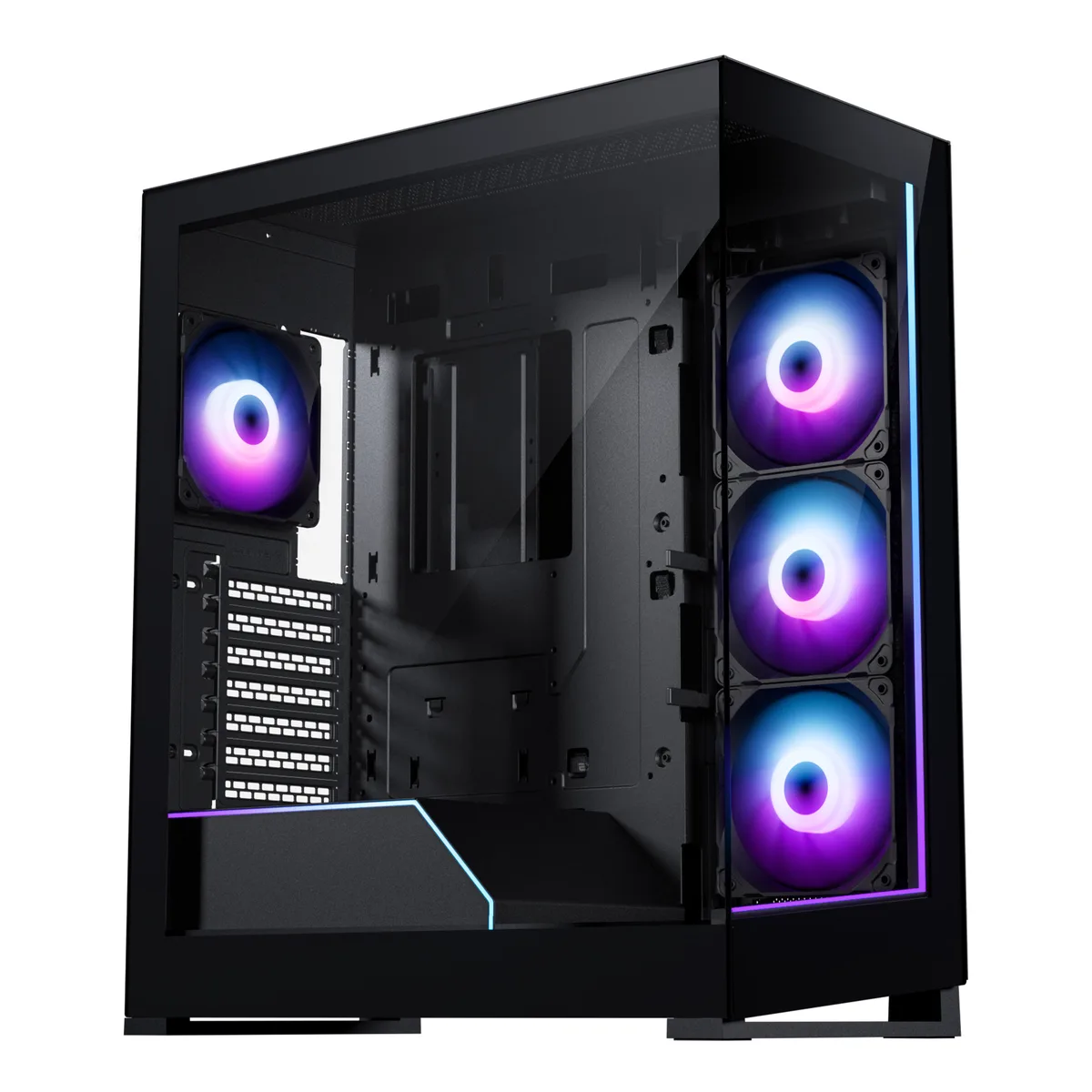

Black ATX mid-tower with front and side tempered glass panels, four pre-installed ARGB fans

Phanteks

Phanteks PH-NV523S_DBK01 NV5S ATX mid-tower PC case

SKU CH-6QCH-XXFNW MPN PH-NV523S_DBK01

ATX mid-tower chassis with near-seamless tempered glass, four pre-installed 120 mm ARGB fans and room for seven fans plus dual 360 mm radiators

  • TypeATX Mid Tower
  • ColorBlack
  • Case MaterialSteel / Tempered Glass
  • Motherboard CompatibilityATX, micro-ATX, mini-ITX, E-ATX (Up to 280mm with GPU suppor
  • Side PanelYes, Front and Side Tempered Glass
  • Internal 3.5" Drive Bays1
  • Near-seamless tempered glass gives a clear view of components
  • Four pre-installed 120 mm ARGB fans provide immediate cooling and lighting
  • Seven 120 mm fan positions plus dual 360 mm radiator support enable high-end thermal performance
  • GPU support bracket included for cards up to 430 mm length

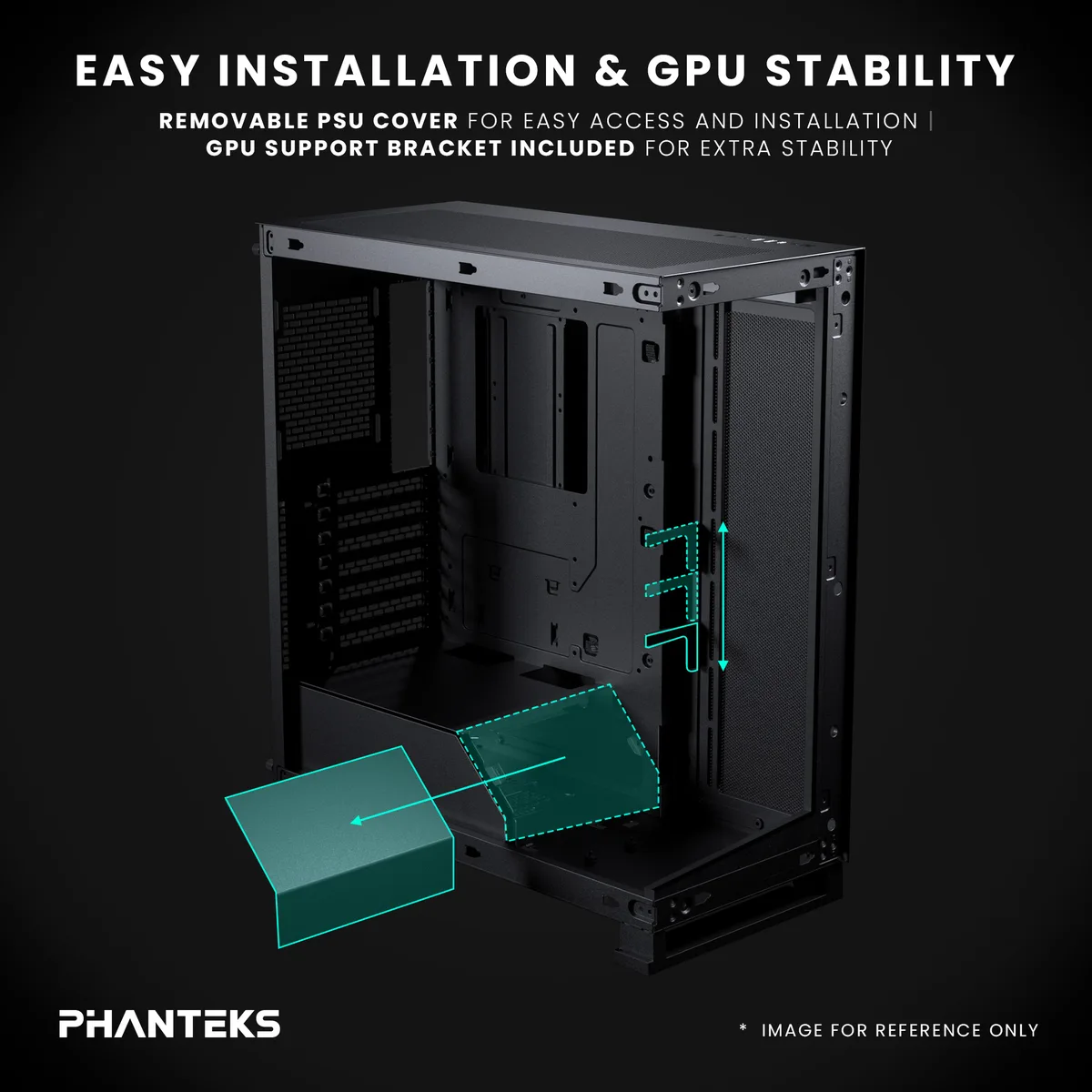

  • Removable PSU cover and ultra-fine mesh simplify cable routing and dust filtration

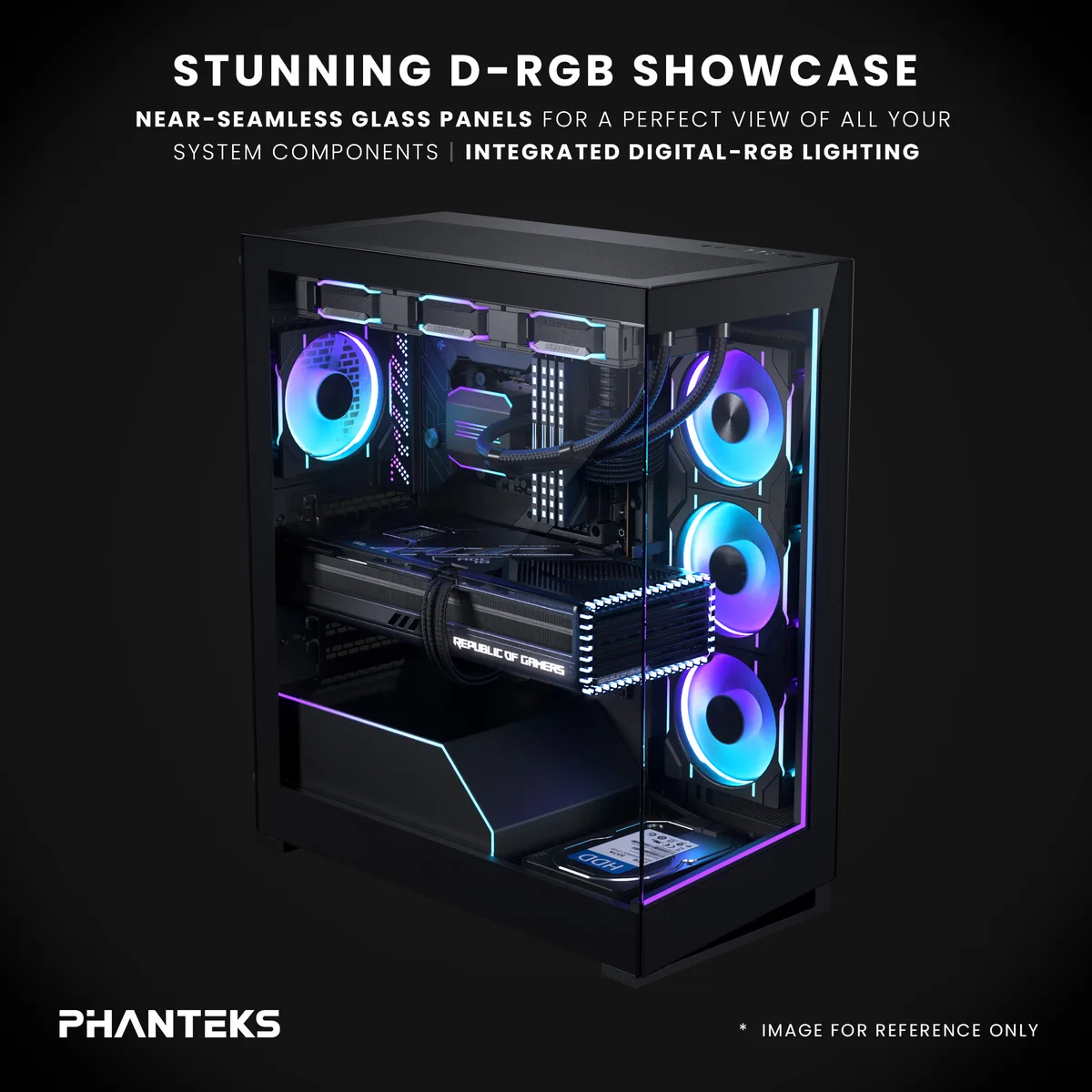

NV5S Showcase Mid-Tower Chassis

The Phanteks NV5S is a black ATX mid-tower case built for enthusiasts who want a clear view of their components. It supports ATX, micro-ATX, mini-ITX, and E-ATX motherboards up to 280 mm wide. Near-seamless tempered glass panels on the front and side provide an uninterrupted look. The steel frame includes an ultra-fine mesh design for high airflow with dust filtration.

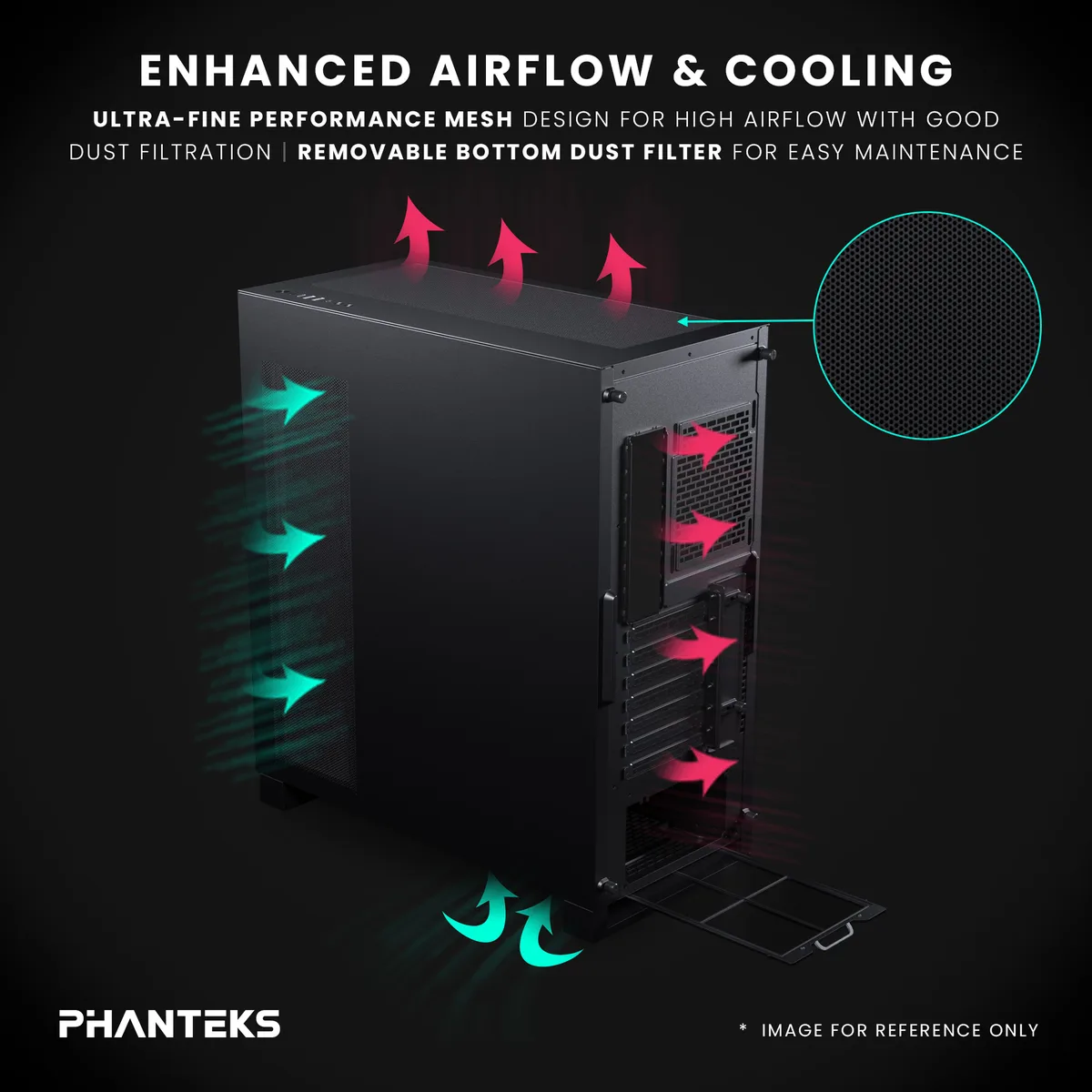

Sustained Thermal Performance

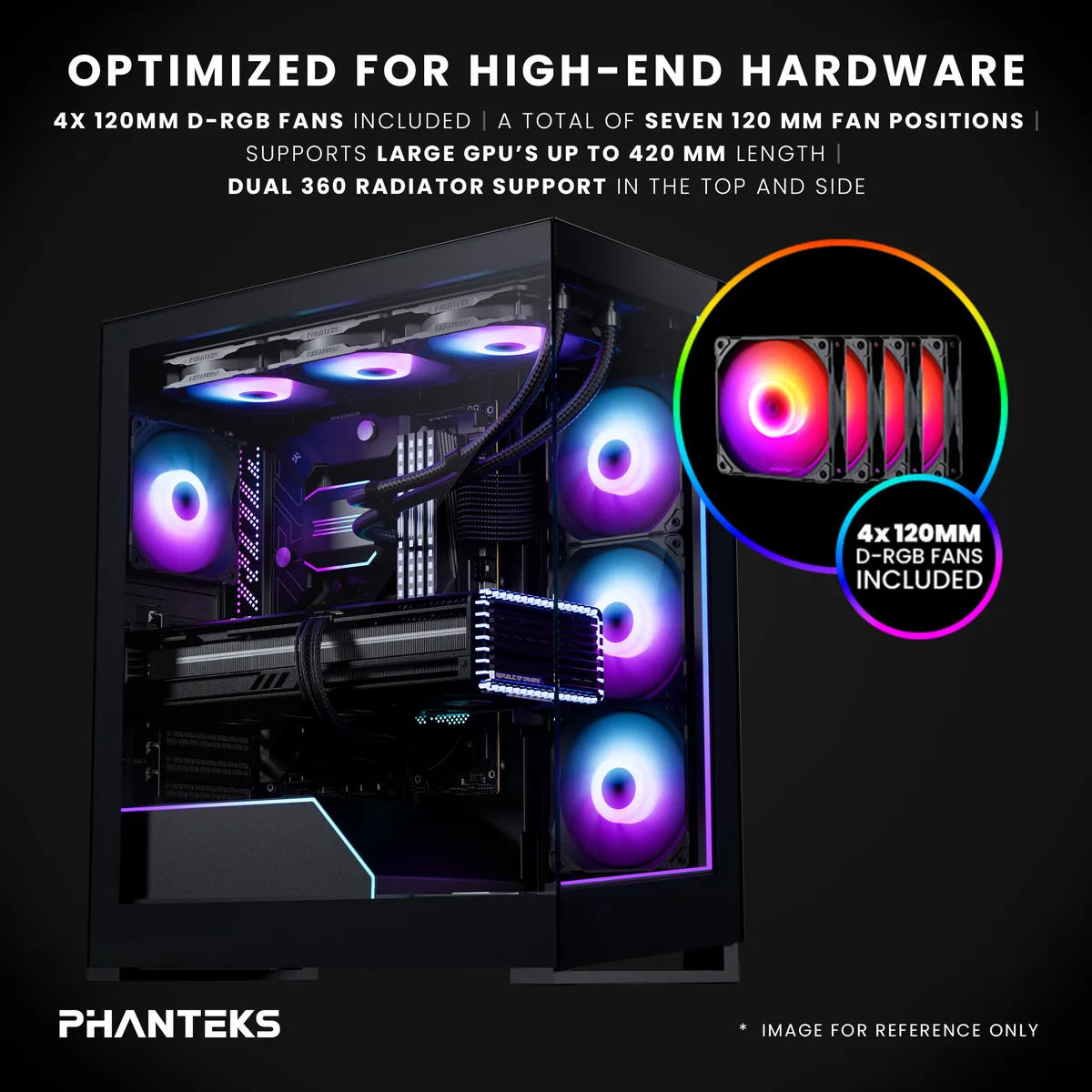

Four pre-installed 120 mm D-RGB fans at the front and rear establish strong airflow from the moment of assembly. The chassis offers seven total 120 mm fan positions across the rear, side, and top for extensive cooling upgrades. Radiator support reaches 360 mm at both the top and side, enabling high-capacity liquid loops that maintain low temperatures under continuous load.

Maximum Graphics Card Clearance

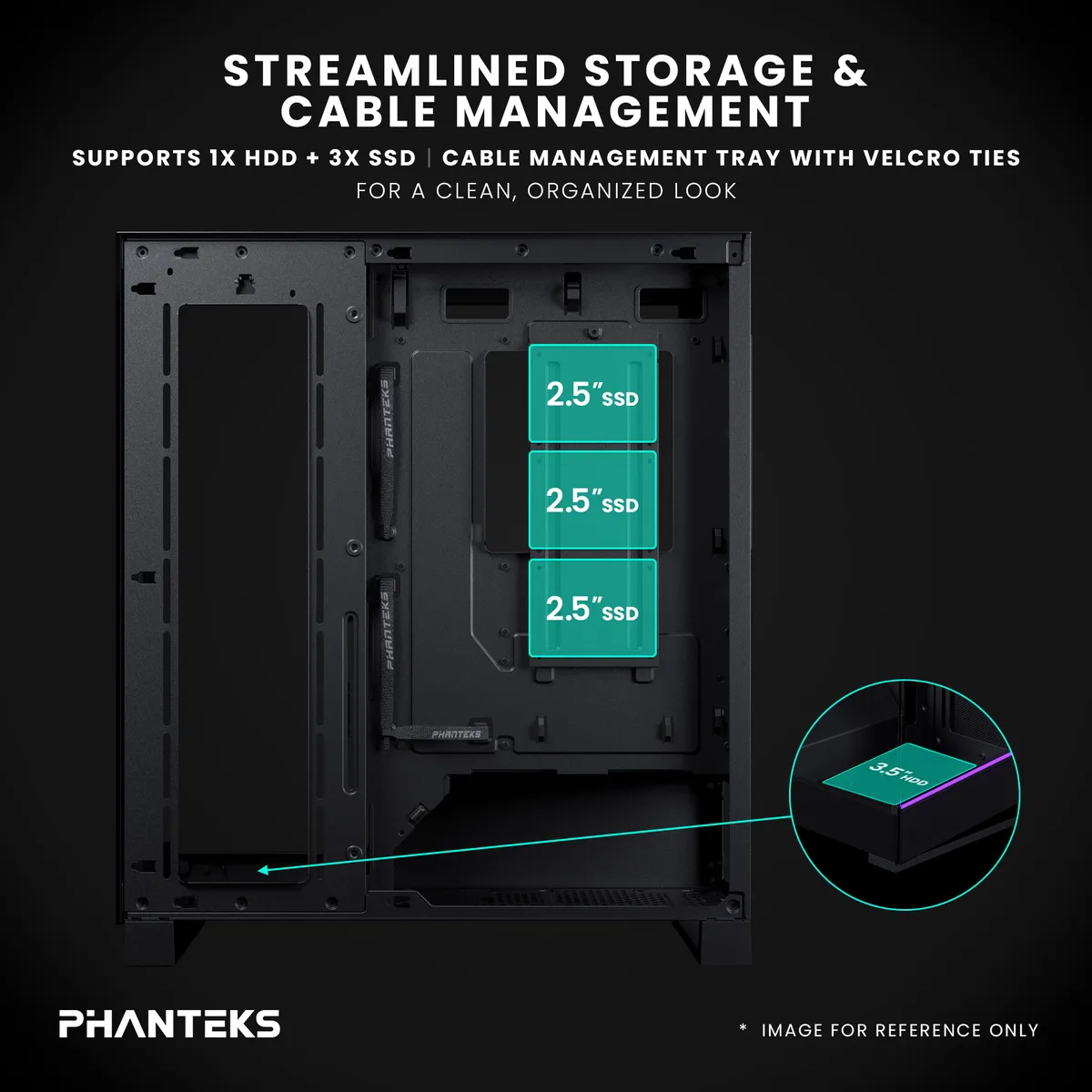

The interior accommodates graphics cards up to 430 mm in length, covering most modern high-end models. A GPU support bracket is included to prevent sag on heavy cards. CPU cooler height is limited to 170 mm, and the power supply bay accepts units up to 195 mm deep. Storage options include one 3.5-inch bay and three 2.5-inch mounts.

Highlights

  • Near-seamless tempered glass gives a clear view of components
  • Four pre-installed 120 mm ARGB fans provide immediate cooling and lighting
  • Seven 120 mm fan positions plus dual 360 mm radiator support enable high-end thermal performance
  • GPU support bracket included for cards up to 430 mm length
  • Removable PSU cover and ultra-fine mesh simplify cable routing and dust filtration

Specifications

BrandPhanteks
ModelPH-NV523S_DBK01
Part Number886523303664
TypeATX Mid Tower
ColorBlack
Case MaterialSteel / Tempered Glass
Motherboard CompatibilityATX, micro-ATX, mini-ITX, E-ATX (Up to 280mm with GPU support bracket)
Side PanelYes, Front and Side Tempered Glass
Internal 3.5" Drive Bays1
Internal 2.5" Drive Bays3
Expansion Slots7
Fan OptionsRear - 1 x 120mm / Side - 3 x 120mm / Top - 3 x 120mm
Pre-installed FansFront - 3 x 120mm / Rear - 1 x 120mm
Radiator OptionsRear - Up to 120mm / Side - Up to 360mm / Top - Up to 360mm
Max GPU Length430 mm
Max CPU Cooler Height170 mm
Max PSU Length195 mm
Dimensions8.6 x 17.7 x 19.9 in (WxDxH)
Shipping weight10.05 kg
Package size591 × 546 × 318 mm

Questions about this item

How loud do the four pre-installed 120 mm D-RGB fans run when the system is under load all day?

The case ships with four 120 mm D-RGB fans installed at the front and rear. Fan speed and noise depend on the curve you set in BIOS or software; the chassis itself adds no extra noise beyond the fans and components you choose.

Which motherboard form factors and power-supply length can I use without buying extra parts?

The chassis accepts ATX, micro-ATX, mini-ITX and E-ATX boards up to 280 mm wide when the GPU support bracket is fitted, and it fits power supplies up to 195 mm long.

Will my existing 360 mm all-in-one liquid cooler mount in the top or side without interfering with a long graphics card?

The top and side each support a 360 mm radiator. Maximum GPU length is 430 mm, so a 360 mm radiator in the top leaves full length for the card, while a side-mounted radiator will reduce usable GPU space.
