Phanteks PH-P1000G_WT01 1000 W ATX power supply
A white 1000 W ATX unit with full modular cables, 80 PLUS Gold efficiency and a single 120 mm FDB fan
- ColorWhite
- TypeATX
- Maximum Power1000 W
- Fans1 x 120 mm FDB fan
- Main Connector24Pin
- +12V RailsSingle
- Delivers 1000 W continuous power for demanding builds
- 80 PLUS GOLD certification reduces wasted energy and heat
- Full modular design lets you connect only the cables you need

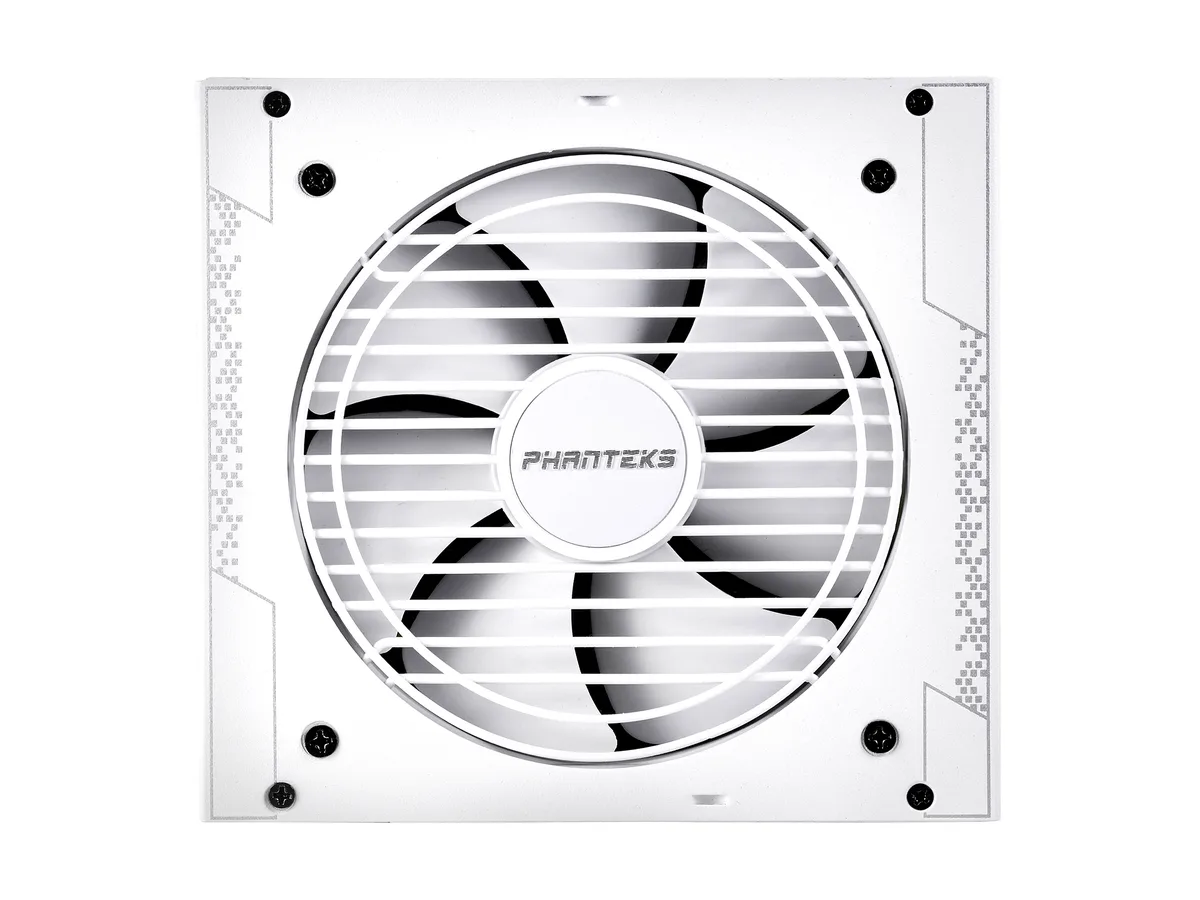

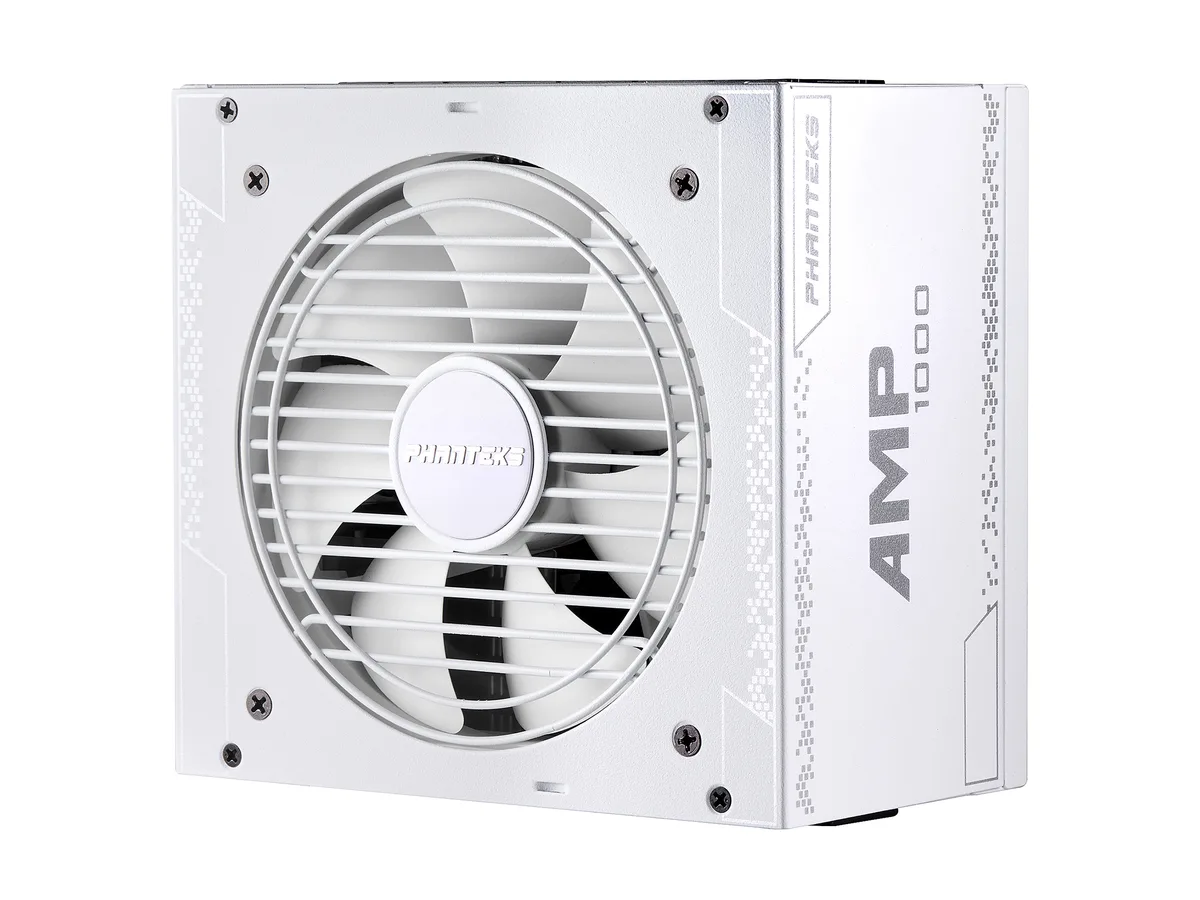

- 120 mm FDB fan runs quietly under heavy loads
- Comprehensive protection suite guards against over power, over voltage, short circuit, over current and over temperature

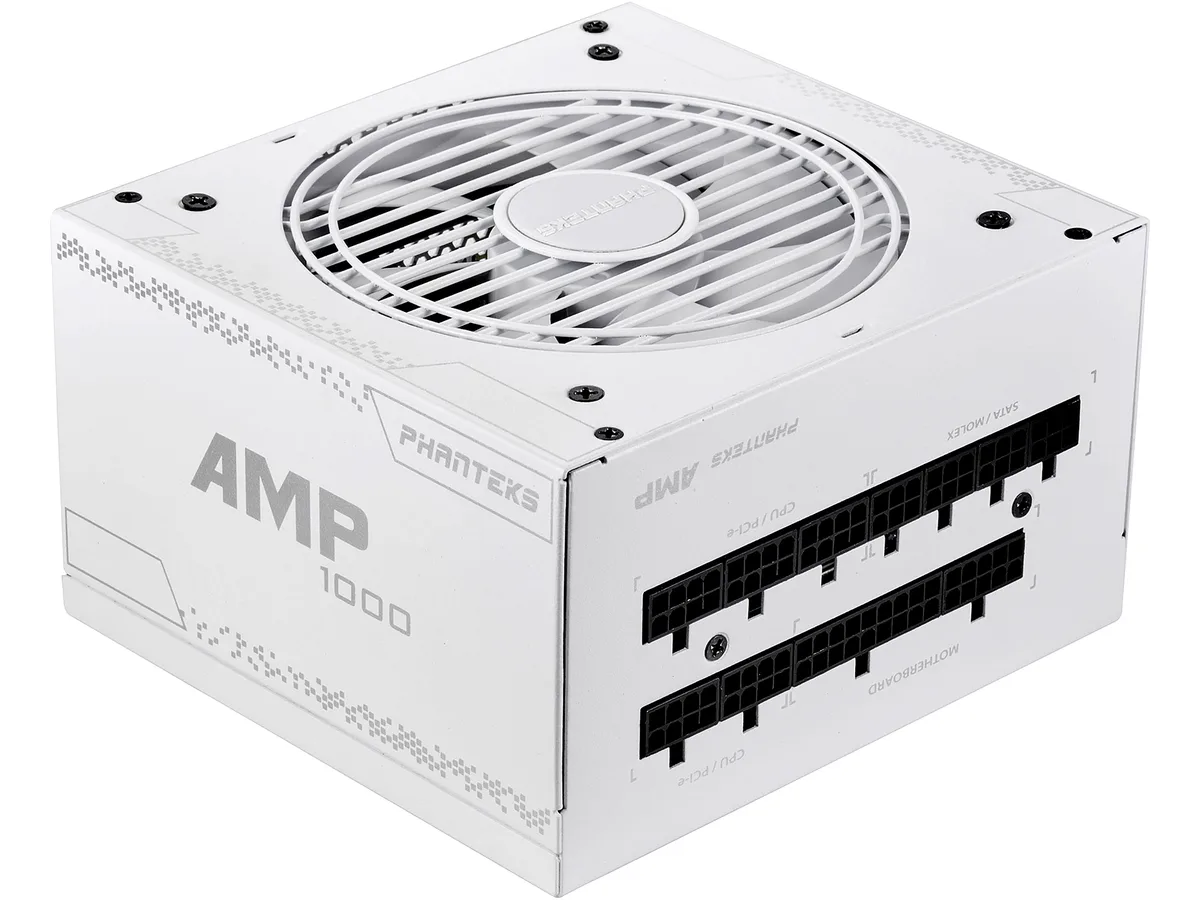

1000 W white ATX power supply
The Phanteks AMP Series PH-P1000G_WT01 is a 1000 W ATX unit finished in white. It delivers power through a single +12 V rail rated at 83 A and holds 80 PLUS Gold certification. A 120 mm FDB fan provides cooling while the fully modular design allows only the required cables to be installed.
Suitable for high-output builds with multiple GPUs
This unit suits systems that need six PCIe 6+2-pin connectors for multiple graphics cards and ten SATA power connectors for storage arrays. The 140 mm depth fits most standard ATX cases. Builds that require fewer PCIe cables or a shorter chassis depth may find a smaller unit more practical.
Single +12 V rail at 83 A
The defining specification is the single +12 V rail capable of 83 A, which determines whether the PSU can sustain the combined load of power-hungry components. If the target system demands less current on the +12 V rail, a lower-wattage model would be sufficient.
Highlights
- Delivers 1000 W continuous power for demanding builds
- 80 PLUS GOLD certification reduces wasted energy and heat
- Full modular design lets you connect only the cables you need
- 120 mm FDB fan runs quietly under heavy loads
- Comprehensive protection suite guards against over power, over voltage, short circuit, over current and over temperature
Specifications
| Brand | Phanteks |
|---|---|
| Series | AMP Series |
| Model | PH-P1000G_WT01 |
| Color | White |
| Type | ATX |
| Maximum Power | 1000 W |
| Fans | 1 x 120 mm FDB fan |
| Main Connector | 24Pin |
| +12V Rails | Single |
| PCI-Express Connector | 6 x 6+2-Pin |
| SATA Power Connector | 10 |
| Max PSU Length | 140 mm |
| Modular | Full Modular |
| Energy-Efficient | 80 PLUS GOLD Certified |
| Protection | OPP (Over Power Protection) OVP (Over Voltage Protection) SCP (Short Circuit Protection) OCP (Over Current Protection) OTP (Over Temperature Protection) No-Load protection Reset Protection |

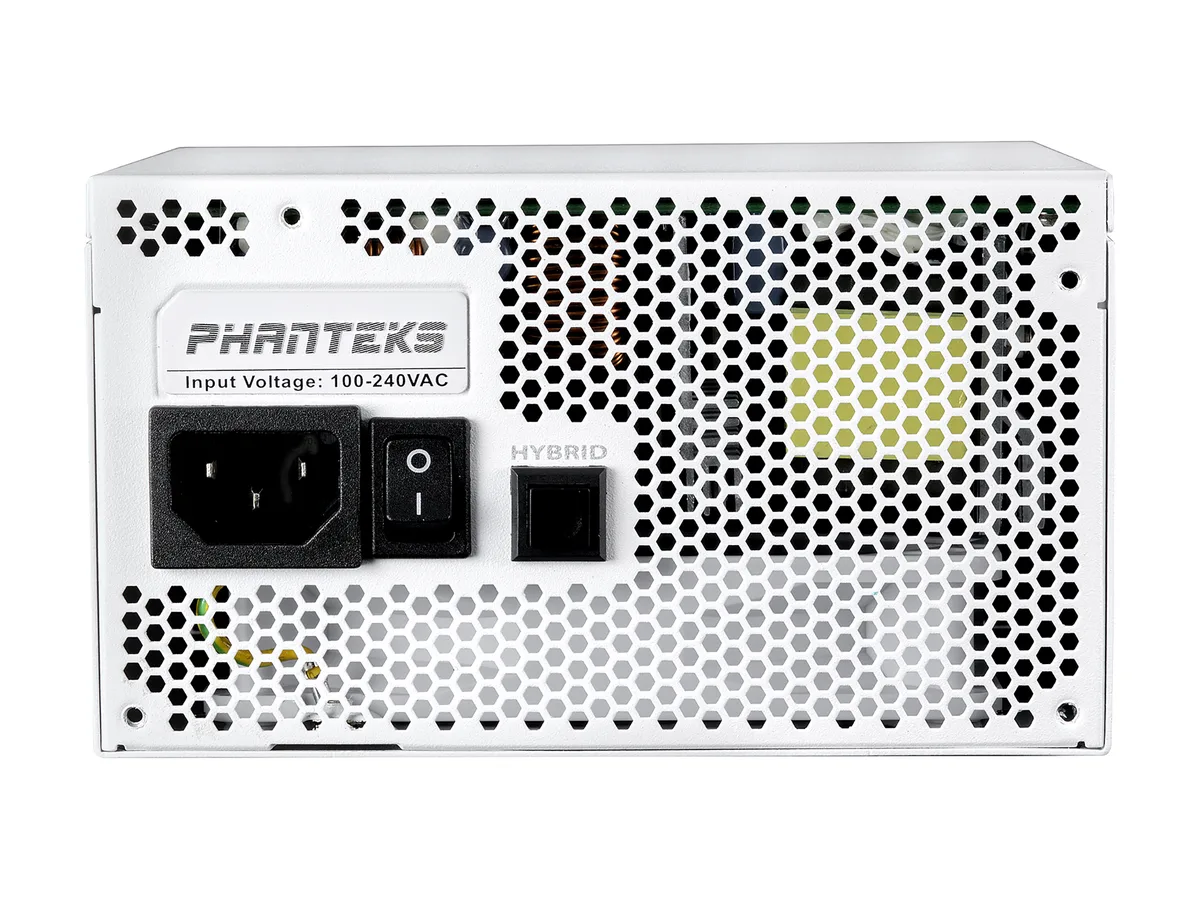

| Input Voltage | 100 - 240 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 13-6.5A |
| Output | +3.3V@25A, +5V@25A, +12V@83A, [email protected] , +5VSB@3A |
| MTBF | >100,000 Hours |

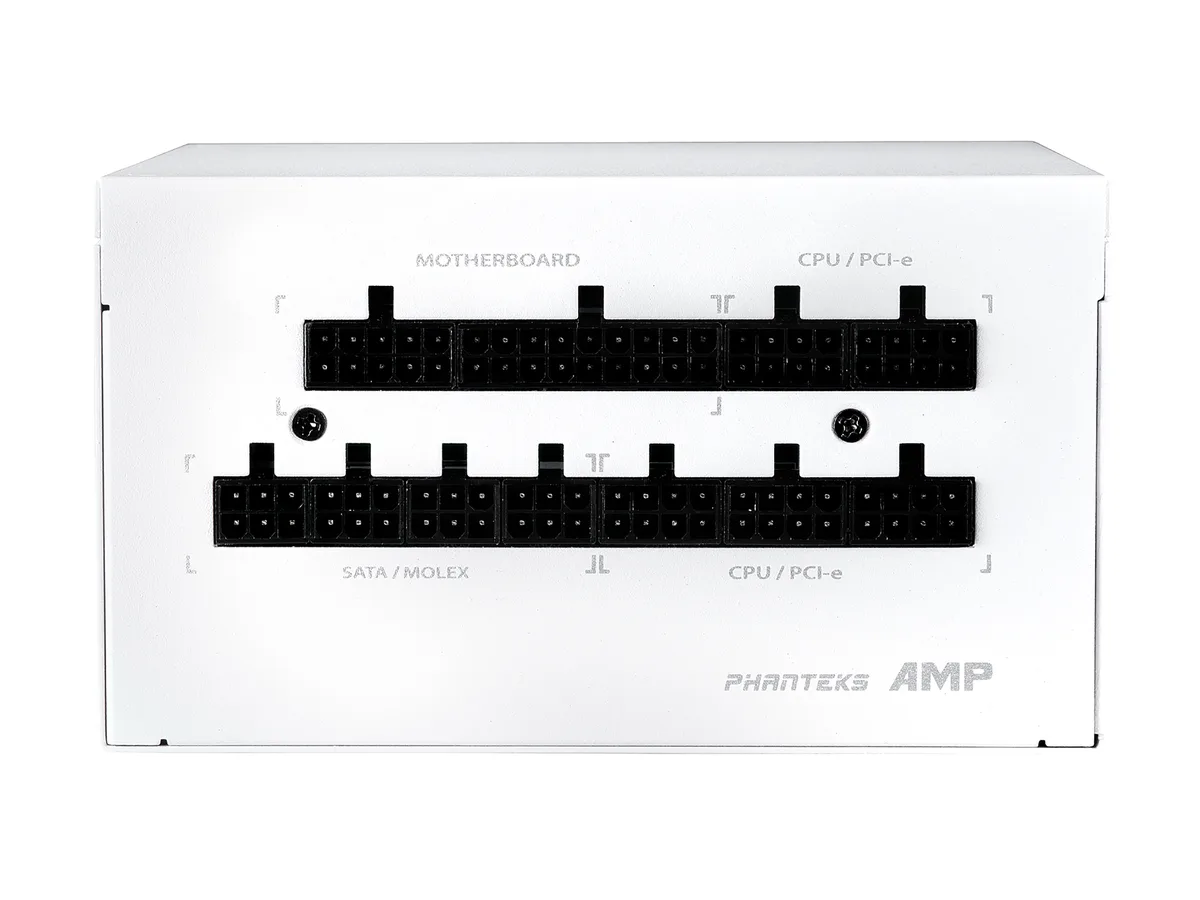

| Connectors | 1 x 24 pin ATX 2 x 8 pin (4+4) EPS (CPU) 6 x 8 pin (6+2) PCIe 10 x SATA 5 x 4 pin Peripheral Molex to SATA |
| Cable Spec | 24Pin MB: One cable (610mm) 4+4Pin CPU: Two cables (650mm) 2 x PCI-E 6+2Pin: Three cables (750mm) 4 x SATA: Two cables (860mm) 2 x SATA: One cable (450mm) 3 x Molex: One cable (690mm) 2 x Molex: One cable (470mm) Molex to SATA: One cable (300mm) |
| Features | Ultra-High Efficiency, 80 PLUS Gold Certified Revolt PRO Link Certified Gold-Plated High Current Terminals 120mm Fluid Dynamic Bearing Fan Ultra-High Power Density, Compact Size Silent Hybrid Fan Control Multi-GPU Support |

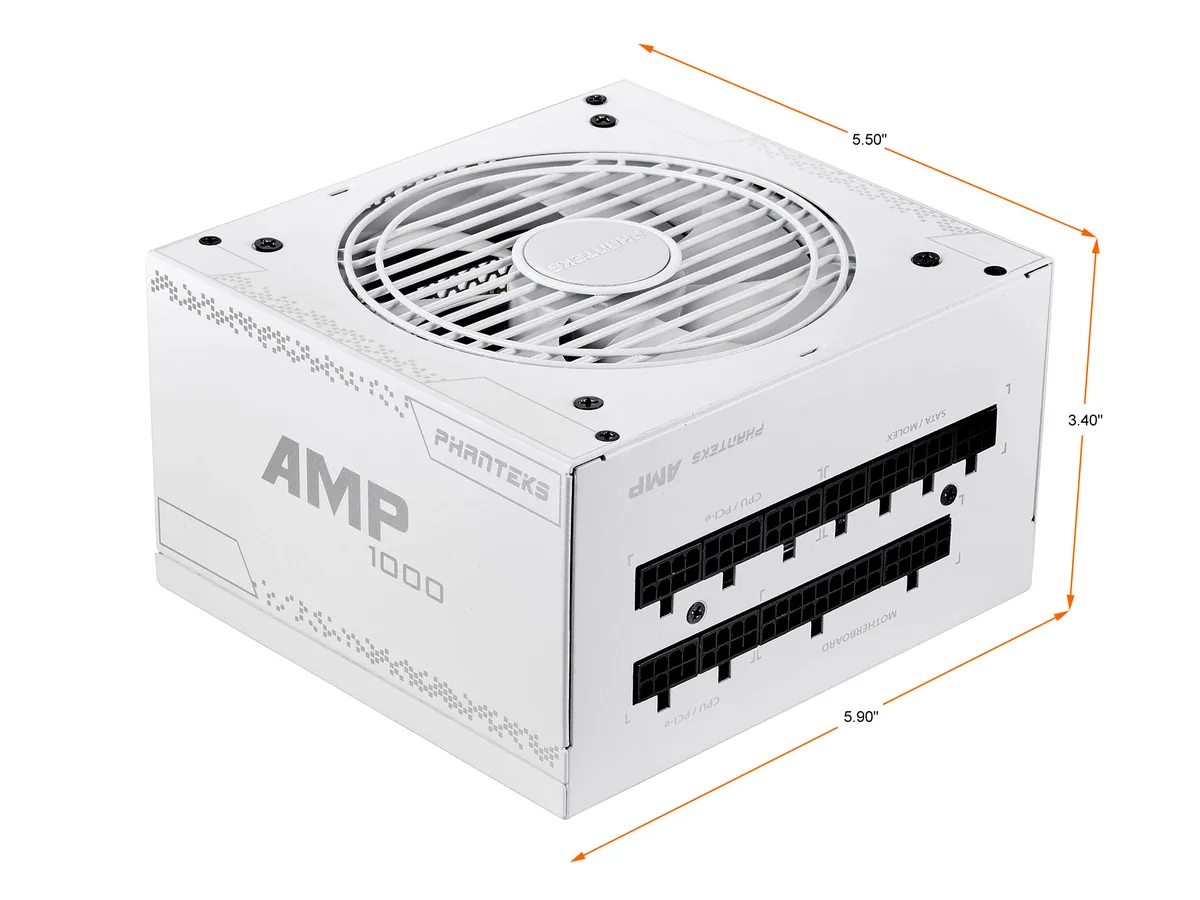

| Dimensions | 3.40" x 5.90" x 5.50" |
| Weight | 3.66 lbs. |
| Package Content | 1 x PH-P1000G 80+ Gold fully modular Power Supply 1 x Power cord 1 x User's manual 1 x PSU Bag 1 x Cable Bag 1 x Zip tie bag 1 x Screw Pack 1 x Velcro Pack |
| Shipping weight | 3.04 kg |
| Package size | 311 × 183 × 113 mm |
Questions about this item
Will the 140 mm length fit alongside my existing ATX motherboard and 120 mm fan clearance?
The unit measures 140 mm long, matching the standard ATX depth, so it sits in the same bay as older ATX supplies without extending past the motherboard tray.
How can I verify the 1000 W output and 80 PLUS Gold efficiency are active after installation?
Under load the single +12 V rail delivers up to 83 A, and the 120 mm FDB fan spins only when temperature demands it, confirming the Gold-rated platform is operating.
Which cables come pre-attached and which must I add for a build with two 8-pin CPU and three 6+2-pin GPU connectors?
The box includes one 24-pin ATX cable, two 4+4-pin CPU cables, three PCIe 6+2-pin cables, two 4-SATA cables, one 2-SATA cable, two Molex cables and one Molex-to-SATA adapter; all are detachable for full modular use.
