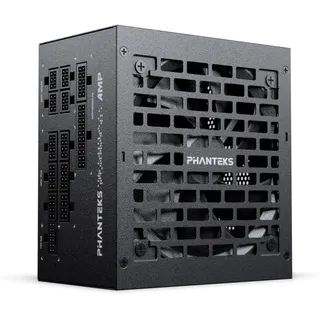

Black fully modular ATX power supply with 120 mm fan and textured cables

Phanteks

Phanteks PH-P1000GH_BK02 1000 W Platinum power supply

SKU CH-4JP6-HJNJX MPN PH-P1000GH_BK02

A fully modular 1000 W ATX 3.1 power supply with PCIe 5.1 support, 80 Plus Platinum efficiency and a zero-RPM fan mode below 40 % load

  • ColorBlack
  • TypeIntel ATX 3.1/PCIe Gen5.1
  • Maximum Power1000 W
  • Fans1 x 120 mm
  • ModularFull Modular
  • Energy-Efficient80 PLUS PLATINUM Certified

Option PH-P1000GH_BK02

  • ATX 3.1 platform with PCIe 5.1 support for modern GPU compatibility
  • 80 PLUS Platinum certification delivers high efficiency and lower heat output

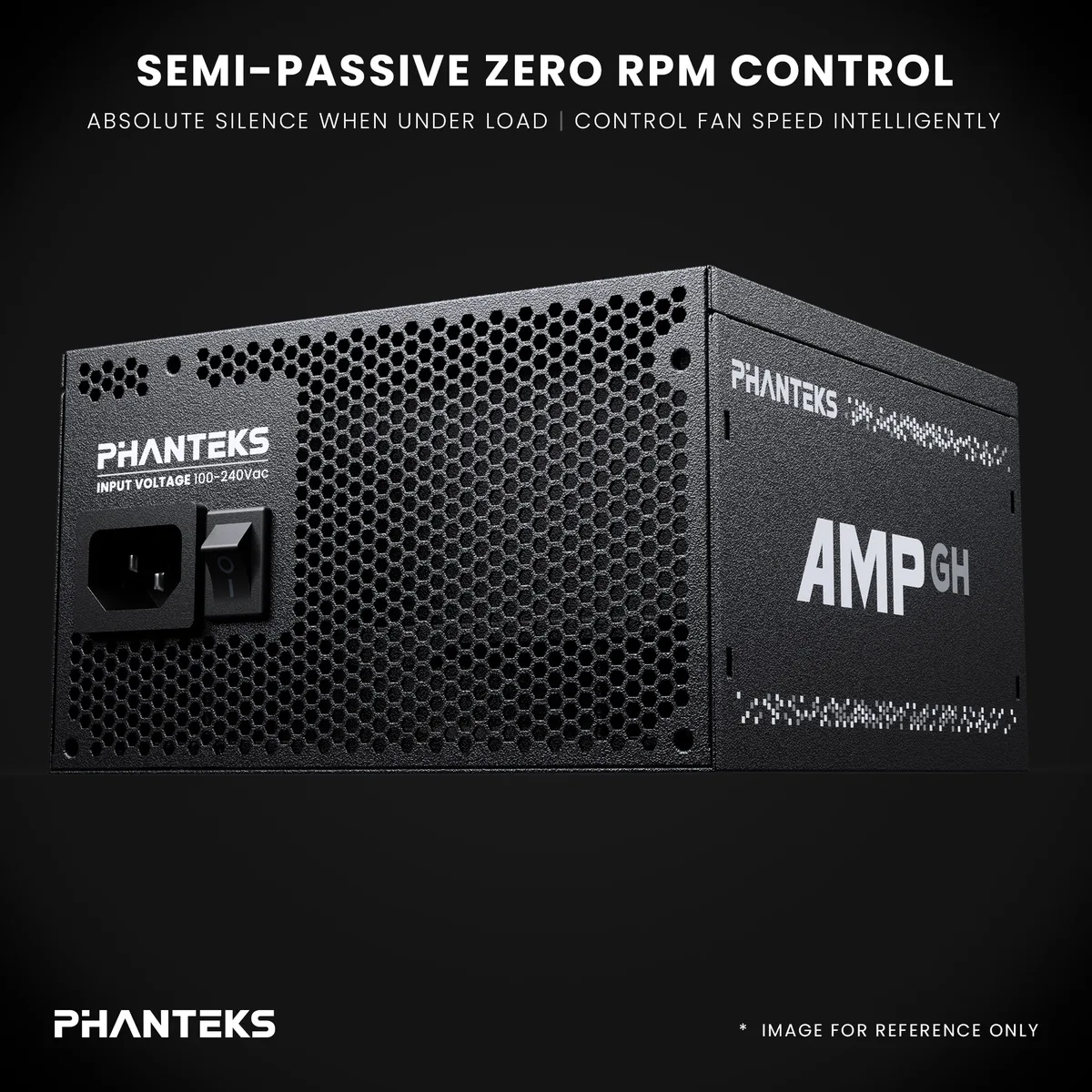

  • 120 mm fan with zero-RPM mode under 40 % load for silent operation

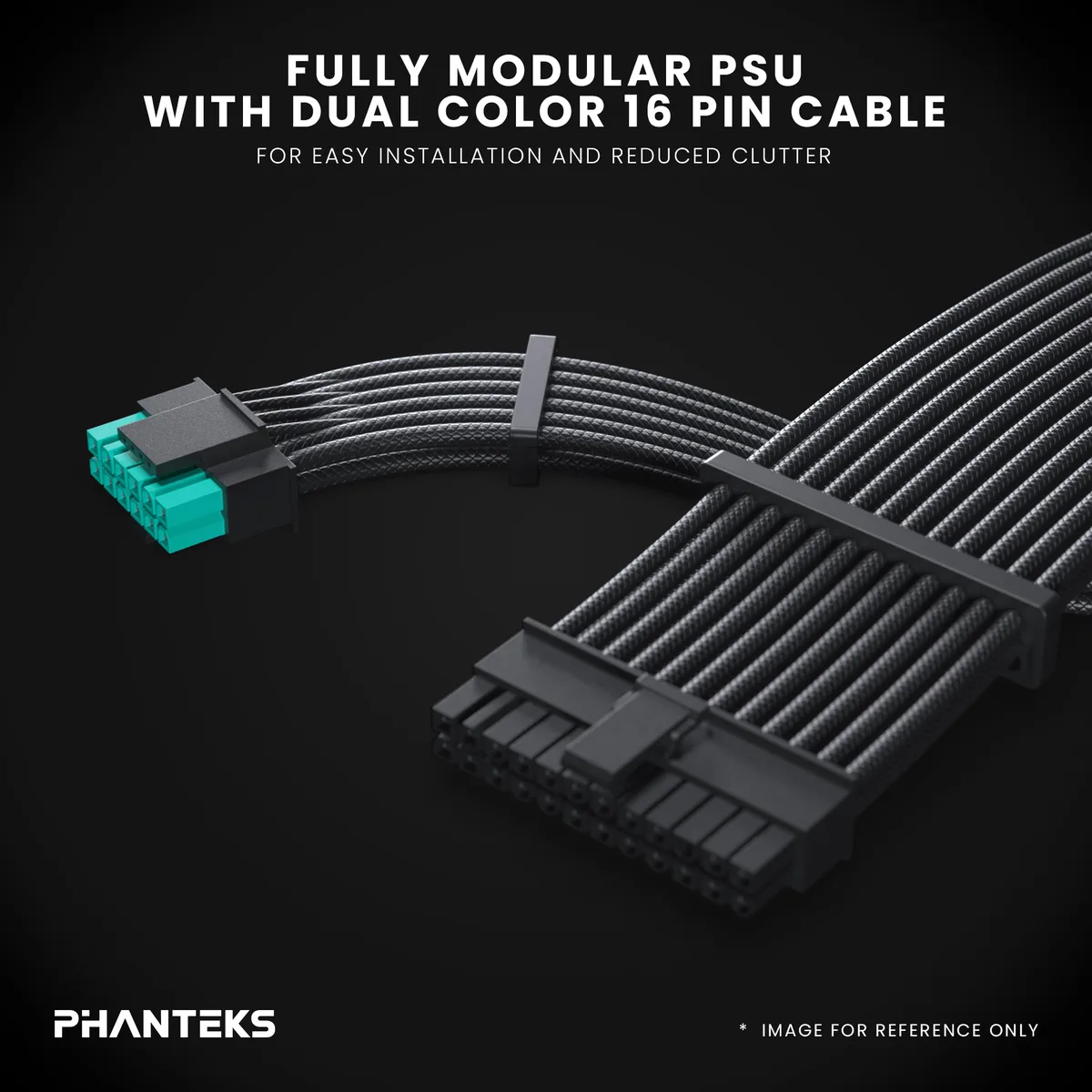

  • Fully modular individual textured cables with combs simplify cable management

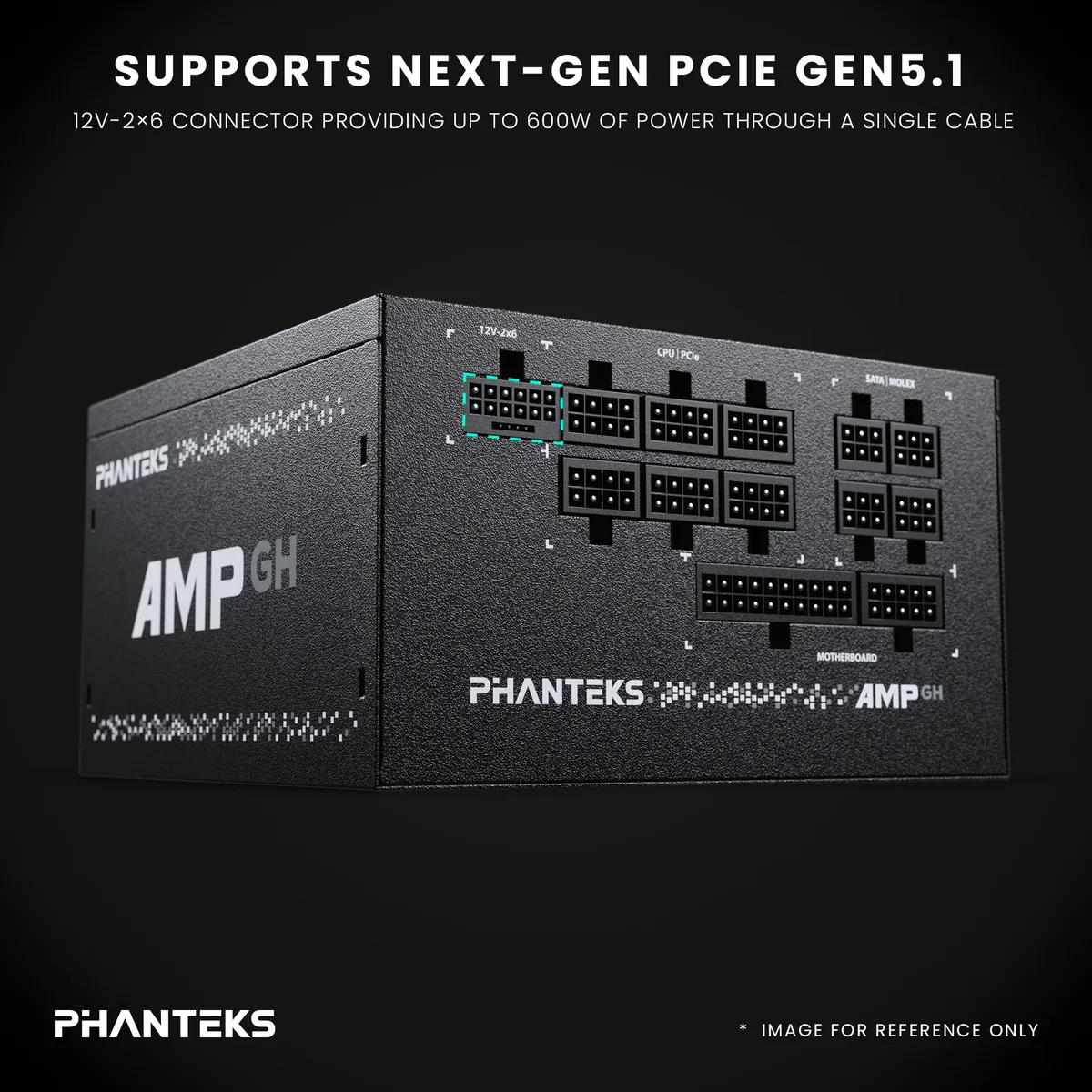

  • 12V-2x6 connector supplies up to 600 W through a single cable

1000 W Platinum ATX 3.1 power supply

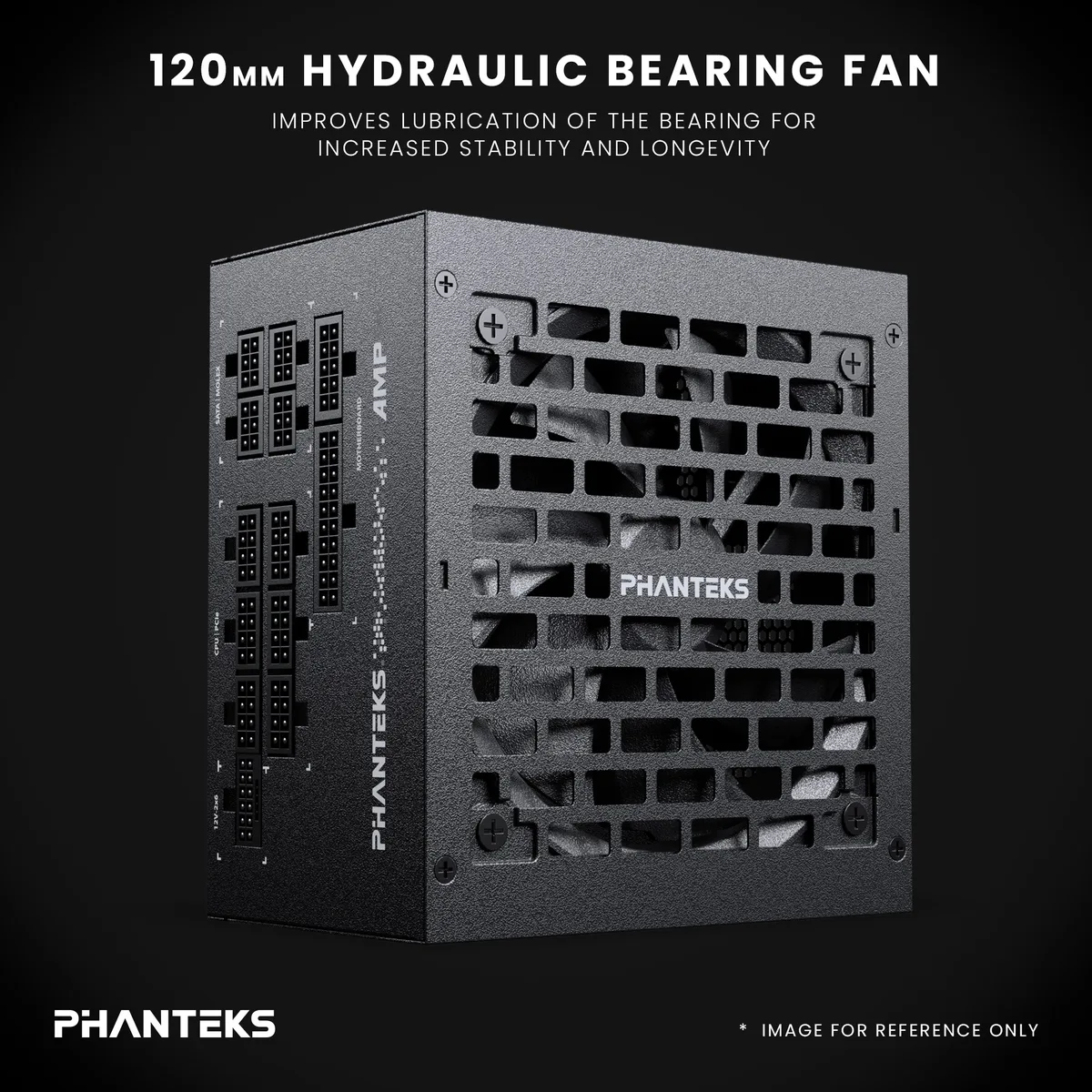

The Phanteks AMP GH 1000 W unit delivers 80 PLUS Platinum efficiency on an Intel ATX 3.1 platform with PCIe 5.1 support. A fully modular design uses individual textured cables and includes cable combs for clean routing. A 120 mm fluid dynamic bearing fan enables a zero-RPM mode below 40 % load for silent operation.

Suited to high-end GPU builds needing 12V-2x6 power

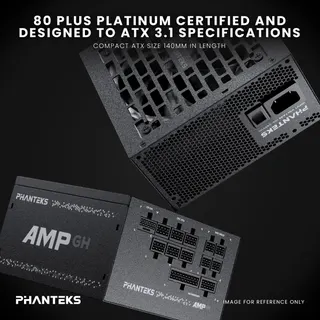

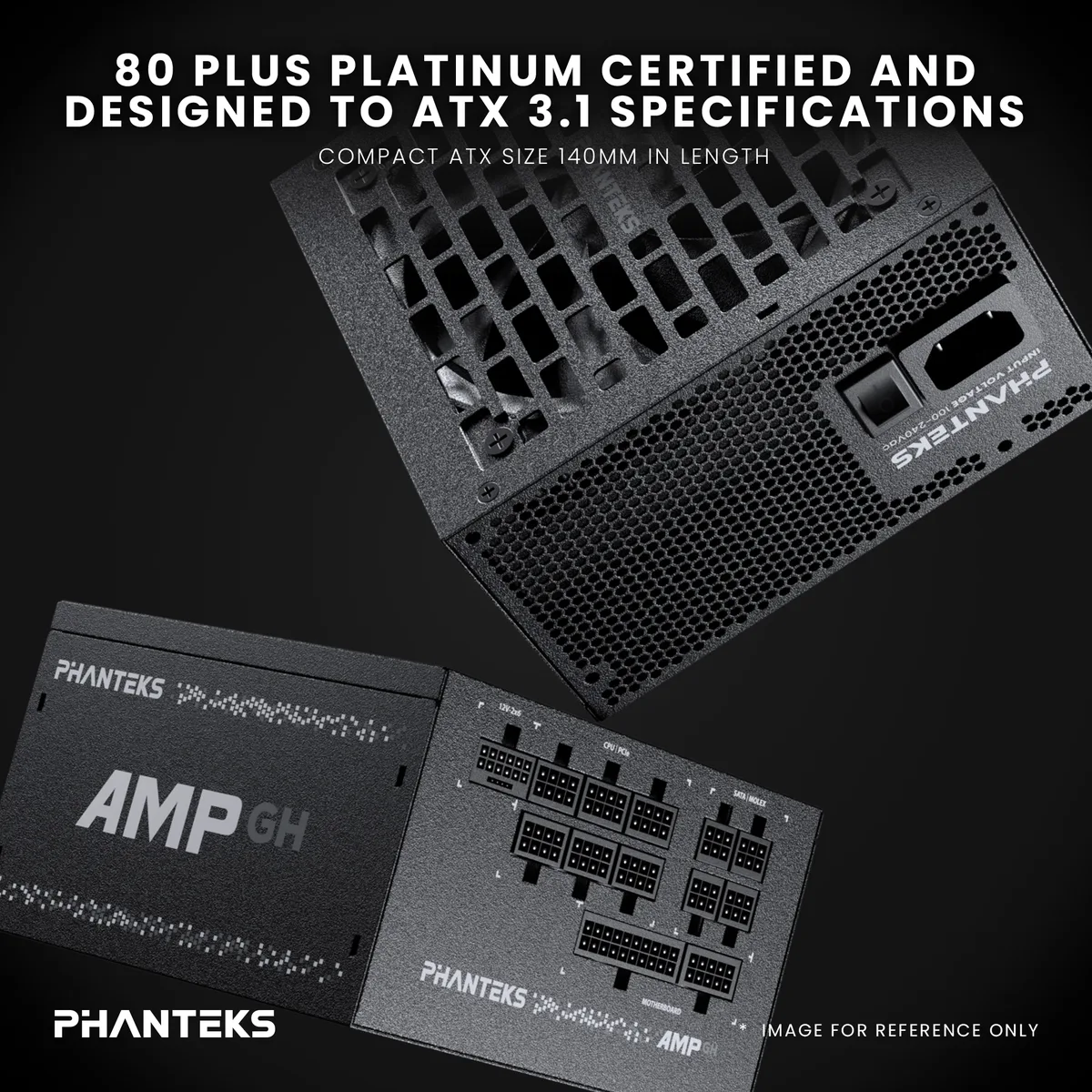

This PSU targets builders installing modern graphics cards that draw up to 600 W through a single 12V-2x6 connector. The compact 140 mm depth fits standard ATX cases. Buyers who need more than 1000 W of continuous power or require multiple 12V-2x6 cables for dual-GPU configurations should look at higher-capacity or multi-connector units.

1000 W capacity with 600 W GPU headroom

The 1000 W rating comfortably handles a flagship CPU plus a single 600 W-class graphics card with overhead for drives and peripherals. The 12V-2x6 cable covers the highest single-GPU demand defined by the current specification. Systems planning dual flagship GPUs or extreme overclocking beyond the rated output will exceed the available headroom.

Highlights

  • ATX 3.1 platform with PCIe 5.1 support for modern GPU compatibility
  • 80 PLUS Platinum certification delivers high efficiency and lower heat output
  • 120 mm fan with zero-RPM mode under 40 % load for silent operation
  • Fully modular individual textured cables with combs simplify cable management
  • 12V-2x6 connector supplies up to 600 W through a single cable

Specifications

BrandPhanteks
ModelPH-P1000GH_BK02
ColorBlack
TypeIntel ATX 3.1/PCIe Gen5.1
Maximum Power1000 W
Fans1 x 120 mm
ModularFull Modular
Energy-Efficient80 PLUS PLATINUM Certified
OutputOPP (Overpower Protection)
OVP (Over Voltage Protection)
UVP (Under voltage protection
SCP (Short Circuit Protection)
OCP (Over Current Protection)
OTP (Over Temperature Protection)
No-Load Protection
Reset Protection
MTBF>100,000 Hours
Shipping weight3.54 kg
Package size305 × 229 × 122 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does my case need to fit a 140 mm deep ATX power supply for this unit to install?

Yes, the PSU is built to the compact ATX form factor with a 140 mm depth, so the case must accommodate that length for a proper fit.

Will the 12V-2x6 cable work with a graphics card that still uses the older 12VHPWR connector?

The 12V-2x6 connector is the updated PCIe 5.1 interface and is backward compatible with existing 12VHPWR plugs, so the single cable can deliver up to 600 W to either design.

How can I confirm the fanless mode is active once the system is running?

Under 40 % load the 120 mm fluid-dynamic-bearing fan stops completely, so silent operation at low power draw confirms the zero-RPM mode is working.
