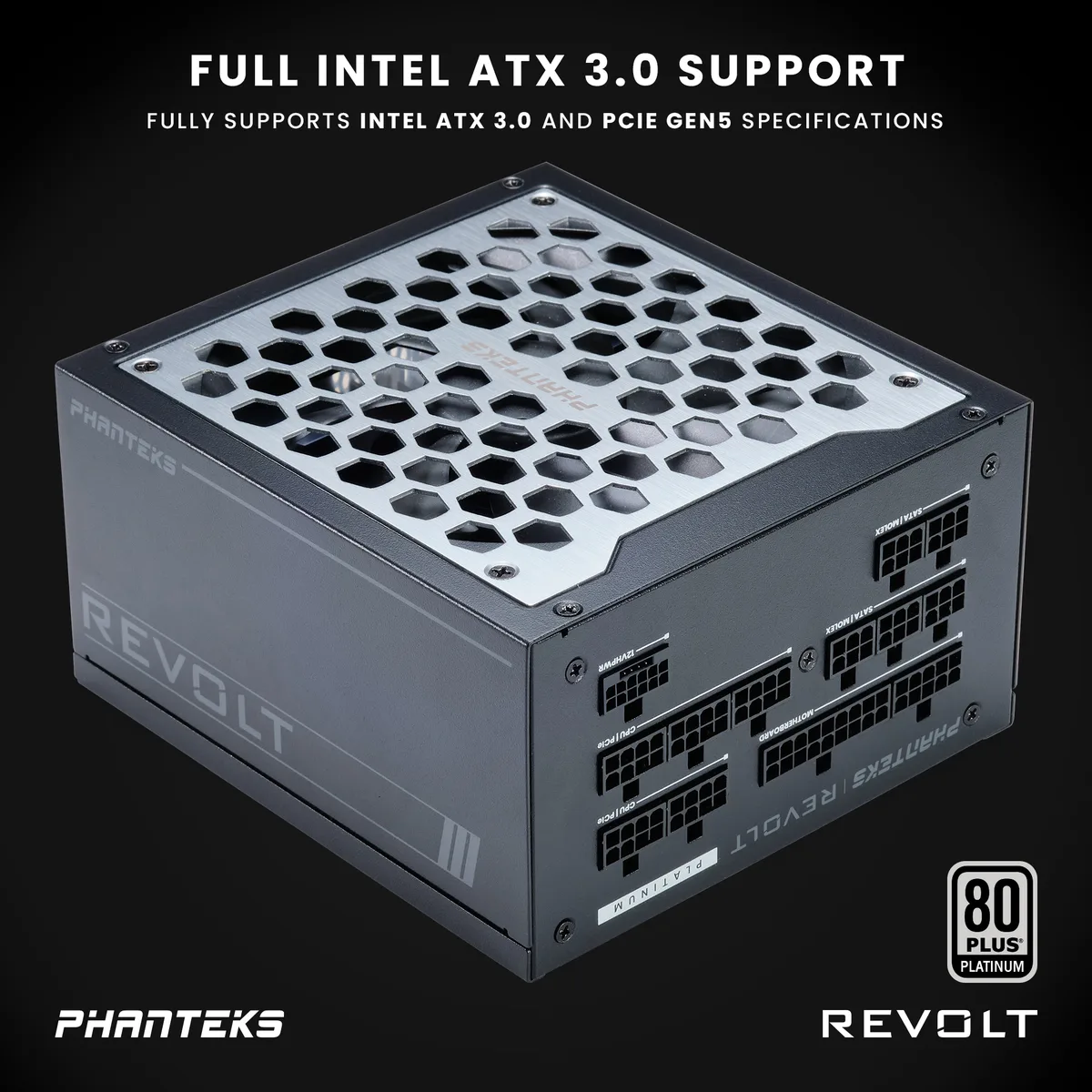

Black rectangular ATX power supply with a single 135 mm fan and modular connector panel

Phanteks

Phanteks PH-P1000PR_BK01C Revolt 1000W power supply

SKU CH-Y75V-GV272 MPN PH-P1000PR_BK01C

Fully modular 1000 W ATX 3.0 power supply with 80 PLUS Platinum efficiency, native 12VHPWR connector for PCIe 5.0 graphics cards and no cables included

  • ColorBlack
  • TypeATX 3.0 Compatible
  • Maximum Power1000 W

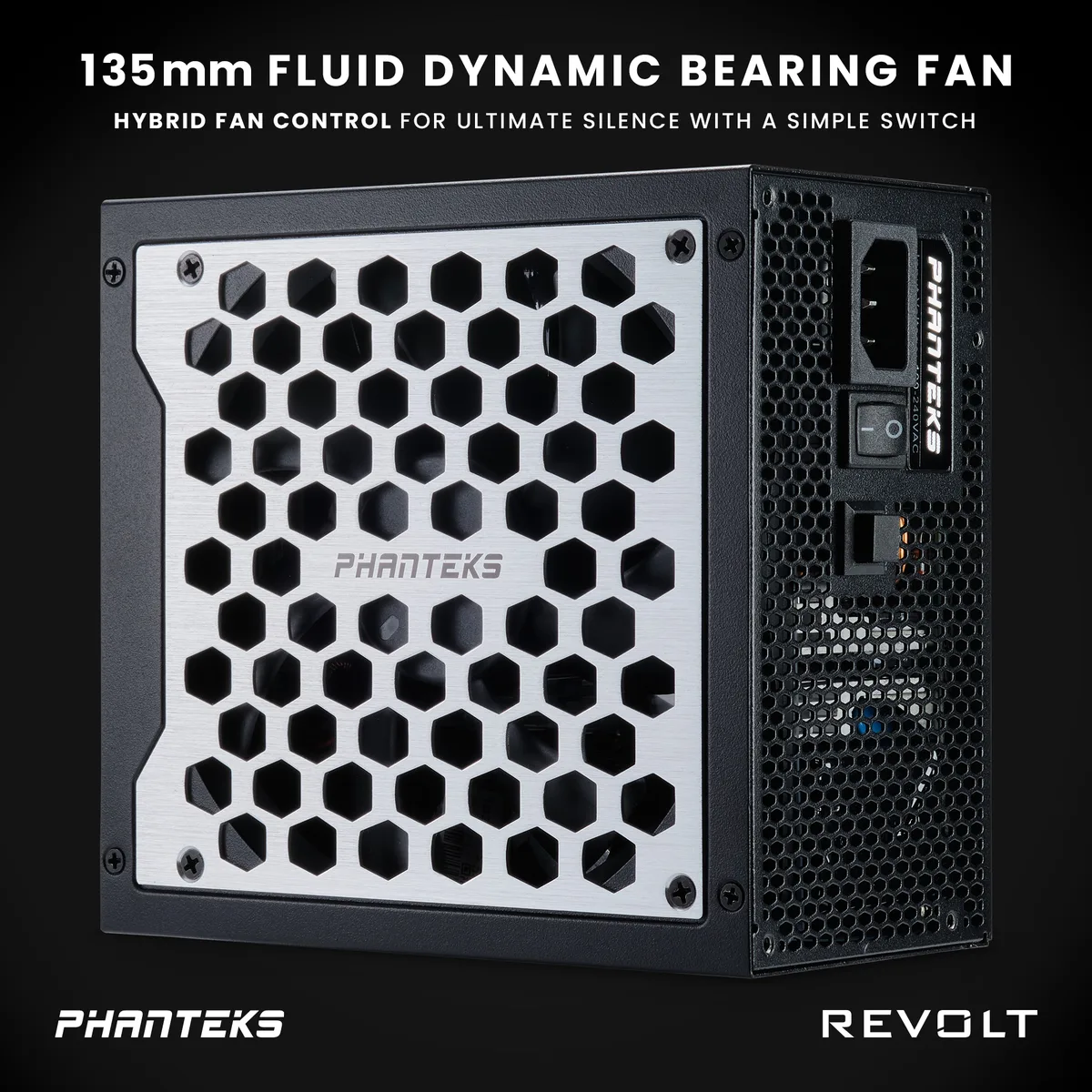

  • Fans1 x 135 mm Fluid Dynamic Bearing (FDB) Fan
  • Max PSU Length160 mm
  • ModularFull Modular

Options 1000W (Black)

  • 80 PLUS Platinum 94 percent efficiency at 50 percent load
  • ATX 3.0 certified for 235 percent power peaks
  • Native 12VHPWR connector delivers 600 watts to GPU
  • Fully modular cable-less design lets you choose only needed cables
  • 135 mm FDB fan with over 100000 hours MTBF

Cable-free design

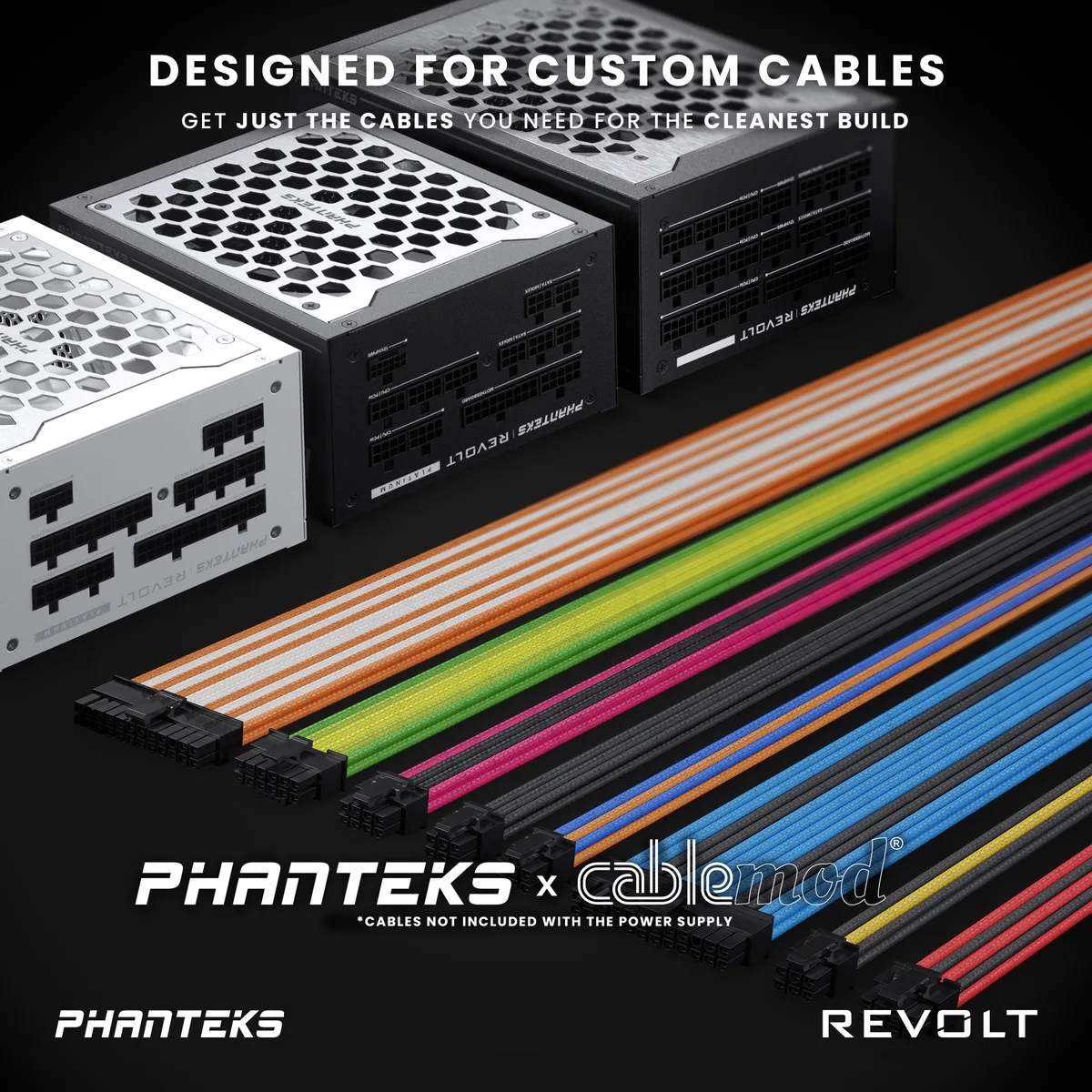

The Phanteks Revolt 1000W unit is an ATX 3.0 compatible power supply delivered without any cables in the box. It targets builders who want to select their own sleeved or custom-length wires from CableMod or similar sources. The fully modular back-plate connector layout accepts only the leads a specific build requires. No stock cables means no unused clutter inside the case.

Ideal for custom-loop and aesthetic builds

Enthusiasts planning a colour-co-ordinated loop or a minimalist showcase benefit from buying exactly the cable kit they need. System integrators who standardise on a single PSU model but vary cable sets across different chassis also save inventory space. Builders who expect a complete kit ready to plug in should choose a conventional bundled unit instead.

Native 12VHPWR connector for 600 W GPU power

A single 12VHPWR output is built into the PSU housing, rated to deliver up to 600 W to a PCIe 5.0 graphics card through one cable. This connector decides whether the unit can drive modern high-end GPUs without adapters or daisy-chained 8-pin leads. If the target graphics card lacks a 12VHPWR input, a different PSU or adapter strategy is required.

Highlights

  • 80 PLUS Platinum 94 percent efficiency at 50 percent load
  • ATX 3.0 certified for 235 percent power peaks
  • Native 12VHPWR connector delivers 600 watts to GPU
  • Fully modular cable-less design lets you choose only needed cables
  • 135 mm FDB fan with over 100000 hours MTBF

Specifications

BrandPhanteks
SeriesRevolt
ModelPH-P1000PR_BK01C
ColorBlack
TypeATX 3.0 Compatible
Maximum Power1000 W
Fans1 x 135 mm Fluid Dynamic Bearing (FDB) Fan
Max PSU Length160 mm
ModularFull Modular
Energy-Efficient80 PLUS PLATINUM Certified
ProtectionOPP (Overpower Protection)
OVP (Over Voltage Protection)
UVP (Under voltage protection
SCP (Short Circuit Protection)
OCP (Over Current Protection)
OTP (Over Temperature Protection)
No-Load Protection
Reset Protection
Input Voltage100 - 240 V
Input Frequency Range50/60 Hz
Input Current13-6.5A
Output+12V@83A, +3.3V@25A, +5V@25A, [email protected] , +5VSB@3A
MTBFOver 100,000 hours at 25 Celsius excluding the DC Fan
FeaturesBack Plate PSU Output Connector:
Fully Modular
1x 18+10pin => Motherboard
5x 8pin => CPU / PCIe
5x 6pin => SATA / Molex
1x 12VHPWR => PCIe
Operating Temp: 0 to 50 Celsius (The rated power will derate from 100% to 80% from 40 Celsius to 50 Celsius linearly)
Operating Humidity: To 85% relative humidity (non-condensing)
Storage Temperature: -40 to 85 Celsius
Storage Humidity: To 95% relative humidity (non-condensing)
Dimensions6.3 in x 5.9 in x 3.4 in
Weight4.52 lbs
Package Content1x PH-P1000PR_BK01C Power Supply Unit
1x C14 (female) - C13 (male) Power cord (1500mm)
Accessory:
1x User’s manual
1x Installation guide
1x PSU bag
1x Zip tie bag
1x Screw pack
1x Velcro pack
1x PSU tester
Shipping weight2.72 kg
Package size330 × 203 × 127 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the Revolt 1000W unit include any power cables in the box?

The package contains only the PSU, a C14-to-C13 mains cord, documentation, a PSU bag, zip ties, screws, Velcro strips and a PSU tester; all modular cables must be purchased separately.

Which Revolt wattage and efficiency tier matches a build that needs 1000 W with 80 PLUS Platinum efficiency?

The PH-P1000PR_BK01C is the 1000 W Platinum model; the 1200 W and 1600 W units are higher-wattage alternatives, and the 1600 W version carries Titanium certification instead.

What does the 12VHPWR connector’s 600 W rating mean for a modern graphics card?

The native 12VHPWR connector can deliver up to 600 W to a PCIe 5.0 GPU through a single cable, and the unit is rated to handle transient spikes up to 235 % of its 1000 W capacity.
