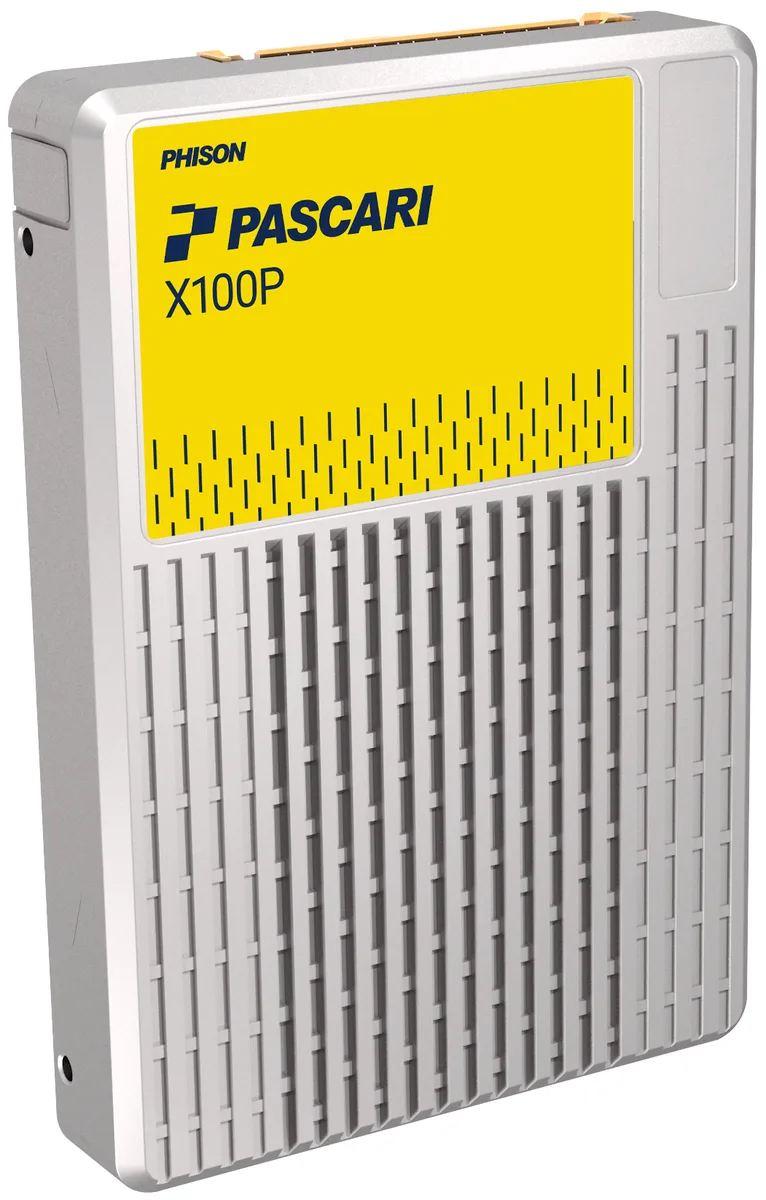

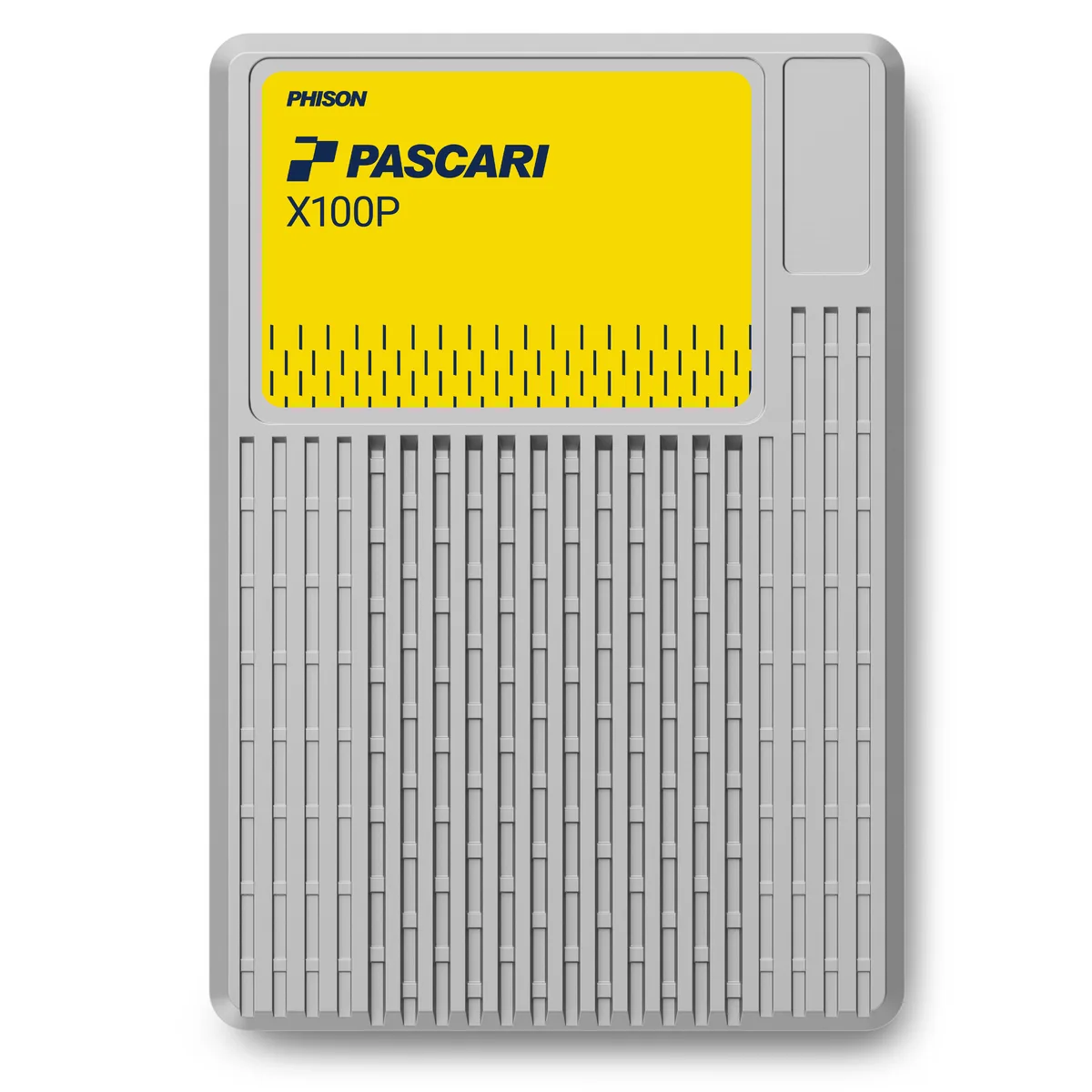

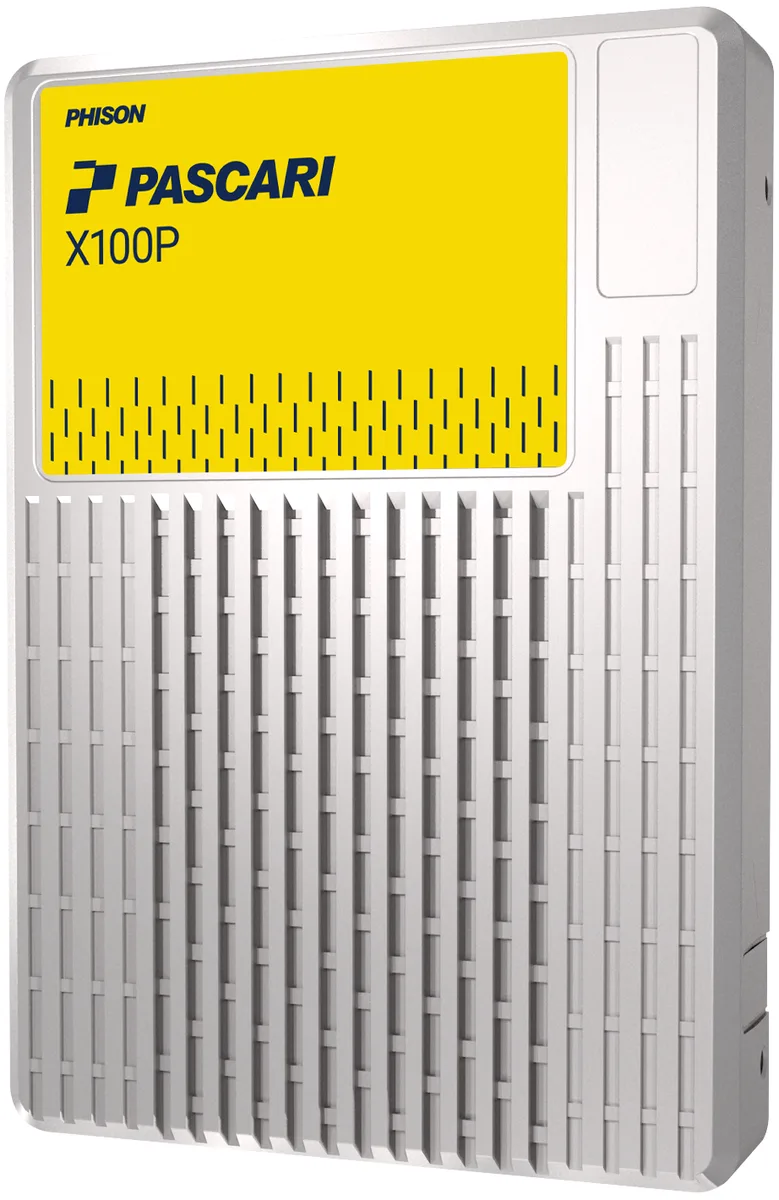

Rectangular U.2 enterprise SSD with silver metal casing and label showing model XP106H0030T7P0132T700

Phison

Phison X100P U.2 30.72TB PCIe 4.0 Single Port XP106H0030T7P0132T700 enterprise SSD

SKU CH-R6G9-3T6YD MPN XP106H0030T7P0132T700

Enterprise U.2 drive delivers 30.72TB capacity with PCIe 4.0 single-port interface and 1 DWPD endurance

  • Form FactorU.2
  • Capacity30.72TB
  • InterfacePCI-Express 4.0 Single Port
  • Endurance1 DWPD
  • SecurityNon-SED
  • Height14.65mm
  • Massive 30.72TB capacity for dense data storage
  • PCIe 4.0 single-port interface enables high-speed throughput
  • 1 DWPD endurance rating supports consistent write workloads
  • Non-SED design simplifies deployment in non-encrypted environments
  • Compact U.2 form factor fits standard 2.5-inch drive bays

Phison X100P 30.72TB U.2 Enterprise SSD

The Phison X100P is a U.2 form factor enterprise solid-state drive with a 30.72TB capacity. It connects through a PCI-Express 4.0 single-port interface and is rated for 1 drive write per day endurance. The drive carries a non-SED security configuration and measures 14.65mm in height.

Suited for high-capacity read-intensive server

This drive fits storage arrays and servers that need large single-drive capacity with a U.2/U.3 connector. It is not for systems that require self-encrypting drives or dual-port failover capability. Buyers needing higher write endurance than 1 DWPD should evaluate other options.

PCI-Express 4.0 single-port interface decides

The host must provide a U.2 or U.3 backplane wired for a PCIe 4.0 x4 single-port link. Without that physical and electrical connection the drive cannot operate. No other specification overrides this requirement.

Highlights

  • Massive 30.72TB capacity for dense data storage
  • PCIe 4.0 single-port interface enables high-speed throughput
  • 1 DWPD endurance rating supports consistent write workloads
  • Non-SED design simplifies deployment in non-encrypted environments
  • Compact U.2 form factor fits standard 2.5-inch drive bays

Specifications

BrandPhison
ModelX100P
Part NumberXP106H0030T7P0132T700
Form FactorU.2
Capacity30.72TB
InterfacePCI-Express 4.0 Single Port
Endurance1 DWPD
SecurityNon-SED
Height14.65mm
Width69.85mm
Depth100.10mm
Weight208g
Shipping weight0.09 kg
Package size127 × 51 × 13 mm

Questions about this item

Should I pick the U.2 or U.3 form factor for my server?

The drive fits both U.2 and U.3 bays, so choose whichever bay your chassis provides.

What does 1 DWPD mean for a 30.72TB drive in daily use?

You can write the full 30.72TB once every day for the warranted period without exceeding the endurance rating.

How fast is PCI-Express 4.0 Single Port on this SSD?

The single port uses a PCIe 4.0 x4 link, capping theoretical throughput at the bus limit of roughly 8 GB/s.
