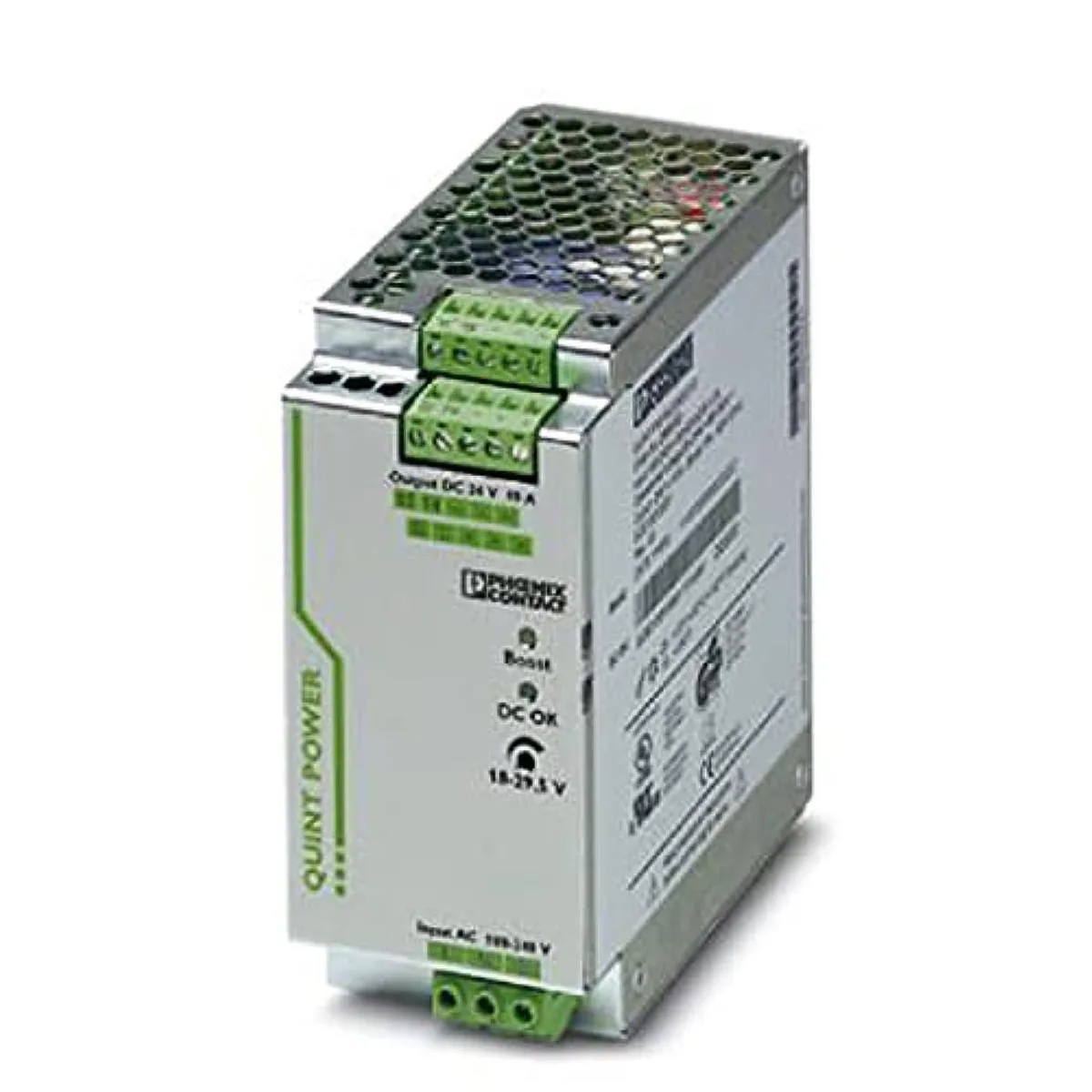

Rectangular grey metal power supply unit 125 by 60 by 130 millimeters

Phoenix Contact

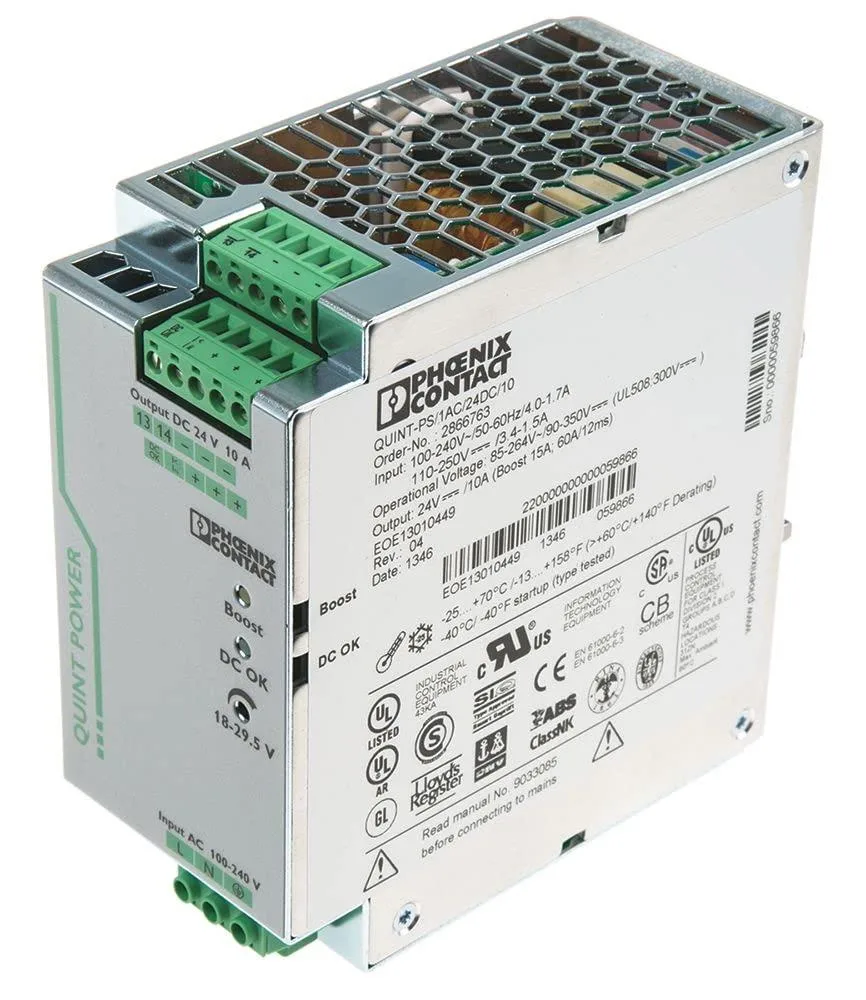

Phoenix Contact QUINT-PS/1AC/24DC/10 24Vdc 10A 100-240Vac power supply

SKU CH-HG56-W2J7A

Delivers 24 Vdc at 10 A with 240 W maximum power from 85–264 Vac or 90–350 Vdc input

  • TypeATX
  • PCI-Express ConnectorATX
  • ModularExternal
  • Dimensions125 x 60 x 130 millimeters inches
  • Weight3.1305321684226306 pounds
  • Input Voltage264 volts_of_alternating_current
  • Delivers 240 W maximum power for demanding loads
  • 24 Vdc output at 10 A supplies stable control voltage
  • Wide 85 – 264 Vac input range suits global mains
  • Compact 125 x 60 x 130 mm footprint saves cabinet space
  • Weighs 3.1305321684226306 lb for easy DIN-rail mounting

Phoenix Contact QUINT 24Vdc 10A Power Supply

This DIN-rail power supply delivers 24Vdc at 10A with a 240W maximum rating. It accepts a wide 85-264Vac or 90-350Vdc input range for global single-phase use. The unit measures 125 x 60 x 130 millimeters and weighs approximately 3.13 pounds.

Suits control cabinets needing regulated 24Vdc power

Ideal for industrial automation, machine building and process control systems requiring a compact single-phase supply. Not for applications needing three-phase input, redundant modules or output voltages other than 24Vdc. Builders needing higher current or parallel redundancy must select a different unit.

85-264Vac wide-range single-phase input

The supply operates from 85 to 264 volts AC or 90 to 350 volts DC without manual switching. This range covers most international mains voltages in a single housing. Verify that your installation provides single-phase power within these limits before ordering.

Highlights

  • Delivers 240 W maximum power for demanding loads
  • 24 Vdc output at 10 A supplies stable control voltage
  • Wide 85 – 264 Vac input range suits global mains
  • Compact 125 x 60 x 130 mm footprint saves cabinet space
  • Weighs 3.1305321684226306 lb for easy DIN-rail mounting

Specifications

BrandPHOENIX CONTACT
ModelPhoenix Contact QUINT-PS/1AC/24DC/10
Part NumberQUINT-PS/1AC/24DC/10
TypeATX
PCI-Express ConnectorATX
ModularExternal
Dimensions125 x 60 x 130 millimeters inches
Weight3.1305321684226306 pounds
Input Voltage264 volts_of_alternating_current

Questions about this item

Does the QUINT-PS/1AC/24DC/10 ship with mounting hardware or must that be ordered separately?

The unit is a complete 240W DIN-rail power supply; mounting clips are integrated into the housing so no extra brackets are required for standard 35mm rail installation.

Should I choose the 10A version or a lower-current model for a 240W load?

At 24Vdc the 10A rating delivers the full 240W, so this model matches the load exactly; a lower-current unit would not provide enough power.

What does the 85-264Vac input range mean when the supply is installed in a machine?

It accepts any single-phase mains voltage from 85Vac up to 264Vac, so the same unit works worldwide without selector switches or external transformers.
