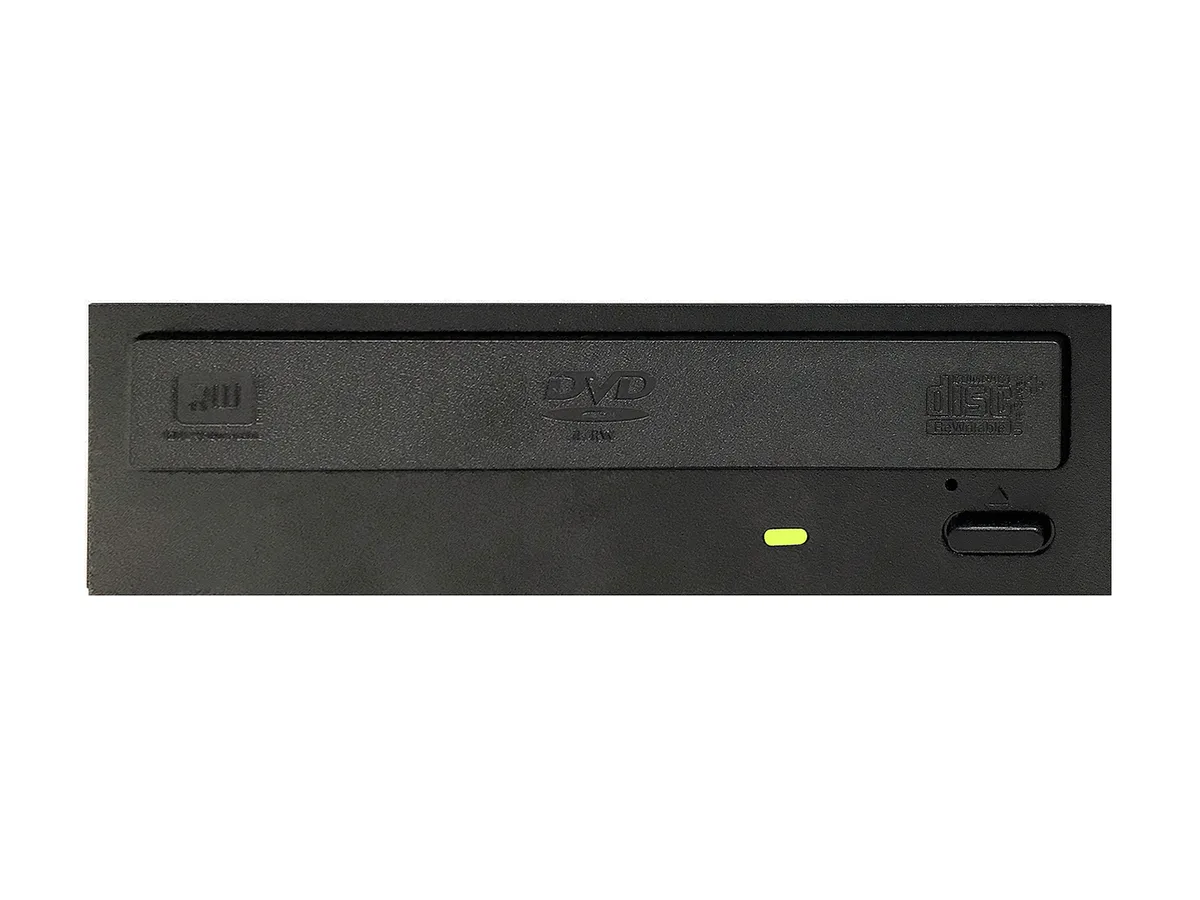

Black 5.25 inch tray-load DVD burner bare drive

PIODATA

PIODATA DVR-S21DBK DVD Burner SATA 5.25" Black Tray 24X DVD±R 48X CD-R 512KB Cache

SKU CH-X1CA-1RVMZ MPN DVR-S21DBK

Internal 5.25-inch DVD burner with 24× DVD±R and 48× CD-R write speeds plus 512 KB cache

  • TypeDVD Burner
  • IncludesBare Drive
  • DVD-ROM Access Time200ms
  • CD-ROM Access Time140ms
  • Cache512KB
  • DVD+R24X
  • 24× DVD±R write speed for fast backups
  • 48× CD-R write speed for quick audio discs
  • 512 KB buffer helps prevent buffer underruns
  • 25″ half-height tray drive fits standard bays
  • SATA interface for simple internal installation

Role and fit

The PIODATA DVR-S21DBK is a half-height 5.25" internal optical drive that writes and reads CD and DVD media. It suits anyone adding legacy disc support to a desktop PC, a duplicator tower or a home-theatre PC where a tray-load mechanism is preferred.

Capacity and headroom

Maximum write speeds reach 24X for DVD±R, 8X for DVD±R DL, 8X for DVD+RW and 6X for DVD-RW, while CD-R hits 48X and CD-RW 32X. Read speeds top out at 16X for DVD-ROM and 48X for CD-ROM. A 512 KB cache smooths sustained transfers, though the drive cannot handle Blu-ray or M-DISC media.

Build integration

The unit connects via a standard SATA data and power interface and mounts in any 5.25" bay with a black bezel and tray-load action. No extra drivers are required on modern operating systems, and the bare-drive package leaves cable selection and mounting screws to the builder.

Highlights

  • 24× DVD±R write speed for fast backups
  • 48× CD-R write speed for quick audio discs
  • 512 KB buffer helps prevent buffer underruns
  • 25″ half-height tray drive fits standard bays
  • SATA interface for simple internal installation

Specifications

BrandPIODATA
ModelDVR-S21DBK
TypeDVD Burner
IncludesBare Drive
DVD-ROM Access Time200ms
CD-ROM Access Time140ms
Cache512KB
DVD+R24X
DVD+RW8X
DVD-R24X
DVD-RW6X
CD-R48X
CD-RW32X
DVD+R DL8X
DVD-R DL8X
DVD-ROM16X
CD-ROM48X
Form Factor5.25"
Panel ColorBlack
Load TypeTray
InterfaceSATA
Operating Systems SupportedOperating System Supported: Microsoft Windows 7 / XP / Vista or later
Supported DVD Format: DVD-ROM, DVD-Video, DVD-RAM, DVD+/-R
(Single/Multi Boarder), DVD+/-R DL
(Single/Multi boarder), DVD+/-RW
Supported DVD Writing Method: Disc-at-Once, Incremental Recording, (DVD-RW) Restricted Overwrite, (DVD+RW/DVD-RAW) Random Access Write, (DVD-R DL) Layer Jump
Supported DVD Size: 12cm or 8cm Diameter
Supported CD Format: CD-DA, CD-ROM, CD-ROM/XA, Photo-CD,
Multi-session, Karaoke-CD, Video-CD, CD-I FMV, CD Extra, CD Plus, CD-R, and CD-RW
Supported CD Writing Method: Disc-at-Once, Track-at-Onc
Dimensions (H x W x D)1.63" x 5.75" x 6.70"
FeaturesPiodata is an offshoot of a major optical disc drive (ODD) manufacturer catering to the duplication market. With the numbers of manufacturers for the common ODD used in optical disc duplicators decreasing, Piodata has remained. Piodata filled the gap as the key tier 1 Japanese ODD factory decided to exit the market. The Piodata DVR-S21DBK is readily available and remains focused on the important global duplication market.
System RequirementsCPU: Intel Pentium 4 1.3 GHz or equivalent or higher
Memory (RAM)128 MB (512 MB recommended)
Interface: SATA (Serial ATA)
Operating System: Microsoft Windows 7 / XP / Vista or later
Hard disk Drive: 1 GB free space required for software installation,
Up to 10 GB free space required for DVD authoring.
Other: Internet connection recommended for updates
Package TypesBare Drive
Shipping weight0.56 kg
Package size173 × 142 × 38 mm

Questions about this item

Will this SATA DVD burner work in a system that still uses an older SATA controller?

Yes, the drive uses a standard SATA interface and will function with any SATA controller that supports optical drives.

How can I verify the drive is performing at its rated speeds after installation?

Check the burning software or device manager for the active write speeds; the drive supports up to 24X DVD±R, 8X DVD±R DL, 48X CD-R and 32X CD-RW.

Does the box include mounting screws or a SATA cable, or do I need to buy them separately?

The package contains the bare 5.25" black tray drive only; mounting screws and SATA data and power cables are not included.
