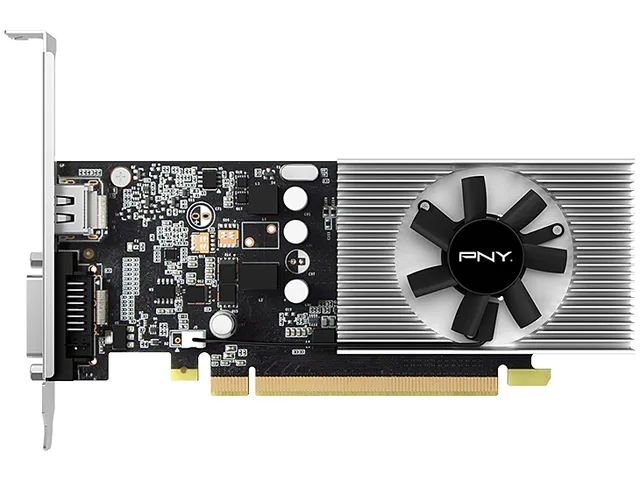

PNY GeForce GT 1030 graphics card with single fan and standard bracket

PNY Technologies, Inc.

PNY GeForce GT 1030 2GB Single Fan graphics card

SKU CH-K5JD-GXWCD

Entry graphics card with 2 GB GDDR5 memory, 384 CUDA cores and a single-fan cooler for basic display output

  • InterfacePCI-Express 3.0 x16 (x4 Active)
  • Chipset ManufacturerNVIDIA
  • GPUGeForce GT 1030
  • Core Clock1227 MHz
  • Boost Clock1468 MHz
  • CUDA Cores384
  • 2 GB GDDR5 memory handles everyday graphics tasks
  • 384 CUDA cores accelerate supported creative and compute workloads
  • Boost clock reaches 1468 MHz for responsive performance
  • HDMI 2.0b and DVI outputs drive two displays up to 4K resolution
  • Single-fan cooler keeps the card quiet in compact builds

PNY GeForce GT 1030 2GB Entry GPU

The PNY GeForce GT 1030 is a low-profile graphics card built for basic desktop upgrades. It targets users who need HDMI 2.0b and DVI outputs for dual-monitor productivity or legacy display support. The card draws power solely from the PCI-Express 3.0 x16 slot with x4 electrical lanes. Its single-fan cooler keeps the 384 CUDA cores within thermal limits during light workloads.

Standard Bracket Only Bundle

The retail package contains only the graphics card with a standard-profile bracket installed. No low-profile bracket, adapters, cables or driver media are supplied in the box. Users with slim chassis must source a compatible bracket separately before installation. The minimal bundle keeps the purchase focused on the core hardware without unnecessary accessories.

PCIe 3.0 x16 x4 Active Interface

The card connects through a PCI-Express 3.0 x16 physical slot but operates at x4 electrical bandwidth. This limitation affects throughput on platforms that cannot bifurcate lanes or when the slot shares bandwidth with other devices. Verify motherboard lane allocation to ensure the 64-bit GDDR5 memory subsystem receives adequate data feed for 1920 x 1200 or 4096 x 2160 output at 60 Hz.

Highlights

  • 2 GB GDDR5 memory handles everyday graphics tasks
  • 384 CUDA cores accelerate supported creative and compute workloads
  • Boost clock reaches 1468 MHz for responsive performance
  • HDMI 2.0b and DVI outputs drive two displays up to 4K resolution
  • Single-fan cooler keeps the card quiet in compact builds

Specifications

BrandPNY
ModelVCGGT10302PB-BB
InterfacePCI-Express 3.0 x16 (x4 Active)
Chipset ManufacturerNVIDIA
GPUGeForce GT 1030
Core Clock1227 MHz
Boost Clock1468 MHz
CUDA Cores384
Effective Memory Clock6 Gbps
Memory Size2GB
Memory Interface64-Bit
Memory TypeGDDR5
DirectXDirectX 12
OpenGLOpenGL 4.5
Multi-Monitor SupportYes
HDMI1 x HDMI 2.0b
DVI1 x DVI
Max Resolution1920 x 1200 x 24BPP @ 60HZ
4096 x 2160 x 24BPP @ 60HZ
SLI SupportNo
CoolerSingle Fan
Thermal Design Power30W
System RequirementsPCI Express-compliant motherboard with one double-width x16 graphics slot
Minimum 300W or greater system power supply1
350MB of available hard-disk space
2GB system memory (4GB or higher recommended)
Windows 7-10, Operating System (32 or 64-bit)
DVD-ROM drive and Internet connection2
1. Minimum system power requirement based on a PC configured with an Intel Core i7 3.2 GHz processor.
2. Graphics Card driver is not included in the box, GeForce Experience will download the latest GeForce driver from the Internet after install.
HDCP Ready2.2
FeaturesSimultaneous Multi-Projection
NVIDIA Pascal
NVIDIA Ansel Support
NVIDIA GameWorks
NVIDIA GameStream Compatible
NVIDIA GPU Boost 3.0
Microsoft DirectX 12 Support
Vulkan API Support
Open GL 4.5 Support
PCI Express 3.0
HDCP 2.2
Max GPU Length168 mm
Low Profile Bracket IncludedYes
Card Dimensions (L x H)6.61" x 2.71"
Slot WidthSingle Slot

Questions about this item

Will the single fan need cleaning or replacement after long-term use?

The card uses a single-fan cooler that will accumulate dust over time; periodic cleaning with compressed air keeps airflow steady and avoids thermal throttling.

What limit appears first when the GT 1030 runs at boost clock for extended periods?

The 64-bit GDDR5 memory interface and 2 GB capacity saturate before the 384 CUDA cores, capping sustained throughput in memory-heavy workloads.

How much heat and noise does the single-fan design produce during all-day operation?

With a 1227 MHz base clock and 1468 MHz boost, the compact cooler stays relatively quiet but exhausts warm air into the case, so case airflow matters.
