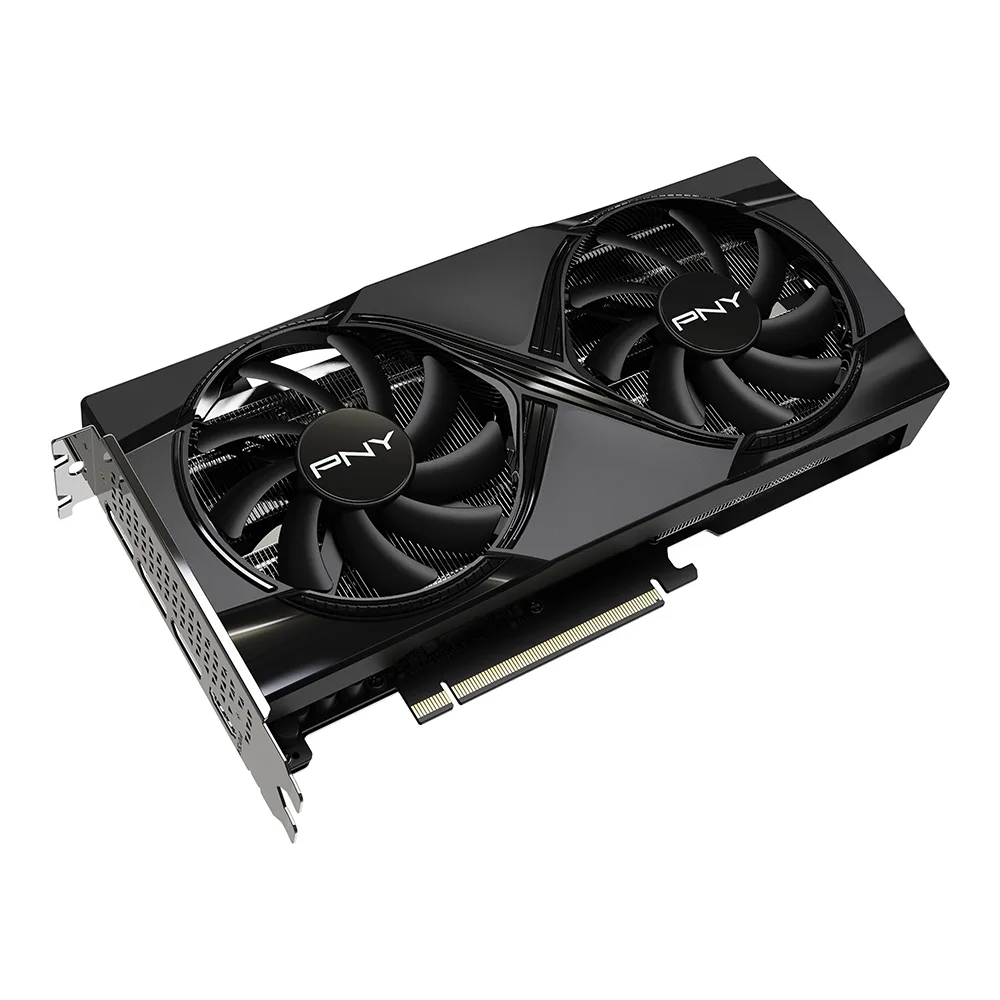

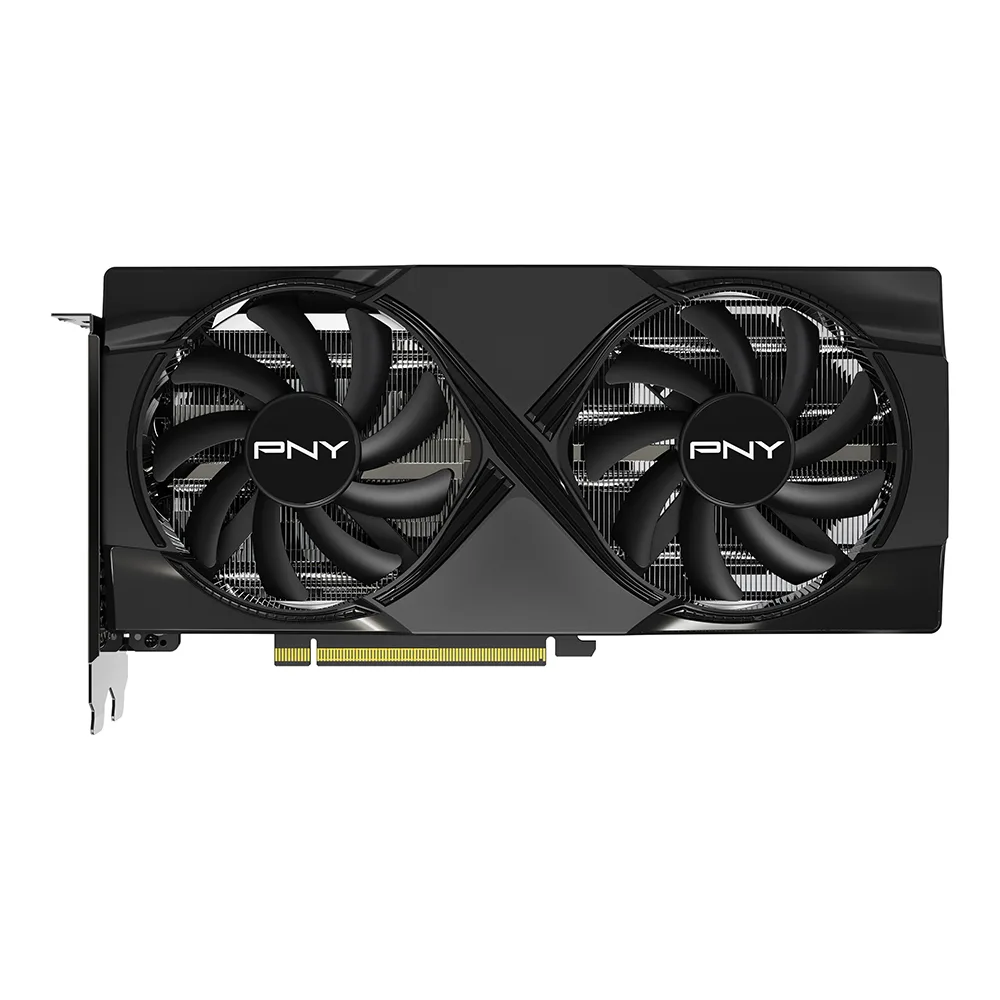

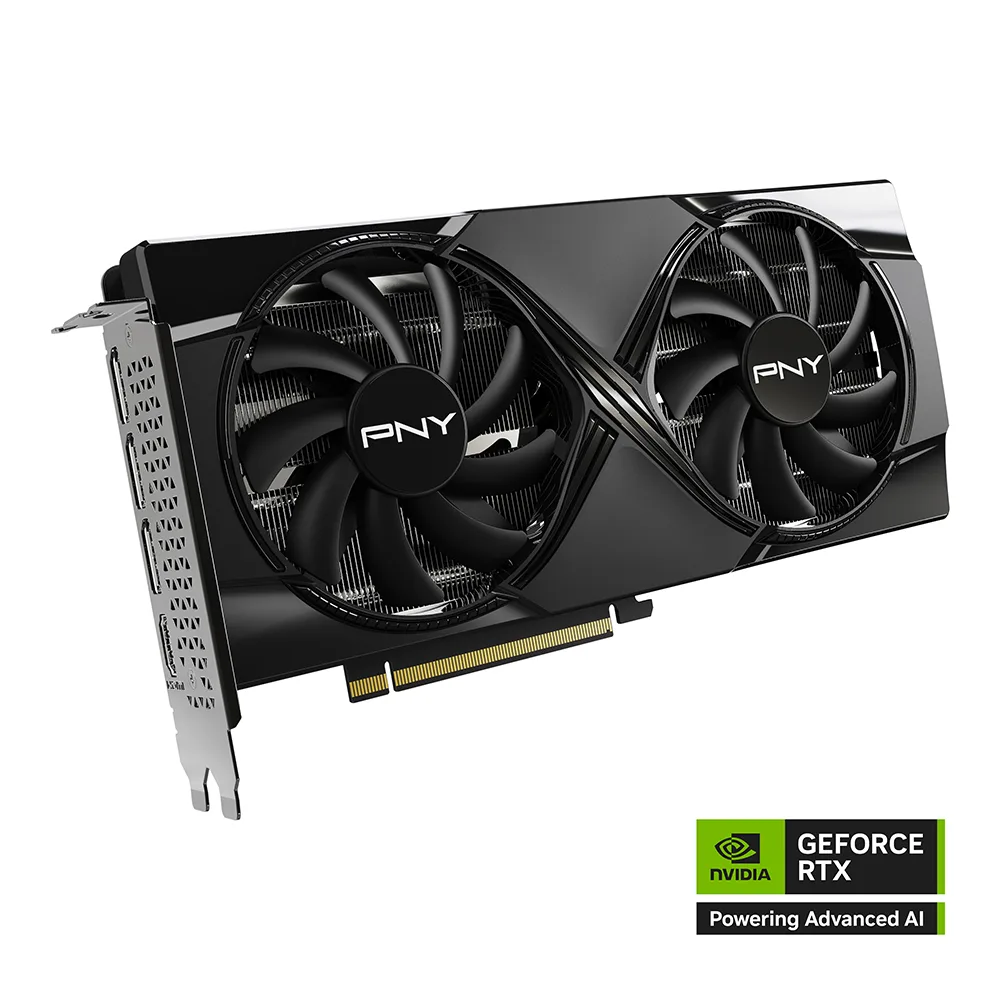

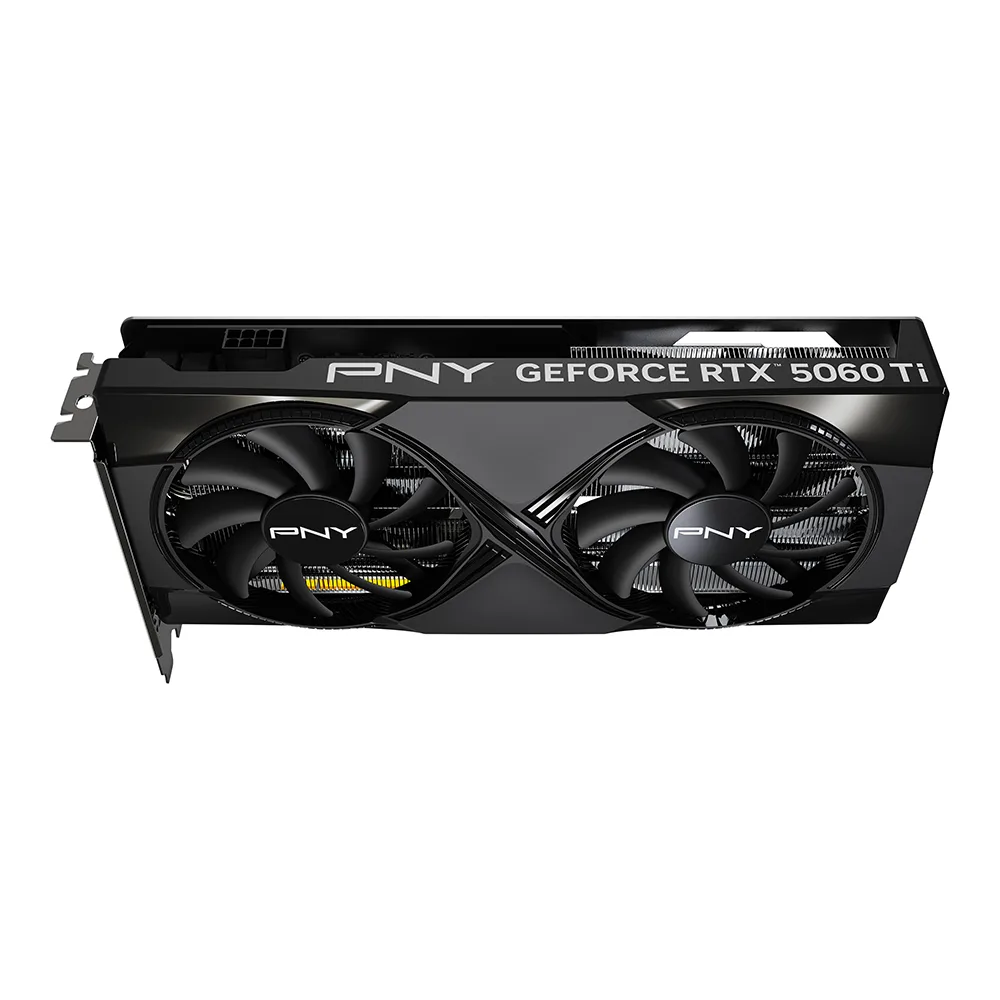

PNY Technologies, Inc. GeForce RTX 5060 Ti 16GB Dual Fan OC VCG5060T16DFXPB1-O graphics card

16GB GDDR7 on 128-bit bus

This graphics card pairs a GeForce RTX 5060 Ti GPU with 16GB of GDDR7 memory across a 128-bit interface. It targets 1440p gaming and content creation workloads that benefit from the larger frame buffer. The Blackwell architecture provides 4608 CUDA cores and supports DirectX 12 Ultimate with DLSS 4.0. A PCI Express 5.0 x8 connection links the card to the platform.

Sustained load on dual-fan cooler

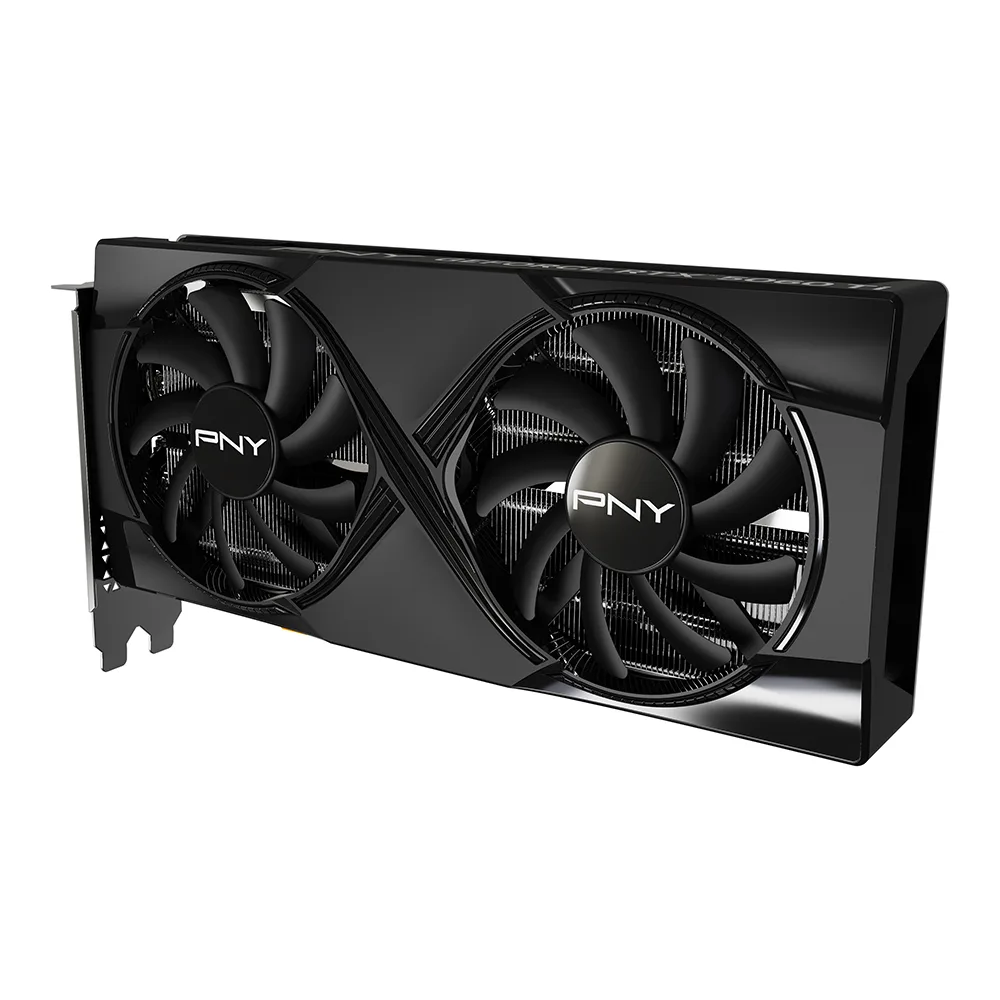

The dual-fan cooler manages heat from a 2407 MHz base clock and a 2692 MHz boost clock during extended sessions. A 600W power supply is recommended to keep the subsystem stable under continuous draw. The 128-bit memory bus limits peak bandwidth compared with wider designs, so prolonged compute tasks may saturate the link before the core hits its thermal ceiling.

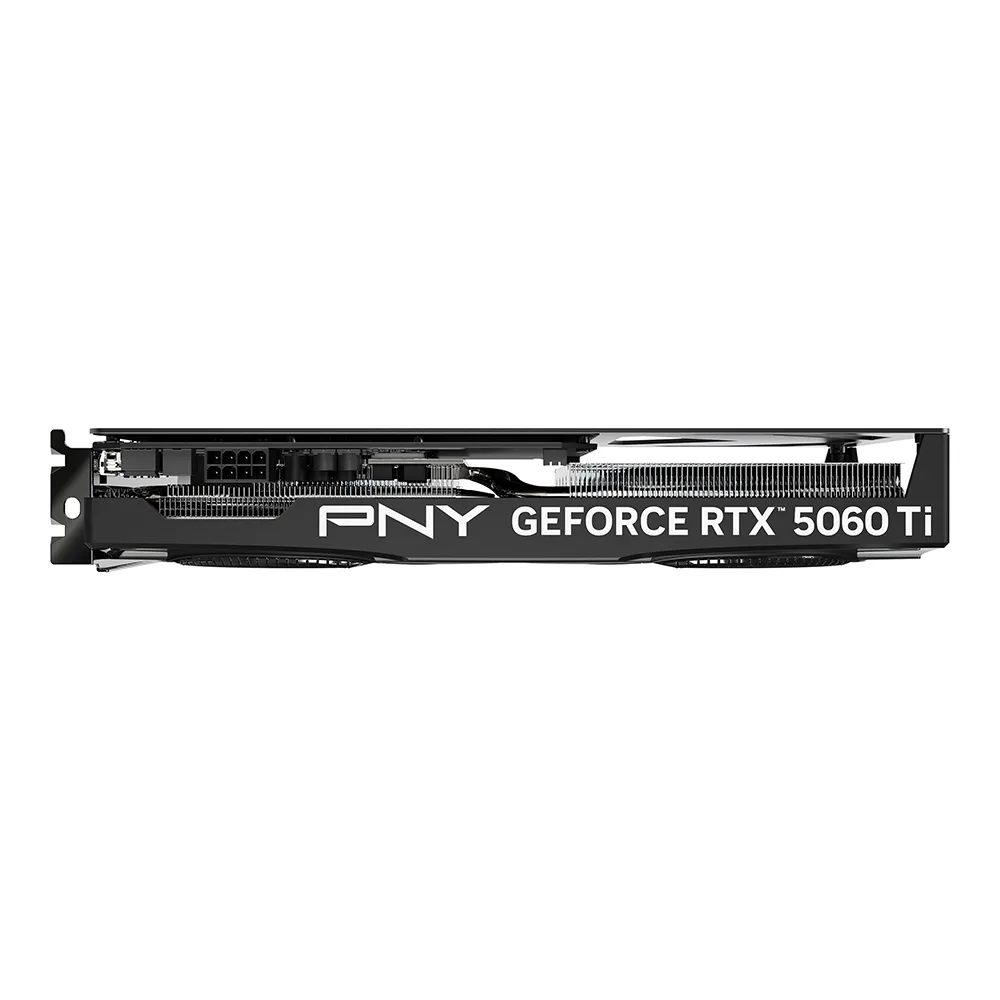

Two-slot ATX fit, 246 mm length

The ATX form factor occupies two expansion slots and measures 246 mm in length, fitting most mid-tower cases without interfering with drive cages. Installation follows the standard PCI Express 5.0 x8 slot procedure and requires the recommended 600W PSU with appropriate power connectors. Builders should verify case clearance for the full 246 mm length and ensure the two-slot bracket aligns with rear I/O cutouts before securing the card.
