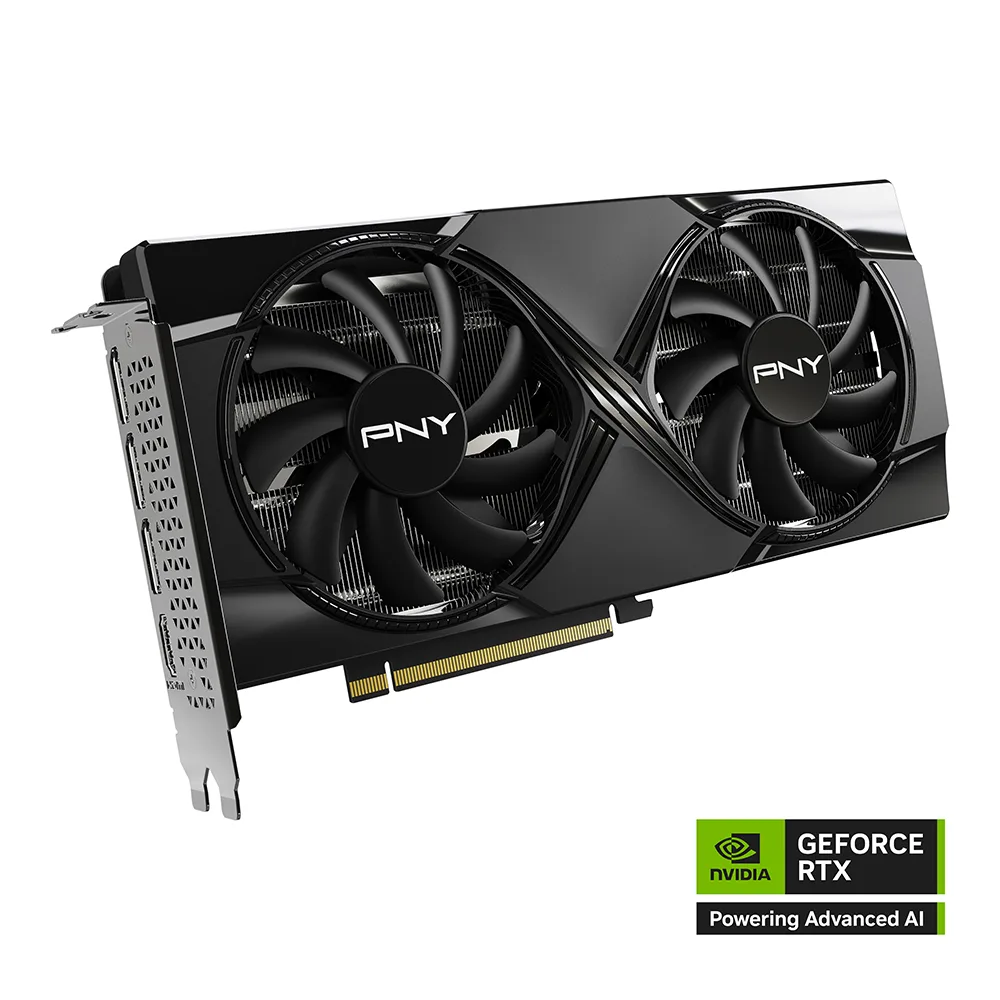

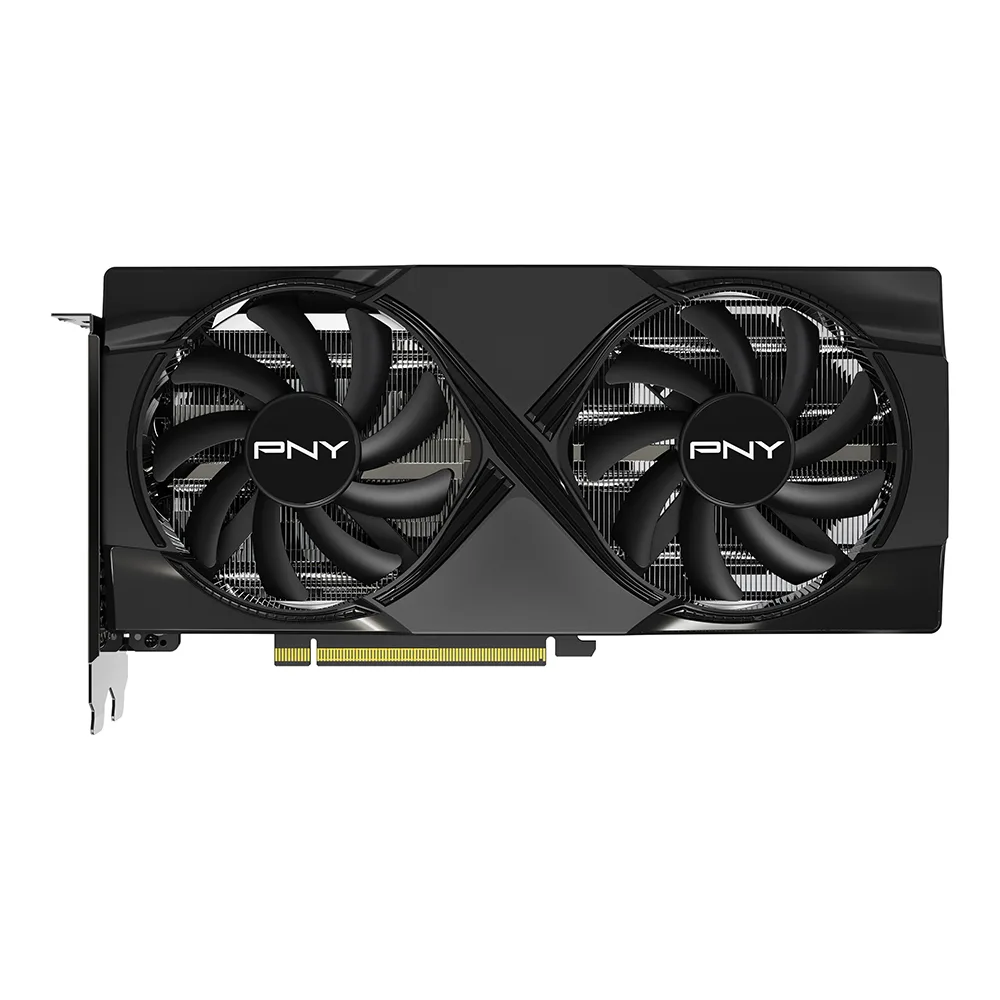

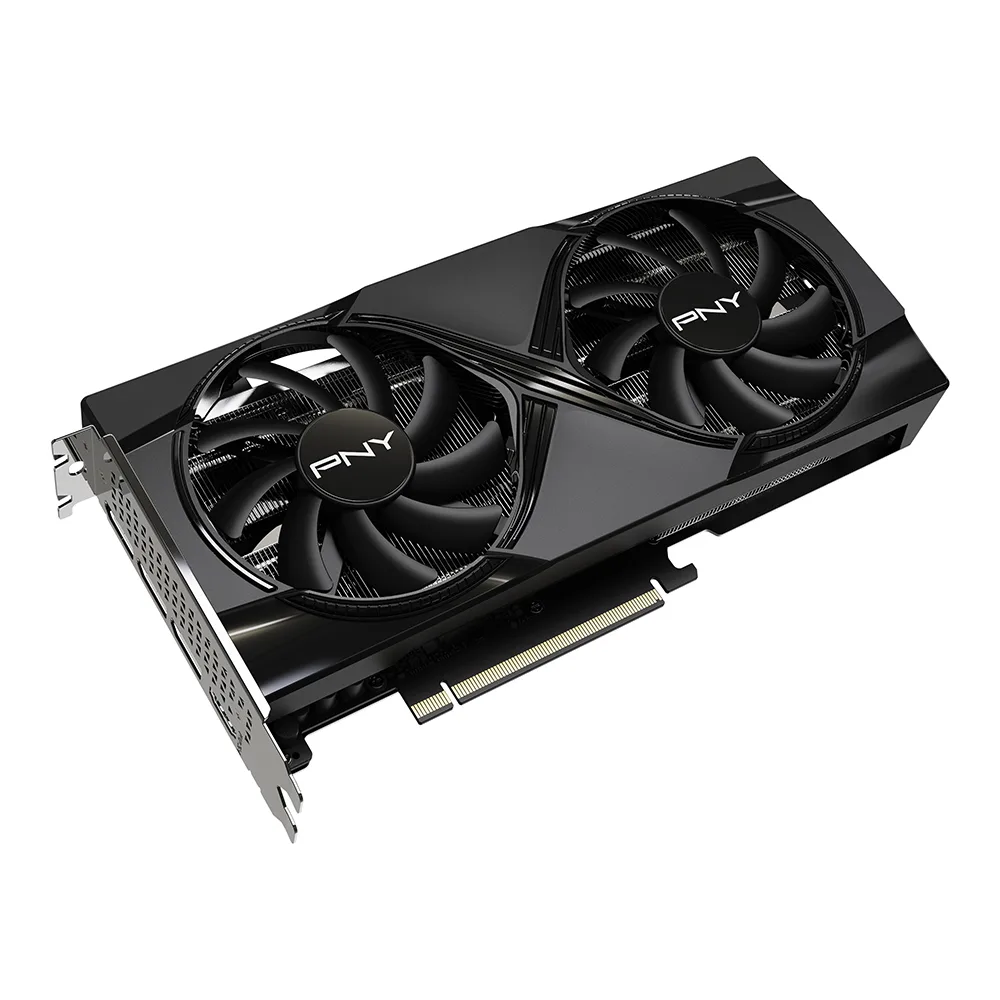

Black dual-fan graphics card with silver accents, PCIe bracket, HDMI and DisplayPort outputs

PNY Technologies, Inc.

PNY Technologies, Inc. KMR506TE5LGFT2A GeForce RTX 5060 Ti 16GB graphics card

SKU CH-ZH9Q-B0AQR MPN KMR506TE5LGFT2A

16GB GDDR7 GPU with 4608 CUDA cores, boost to 2692 MHz, PCIe 5.0 x8, HDMI 2.1b and three DisplayPort 2.1b outputs

  • InterfacePCI Express 5.0 x8
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 50 Series
  • GPUGeForce RTX 5060 Ti
  • ArchitectureBlackwell
  • Core Clock2407 MHz
  • 16 GB GDDR7 memory fuels high-resolution textures
  • 4608 CUDA cores accelerate ray-tracing and AI workloads
  • Boost clock reaches 2692 MHz for responsive frame rates
  • HDMI 2.1b plus three DisplayPort 2.1b outputs drive four 8K displays

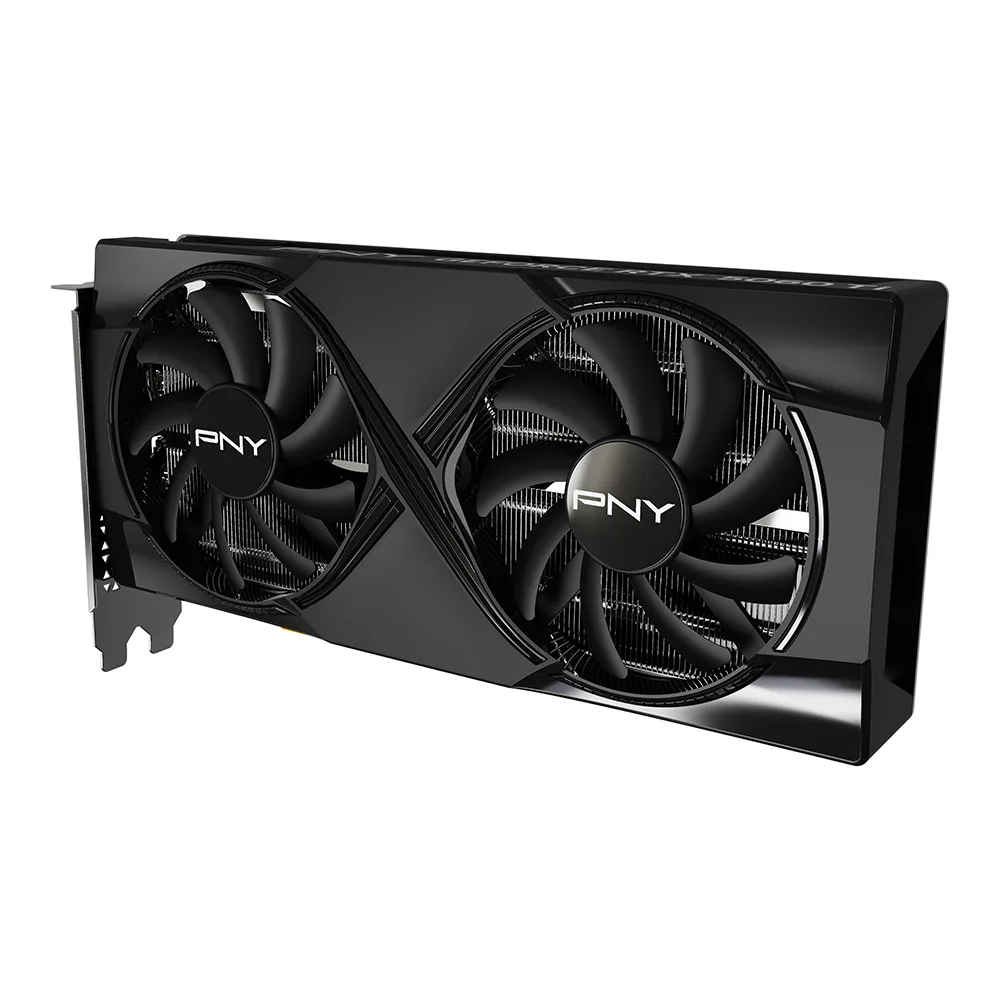

  • Dual-fan cooler fits 246 mm length for compact builds

Dual-fan RTX 5060 Ti for 1440p and 4K gaming

This PNY graphics card pairs a Blackwell architecture GPU with 16GB of GDDR7 memory on a 128-bit bus. Factory clocks reach 2407 MHz base and 2692 MHz boost across 4608 CUDA cores. The dual-fan cooler fits in a 246 mm slot length and drives up to four displays via one HDMI 2.1b and three DisplayPort 2.1b connectors.

Check PCIe slot width and PSU cables before buying

The board uses a PCI Express 5.0 x8 edge connector, so verify your motherboard can run at that width without sharing bandwidth with other devices. Ensure the power supply has the required 12VHPWR or dual 8-pin PCIe cables for the card’s rated draw. Measure case clearance against the 246 mm length and confirm a free dual-slot bracket at the rear.

Thermals, noise and power draw in normal use

The twin axial fans target the heatsink directly, keeping the GPU near its 2692 MHz boost clock during extended gaming sessions. Idle fan stop eliminates noise when the desktop is light, while load acoustics stay in the low-decibel range typical for dual-fan designs. Power consumption scales with the 16GB GDDR7 subsystem and 4608 active cores under DirectX 12 Ultimate or Vulkan workloads.

Highlights

  • 16 GB GDDR7 memory fuels high-resolution textures
  • 4608 CUDA cores accelerate ray-tracing and AI workloads
  • Boost clock reaches 2692 MHz for responsive frame rates
  • HDMI 2.1b plus three DisplayPort 2.1b outputs drive four 8K displays
  • Dual-fan cooler fits 246 mm length for compact builds

Specifications

BrandPNY
SeriesDUAL FAN OC
InterfacePCI Express 5.0 x8
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 50 Series
GPUGeForce RTX 5060 Ti
ArchitectureBlackwell
Core Clock2407 MHz
Boost Clock2692 MHz
CUDA Cores4608
Memory Size16GB
Memory Interface128-Bit
Memory TypeGDDR7
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1b
ColorBlack
Max Resolution7680 x 4320
CrossFireX SupportNo
SLI SupportNo
Virtual Reality ReadyYes
CoolerDouble Fans
Max GPU Length246 mm
Shipping weight0.98 kg
Package size362 × 216 × 77 mm

Questions about this item

What comes in the box and do I need to buy any power cables or adapters separately?

The card ships with the dual-fan cooler installed and a standard bracket; any PCIe power cables required for your PSU are not included and must be sourced separately.

How do I decide between the 16 GB GDDR7 version and other capacities?

This model provides 16 GB of GDDR7 on a 128-bit bus, giving the highest VRAM available in the RTX 5060 Ti line for texture-heavy workloads at 1440p or 4K.

What does the 2692 MHz boost clock mean once the card is installed in my system?

The 2692 MHz boost is the maximum GPU frequency under load; actual sustained clocks will depend on your case airflow, power limit and driver settings.
