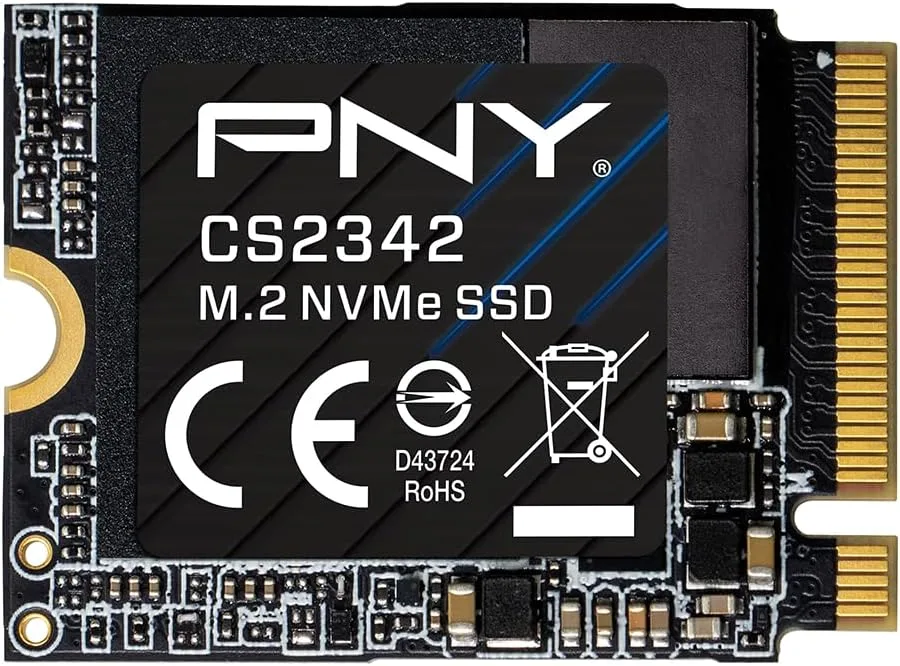

Small green circuit board with gold edge connector and black memory chips, M.2 2230 form factor, no heatsink

PNY Technologies, Inc.

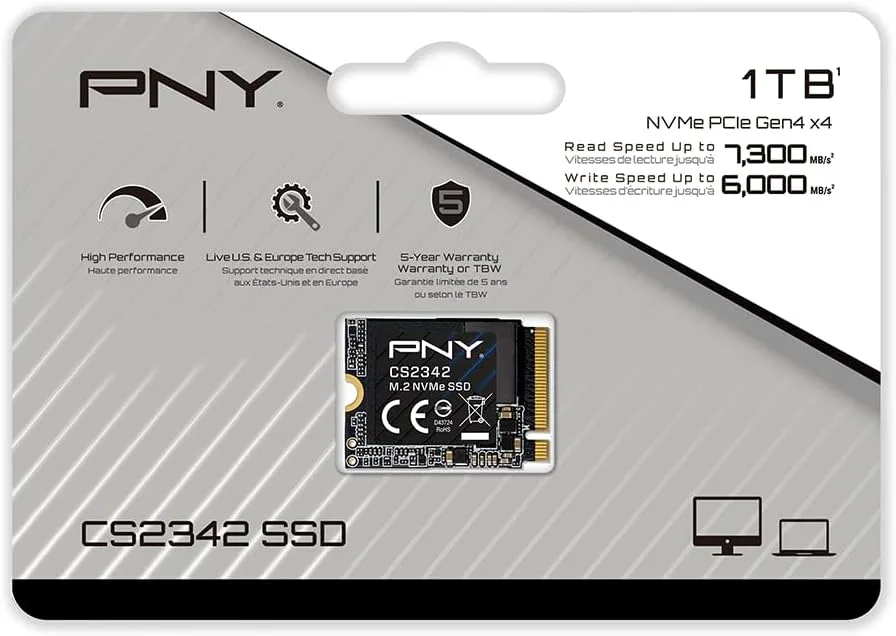

PNY Technologies, Inc. M230CS2342-1TB-TB 1TB M.2 2230 internal SSD

SKU CH-YNDK-TCTWM MPN M230CS2342-1TB-TB

M.2 2230 internal SSD with 1 TB capacity, PCIe 4.0 x4 interface and NVMe 1.4 protocol delivering up to 7300 MBps read and 6000 MBps write speeds

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2230
  • Capacity1TB
  • Memory Components3D NAND
  • InterfacePCI-Express 4.0 x4

Capacity 1TB 2230

  • M.2 2230 form factor fits Steam Deck, ROG Ally and MSI Claw
  • 1 TB capacity stores large game libraries and media files
  • PCIe 4.0 x4 interface delivers up to 7300 MB/s sequential read speed
  • NVMe 1.4 protocol enables up to 6000 MB/s sequential write speed
  • 3D NAND with 1500000-hour MTBF provides reliable long-term operation

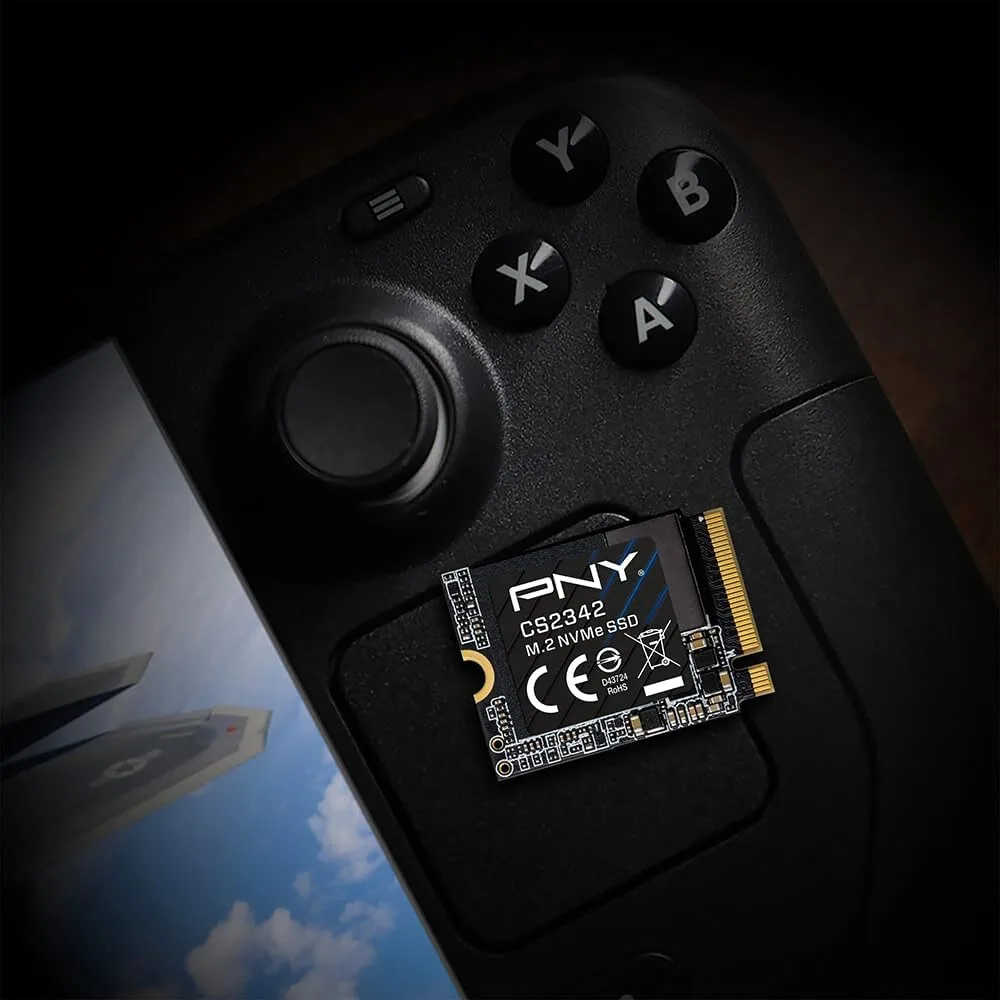

M.2 2230 drive for handhelds and laptops

The PNY CS2342 is an internal solid state drive built to the M.2 2230 form factor with a capacity of 1TB. It targets handheld gaming devices such as the Steam Deck, ASUS ROG Ally and MSI Claw as well as compatible laptops and desktops. The drive uses 3D NAND flash and connects through a PCI-Express 4.0 x4 link running the NVMe 1.4 protocol.

PCIe 4.0 x4 limits and thermal range

Sequential reads reach up to 7300 MBps and writes up to 6000 MBps over the four lane interface. The NVMe 1.4 protocol governs command handling and power management on the bus. Operating temperatures span 0°C to 70°C while storage temperatures tolerate -40°C to 85°C. The controller is rated for a mean time between failures of 1500000 hours.

Single sided board without heatsink

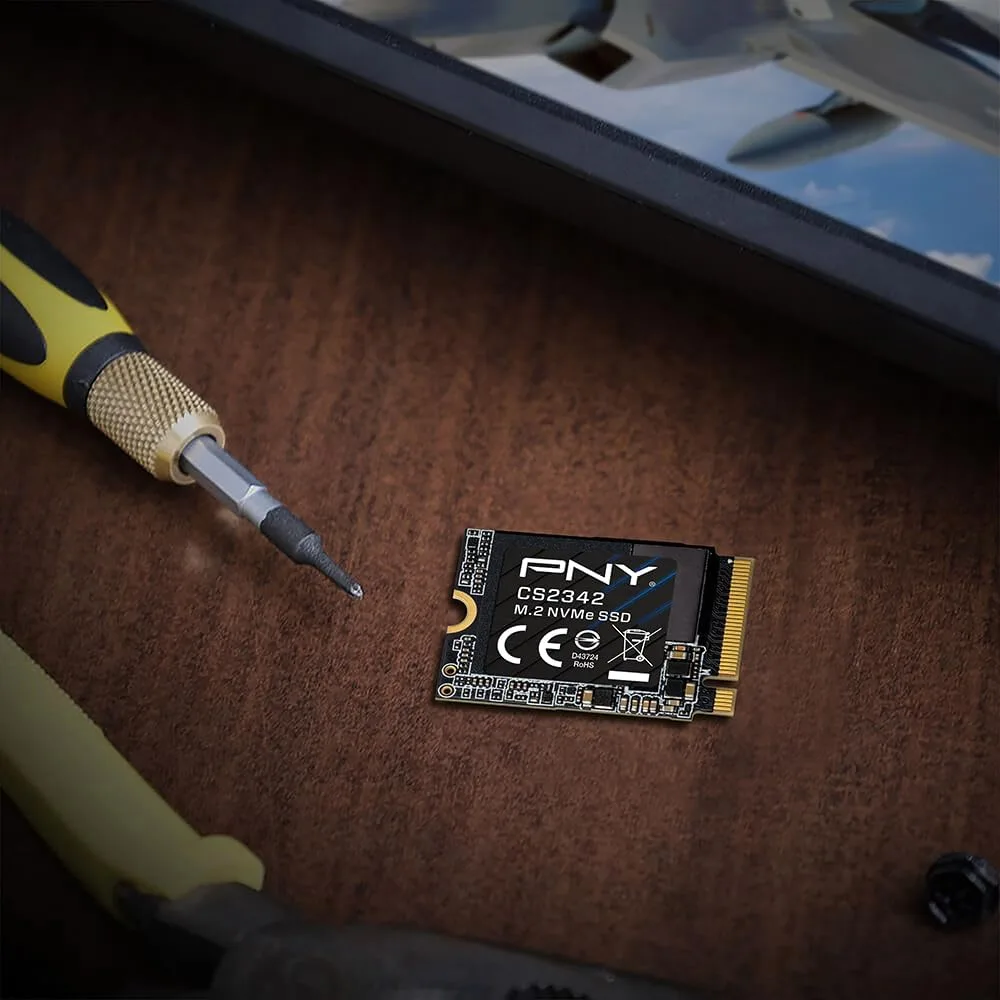

The module ships without a heatsink so it fits tight M.2 2230 slots where vertical clearance is minimal. A single sided layout keeps the profile thin for handheld motherboards that cannot accommodate double sided components. The M.2 connector provides both data and power without extra cables. Installation is a simple insert and screw step on any platform with a 2230 keyed socket.

Highlights

  • M.2 2230 form factor fits Steam Deck, ROG Ally and MSI Claw
  • 1 TB capacity stores large game libraries and media files
  • PCIe 4.0 x4 interface delivers up to 7300 MB/s sequential read speed
  • NVMe 1.4 protocol enables up to 6000 MB/s sequential write speed
  • 3D NAND with 1500000-hour MTBF provides reliable long-term operation

Specifications

BrandPNY
SeriesCS2342
ModelM230CS2342-1TB-TB
Part NumberM230CS2342-1TB-TB
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2230
Capacity1TB
Memory Components3D NAND
InterfacePCI-Express 4.0 x4
ProtocolNVMe 1.4
Max Sequential ReadUp to 7300 MBps
Max Sequential WriteUp to 6000 MBps
MTBF1,500,000 hours
HeatSinkwithout HeatSink
Features* VERSATILE COMPATIBILITY - Designed for seamless integration into M.2 2230 compatible desktops, laptops, and handheld gaming devices like the ASUS ROG Ally™, MSI Claw™, and the Valve Steam Deck™
* HIGH PERFORMANCE - The NVMe PCIe Gen4 x4 interface delivers exceptional performance of up to 7,300MB/s seq. read and 6,000 MB/s seq. write speeds²
* GAMING UPGRADE - Enhance your gaming with faster speeds, quicker load times, reduced lag, and smoother streaming in games that use dynamic world streaming
* INCREASED STORAGE - Increase the storage on your M.2 2230 compatible devices by up to
Operating Temperature0°C ~ +70°C
Storage Temperature-40°C ~ +85°C
Shipping weight0.02 kg
Package size119 × 84 × 1 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I pick the 1TB M.2 2230 model or a different capacity for my handheld?

The CS2342 series is offered in 1TB and 2TB versions, both in the M.2 2230 form factor, so choose the capacity that matches your game library size and budget.

What does the 7300 MBps sequential read mean when the drive is inside a Steam Deck or ROG Ally?

In a handheld the PCIe 4.0 x4 link and NVMe 1.4 protocol let the drive hit up to 7300 MBps read and 6000 MBps write, cutting game load times and reducing texture pop-in during play.

Does the PCIe 4.0 x4 interface limit speed if my device only supports PCIe 3.0?

The drive will fall back to PCIe 3.0 x4 speeds, capping sequential transfers well below the 7300 MBps headline figure while still functioning normally.
