Thin green circuit board with gold edge connector and black memory chips

PNY Technologies, Inc.

PNY Technologies, Inc. M280CS3040-1TB-RB 1TB M.2 2280 internal SSD

SKU CH-CZ5P-6GJ9E MPN M280CS3040-1TB-RB

1TB M.2 2280 NVMe 1.3 drive using 3D NAND delivers up to 5600 MB/s read and 4300 MB/s write over PCI-Express 4.0 x4 for fast boot and application load

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity1TB
  • Memory Components3D NAND
  • InterfacePCI-Express 4.0 x4, NVMe 1.3

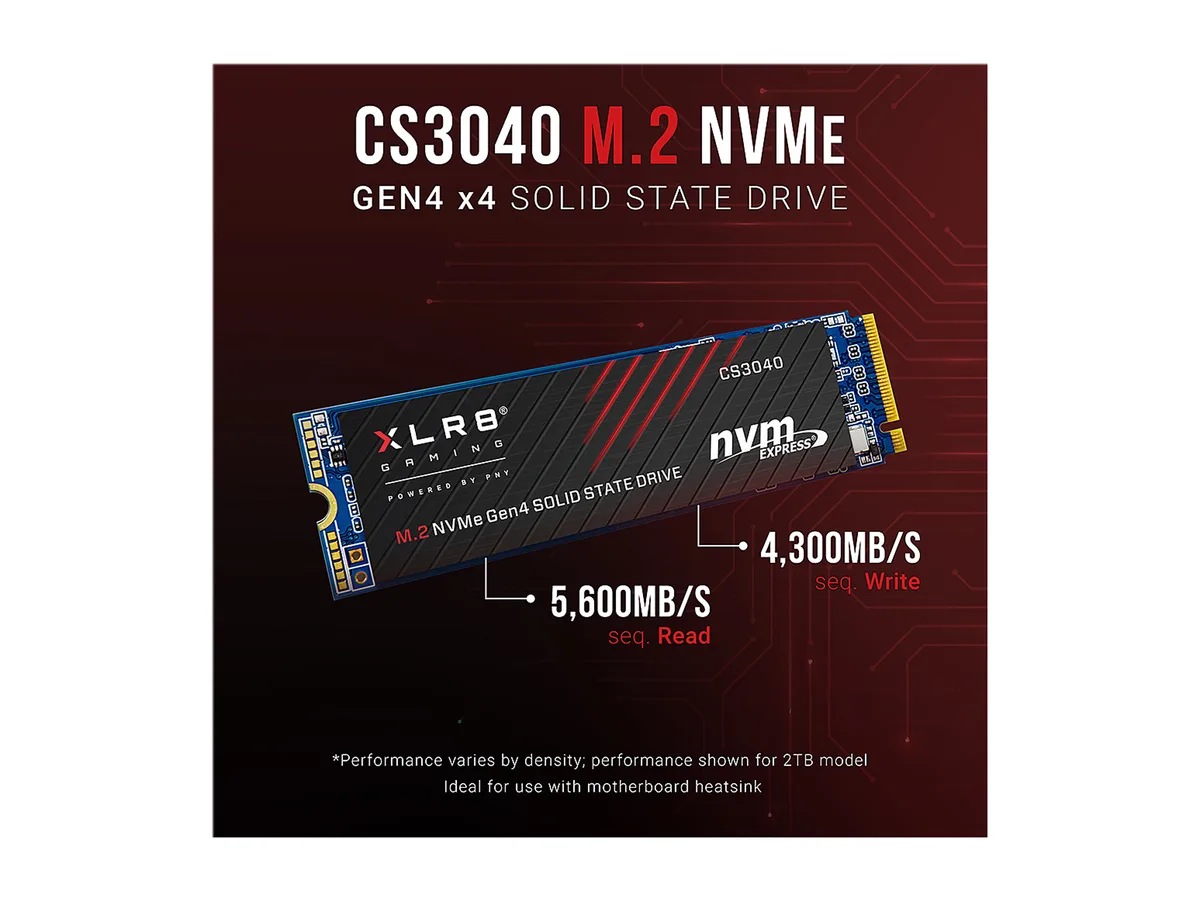

  • Sequential reads up to 5600 MB/s accelerate game loading
  • Sequential writes up to 4300 MB/s speed up large file transfers
  • PCIe 4.0 x4 NVMe 1.3 interface delivers high bandwidth for demanding workloads
  • 3D NAND technology provides 1TB capacity in a compact M.2 2280 form factor
  • MTBF of 2000000 hours indicates long-term reliability for intense daily use

1 TB PCIe 4.0 NVMe drive

The PNY XLR8 CS3040 is a 1 TB internal SSD in the M.2 2280 form factor. It uses 3D NAND flash and a PCI-Express 4.0 x4 interface with NVMe 1.3. The drive targets consumers who want faster boot times and quicker application launches. Sequential reads reach up to 5600 MB/s and writes up to 4300 MB/s.

No heatsink in box

This model ships without an integrated heatsink, keeping the module height at 4.00 mm for tight laptop or desktop slots. The bare PCB design suits systems that provide their own motherboard cooling or have limited vertical clearance. No additional software or mounting hardware is mentioned in the specifications.

1 TB capacity for heavy workloads

One terabyte provides room for operating systems, large games and creative project files. The rated MTBF of 2,000,000 hours and an operating range of 0 °C to 70 °C indicate sustained reliability under intense workloads. Performance drops when the drive is installed in a PCIe Gen3 x4 slot.

Highlights

  • Sequential reads up to 5600 MB/s accelerate game loading
  • Sequential writes up to 4300 MB/s speed up large file transfers
  • PCIe 4.0 x4 NVMe 1.3 interface delivers high bandwidth for demanding workloads
  • 3D NAND technology provides 1TB capacity in a compact M.2 2280 form factor
  • MTBF of 2000000 hours indicates long-term reliability for intense daily use

Specifications

BrandPNY
SeriesXLR8 CS3040
ModelM280CS3040-1TB-RB
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity1TB
Memory Components3D NAND
InterfacePCI-Express 4.0 x4, NVMe 1.3

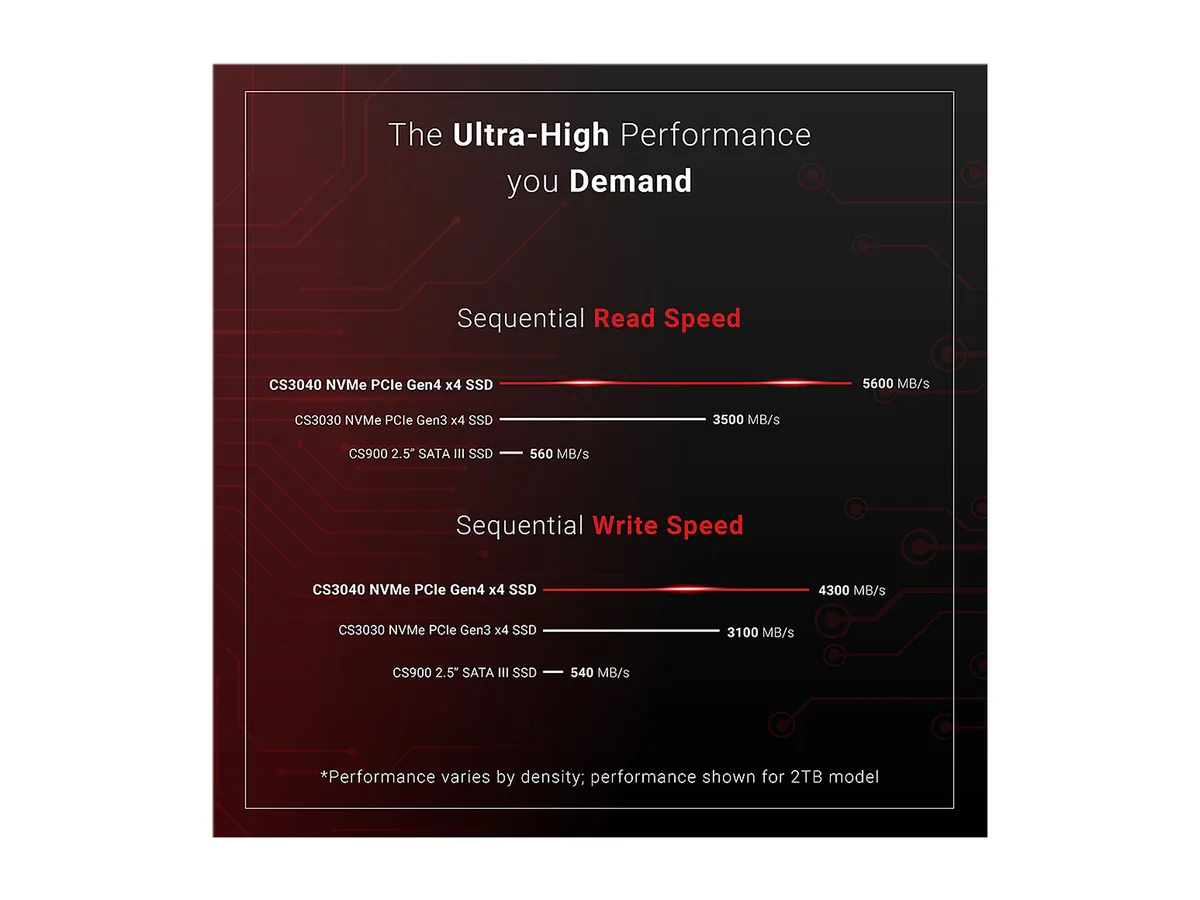

Max Sequential ReadUp to 5600 MBps
Max Sequential WriteUp to 4300 MBps
MTBF2,000,000 hours
HeatSinkwithout HeatSink
FeaturesSequential Read of up to 5,600 MB/s and Write of up to 4,300 MB/s
Offered with or without an integrated extruded aluminum heatsink for compatibility with a variety of form factors and systems
Faster boot up, quicker application launch, and better overall system performance
Ultra high performance is ideal for demanding applications, high-end games, and intense workloads
Operating Temperature0°C ~ +70°C
Storage Temperature-40°C ~ +85°C
Height4.00mm
Width22.00mm
Depth80.00mm
Weight6.60g
Shipping weight0.05 kg
Package size148 × 100 × 16 mm

Questions about this item

How long is the MTBF rating for the XLR8 CS3040 1TB drive?

The drive carries a mean-time-between-failures rating of 2,000,000 hours, indicating its expected reliability over extended use.

What is the maximum operating temperature before thermal throttling may occur?

The specified operating temperature range tops out at 70°C; sustained loads that push the controller near this limit will trigger throttling to protect the NAND.

Does the M280CS3040-1TB-RB run hotter because it ships without a heatsink?

Without the integrated extruded aluminum heatsink the drive relies on motherboard airflow, so case ventilation becomes the main factor in keeping temperatures down during all-day workloads.
