Full-height graphics card with silver shroud, single fan, four DisplayPort connectors, metal backplate visible

PNY Technologies, Inc.

PNY Technologies, Inc. Quadro M4000 VCQM4000-PB 8GB graphics card

SKU CH-H8W0-9MZWW

A professional graphics card with 8GB GDDR5 memory, 1664 CUDA cores and four DisplayPort 1.2 outputs for multi-display workstations

  • Chipset ManufacturerNVIDIA
  • Drives four 4K displays with four DisplayPort 1.2 connectors
  • Accelerates professional workloads using 1664 CUDA cores
  • Delivers high memory bandwidth through 8GB 256-bit GDDR5
  • Fits full-height workstations at 9.50" x 4.40" with a 120W power draw
  • Supports Windows 10, 8.1, 7 and Linux with DirectX 12 and OpenGL 4.5

Professional Workstation GPU

The PNY Quadro M4000 is an 8GB graphics card built for professional workstations running CAD, 3D modelling or multi-display visualisation workloads. It connects through a PCI Express 3.0 x16 slot and draws a maximum of 120W. The full-height form factor fits standard tower chassis.

Four DisplayPort 1.2 Outputs

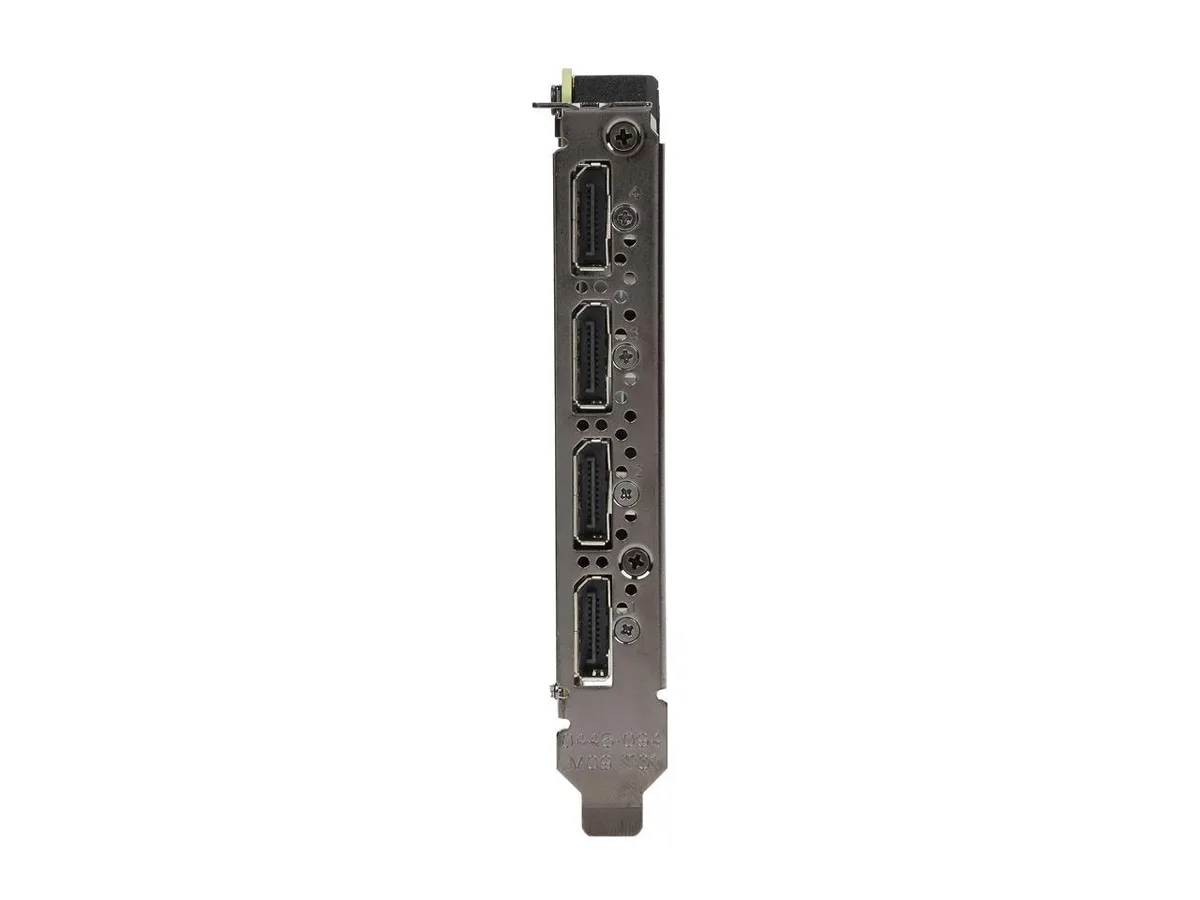

Four DisplayPort 1.2 connectors drive up to four 4096 x 2160 displays simultaneously with audio support. A stereo connector and Quadro Sync compatibility enable frame-locked multi-screen setups for advanced visualisation. The board includes a fan cooler and requires auxiliary power.

1664 CUDA Cores on 256-bit GDDR5

The GPU provides 1664 CUDA cores fed by 8GB of GDDR5 memory across a 256-bit interface. This configuration determines compute throughput and memory bandwidth for professional OpenGL 4.5 and DirectX 12 applications.

Highlights

  • Drives four 4K displays with four DisplayPort 1.2 connectors
  • Accelerates professional workloads using 1664 CUDA cores
  • Delivers high memory bandwidth through 8GB 256-bit GDDR5
  • Fits full-height workstations at 9.50" x 4.40" with a 120W power draw
  • Supports Windows 10, 8.1, 7 and Linux with DirectX 12 and OpenGL 4.5

Specifications

BrandPNY
Chipset ManufacturerNVIDIA

Questions about this item

What bandwidth does the PCI Express 3.0 x16 interface deliver to the GPU?

The PCI Express 3.0 x16 slot provides up to 16 GB/s per direction, which is the practical ceiling for this card's 120W power envelope.

What clearance does the 9.50" x 4.40" full-height board need inside the case?

The card occupies a full-height PCIe slot and requires 9.50 inches of length clearance plus a second slot bracket for the I/O shield.

How is the 120W TDP fed and where do builders forget to plug in?

Connect the included auxiliary power cable to the card's onboard power connector before closing the case; the system will not boot without it.
