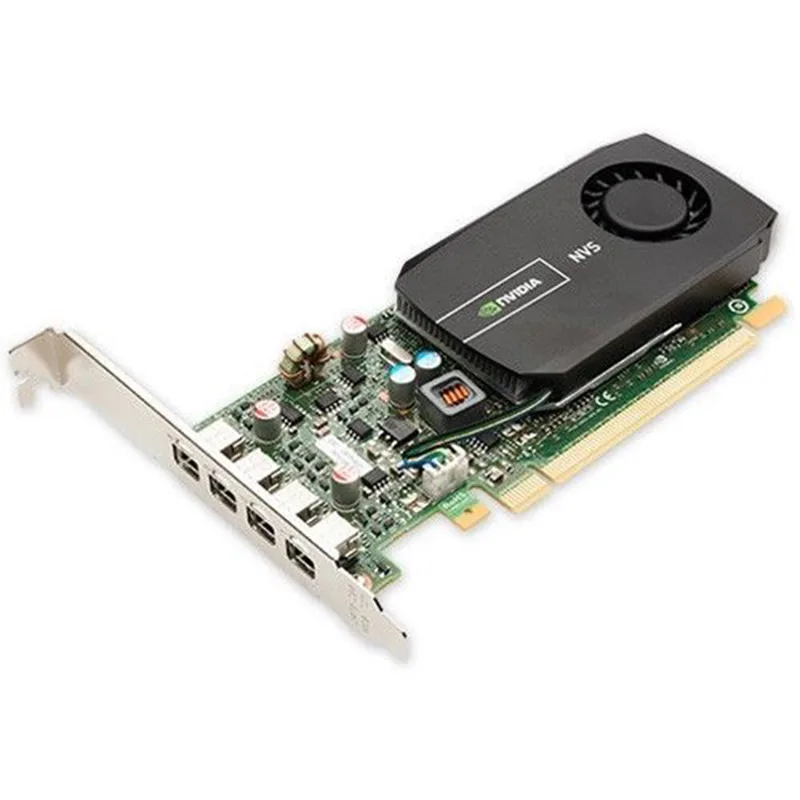

Low-profile single-slot graphics card with four Mini DisplayPort outputs and a compact cooler

PNY Technologies, Inc.

PNY Technologies, Inc. Quadro NVS 510 graphics card low-profile single slot

SKU CH-E38J-WHF13

Low-profile single-slot card drives four 3840 x 2160 displays via Mini DisplayPort with 192 CUDA cores and 2 GB DDR3 memory

  • InterfacePCI Express 3.0 x16
  • CUDA Cores192
  • Memory Size2GB
  • Memory Interface128-Bit
  • Memory TypeDDR3
  • DirectXDirectX 11
  • Drives four 3840 x 2160 displays from one card
  • Fits slim chassis with low-profile single-slot design
  • Delivers compute power through 192 CUDA cores
  • Connects via PCI Express 3.0 x16 interface
  • Supports DisplayPort 1.2 multi-stream for flexible monitor setups

Low-profile Quadro NVS 510 for multi-display

This single-slot graphics card fits low-profile chassis and targets business users who need four independent screens from one PCI Express 3.0 x16 slot. It delivers 192 CUDA cores and 2 GB of DDR3 memory across a 128-bit interface for stable 2D and light 3D workloads.

Four locking Mini DisplayPort outputs with DVI

The bracket carries four Mini DisplayPort 1.2 connectors and ships with Mini DisplayPort-to-DVI-D single-link adapters, so you can drive any mix of DisplayPort and DVI monitors without extra cables. A compact axial fan keeps the Kepler GPU cool inside space-constrained enclosures.

DirectX 11 and OpenGL 4.3 limit modern API access

The card tops out at DirectX 11 and OpenGL 4.3, so newer compute or rendering features that require later API versions will not run. Maximum resolution per display is 3840 x 2160, and the 128-bit DDR3 memory bus caps bandwidth for high-refresh or multi-layer content.

Highlights

  • Drives four 3840 x 2160 displays from one card
  • Fits slim chassis with low-profile single-slot design
  • Delivers compute power through 192 CUDA cores
  • Connects via PCI Express 3.0 x16 interface
  • Supports DisplayPort 1.2 multi-stream for flexible monitor setups

Specifications

InterfacePCI Express 3.0 x16
CUDA Cores192
Memory Size2GB
Memory Interface128-Bit
Memory TypeDDR3
DirectXDirectX 11
OpenGLOpenGL 4.3
Multi-Monitor Support4
DisplayPort4 x Mini DisplayPort
Max Resolution3840 x 2160
CoolerWith Fan

Questions about this item

Will this card fit in a low-profile chassis with only a single slot available?

Yes, it is a low-profile, single-slot design that occupies one PCI Express 3.0 x16 slot.

Can I connect four 3840 x 2160 monitors using the included adapters?

The card has four Mini DisplayPort 1.2 outputs and ships with four locking Mini DisplayPort to DVI-D SL adapters, supporting up to 3840 x 2160 per display.

Does the 2 GB DDR3 frame buffer limit the number of high-resolution displays I can run?

The 2 GB 128-bit DDR3 memory and 192 CUDA cores drive four 3840 x 2160 screens simultaneously for business workloads.
