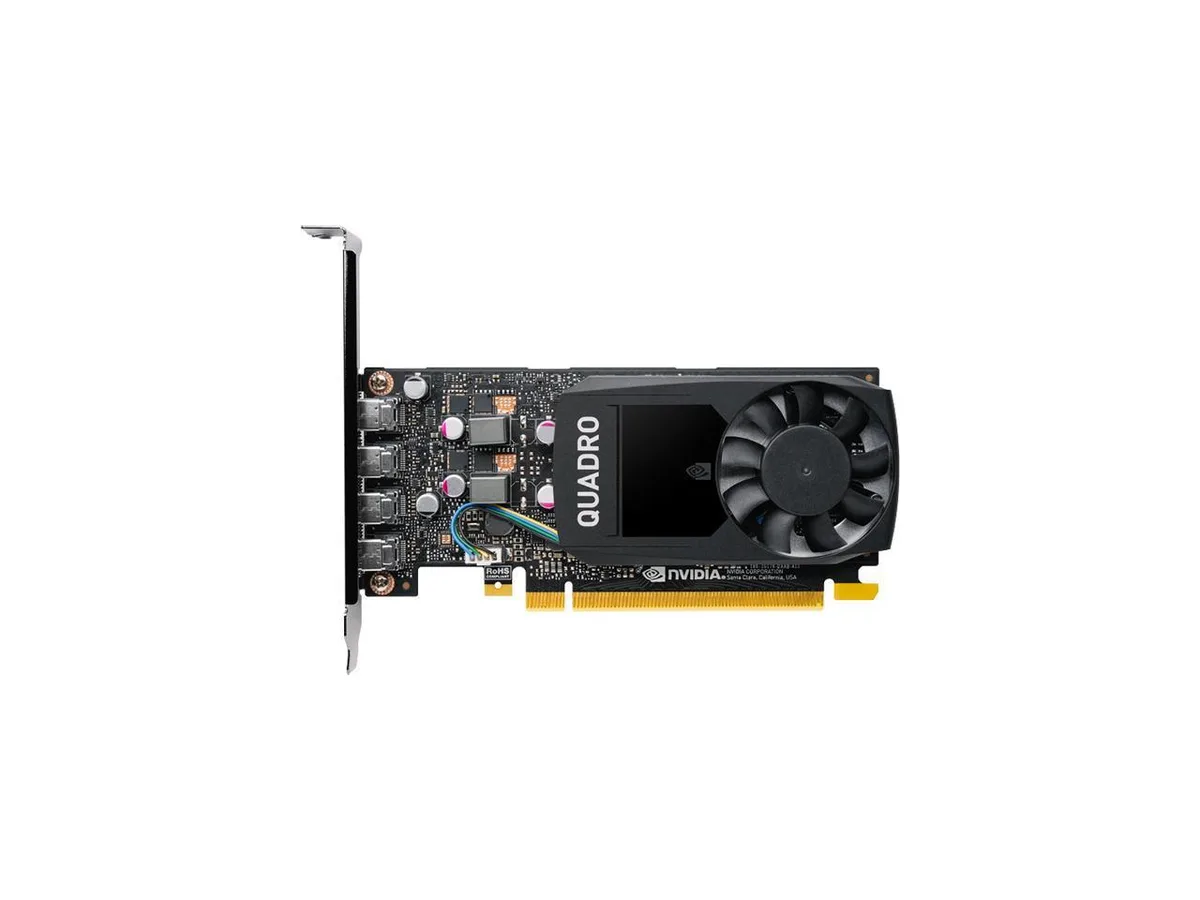

Low-profile workstation graphics card with single-slot cooler and four Mini DisplayPort outputs

PNY Technologies, Inc.

PNY Technologies, Inc. Quadro P1000 VCQP1000V2-PB 4 GB GDDR5 workstation graphics card

SKU CH-86K9-YNFJX

Workstation GPU with 640 CUDA cores and 4 GB GDDR5 driving up to four 5120 x 2880 displays

  • InterfacePCI Express 3.0 x16
  • Chipset ManufacturerNVIDIA
  • GPUQuadro P1000
  • CUDA Cores640
  • Memory Size4GB
  • Memory Interface128-bit
  • 640 CUDA cores accelerate professional compute workloads
  • 4 GB GDDR5 memory handles large models and textures
  • Four Mini DisplayPort 1.4 outputs drive up to four 5K displays
  • Pascal architecture delivers 47 W maximum power efficiency
  • Certified drivers support Windows 10, 8.1, 7 and Server editions

Professional graphics for multi-display workstations

The PNY Quadro P1000 is a new workstation graphics card built on NVIDIA Pascal architecture with 640 CUDA cores. It targets CAD, DCC and visualisation professionals who need certified driver stability and four simultaneous Mini DisplayPort 1.4 outputs at up to 5120 x 2880 resolution.

4 GB GDDR5 on a 128-bit bus

The frame buffer size and memory interface width are the decisive specification for model fidelity and texture throughput. Four gigabytes of GDDR5 memory connected through a 128-bit interface determine whether large assemblies and high-resolution assets fit in local memory without paging to system RAM.

47 W maximum power with a single-slot cooler

The board draws up to 47 W under full load and uses a single-slot cooling assembly that exhausts heat toward the rear bracket. This thermal profile keeps acoustic output low in typical office workstations and allows deployment in compact chassis where dual-slot cards cannot fit.

Highlights

  • 640 CUDA cores accelerate professional compute workloads
  • 4 GB GDDR5 memory handles large models and textures
  • Four Mini DisplayPort 1.4 outputs drive up to four 5K displays
  • Pascal architecture delivers 47 W maximum power efficiency
  • Certified drivers support Windows 10, 8.1, 7 and Server editions

Specifications

BrandPNY
ModelVCQP1000V2-PB
InterfacePCI Express 3.0 x16
Chipset ManufacturerNVIDIA
GPUQuadro P1000
CUDA Cores640
Memory Size4GB
Memory Interface128-bit
Memory TypeGDDR5
DirectXDirectX 12
OpenGLOpenGL 4.5
DisplayPort4 x Mini DisplayPort 1.4
Digital Resolution5120 x 2880 x24 bpp at 60hz (7680 x 4320 x24 bpp at 60hz)
Max Displays Per Board4
CoolerSingle
Virtual Reality ReadyYes
HDCP Ready2.2
Operating Systems SupportedMicrosoft Windows 10 (64- and 32-bit) Microsoft Windows 8.1 and 8 (64- and 32-bit) Microsoft Windows 7 (64- and 32-bit) Microsoft Windows Server 2008 (64- and 32-bit) Microsoft Windows Server 2012 Microsoft Windows Server 2012 R2 64 Microsoft Windows Server 2016 Linux - Full OpenGL implementation, complete with NVIDIA and ARB extensions (64- and 32-bit)
System RequirementsMax Power Consumption: 47W MINIMUM SYSTEM HARDWARE REQUIREMENTS: Intel Core i5, i7, Xeon or later AMD Phenom or Opteron-class or later PCIe x16 Gen 3 (preferred) expansion slot 2GB or more of system memory, 8GB recommended 200MB of available disk space for full driver installation Blu-ray or DVD-ROM drive Internet connection (if preferred for driver installation) DisplayPort (preferred) displays DVI display(s) with purchase of optional mDP to DVI-D SL adapter(s) HDMI display(s) with purchase of optional mDP to HDMI adapter(s) VGA display(s) with purchase of optional mDP to VGA adapte
FeaturesGPU PERFORMANCE FEATURES: - Pascal GPU Technology - Frame Buffer and Memory Bandwidth - Pascal Dynamic Load Balancing - H.264 and HEVC Encode/Decode Engines - NVIDIA GPU Boost 3.0 IMAGE QUALITY FEATURES: - Full-Scene Antialiasing (FSAA) - 16K Texture and Render Processing - Pascal Memory Compression DISPLAY FEATURES: - NVIDIA Quadro MOSAIC Technology - DisplayPort 1.4 - HDR Ready - NVIDIA Quadro View - NVIDIA Quadro Experience - OpenGL Quad Buffered Stereo Support SOFTWARE SUPPORT: - NVIDIA CUDA Parallel Computing Platform - NVIDIA Enterprise-Management Tools - NVIDIA Multi-GPU Techn
Form FactorLow Profile
Dimensions (L x H)5.91" x 2.71"
Low Profile Bracket IncludedYes
Slot WidthSingle Slot
Package ContentsNVIDIA Quadro P1000 professional graphics boards with attached full-height (ATX) bracket Unattached low-profile (SFF) bracket Four mDP to DP adapters Printed Quick Start Guide Printed Support Guide

Questions about this item

How does the 640 CUDA core count affect viewport performance in professional apps?

The 640 CUDA cores accelerate viewport rendering and compute tasks in CAD and DCC applications using the Pascal architecture.

What bandwidth limit does the PCI Express 3.0 x16 interface impose on this 128-bit GDDR5 card?

The PCIe 3.0 x16 link provides up to 16 GB/s per direction, well above the card's 47 W power envelope and memory throughput.

Will the single-slot cooler fit in a compact workstation with only one expansion slot free?

Yes, the single-slot design occupies one PCIe slot and uses a low-profile bracket for space-constrained chassis.
