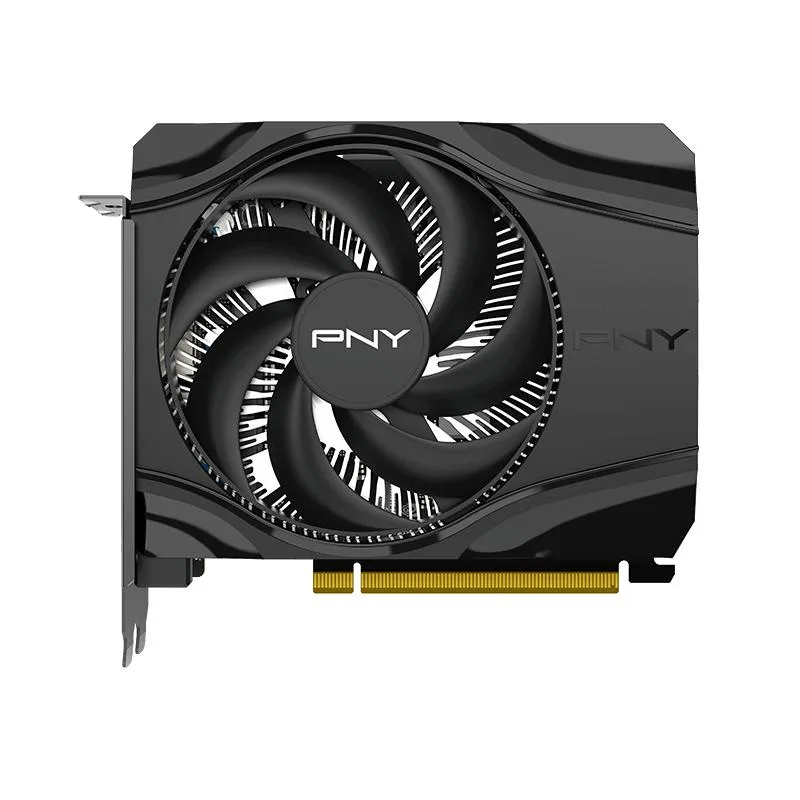

Black single-fan graphics card with silver shroud and two-slot metal bracket

PNY Technologies, Inc.

PNY Technologies, Inc. RTX 5060 Single Fan 8GB GDDR7 graphics card

SKU CH-QEY2-S3H43

Single-fan GeForce RTX 5060 with 8 GB GDDR7 memory, 3840 CUDA cores and PCIe 5.0 x8 interface

  • InterfacePCI Express 5.0 x8
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 50 Series
  • GPUGeForce RTX 5060
  • ArchitectureBlackwell
  • Core Clock2280 MHz
  • Blackwell architecture powers modern games and AI workloads
  • 8GB GDDR7 memory at 28 Gbps feeds high-resolution textures
  • 3840 CUDA cores accelerate rendering and compute tasks
  • Four display outputs — 3× DisplayPort 2.1b, 1× HDMI 2.1b — drive multi-monitor setups
  • Compact 280×210×40 mm dual-slot card fits small builds

Single-fan RTX 5060 for compact builds

The PNY RTX 5060 Single Fan fits a dual-slot footprint and draws 145 W from one 8-pin connector, making it practical for smaller chassis and modest power supplies. Its Blackwell GPU runs at 2280 MHz base and 2497 MHz boost with 3840 CUDA cores.

PCI Express 5.0 x8 interface limits

The card uses a PCIe 5.0 x8 link, so maximum throughput depends on the host platform supporting that width and speed. On older motherboards the connection will fall back to lower generations or narrower widths, reducing available bandwidth.

8 GB GDDR7 on a 128-bit bus

The 8 GB frame buffer at 28 Gbps handles 1440p gaming and entry-level creative workloads, while the 128-bit interface caps memory bandwidth for very high-resolution textures or large batch rendering. Four display outputs (HDMI 2.1b and three DisplayPort 2.1b) drive multi-monitor setups.

Highlights

  • Blackwell architecture powers modern games and AI workloads
  • 8GB GDDR7 memory at 28 Gbps feeds high-resolution textures
  • 3840 CUDA cores accelerate rendering and compute tasks
  • Four display outputs — 3× DisplayPort 2.1b, 1× HDMI 2.1b — drive multi-monitor setups
  • Compact 280×210×40 mm dual-slot card fits small builds

Specifications

BrandPNY
SeriesSingle Fan
ModelRTX 5060 Single Fan
Part NumberVGC50608TFXXPB1-O
InterfacePCI Express 5.0 x8
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 50 Series
GPUGeForce RTX 5060
ArchitectureBlackwell
Core Clock2280 MHz
Boost Clock2497 MHz
CUDA Cores3840 Cores
Effective Memory Clock28 Gbps
Memory Size8GB
Memory Interface128-Bit
Memory TypeGDDR7
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1b
ColorBlack
CoolerSOLO
Thermal Design Power145W
Recommended PSU Wattage550W
Power Connector8-Pin
HDCP ReadyYes
Card Dimensions (L x H)280 x 210 x 40mm;2 Slot
11.0" x 4.7" x 1.6";2 Slot

Questions about this item

Will this card fit in a case with 280 mm of GPU clearance?

The card measures 280 mm long, 210 mm high and 40 mm thick, so it needs at least that much space inside the case.

What power supply do I need for the 145 W board power?

The manufacturer recommends a 550 W PSU with one 8-pin PCIe power connector.

Can I run four monitors from the display outputs?

Yes, the card has 1 x HDMI 2.1b and 3 x DisplayPort 2.1b and supports up to four displays.
