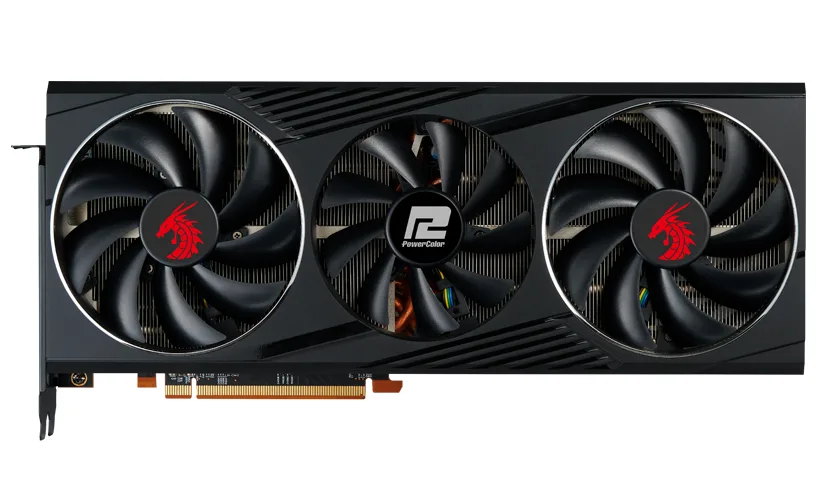

Triple-fan graphics card in dark metal finish with red accents

PowerColor

PowerColor 68XT 16GBD6-3DHR/OC Radeon RX 6800 XT graphics card

SKU CH-R4K0-C6WJD MPN 68XT 16GBD6-3DHR/OC

Radeon RX 6800 XT GPU with 16GB GDDR6 memory, 4608 stream processors and boost clocks up to 2310 MHz for 4K gaming and VR workloads

  • InterfacePCI Express 4.0
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 6000 Series
  • GPURadeon RX 6800 XT
  • Game ClockOC: up to 2065 MHz STD/Silent: up to 2015 MHz
  • Boost ClockOC: up to 2310 MHz STD/Silent: up to 2250 MHz
  • 16 GB GDDR6 memory and 256-bit bus for high-resolution textures
  • Boost clock up to 2310 MHz in OC mode for faster frame rates
  • PCI Express 4.0 interface doubles bandwidth over 3.0
  • Triple-fan cooler with mute fan technology for quiet thermal control
  • HDMI 2.1 and three DisplayPort 1.4 outputs drive 8K displays

PowerColor Red Dragon Radeon RX 6800 XT

This graphics card uses the AMD RDNA 2 architecture with 4608 stream processors and 16GB of GDDR6 memory on a 256-bit interface. It targets enthusiasts who want high frame rates at 1440p or entry-level 4K gaming. The factory overclock pushes the boost clock up to 2310 MHz in OC mode.

PCI Express 4.0 interface limits

The card connects through a PCI Express 4.0 x16 slot, which provides the full bandwidth needed for the 16.0 Gbps memory speed. On a PCI Express 3.0 platform the link runs at half that throughput, which can reduce performance in bandwidth-heavy titles. A motherboard with PCI Express 4.0 support is required to realise the specified speeds.

300W board power and dual 8-pin connectors

The board draws up to 300W and requires two 8-pin power connectors from the supply. The manufacturer states a minimum system power requirement of 750W and recommends a 700W unit, so the power supply must meet both the wattage and connector count before purchase.

Highlights

  • 16 GB GDDR6 memory and 256-bit bus for high-resolution textures
  • Boost clock up to 2310 MHz in OC mode for faster frame rates
  • PCI Express 4.0 interface doubles bandwidth over 3.0
  • Triple-fan cooler with mute fan technology for quiet thermal control
  • HDMI 2.1 and three DisplayPort 1.4 outputs drive 8K displays

Specifications

BrandPowerColor
SeriesRED DRAGON
ModelAXRX 6800XT 16GBD6-3DHR/OC
InterfacePCI Express 4.0
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 6000 Series
GPURadeon RX 6800 XT
Game ClockOC: up to 2065 MHz
STD/Silent: up to 2015 MHz
Boost ClockOC: up to 2310 MHz
STD/Silent: up to 2250 MHz
Stream Processors4608
Effective Memory Clock16.0 Gbps
Memory Size16GB
Memory Interface256-Bit
Memory TypeGDDR6
DirectXDirectX 12 Ultimate
HDMI1 x HDMI 2.1
DisplayPort3 x DisplayPort 1.4
Max Resolution7680 x 4320
Eyefinity SupportYes
Virtual Reality ReadyYes
CoolerTriple Fans
Thermal Design Power300W
System RequirementsMinimum System Power requirement: 750W
Recommended PSU Wattage700W
Power Connector2 x 8-Pin
FeaturesAMD FidelityFX
AMD FreeSync Technology
AMD RDNA 2 Architecture
GDDR6 Memory
HDMI 2.1 VRR
Microsoft Windows 10 Support
Mute Fan Technology
PCIe 4.0 Support
Radeon Anti-Lag
Radeon Chill
Radeon Image Sharpening
Radeon VR Ready Premium
Radeon WattMan
UEFI Support ‍👉Check gaming pc with Windows 11 Pro
Max GPU Length310 mm
Card Dimensions (L x H)12.20" x 5.31"
Shipping weight1.88 kg
Package size392 × 230 × 117 mm

Questions about this item

How do I decide between the OC and the STD/Silent BIOS profiles on this card?

The OC profile targets a boost clock up to 2310 MHz and a game clock up to 2065 MHz, while the STD/Silent profile runs at up to 2250 MHz boost and 2015 MHz game clock for quieter operation.

What does the 16.0 Gbps effective memory clock mean for 4K gaming performance?

The 16.0 Gbps GDDR6 memory on a 256-bit bus delivers high bandwidth that feeds the 4608 stream processors, helping maintain frame rates at 7680 x 4320 resolution.

Will the PCI Express 4.0 interface limit bandwidth if my motherboard only has PCIe 3.0 slots?

The card works in PCIe 3.0 slots at reduced link speed; the 16GB GDDR6 and Infinity Cache architecture help offset any bandwidth difference in most titles.
