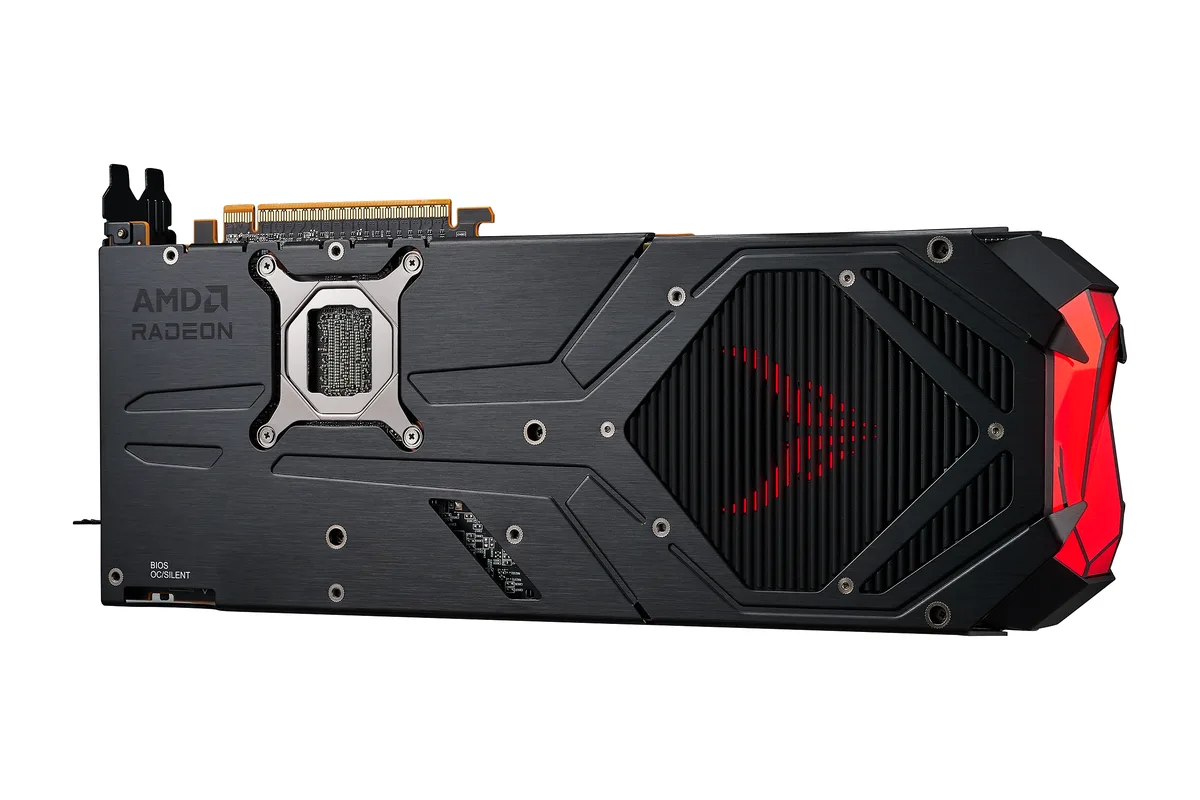

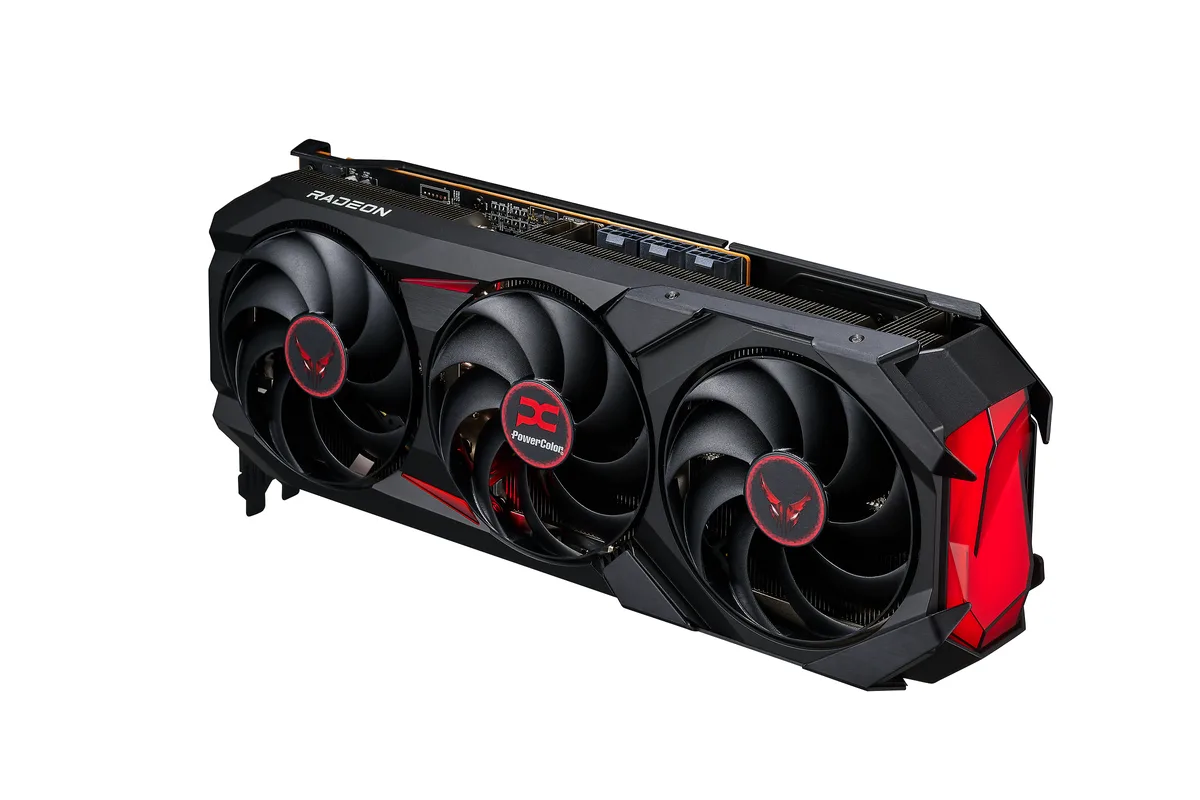

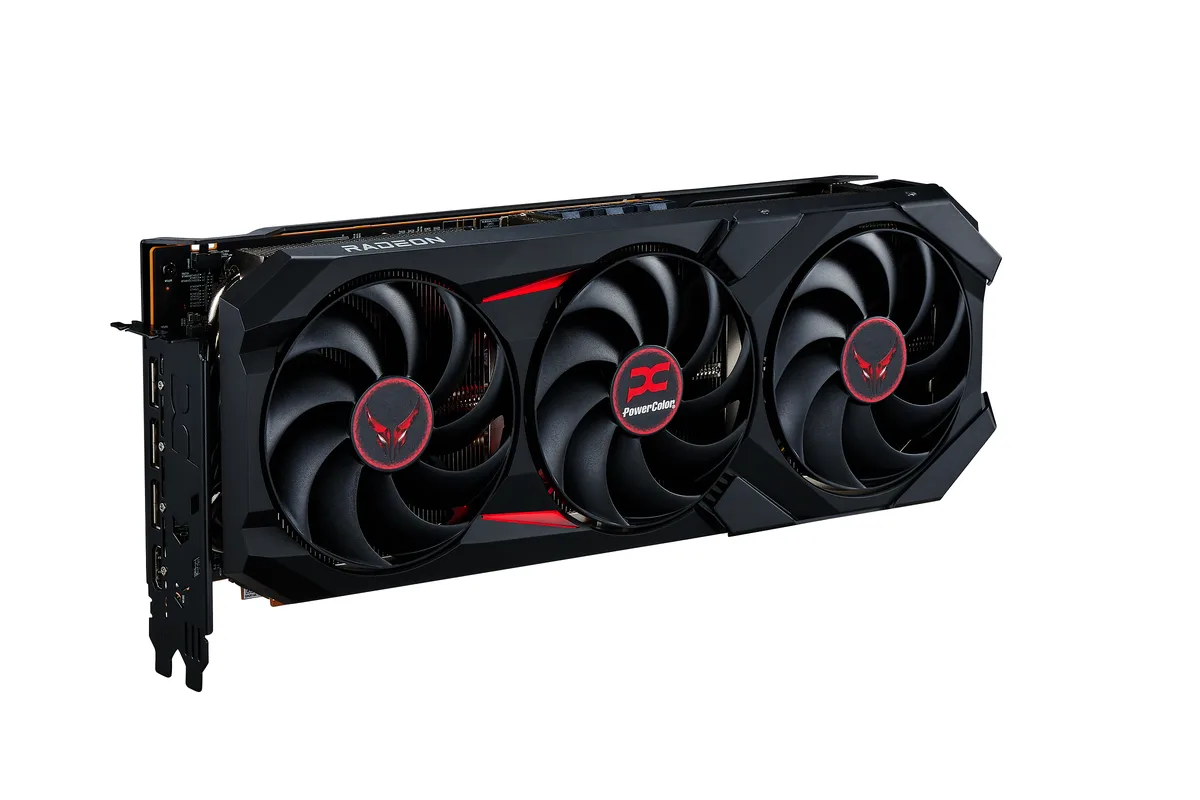

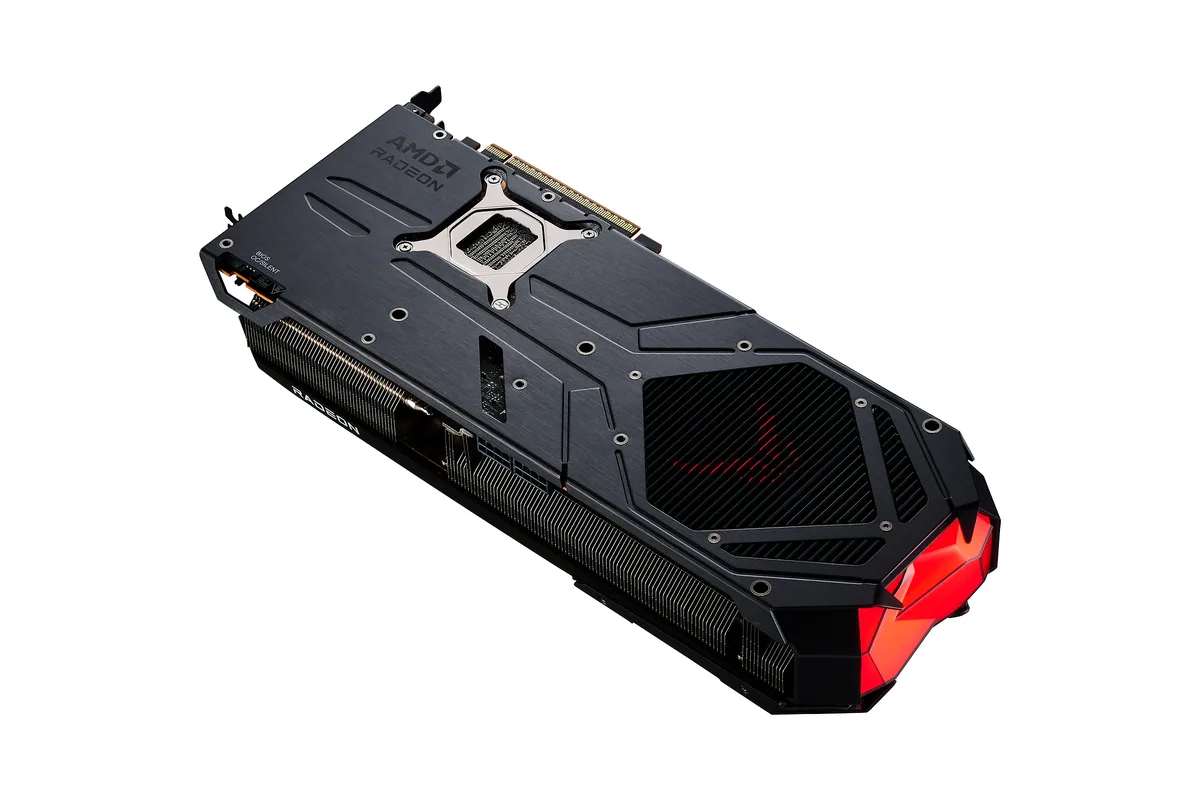

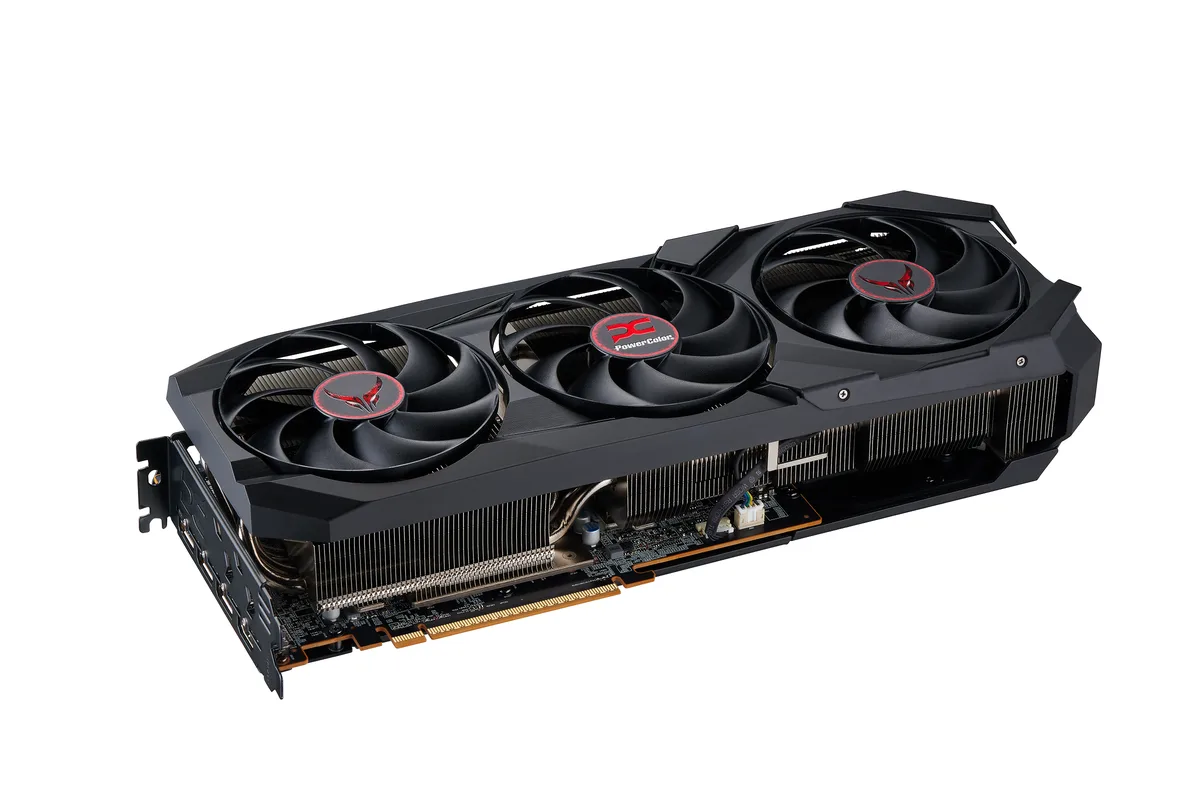

Black triple-fan graphics card with angular shroud and red accents, three-slot design, 340 mm length

PowerColor

PowerColor RED DEVIL RX9070XT 16G-E/OC 16GB graphics card

SKU CH-HQPH-NMW96 MPN RX9070XT 16G-E/OC

16 GB GDDR6 GPU with 4096 stream processors, boost up to 3060 MHz, PCIe 5.0, triple-fan cooler, 1 HDMI 2.1b and 3 DisplayPort 2.1a outputs

  • InterfacePCI Express 5.0 x16
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 9000 Series
  • GPURadeon RX 9070 XT
  • ArchitectureRDNA 4
  • Game Clockup to 2520MHz(Game)
  • 16 GB GDDR6 at 20.0 Gbps feeds high-resolution textures
  • Boost clock up to 3060 MHz drives high frame rates
  • 4096 stream processors handle complex compute workloads
  • PCI Express 5.0 x16 doubles host bandwidth headroom
  • HDMI 2.1b plus three DisplayPort 2.1a outputs support four 8K displays

RED DEVIL RX 9070 XT 16GB overview

The PowerColor RED DEVIL RX 9070 XT 16G-E/OC is a graphics card built on AMD RDNA 4 architecture. It delivers 16GB of GDDR6 memory on a 256-bit bus with a 20.0 Gbps effective clock. The GPU provides 4096 stream processors and a boost clock up to 3060 MHz. It connects via PCI Express 5.0 x16 and suits enthusiasts targeting high-refresh 4K gaming or compute workloads.

Ideal users and alternatives

This card fits builders who want a 304W TDP GPU with triple-fan cooling and 3-slot width for 4K gaming on up to four displays via one HDMI 2.1b and three DisplayPort 2.1a outputs. A 900W power supply and three 8-pin connectors are required. Users with cases under 340 mm clearance, smaller PSUs, or only two 8-pin cables should consider a lower-power model.

Installation notes and common issues

The board measures 340 mm long and 132 mm tall without the bracket, expanding to 352 mm by 149 mm with it, so verify case length and CPU-cooler clearance before mounting. Secure all three 8-pin power connectors firmly to avoid instability under load. Update the motherboard BIOS for full PCI Express 5.0 support and install the latest AMD drivers for RDNA 4 feature enablement.

Highlights

  • 16 GB GDDR6 at 20.0 Gbps feeds high-resolution textures
  • Boost clock up to 3060 MHz drives high frame rates
  • 4096 stream processors handle complex compute workloads
  • PCI Express 5.0 x16 doubles host bandwidth headroom
  • HDMI 2.1b plus three DisplayPort 2.1a outputs support four 8K displays

Specifications

BrandPowerColor
SeriesRED DEVIL
ModelRX9070XT 16G-E/OC
InterfacePCI Express 5.0 x16
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 9000 Series
GPURadeon RX 9070 XT
ArchitectureRDNA 4
Game Clockup to 2520MHz(Game)
Boost Clockup to 3060MHz(Boost)
Stream Processors4096
Effective Memory Clock20.0 Gbps
Memory Size16GB
Memory Interface256-Bit
Memory TypeGDDR6
DirectXDirectX 12
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1a
ColorBlack
Max Resolution7680 x 4320
CoolerTriple Fans
Thermal Design Power304W
Recommended PSU Wattage900W
Power Connector3 x 8-Pin
Max GPU Length340 mm
Low Profile Bracket Included340m*132mm*69mm
352mm*149mm*69mm(with bracket)
Slot Width3 Slots
Shipping weight2.09 kg
Package size413 × 210 × 102 mm

Questions about this item

What power supply capacity and connectors are required for the 304W TDP and three 8-pin inputs?

A 900W PSU with three 8-pin PCIe power cables is recommended to deliver the 304W thermal design power.

Will the PCI Express 5.0 x16 card run at full speed in a motherboard that only has PCI Express 4.0 slots?

Yes, the card is backward compatible and will operate at PCIe 4.0 speeds in a 4.0 slot without loss of function.

How can I verify the boost clock is reaching the rated 3060MHz after installation?

Run a GPU monitoring tool such as AMD Software or GPU-Z while gaming and confirm the reported boost frequency hits 3060MHz.
