Qnap
Qnap TS-464-8G-US 4-Bay Desktop NAS 8GB
Four-bay desktop NAS with an Intel Celeron N5095 quad-core processor, 8 GB memory, dual 2.5GbE ports, M.2 PCIe Gen3 slots and a PCIe Gen3 expansion slot for caching or networking cards
- TypeDesktop NAS
- Port USB2 x Type-A
- PCIeSlot 1: PCIe Gen
- HDD Interface4 x SATA (4 x Bay)
- Form Factor4-Bay
- ProcessorIntel Celeron
- Intel Celeron N5095 quad-core processor powers responsive multitasking and virtualization
- Two 2.5GbE ports with port trunking deliver up to 5 Gbps combined bandwidth
- Dual M.2 PCIe Gen3 slots add NVMe SSD caching or Edge TPU for AI image recognition
- PCIe Gen3 x2 expansion slot enables 10GbE cards or QM2 M.2 adapters
- 8 GB installed memory runs light VMs and containers while supporting 4K HDMI output and real-time transcoding

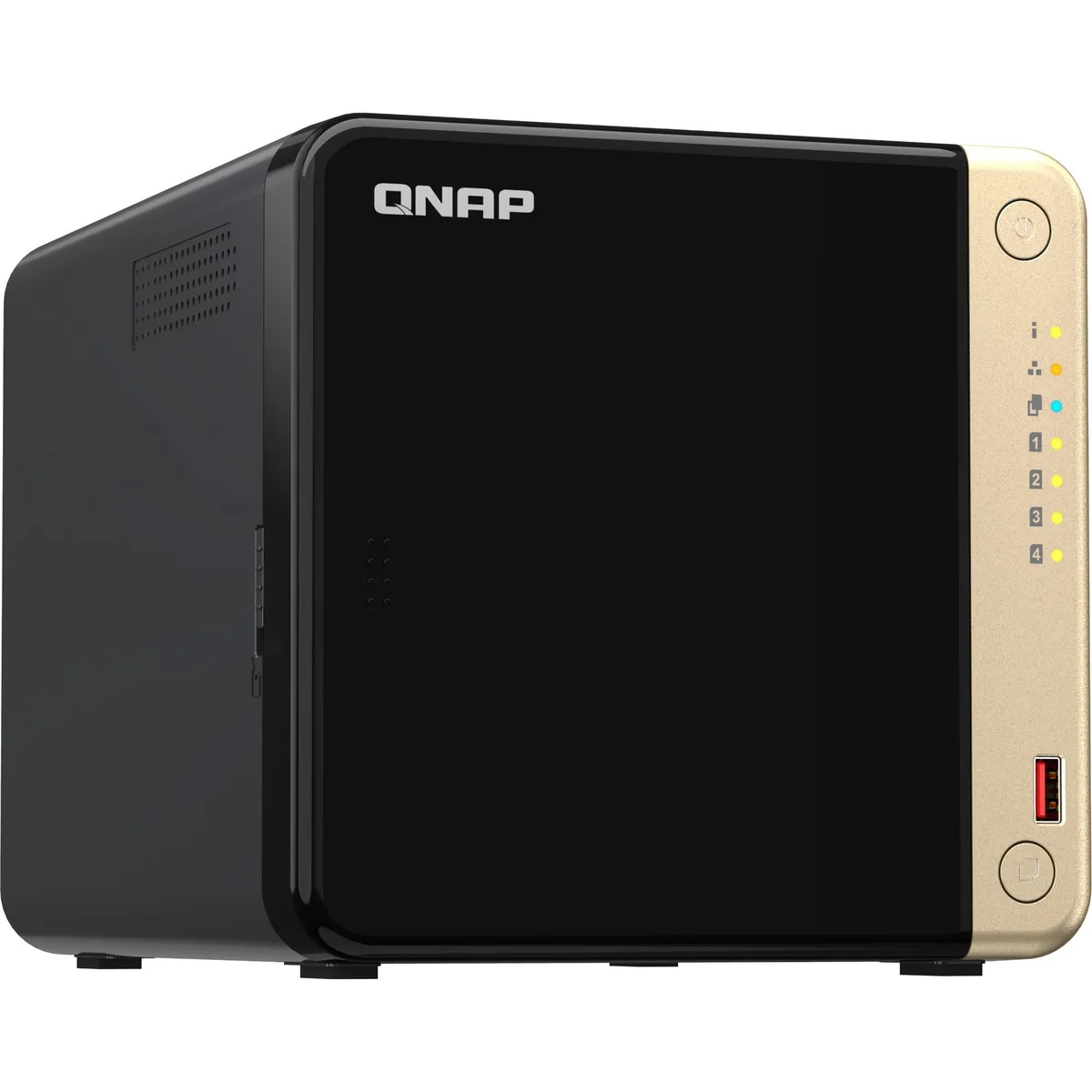

Four-bay desktop NAS
The Qnap TS-464-8G-US is a diskless four-bay desktop NAS powered by an Intel Celeron N5095 quad-core processor with 8GB of installed memory. It targets home users and small offices that want a personal cloud for backup and media streaming without pre-installed drives.
Two 2.5GbE ports and PCIe expandability

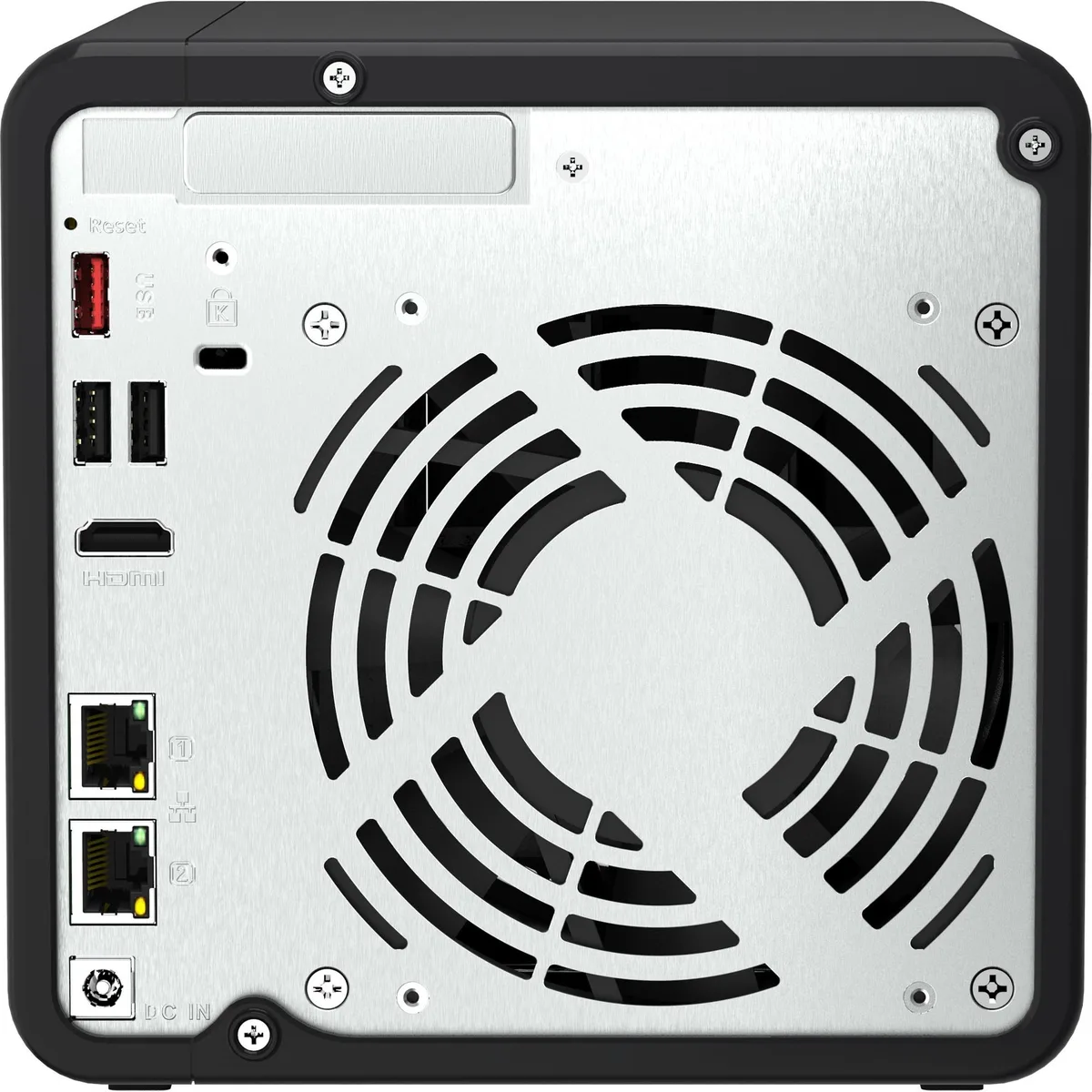

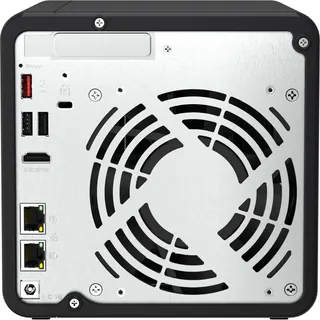

Dual 2.5GbE RJ45 ports support port trunking for up to 5Gbps combined bandwidth. A PCIe Gen 3 slot and two M.2 PCIe Gen 3 slots accept caching cards, 10GbE adapters, or Edge TPU accelerators, freeing the four SATA bays for pure capacity drives.
88TB maximum raw capacity
Four 3.5-inch SATA hard drives or 2.5-inch SATA SSDs scale to 88TB of raw storage. The 90W adapter draws 21.618W in sleep and 40.536W under typical load. Operating range is 0 to 40°C. Builders needing more than four drive bays or 10GbE built-in should look elsewhere.
Highlights
- Intel Celeron N5095 quad-core processor powers responsive multitasking and virtualization
- Two 2.5GbE ports with port trunking deliver up to 5 Gbps combined bandwidth
- Dual M.2 PCIe Gen3 slots add NVMe SSD caching or Edge TPU for AI image recognition
- PCIe Gen3 x2 expansion slot enables 10GbE cards or QM2 M.2 adapters
- 8 GB installed memory runs light VMs and containers while supporting 4K HDMI output and real-time transcoding
Specifications
| Brand | QNAP |
|---|---|
| Series | TS-464 |
| Model | TS-464-8G-US |
| Type | Desktop NAS |
| Port USB | 2 x Type-A |
| PCIe | Slot 1: PCIe Gen |
| HDD Interface | 4 x SATA (4 x Bay) |
| Form Factor | 4-Bay |
| Processor | Intel Celeron |
| Installed Memory | 8GB |
| Included HDD Capacity | Diskless System |
| Max Capacity | 88TB |
| Drive Compatibility | 3.5" SATA HDD 2.5" SATA SSD |
| Power | 90W adapter, 100-240V |
| Power Consumption | HDD Sleep Mode: 21.618 W Operating Mode, Typical: 40.536 W Tested with drives fully populated. |
| Temperature | Operating Temperature 0 - 40 °C (32°F - 104°F) Storage Temperature -20 - 70°C (-4°F - 158°F) |
| Humidity | 5-95% RH non-condensing, wet bulb: 27°C (80.6°F) |
| Usage | Backup & stream media through personal cloud |
| Dimensions | 6.61 × 6.69 × 8.9 inch |
| Weight | 4.98 lbs |
| Shipping weight | 3.49 kg |
| Package size | 318 × 305 × 250 mm |
Questions about this item
Will the Intel Celeron N5095 processor throttle during heavy transcoding tasks?
The processor bursts to 2.9 GHz and the unit is rated for continuous operation up to 40 °C, so sustained loads stay within thermal limits.
How much heat and noise should I expect with four drives running 24/7?
Typical power draw is 40.5 W with drives active and drops to 21.6 W in sleep mode, keeping heat output modest for a desktop tower.
Which drives do I need to buy before this NAS can store any data?
It ships diskless and accepts four 3.5" SATA HDDs or 2.5" SATA SSDs up to 88 TB total capacity.
