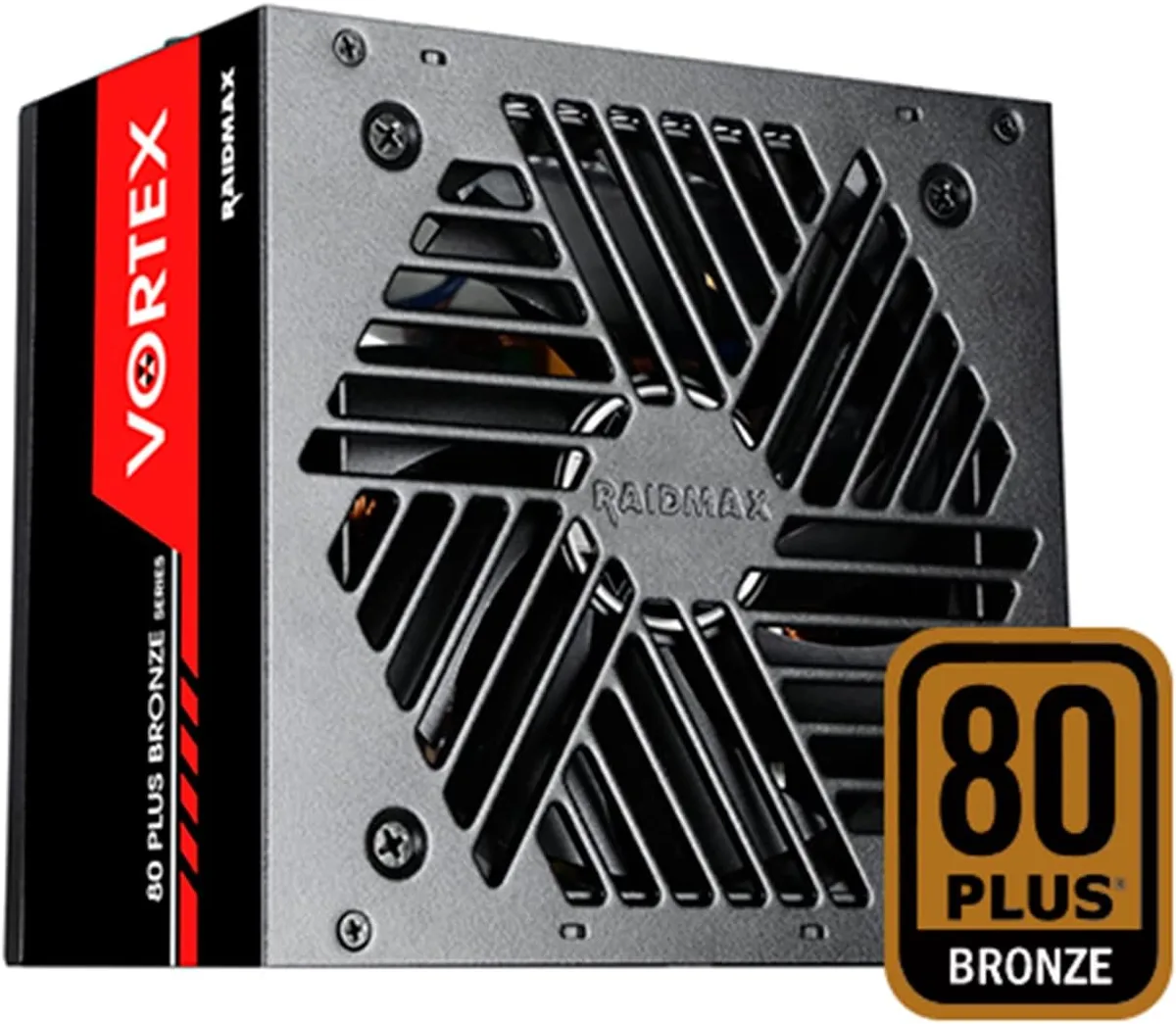

Black rectangular ATX power supply unit with fixed cables and a 120 mm fan

Raidmax

Raidmax RX-700AC-V 700W ATX/EPS 80 Plus Bronze power supply

SKU CH-J2G5-0T4CF MPN RX-700AC-V

A 700 W ATX/EPS unit with 80 Plus Bronze efficiency, a single +12 V rail, one PCIe 6+2-pin connector and five SATA power connectors

  • TypeATX12V / EPS12V
  • Maximum Power700 W
  • Fans1
  • Fan LEDNo
  • Main Connector20+4Pin
  • +12V RailsSingle
  • 700 W output powers demanding gaming and multimedia builds
  • 80 Plus Bronze certification delivers efficient energy use
  • Single +12 V rail provides stable power under heavy loads
  • 120 mm thermal-controlled fan keeps noise low while cooling
  • Flat soft cables simplify routing and improve case airflow

700W ATX/EPS Bronze power supply

The Raidmax Vortex RX-700AC-V is a 700W ATX12V/EPS12V unit with 80 Plus Bronze efficiency. A single +12V rail delivers the full rated output. It uses a non-modular cable layout with a 120 mm thermally controlled fan.

Suits single-GPU builds needing 700W on a budget

This unit fits systems that require one PCIe 6+2-pin connector and up to five SATA drives. Builds needing multiple graphics cards or modular cabling should look elsewhere.

Check case clearance and connector count before

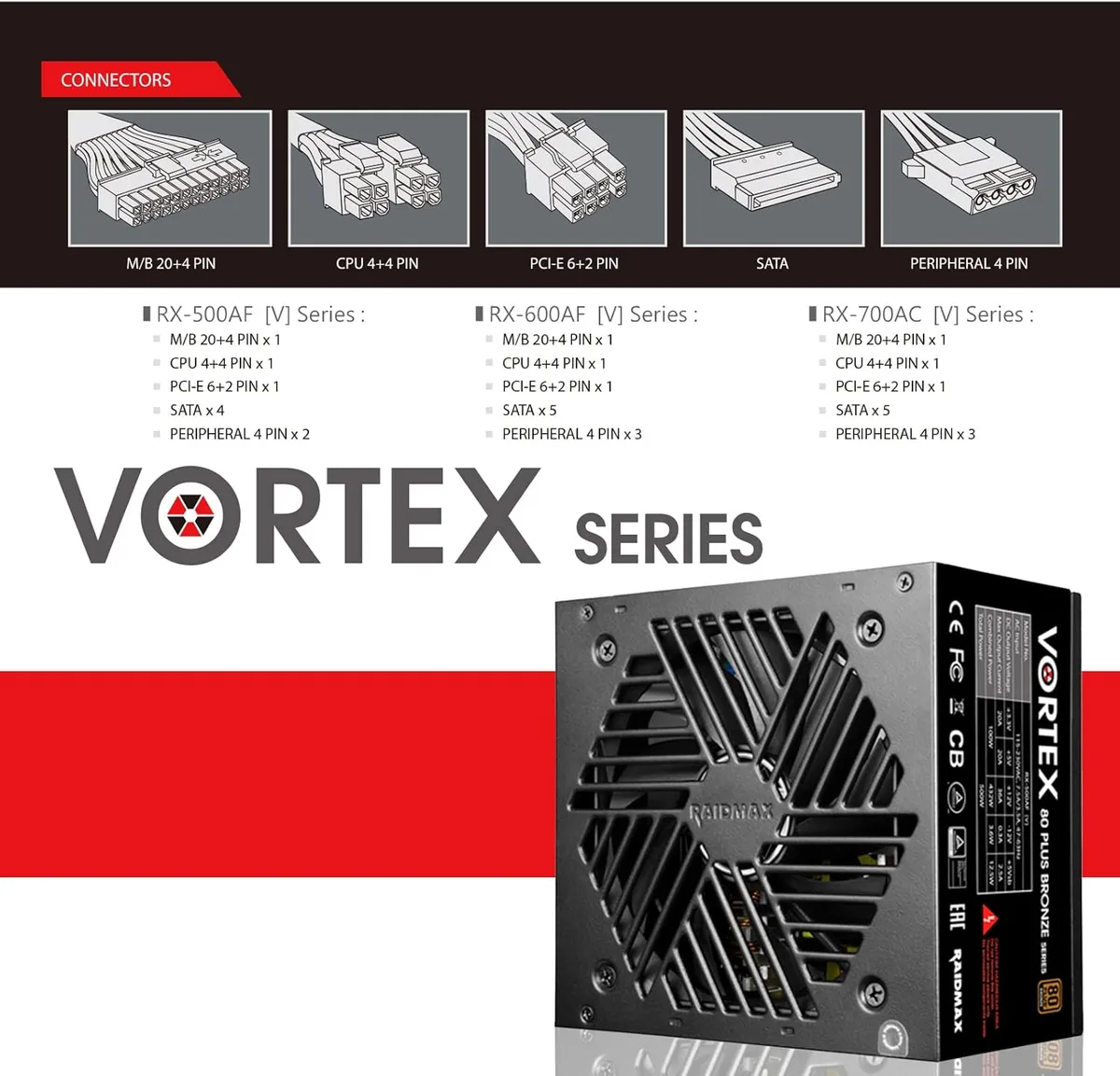

The power supply measures 150 mm in length, so verify the chassis can accommodate it. Confirm the motherboard accepts the 20+4-pin main and 4+4-pin CPU connectors, and that the single PCIe 6+2-pin lead meets the graphics card requirement.

Highlights

  • 700 W output powers demanding gaming and multimedia builds
  • 80 Plus Bronze certification delivers efficient energy use
  • Single +12 V rail provides stable power under heavy loads
  • 120 mm thermal-controlled fan keeps noise low while cooling
  • Flat soft cables simplify routing and improve case airflow

Specifications

BrandRaidmax
SeriesVortex
ModelRX-700AC-V
TypeATX12V / EPS12V
Maximum Power700 W
Fans1
Fan LEDNo
Main Connector20+4Pin
+12V RailsSingle
PCI-Express Connector1 x 6+2-Pin
SATA Power Connector5
SLINo
Haswell SupportYes
CrossFireNo
Max PSU Length150 mm
ModularNon-Modular
Energy-Efficient80 PLUS BRONZE Certified
Over Voltage ProtectionYes
Overload ProtectionYes

Questions about this item

Does my motherboard need a 20+4-pin ATX and a 4+4-pin CPU connector for this unit?

Yes, the PSU provides one 20+4-pin main connector and one 4+4-pin EPS connector, matching the standard ATX12V 2.3 and EPS12V pin-outs required by current boards.

Can the single 6+2-pin PCIe connector run an older graphics card that only needs a 6-pin plug?

The 6+2-pin plug splits into a 6-pin portion, so it fits both 6-pin and 8-pin sockets on legacy GPUs without an adapter.

How do I confirm the 120 mm fan is regulating temperature correctly after installation?

The fan spins at low speed under light load and ramps up as internal temperature rises; you should hear a gradual increase in airflow during heavy use.
