13.3 inch matte black LCD panel with touch layer, slim 3.2mm profile

RAYPODO

RAYPODO 13.3" FHD Touch Laptop Screen NV133FHM-T03 02DA370

SKU CH-2T3B-2Y1KP

A 13.3-inch FHD laptop replacement screen with on-cell touch, antiglare coating and 300 cd/m² brightness

  • Compatible ManufacturerLenovo
  • Bezel ColorBlack
  • Screen Size13.3"
  • Screen Resolution1920(RGB)×1080, FHD (166PPI)
  • Screen Typea-Si TFT-LCD, LCM, ADS display mode, normally black, transmi
  • TouchScreenYes (On-Cell Touch, USB interface)

model BOE NV133FHM-T03

  • Clear 13.3" FHD visuals with 300 cd/m² brightness and 800:1 contrast
  • Smooth on-cell touch response via USB interface for direct interaction
  • Long-life 11S4P WLED backlight rated 15K hours with integrated driver
  • Slim 3.2 mm profile with antiglare 3H coating reduces glare and resists scratches

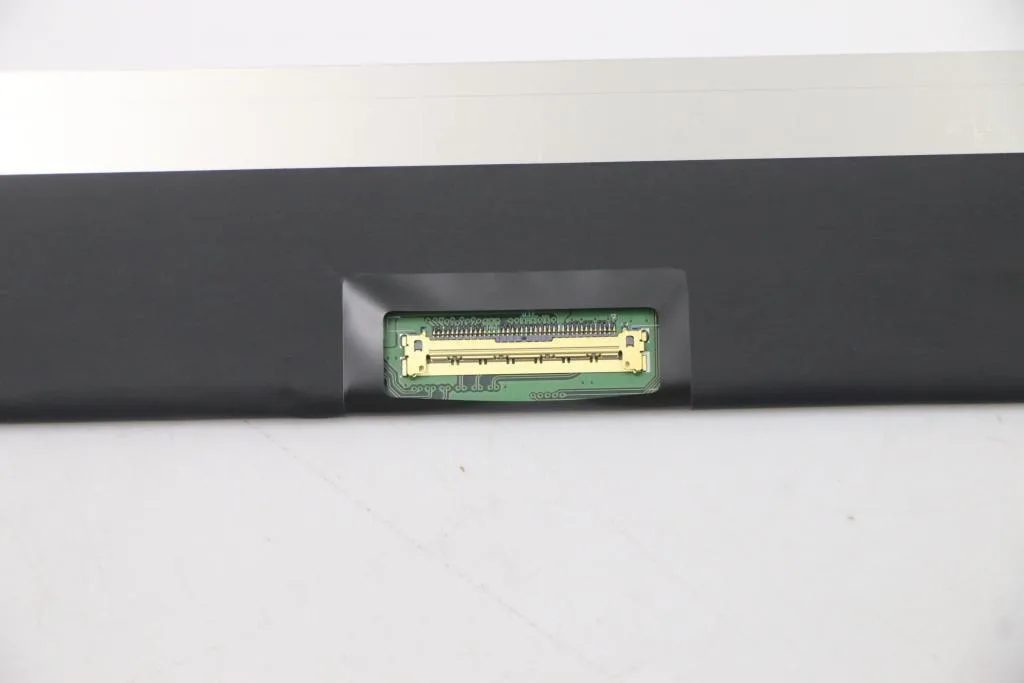

  • Reliable eDP 1.2 2-lane HBR1 signal through 40-pin connector for stable data transfer

13.3″ FHD touch replacement panel

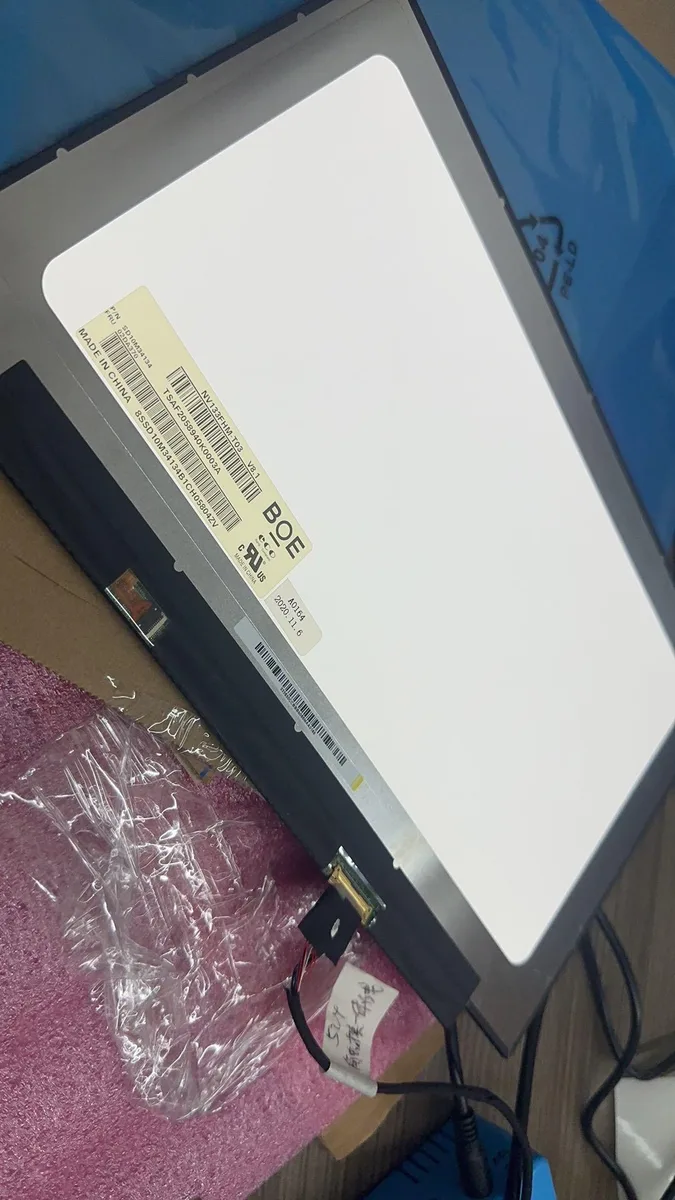

The BOE NV133FHM-T03 is a 13.3-inch Full HD LCD panel with on-cell touch designed as a direct replacement for compatible Lenovo laptops. It delivers 1920×1080 resolution at 166 PPI with 300 cd/m² brightness and an 800:1 contrast ratio for everyday office, study and home use.

Installation notes and common pitfalls

The panel uses a 40-pin eDP 1.2 connector with two HBR1 lanes running at 2.7 Gbps per lane; verify that the host laptop matches this exact pin-out and signalling before fitting. The 3.2 mm slim profile and antiglare 3H hard coating require careful handling to avoid pressure marks on the active area of 293.76×165.24 mm.

Practical limits of the eDP 1.2 interface

The two-lane HBR1 link caps video bandwidth, so the panel operates at its native 1920×1080 resolution without support for higher refresh rates or deeper colour depths beyond the specified 30 ms response time. Touch data travels over a separate USB channel, so the laptop must provide a working USB touch-controller path for the on-cell sensor to function.

Highlights

  • Clear 13.3" FHD visuals with 300 cd/m² brightness and 800:1 contrast
  • Smooth on-cell touch response via USB interface for direct interaction
  • Long-life 11S4P WLED backlight rated 15K hours with integrated driver
  • Slim 3.2 mm profile with antiglare 3H coating reduces glare and resists scratches
  • Reliable eDP 1.2 2-lane HBR1 signal through 40-pin connector for stable data transfer

Specifications

BrandBOE
ModelNV133FHM-T03
Part NumberNV133FHM-T03
Compatible ManufacturerLenovo
Bezel ColorBlack
Screen Size13.3"
Screen Resolution1920(RGB)×1080, FHD (166PPI)
Screen Typea-Si TFT-LCD, LCM, ADS display mode, normally black, transmissive
TouchScreenYes (On-Cell Touch, USB interface)
DimensionsOutline size: 300.26mm×187.95mm×3mm; Active area: 293.76mm×165.24mm
FeaturesAntiglare hard coating (3H), 300 cd/m² brightness, 800:1 contrast ratio, 30ms response time, 11S4P WLED lamp (15K hours lifespan), eDP 1.2 interface (2 lanes, HBR1 2.7G/lane)

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How can I verify the touch function works after installing the NV133FHM-T03?

Connect the USB touch cable and confirm the on-cell touch responds to finger input across the 13.3 inch active area of 293.76mm by 165.24mm.

What comes in the box and what must I source separately for the 02DA370 panel?

The BOE NV133FHM-T03 display panel with integrated LED driver is supplied; you must provide the 40-pin eDP 1.2 cable and any mounting brackets.

Which version should I choose between the NV133FHM-T03 and 02DA370 part numbers?

Both part numbers refer to the same 13.3 inch FHD BOE panel with 1920 by 1080 resolution, 300 cd/m² brightness and on-cell touch.
