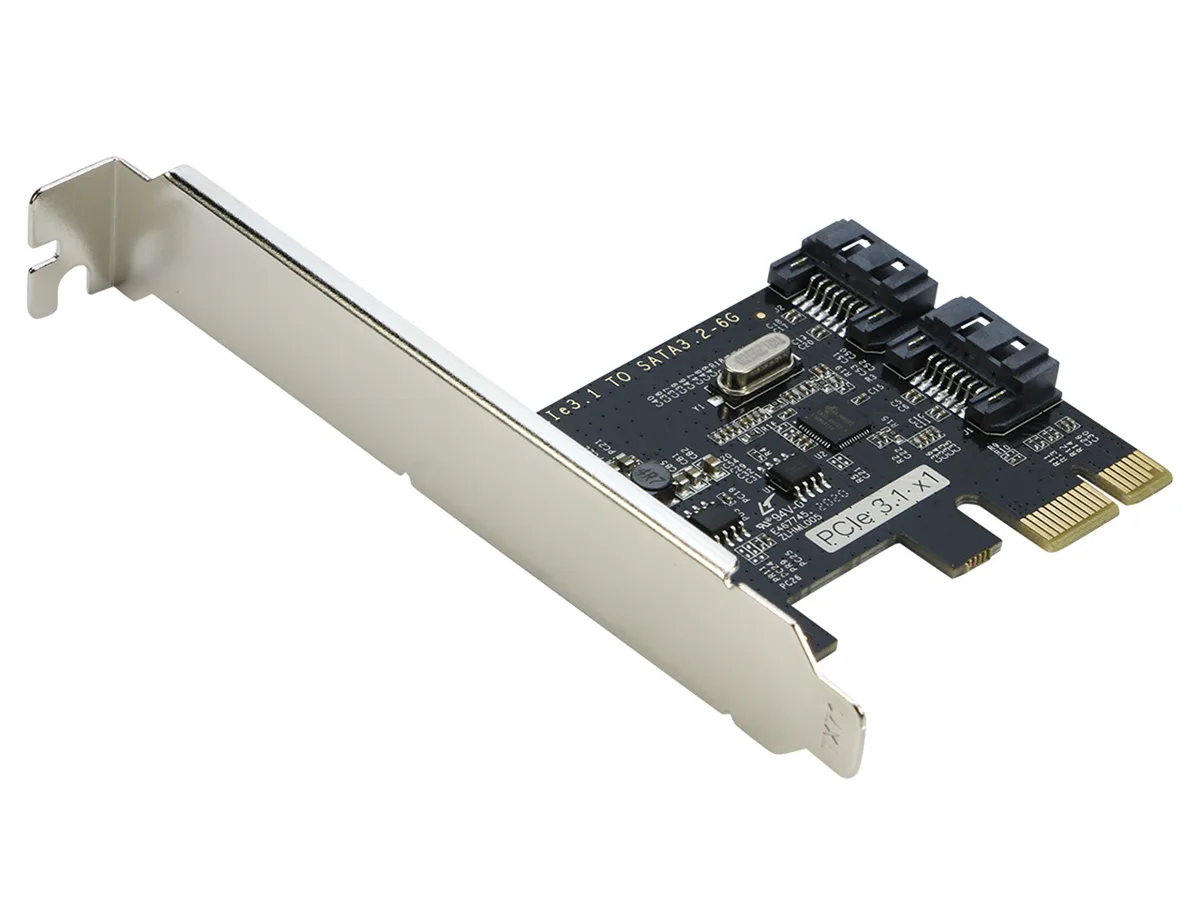

Black half-height PCIe card with two internal SATA 3.0 ports

RIITOP

RIITOP 2 Port SATA III 6.0 Gbps PCIe Controller Card

SKU CH-HQM3-8R8TW

Adds two internal SATA 6.0 Gbps ports via a PCIe x1 slot using a JMB582 chipset with AHCI and NCQ support

  • TypePCI Express Controller Card
  • External USB Ports2x SATA III
  • Internal Ports2 x SATA 3.0
  • StandardSATA3 Controller Card
  • Data Transfer Rate6.0 Gbps
  • Operating Systems SupportedFor Windows XP / Vista / 7 / 8 (32/64bit),Win 10.

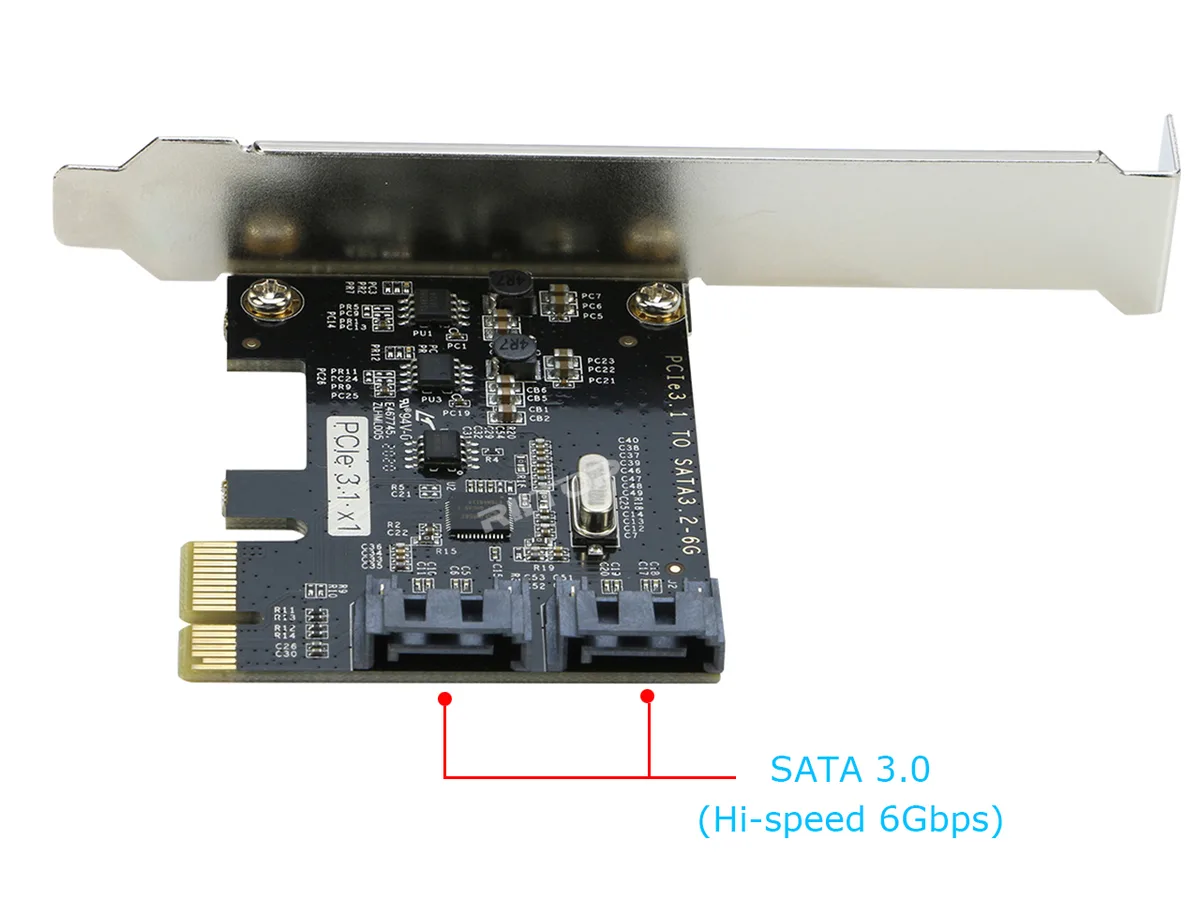

  • Add two SATA 3.0 ports at 6.0 Gbps via a single PCIe lane

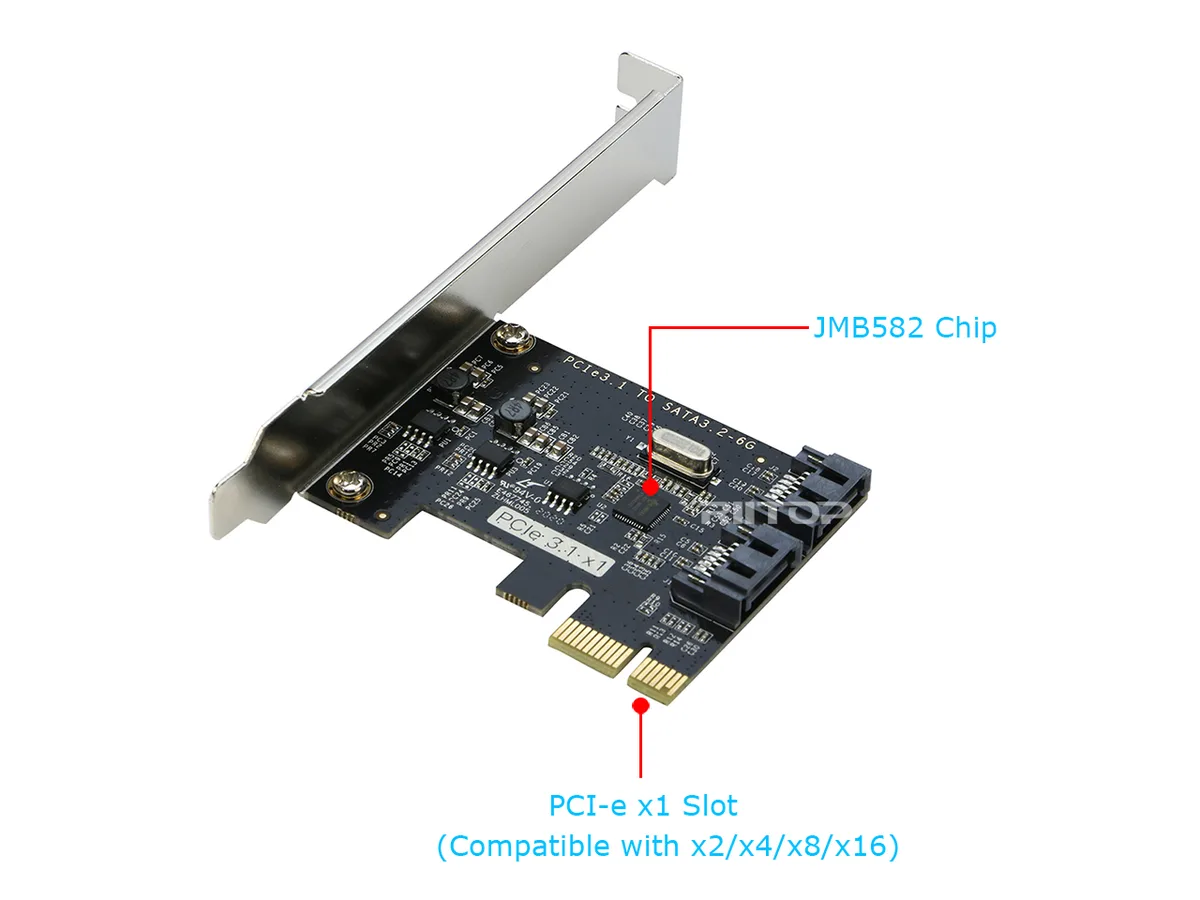

  • JMB582 chipset delivers full 6.0 Gbps bandwidth per port
  • Plug-and-play with hot-plug support for easy drive swaps
  • Fits any PCIe x1, x4, x8 or x16 slot on the motherboard
  • Works with Windows XP through 10, macOS and Linux

Two-Port SATA III Expansion

The RIITOP controller card adds two internal SATA 3.0 ports through any PCI Express x1 or larger slot. It runs at the full 6.0 Gbps link speed and uses the JMB582 chipset with AHCI and NCQ support. The card is compliant with SATA revisions 3.2, 3.1 and 3.0 and with PCIe 3.1 and 3.0 specifications. It works plug-and-play and supports hot-plugging on Windows XP through 10, Server 2003, macOS and Linux.

Desktop Upgraders and Legacy OS Users

Builders who need a simple way to connect two extra SSDs or HDDs to a spare PCIe slot will find this card fits the requirement. It is not suited for systems that need more than two SATA connections or for servers that require hardware RAID functions. Buyers relying on operating systems older than Windows XP or on platforms without PCIe slots should look elsewhere.

JMB582 Chipset with Two SATA 3.0 Ports

The single specification that decides fit is the JMB582 controller providing exactly two SATA 3.0 ports at 6.0 Gbps each. If the build calls for two drives and a free PCIe x1, x4, x8 or x16 slot, this card matches; otherwise a different adapter is needed.

Highlights

  • Add two SATA 3.0 ports at 6.0 Gbps via a single PCIe lane
  • JMB582 chipset delivers full 6.0 Gbps bandwidth per port
  • Plug-and-play with hot-plug support for easy drive swaps
  • Fits any PCIe x1, x4, x8 or x16 slot on the motherboard
  • Works with Windows XP through 10, macOS and Linux

Specifications

BrandRIITOP
Model2 Ports
TypePCI Express Controller Card
External USB Ports2x SATA III
Internal Ports2 x SATA 3.0
StandardSATA3 Controller Card
Data Transfer Rate6.0 Gbps
Operating Systems SupportedFor Windows XP / Vista / 7 / 8 (32/64bit),Win 10.
CompatibilityFor Mainboard PCI Express x1 (or above: x2/x4/x8/x16) Slot
SpecificationsInterface: 2 X SATA3.0 interface. Applicable Slots: PCI-E 1x (Compatile: 2x/4x/8x/16x). System: Support for Windows (R) XP / server2003 / VISTA / 7/8 /10 (32 / 64bit) / mac / linux. Color: Black. Weight: 35g / 0.07lb.
FeaturesCompliant with Serial SATA version 3.2/3.1/3.0. Compliant with PCI-E 3.1/3.0 specification. Full speed of 6GBPS bandwidth transmission. Plug and play, supports hot-plugging. Supports one lane of PCI Express JMB582 Chipset. Support PCIe link layer power saving mode. Supports 2 SATA port. Support command-based and FIS-based for Port Multiplier. Support AHCI mode and IDE programming interface. Support Native Command Queue (NCQ).
Dimensions4.72x2.64x0.79 inch
Weight35g / 0.07 lb.
Package Contents1x PCI-E to SATA 3.0 2 Port Card.
OptionPCI-e (X1, X4, X8, X16) to SATA3.0

Questions about this item

Will this RIITOP card run alongside my older SATA 3.0 drives without slowing them down?

Yes, the card is compliant with Serial SATA 3.2, 3.1 and 3.0, so existing SATA 3.0 drives operate at their native 6.0 Gbps rate.

How can I verify the JMB582 chipset is active after I install the card?

Check Device Manager or lspci; the controller should appear as a JMB582 SATA 6Gbps device with AHCI and NCQ support listed.

Does the package include SATA data cables or only the controller card itself?

The box contains only the PCI-E to SATA 3.0 2 Port Card; SATA data cables must be purchased separately.
