Green circuit board with six black SATA ports and gold PCIe edge connector

RIITOP

RIITOP PCETS6G-6PBK 6-port SATA expansion card

SKU CH-9Y8C-6ET09

Adds six SATA 3.0 ports at 6 Gbps via a PCIe x4 slot using an ASM1166 chipset, includes a low-profile bracket, and supports Windows, Linux and Port Multiplier switching

  • TypePCI Express to SATA Card
  • External USB PortsNo
  • Internal Ports6* SATA 3.0 Interface
  • Data Transfer Rate6Gbps
  • Operating Systems SupportedFor Windows 7, 8.x, 10, For Windows Server 2008 R2, 2012, 20
  • CompatibilityPCI-e x4/x8/x16 slot.
  • Add six SATA 6Gbps drives via one PCIe x4 slot
  • Works with SATA I and II drives at 1.5/3.0Gbps
  • ASMedia ASM1166 chipset gives native AHCI support
  • Low-profile bracket fits compact cases
  • Supports NCQ and Port Multiplier for better throughput

Six-port SATA III expansion

The RIITOP PCETS6G-6PBK adds six SATA 6 Gbps ports through a single PCI Express x4 slot. It uses the ASMedia ASM1166 chipset and supports Port Multiplier command-based switching. The card is compliant with SATA 3.0 and backward compatible with SATA I/II drives. A low-profile bracket is included for small-form-factor builds.

Thermals noise and power

The card draws power only from the PCIe slot and has no active cooling. Passive operation keeps noise at zero during normal use. Power consumption remains low because the ASM1166 controller handles six ports natively without a bridge. No external power connector is required.

Upgrade path and fit

This card replaces a motherboard with insufficient SATA ports for extra hard drives or SSDs. It is not compatible with PCIe x1 slots and cannot boot an operating system drive. The jump is worth it when you need more than the native ports provide for secondary storage arrays.

Highlights

  • Add six SATA 6Gbps drives via one PCIe x4 slot
  • Works with SATA I and II drives at 1.5/3.0Gbps
  • ASMedia ASM1166 chipset gives native AHCI support
  • Low-profile bracket fits compact cases
  • Supports NCQ and Port Multiplier for better throughput

Specifications

BrandRIITOP
ModelPCETS6G-6PBK (SATA iii Card 6 Port PCI-e Express x4 to SATA 6Gbps Expansion Controller Card Adapter, Come with Low Profile Bracket and SATA Cable)
TypePCI Express to SATA Card
External USB PortsNo
Internal Ports6* SATA 3.0 Interface
Data Transfer Rate6Gbps
Operating Systems SupportedFor Windows 7, 8.x, 10, For Windows Server 2008 R2, 2012, 2016,2019, For Linux 2.6.x to 4.x.
CompatibilityPCI-e x4/x8/x16 slot.
SpecificationsChipset: For ASMedia ASM1166. Interface: PCI Express 4x. Port Number: 6 Port SATA 3.0. Dimension: 80*22 mm.
Features6 AHCI SATA III (6 Gbps) ports through PCI Express x4. Fully compliant with SATA 3.0 specifications and backward compatible with SATA I/II (1.5/3.0Gbps). Compliant with PCI Express 3.0 standards. Port Multiplier Command-based switching supported. For Natively supported single chipset design. Support For Native Command Queuing (NCQ). Support For SSC for both PCIe and SATA. Includes Low Profile/Half-Height installation bracket.
Dimensions80*22 mm
Weight160g / 0.35lb.
Package Contents1x 6 Ports SATA 3.0 PCI-e Expansion Card.

Questions about this item

How do I install this card in a low-profile case and which slot mistake should I avoid?

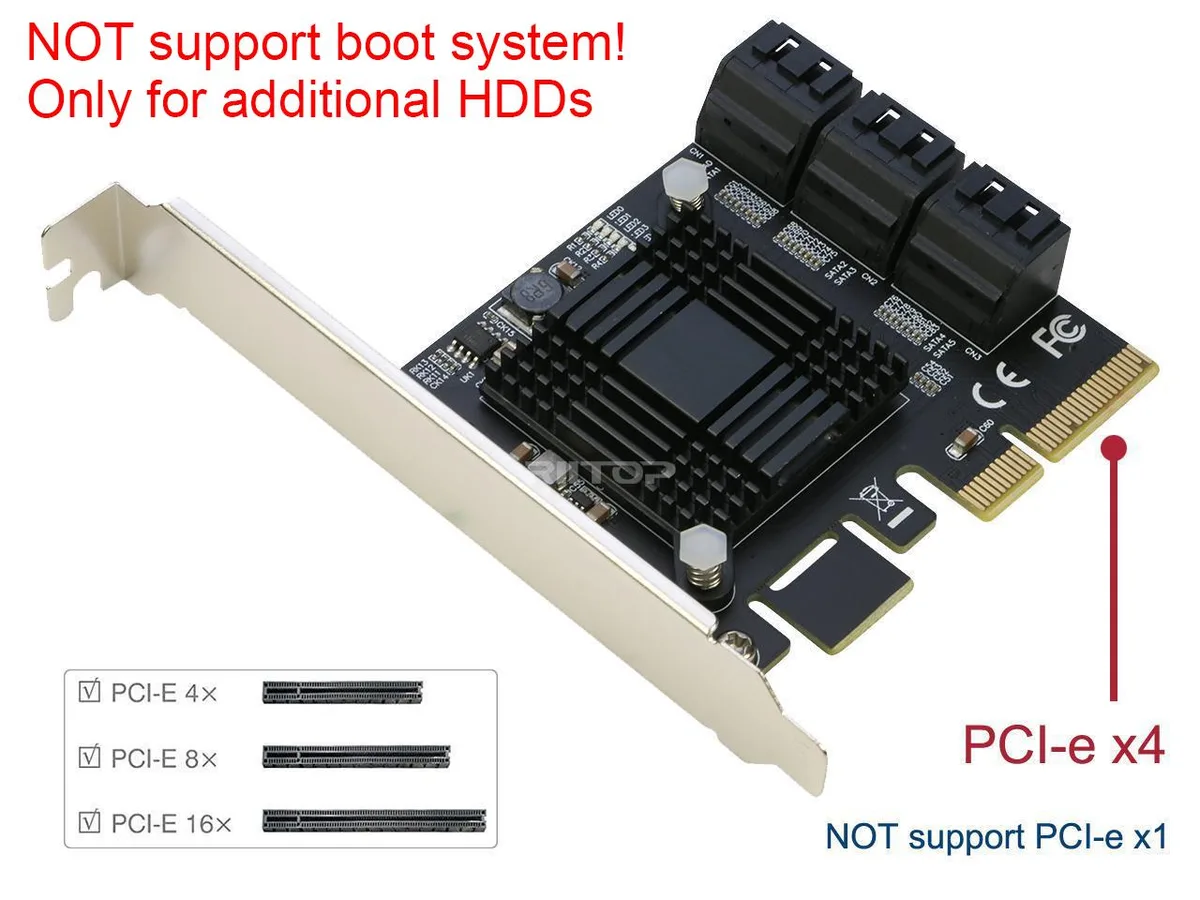

Fit the included half-height bracket, insert the card into any PCIe x4, x8 or x16 slot, and secure it; do not use a PCIe x1 slot because the ASM1166 controller requires four lanes.

What ongoing maintenance will the six SATA ports and the ASM1166 chipset need?

No scheduled maintenance is required; keep the card dust-free and ensure the SATA cables stay firmly seated, as the chipset has no user-serviceable parts.

What throughput limit appears first when all six SATA 3.0 drives run sustained transfers?

The PCIe 3.0 x4 host link caps aggregate bandwidth at roughly 4 GB/s, so simultaneous heavy traffic on all six 6 Gbps ports will hit that ceiling before the individual SATA links saturate.
