RIITOP PCIe x1 to Dual PCI Expansion Card with 60cm USB 3.0 Cable
Converts one PCIe x1 slot into two 32-bit 33 MHz PCI slots using an Asmedia 1083 bridge and a 60 cm USB 3.0 cable
- TypePCI Express to PCI Card
- External USB PortsPCI
- StandardOne PCI Express x1 Slot convert to two PCI Slots.
- Operating Systems SupportedWindows 2000/NT/2003/XP/Vista/7/8/10, Linux System.
- FeaturesType: PCIe 1x to PCI Dual Slot Adapter Converter Card. Expan
- Weight300g / 0.66 lb.
- Adds two legacy PCI slots from a single x1 lane
- 60 cm USB 3.0 cable allows flexible board placement
- Asmedia 1083 chipset bridges PCIe 1.0 to PCI 2.3

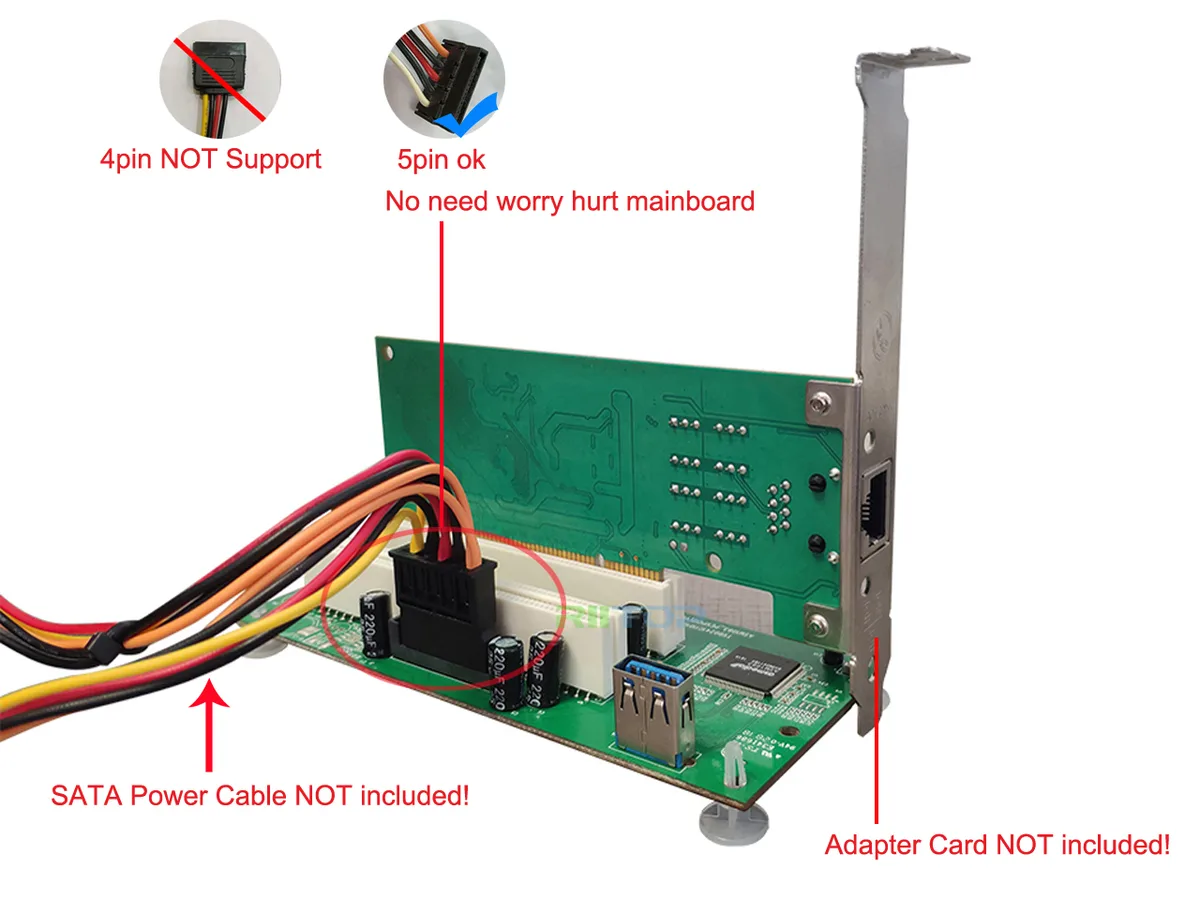

- SATA 5-pin power connector delivers 3.3 V, 5 V and 12 V rails
- Works in x1, x4, x8 or x16 slots under Windows and Linux
PCIe x1 to Dual PCI Expansion Card

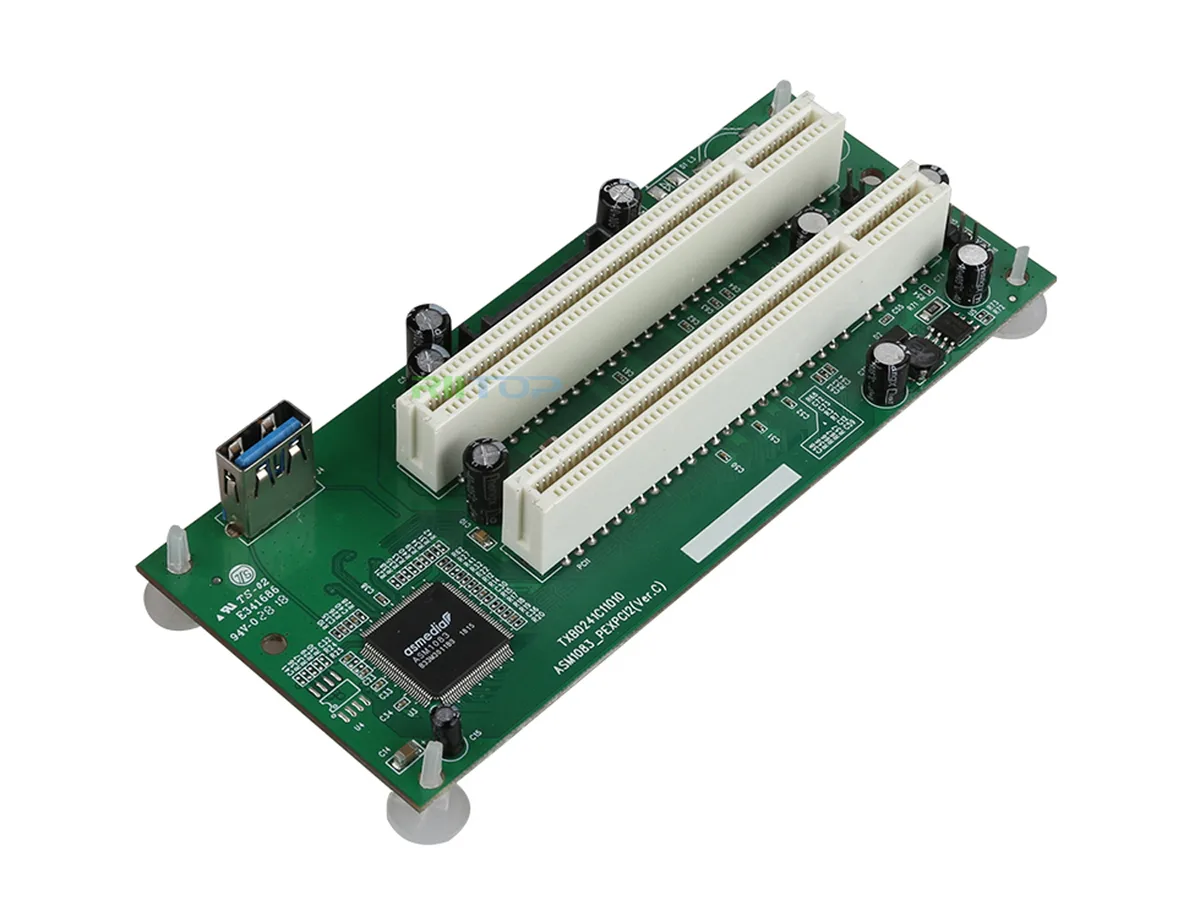

The RIITOP adapter converts a single PCI Express x1 slot into two 32-bit 33 MHz PCI slots. A 60 cm USB 3.0 cable links the two boards and the Asmedia 1083 chipset handles the bridge. The card draws power from a 5-pin SATA connector and fits any PCIe x1, x4, x8 or x16 slot.
Builders adding legacy PCI cards to modern boards
This card suits users who need to install older PCI sound cards, capture cards or I/O controllers in a system that only offers PCIe slots. It is not for buyers who want more PCIe lanes or who need to power devices that require a 4-pin SATA connector.
Asmedia 1083 bridge chip
The chipset provides a PCI-SIG compliant PCI Express 1.0 to PCI 2.3 bridge and supports 3.3 V, 5 V and 12 V rails at the rated currents. Windows 2000 through 10 and Linux are supported.
Highlights
- Adds two legacy PCI slots from a single x1 lane
- 60 cm USB 3.0 cable allows flexible board placement
- Asmedia 1083 chipset bridges PCIe 1.0 to PCI 2.3
- SATA 5-pin power connector delivers 3.3 V, 5 V and 12 V rails
- Works in x1, x4, x8 or x16 slots under Windows and Linux
Specifications
| Brand | RIITOP |
|---|---|
| Model | 2 Ports |
| Type | PCI Express to PCI Card |
| External USB Ports | PCI |
| Standard | One PCI Express x1 Slot convert to two PCI Slots. |
| Operating Systems Supported | Windows 2000/NT/2003/XP/Vista/7/8/10, Linux System. |
| Features | Type: PCIe 1x to PCI Dual Slot Adapter Converter Card. Expansion by USB 3.0 Cable, length 60cm. Compliant to PCI-E 1.0 standard. Compliant to PCI 2.3 standard. Chipset: Asmedia 1083. Fully compliant with PCI-SIG PCI Express to PCI Bridge. Suitable for: PCI-E 1X/4X/8X/16X port. 1 x 32bit 33M PCI slot. Support 3.3V/1A, 3.3Vaux/100mA, 5V/5A and 12V/500mA. 5 Pin SATA Power connector must be connected(no worry about hurt your mainboard), and 4-PIN SATA connector is NOT support! Support: Windows 2000/NT/2003/XP/Vista/7/8, Linux system. |
| Weight | 300g / 0.66 lb. |
| Package Contents | 1x PCI-e Express 1x expansion card. 1x USB 3.0 Cable 60cm (Black / Blue color, send by random) 1x 2 PCI Slot board. |
Questions about this item
What comes in the box and do I need to buy a SATA power cable separately?
The package includes the PCIe x1 expansion card, a 60cm USB 3.0 cable, and the dual PCI slot board. A 5-pin SATA power connector must be connected; a 4-pin SATA connector is not supported.
Which PCI Express slot widths does this adapter accept?
The card fits PCIe 1x, 4x, 8x, or 16x slots and converts the single lane into two 32-bit 33 MHz PCI slots via the Asmedia 1083 bridge chip.
What bandwidth can legacy PCI cards expect when installed through this adapter?
The bridge complies with PCIe 1.0 and PCI 2.3 standards, so each PCI slot operates at up to 32-bit 33 MHz within the single PCIe 1.0 lane provided by the host slot.
