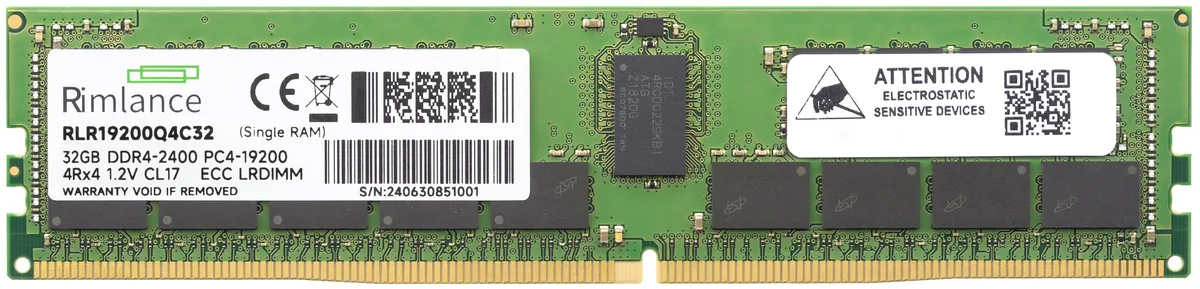

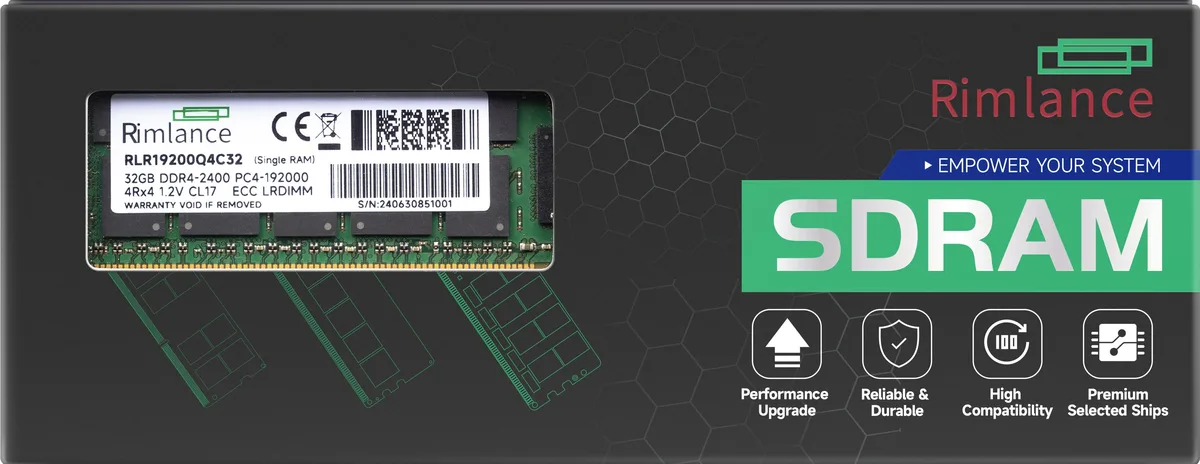

Green rectangular circuit board with gold edge connectors and black memory chips on both sides

RIMLANCE

RIMLANCE 32GB DDR4 2400 LRDIMM 4Rx4 CL17

SKU CH-YC93-0J6W6

32 GB DDR4 LRDIMM with ECC, CL17 latency and 2400 MHz speed for server workloads

  • Capacity32GB
  • Type288-Pin DDR4 SDRAM
  • SpeedDDR4 2400 (PC4 19200)
  • CAS LatencyCL17
  • ECCYes
  • Buffered/RegisteredRegistered
  • 32 GB capacity supports memory-intensive server workloads
  • LRDIMM 4Rx4 architecture enables high-density configurations
  • ECC protection detects and corrects data errors
  • 2400 MHz DDR4 speed delivers 19200 MB/s bandwidth
  • 2 V operation reduces power draw per module

32 GB DDR4 LRDIMM for servers

This 32 GB DDR4 load-reduced DIMM runs at 2400 MHz with CL17 latency. It uses a 4Rx4 registered design and operates at 1.2 V. The module targets high-density server and data-centre deployments.

ECC and registered buffering change reliability

On-board ECC corrects single-bit errors to protect data integrity. Registered signalling reduces electrical load on the memory controller. The load-reduced architecture further buffers address and command lines for stable operation at higher capacities.

DDR4 2400 interface limits maximum throughput

The PC4-19200 standard caps peak bandwidth at the rated 2400 MT/s. Systems that only support lower DDR4 speeds will downclock the module automatically. Mixed populations with different ranks or speeds may force reduced frequencies or disable the module entirely.

Highlights

  • 32 GB capacity supports memory-intensive server workloads
  • LRDIMM 4Rx4 architecture enables high-density configurations
  • ECC protection detects and corrects data errors
  • 2400 MHz DDR4 speed delivers 19200 MB/s bandwidth
  • 2 V operation reduces power draw per module

Specifications

BrandRIMLANCE
ModelRLR19200Q4C32
Capacity32GB
Type288-Pin DDR4 SDRAM
SpeedDDR4 2400 (PC4 19200)
CAS LatencyCL17
ECCYes
Buffered/RegisteredRegistered
Rank4Rx4
ChipsetMajor Brand Chipset

Questions about this item

Will the 4Rx4 LRDIMM organisation require any special maintenance or replacement cycle compared to standard RDIMMs?

No special maintenance is required; the 4Rx4 LRDIMM is a solid-state module with no moving parts, so replacement is only needed if a hardware fault occurs.

What limit appears first when the module runs continuously at its 2400MHz PC4-19200 rating?

The first limit is the memory controller's maximum supported rank count and total capacity per channel, which caps how many 32GB 4Rx4 modules can be populated.

How much heat and power does the 1.2V DDR4 LRDIMM produce during all-day operation?

At 1.2V the module draws low power typical for DDR4 LRDIMMs, generating modest heat that standard server airflow handles without extra cooling.
