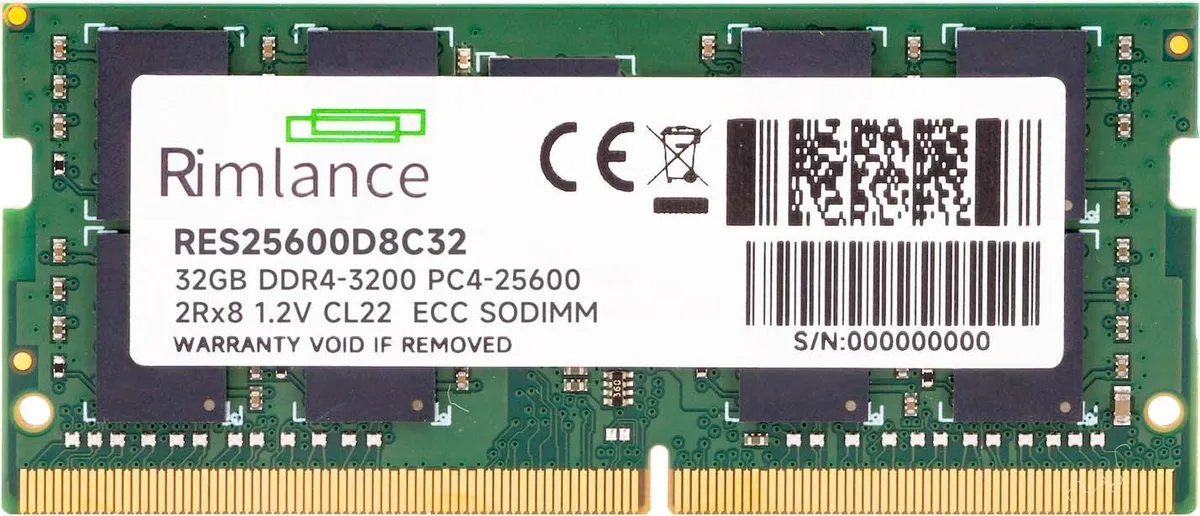

Green PCB memory module with black chips and gold contacts

RIMLANCE

RIMLANCE RES25600D8C32 32GB DDR4 3200 ECC SODIMM 2Rx8

SKU CH-8TMJ-6M8SS

32 GB DDR4 3200 ECC SODIMM with CL22 latency for server data integrity

  • Capacity32GB
  • Type288-Pin DDR4 SDRAM
  • SpeedDDR4 3200 (PC4 25600)
  • CAS LatencyCL22
  • ECCYes
  • Buffered/RegisteredUnbuffered
  • ECC safeguards data integrity in critical workloads
  • 32 GB capacity handles heavy multitasking
  • DDR4 3200 speed accelerates data throughput
  • 2 V operation reduces power draw
  • 2Rx8 dual-rank layout boosts memory density

Server Memory Upgrade

The RIMLANCE RES25600D8C32 is a 32GB DDR4 3200 ECC SODIMM module built for servers and workstations that require error-correcting memory. It operates at 1.2V with a CAS latency of 22 and uses a 2Rx8 rank configuration. The module installs in 288-pin DDR4 slots and carries PC4-25600 speed rating.

Build Quality and Connectors

This unbuffered SODIMM uses major-brand chipsets and undergoes testing for mission-critical workloads. The 288-pin edge connector fits standard DDR4 SODIMM sockets found in compatible NAS units, servers and workstations. ECC functionality detects and corrects single-bit errors automatically to maintain data integrity during continuous operation.

Upgrade Path and Value

The 32GB capacity replaces lower-density modules to increase total system memory without adding more sticks. It suits administrators who need ECC protection but cannot use registered DIMMs due to platform constraints. The jump is worthwhile when current memory limits multitasking or virtualisation performance and the system accepts unbuffered ECC SODIMMs.

Highlights

  • ECC safeguards data integrity in critical workloads
  • 32 GB capacity handles heavy multitasking
  • DDR4 3200 speed accelerates data throughput
  • 2 V operation reduces power draw
  • 2Rx8 dual-rank layout boosts memory density

Specifications

BrandRIMLANCE
ModelRES25600D8C32
Capacity32GB
Type288-Pin DDR4 SDRAM
SpeedDDR4 3200 (PC4 25600)
CAS LatencyCL22
ECCYes
Buffered/RegisteredUnbuffered
Rank2Rx8
ChipsetMajor Brand Chipset

Questions about this item

Does this DDR4 3200 module run at the full 3200 MT/s speed or is it capped by the CL22 latency?

The module is rated for DDR4 3200 (PC4-25600) with CL22 timing; the CAS latency is part of the rated specification, not a separate cap on the transfer rate.

Will the 288-pin form factor fit a standard SODIMM slot in my NAS or server?

The specification lists a 288-pin DDR4 SDRAM design, which is the standard pin count for DDR4 SODIMM modules used in compatible NAS and server platforms.

What is the correct way to seat this unbuffered ECC SODIMM so the system recognises the full 32 GB?

Align the notch with the slot key, insert the module at the recommended angle, then press firmly until the side latches click; the most common mistake is stopping before both latches engage.
